Country Farmhouse Plan with Private Master Suite and Angled Drive-through Garage

Plan 70638MK

  • 3,934

    Heated s.f.

  • 6

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

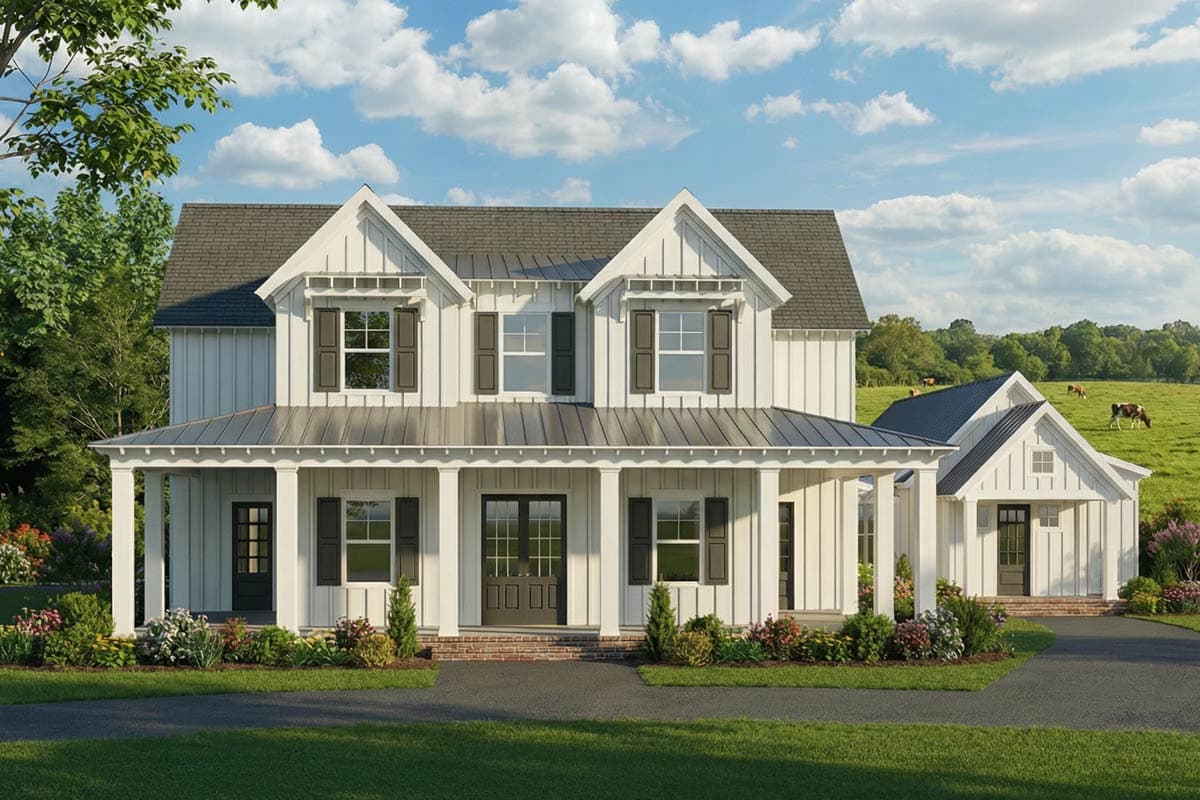

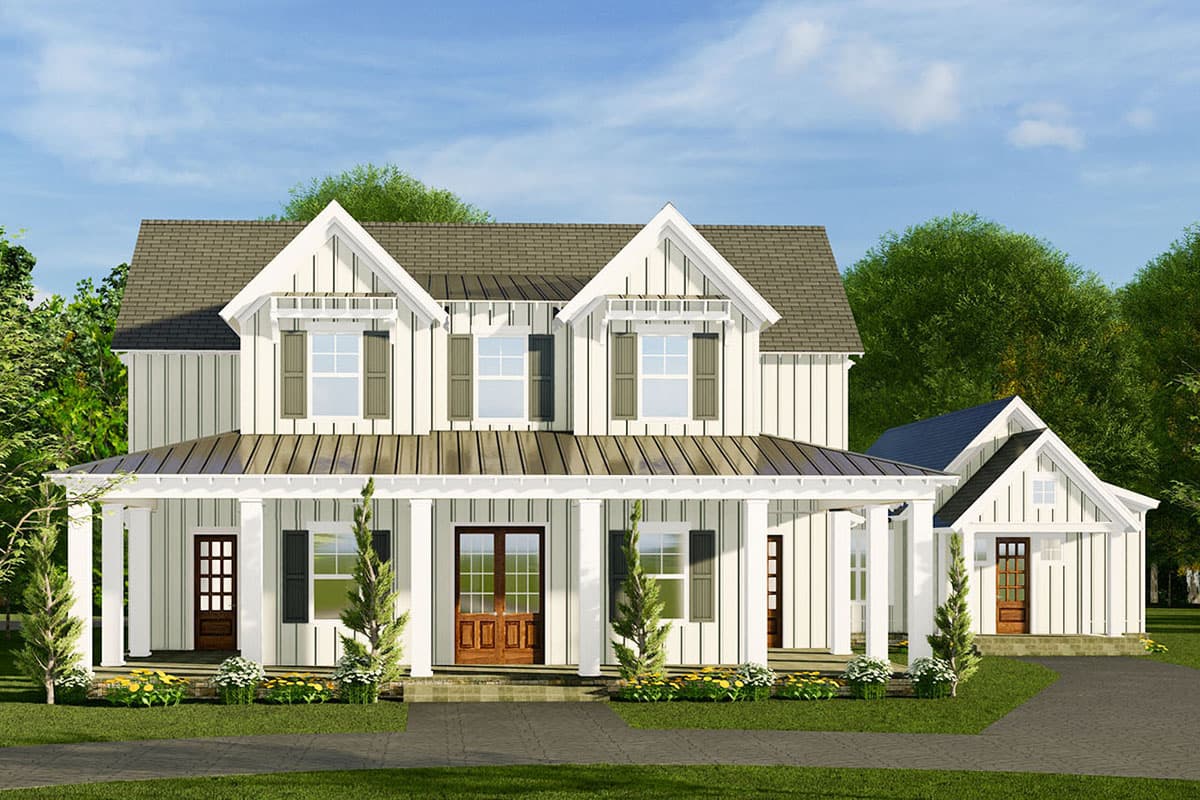

  • An 8'-deep porch wraps around the front of this stunning country farmhouse plan. Board and batten siding, standing seam metal roofing over the porch and between the matching gables and a cute master suite with its own porch and entry give this home great curb appeal.
  • There are multiple entry points to the home: French doors to the foyer open to a study/parlor, the guest room from the left portion of the wraparound porch and the kitchen from the right portion, the great room from the 10'-deep back porch and the master suite from its private porch.
  • You'll enjoy sitting in front of the fireplace in the great room with 2-story ceilings. It is open tot he kitchen and has access to the guest bedroom.
  • The master suite is set off from the main portion of the house and is adjacent to the over-sized laundry room. Barn doors open to the bath.
  • Upstairs, a balanced floor plan gives you two bedrooms on each side of the stairs with each pair sharing a Jack and Jill bath. A roomy loft area, complete with an overlook to the great room below, is conveniently located in the center of the floor.

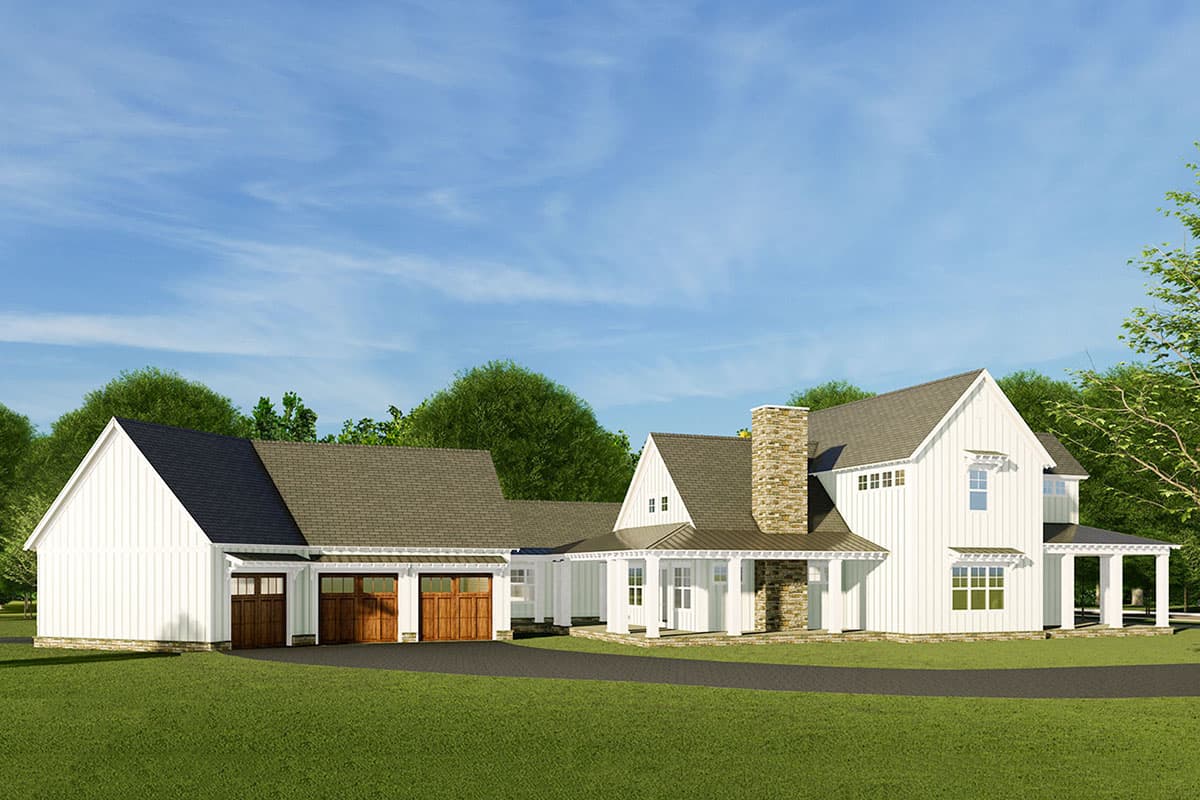

  • A 3-car garage is attached to the home in back. It gives you bays with separate garage doors and a third bay, angled off the back, giving you drive-through access.

Each plan set includes the following:

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

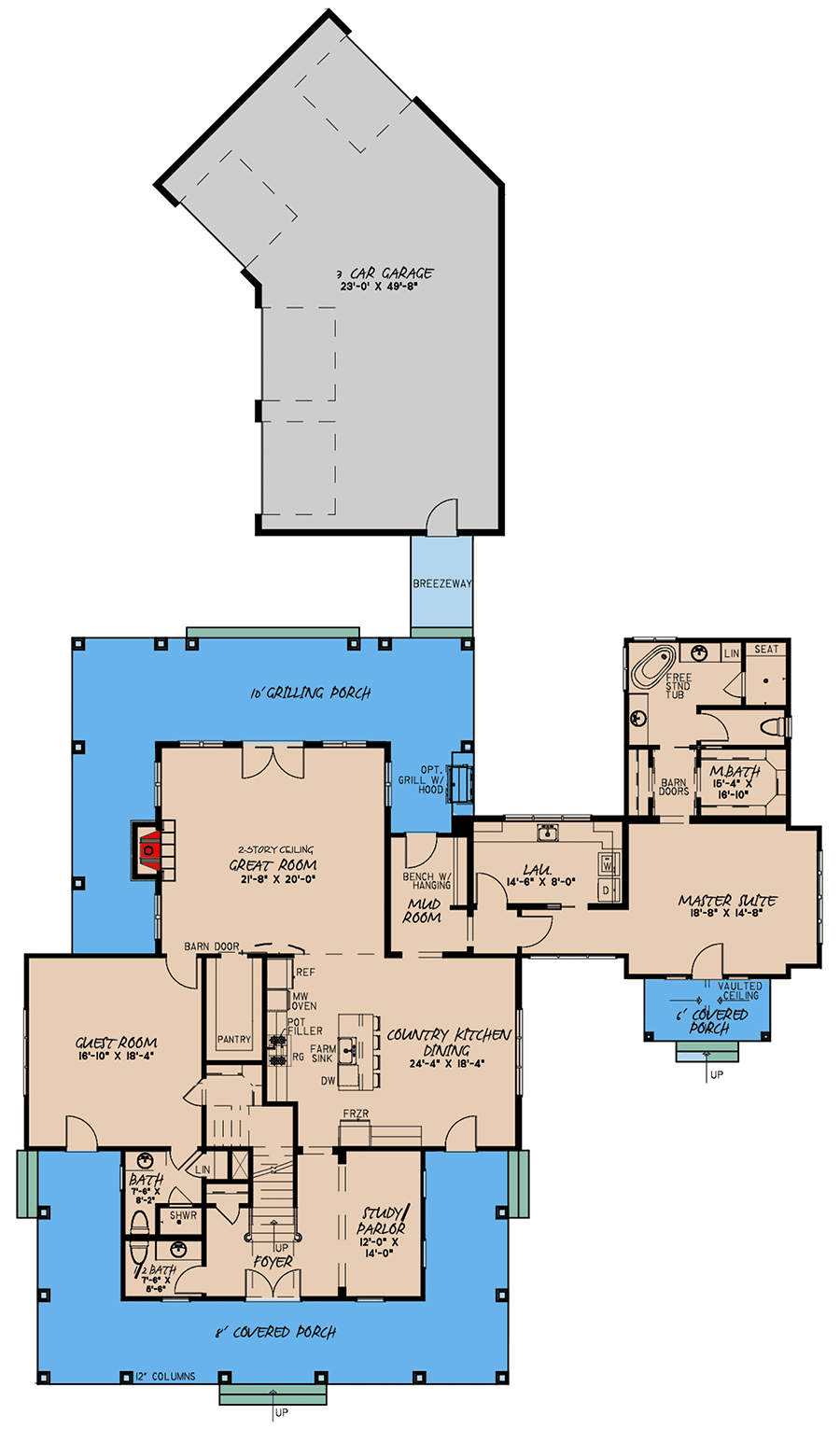

Country Farmhouse Plan with Private Master Suite and Angled Drive-through Garage - 70638MK floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

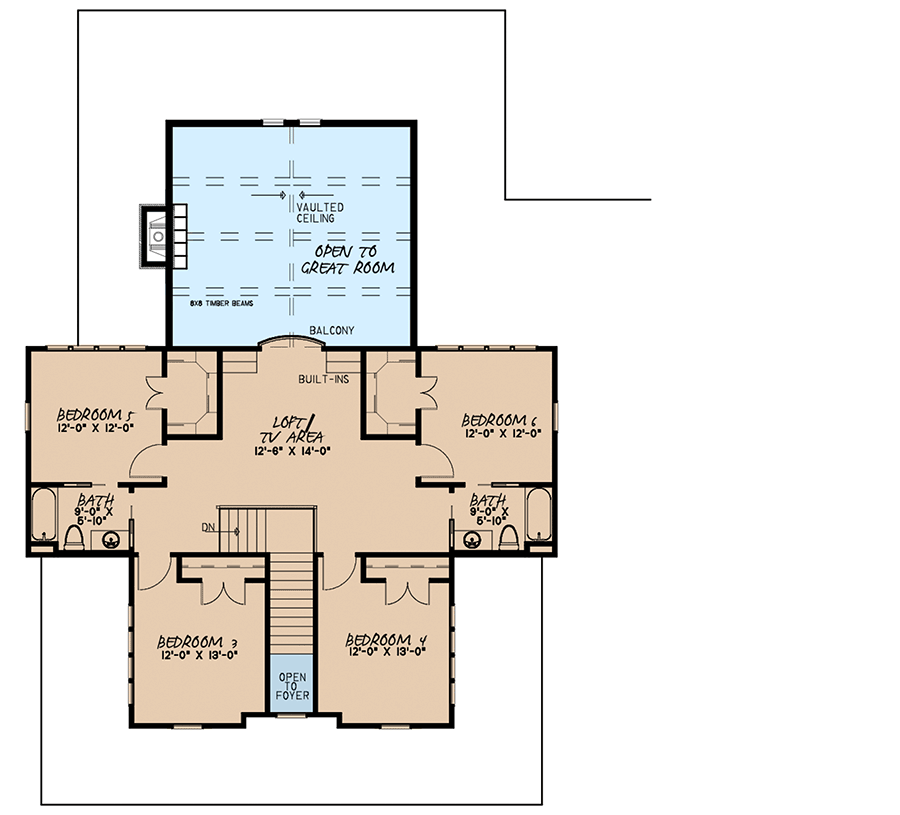

Country Farmhouse Plan with Private Master Suite and Angled Drive-through Garage - 70638MK floor plan - 2nd Floor

Country Farmhouse Plan with Private Master Suite and Angled Drive-through Garage

  • 3,934

    Heated s.f.

  • 6

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,934 sq. ft.
  • 1st Floor: 2,664 sq. ft.
  • 2nd Floor: 1,270 sq. ft.

Dimensions

  • Width: 77' 0"
  • Depth: 132' 11"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1151 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Walkout, Basement, Daylight

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
All house plans are copyright ©2024 by the architects and designers represented on our web site

Country Farmhouse Plan with Private Master Suite and Angled Drive-through Garage

  • 3,934

    Heated s.f.

  • 6

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Country Farmhouse Plan with Private Master Suite and Angled Drive-through Garage

  • 3,934

    Heated s.f.

  • 6

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 3,934 sq. ft.
  • 1st Floor: 2,664 sq. ft.
  • 2nd Floor: 1,270 sq. ft.

Dimensions

  • Width: 77' 0"
  • Depth: 132' 11"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1151 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Walkout, Basement, Daylight

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12

    Main Level

    2nd Floor
