Country Home Plan with Metal Roof and Clean Trim Lines

Plan 710062BTZ

  • 2,545

    Heated s.f.

  • 3-4

    Beds

  • 4

    Baths

  • 2

    Stories

  • 2

    Cars

  • Metal roofing, multiple sidings, clean trim lines and a warm front porch combine to give this 4-bed modern farmhouse plan great curb appeal.
  • The lower level is open and is oriented to take full advantage of the out-of-doors.
  • The kitchen with its huge island anchors the living space. This level contains the fully appointed master suite which features a walk-in closet with access to the main-level laundry room, as well as a flexible space that is perfect for guests or a work from home occupant.
  • The upper level provides for two more bedroom suite, each with its own bath and a large bonus room that has many functions.
  • Related Plans: Get an alternate modern farmhouse exterior with house plan 710061BTZ. Get alternate exteriors and slightly different floor plans with house plans 710105BTZ and 710072BTZ.

The plans include the following:

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

          Architectural or Engineering Stamp
          Site Plan
          Mechanical Drawings (location of heating and air equipment and duct work)
          Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
          Energy calculations

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

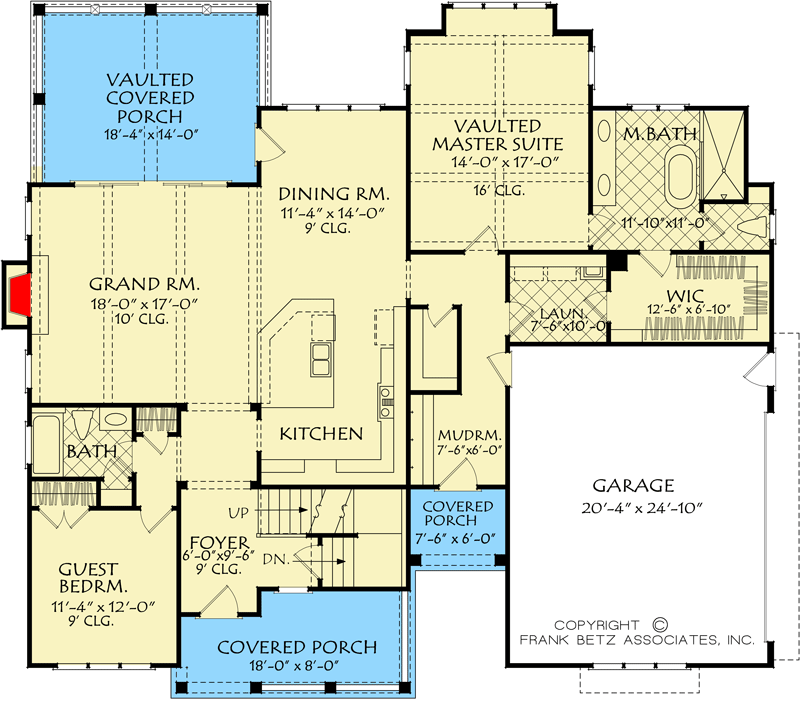

Country Home Plan with Metal Roof and Clean Trim Lines - 710062BTZ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

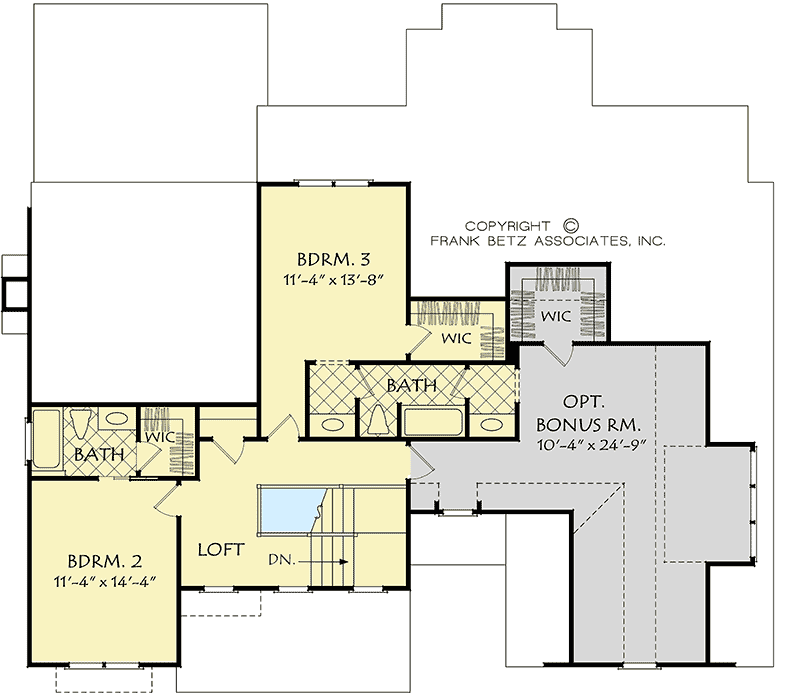

Country Home Plan with Metal Roof and Clean Trim Lines - 710062BTZ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,545 sq. ft.
  • 1st Floor: 1,833 sq. ft.
  • 2nd Floor: 712 sq. ft.
  • Bonus: 493 sq. ft.
  • Basement Unfinished: 1,833 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Crawl, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 58' 6"
  • Depth: 52' 0"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 529 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Country Home Plan with Metal Roof and Clean Trim Lines

  • 2,545

    Heated s.f.

  • 3 - 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,375
  • 8 Sets $1,475
  • PDF - Unlimited Build $1,620
  • CAD - Unlimited Build $3,090
  • View all purchase option online

About This Plan

  • Metal roofing, multiple sidings, clean trim lines and a warm front porch combine to give this 4-bed modern farmhouse plan great curb appeal.
  • The lower level is open and is oriented to take full advantage of the out-of-doors.
  • The kitchen with its huge island anchors the living space. This level contains the fully appointed master suite which features a walk-in closet with access to the main-level laundry room, as well as a flexible space that is perfect for guests or a work from home occupant.
  • The upper level provides for two more bedroom suite, each with its own bath and a large bonus room that has many functions.
  • Related Plans: Get an alternate modern farmhouse exterior with house plan 710061BTZ. Get alternate exteriors and slightly different floor plans with house plans 710105BTZ and 710072BTZ.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,545 sq. ft.
  • 1st Floor: 1,833 sq. ft.
  • 2nd Floor: 712 sq. ft.
  • Bonus: 493 sq. ft.
  • Basement Unfinished: 1,833 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Crawl, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 58' 6"
  • Depth: 52' 0"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 529 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
Plan 710062BTZ
View this and more for this plan by visiting www.architechtecturaldesigns.com/710062BTZ
|
