Plan 9842SW
Country House Plan with Wrap-Around Porch
Heated S.F.
2,432
Beds
2
Baths
3
Stories
2
Floor Plan

Plan 9842SW

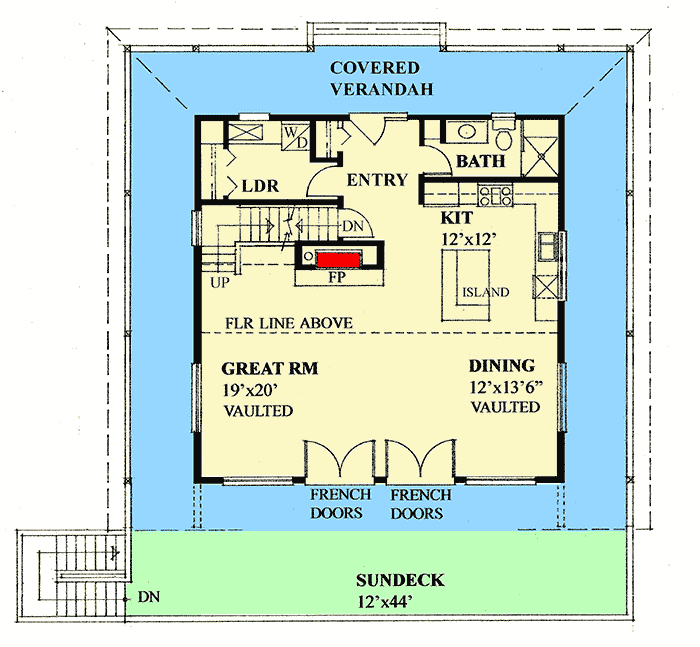

Main Level
slide image 0

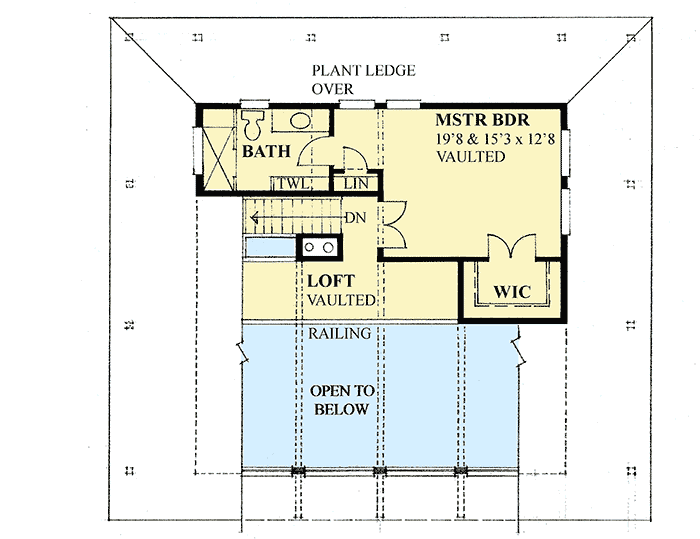

2nd Floor
slide image 1

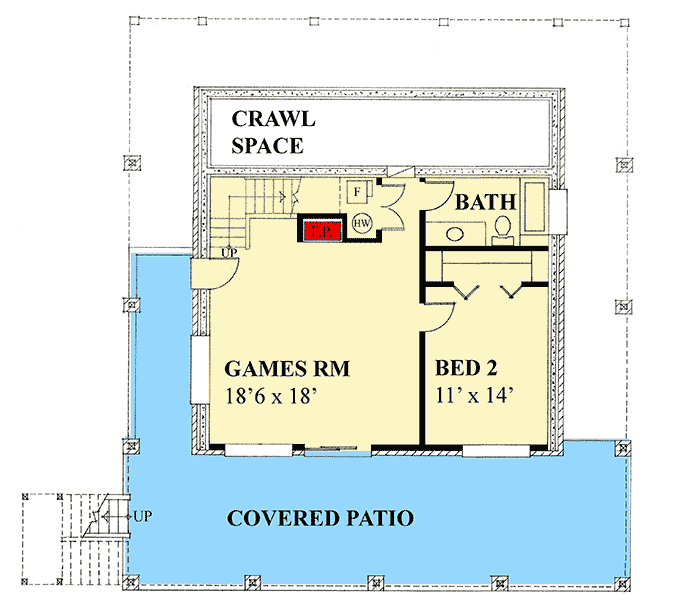

Lower Level
slide image 2

Plan 9842SW

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Lower Level
floor plan image Lower Level
Plan Details
  • This Country house plan boasts separated bedrooms, one in the walk-out basement with a three-piece bathroom and games room heated with a gas fireplace and the vaulted Master Bedroom suite on the totally dedicated upper level with an interior balcony over looking the Great Room below.
  • The two-story vaulted Great Room also boasts a gas fireplace, exposed ceiling beams and a two-story glass rear facing wall opening onto the deck through two sets of French doors.
  • This classic compact Country exterior is adorned with stone, glass railings and appealing sheet metal roofing.
  • Related Plan: Check out house plan 9844SW for an alternate floor plan layout and different exterior.
What's Included
  • Cover sheet with rendering
  • General notes and specifications
  • Foundation plan
  • Fully dimensioned floor plan - windows are called out as generic sizes
  • Structural floor/roof information either on the floor plans or separate framing plans for more complex designs
  • Electrical
  • Cross sections
  • Details as required

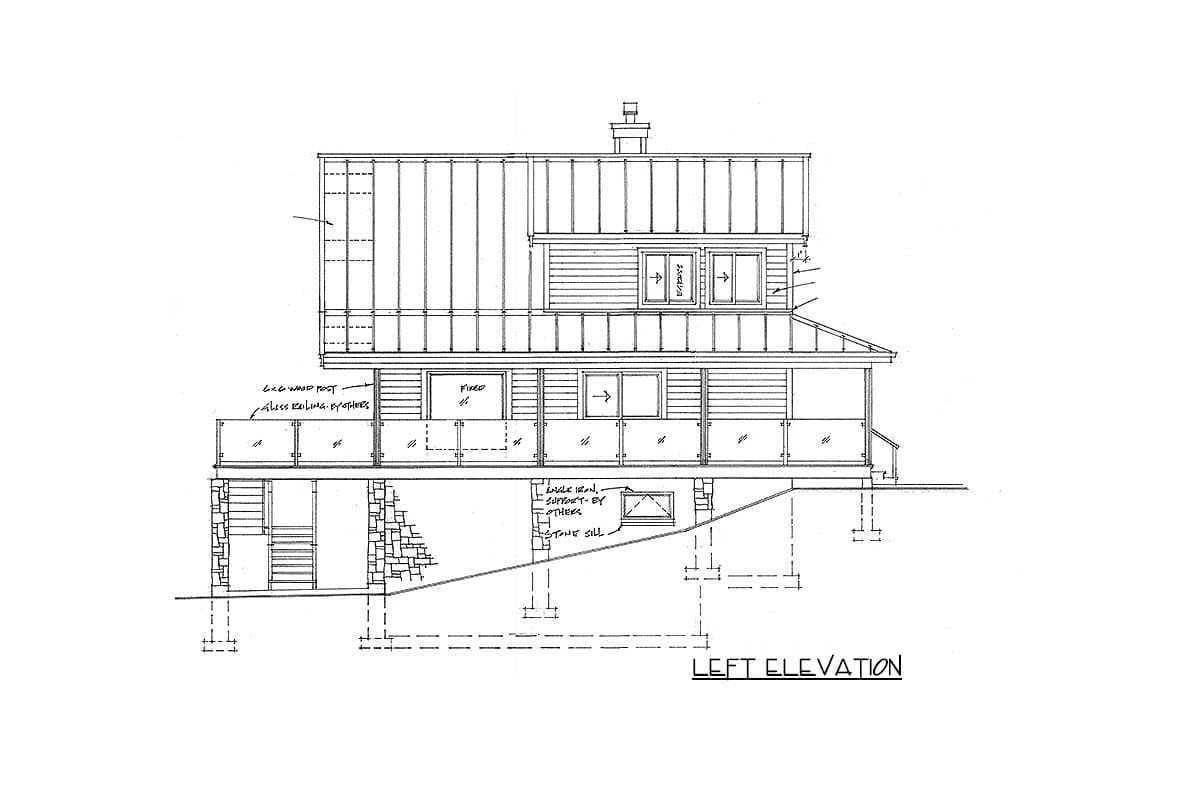

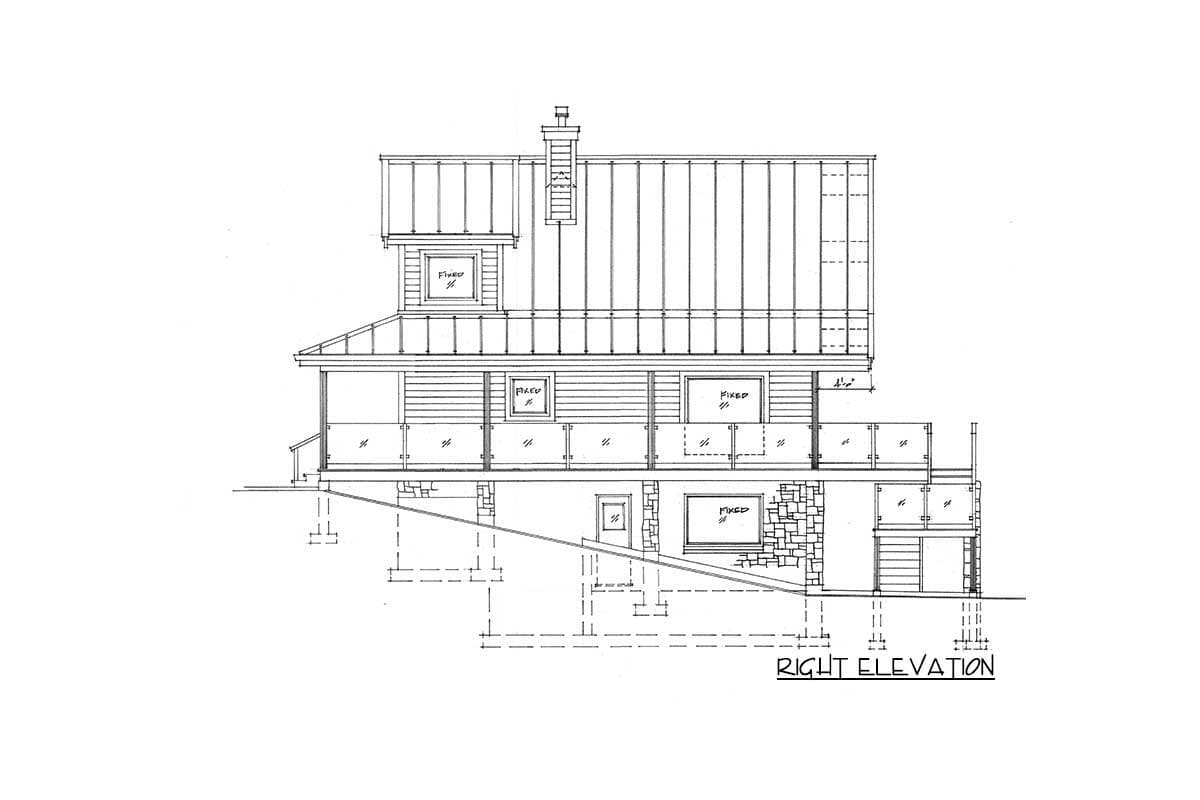

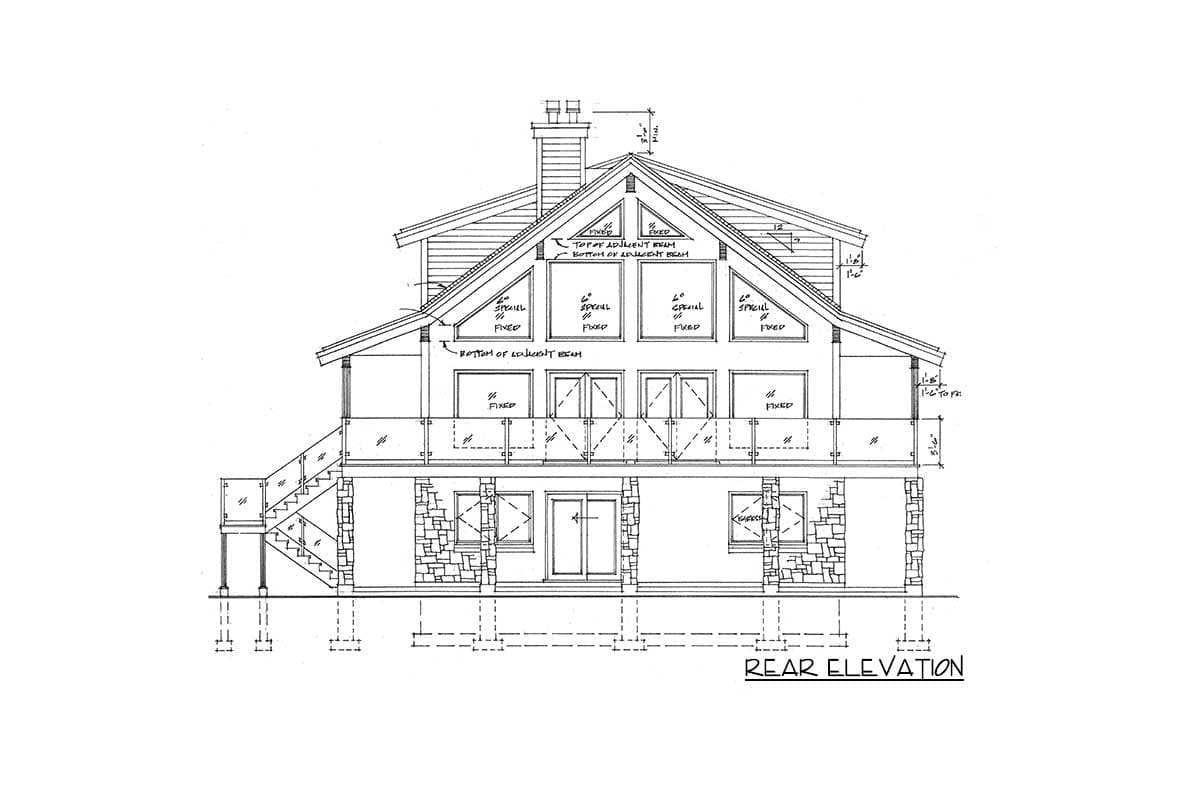

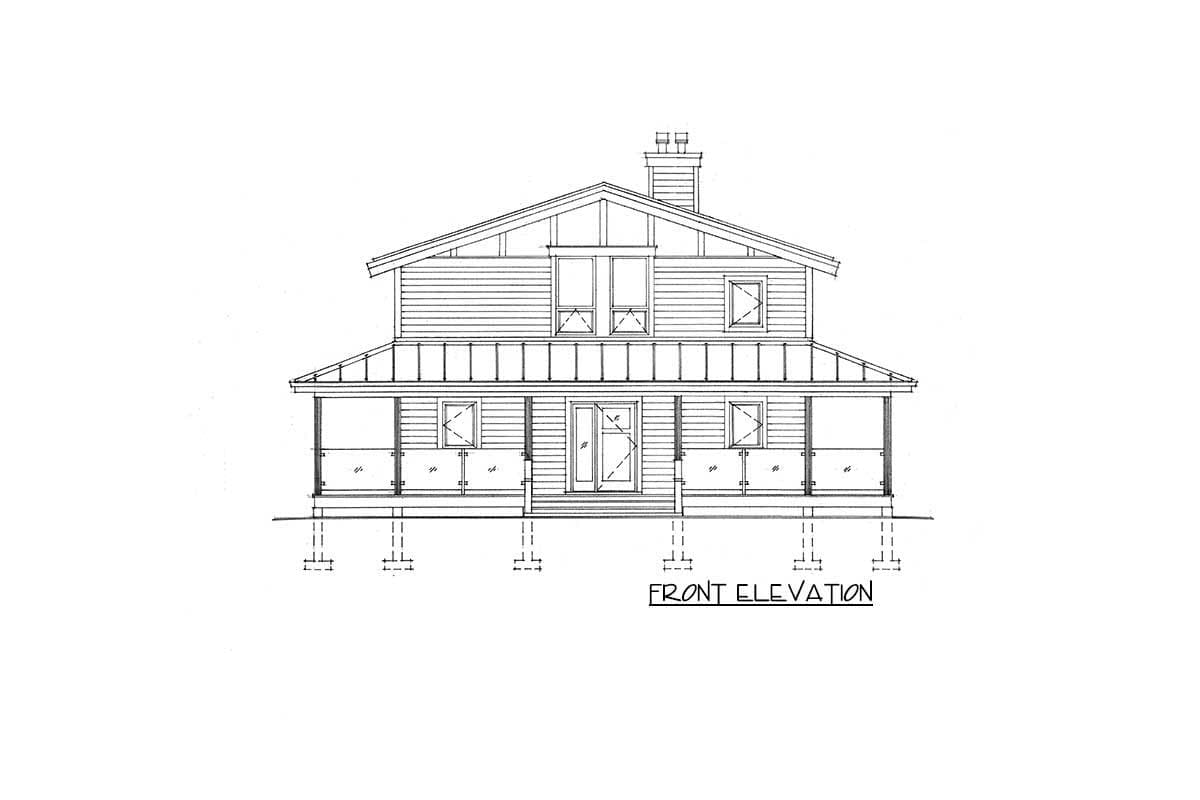

  • Elevations
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
  • Interior Cabinet Elevations or Window Schedules
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,432 sq. ft.

Lower Level

800 sq. ft.

1st Floor

1,024 sq. ft.

2nd Floor

608 sq. ft.

Porch, Combined

648 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

3

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

38' 0"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Country

Mountain

Special Features

Game/Rec Room

Laundry - Upstairs

Master Suite - 2nd Floor

Two Story Great Room

Wrap Around Porch

Plan Collections

Canadian House Plans

Lake House Plans
