Plan 790124GLV Country Ranch Plan with Large Formal Dining Room

Country Ranch Plan with Large Formal Dining Room

Plan 790124GLV

  • 2,545

    Heated s.f.

  • 2-3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • Board and batten siding delivers old-world charm to the exterior of this Country Ranch home plan.
  • The spacious great room features 12' ceilings and an oversized sliding door to bring the outside indoors. Easily move into the kitchen and discover an island with an eating bar, along with a nearby pantry.
  • Four windows line the rear wall of the dining room, which provides enough space for an oversized table and a wet bar for entertaining.
  • The bathrooms are situated between the bedrooms to provide additional privacy.
  • Extra space in the 3-car garage is perfect for storage and a mudroom just inside serves as the ideal drop zone.

Plans include the following details:

  • Cover sheet with notes
  • Elevations
  • Basement and foundation plan and typical wall section
  • Detailed floor plans
  • Sections
  • Roof plan
  • Details
  • Reinforcing notes
These items are NOT included:
  • Electrical Plans
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

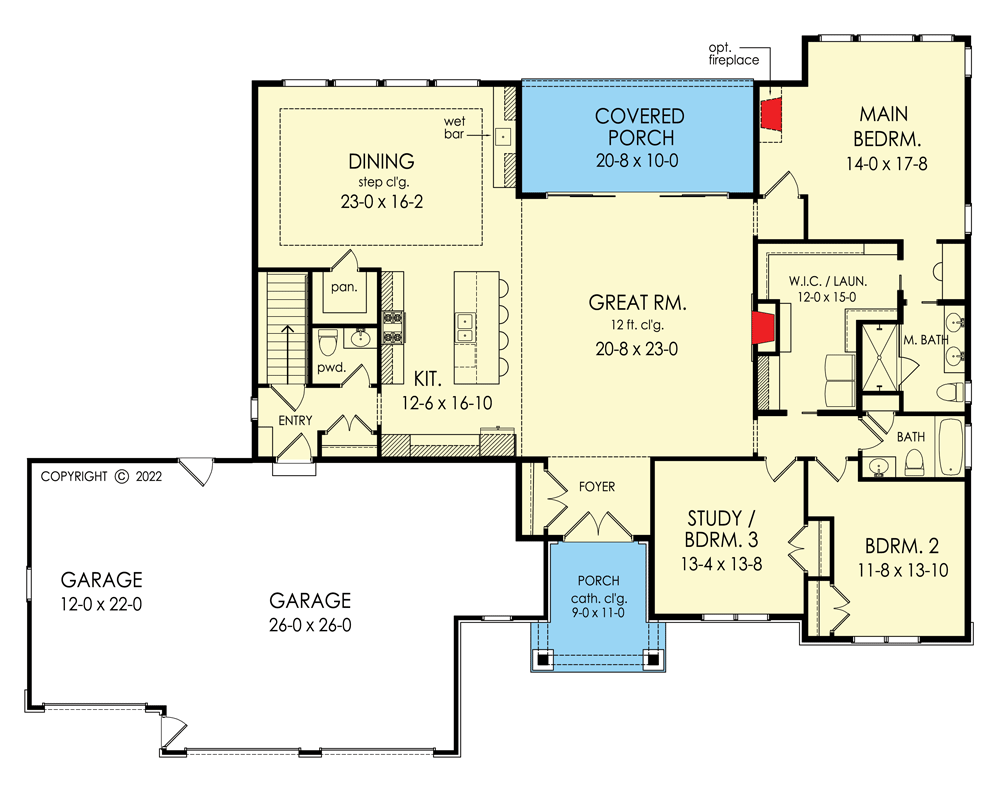

Country Ranch Plan with Large Formal Dining Room - 790124GLV floor plan - Main Level

Plan details

Country Ranch Plan with Large Formal Dining Room

  • 2,545

    Heated s.f.

  • 2-3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • Study Set - Digital $1,000
  • PDF - Single-Build $1,850
  • 5 Sets $1,900
  • CAD - Single-Build $3,700
  • CAD - Unlimited Build $4,700
  • View all purchase option online

About This Plan

  • Board and batten siding delivers old-world charm to the exterior of this Country Ranch home plan.
  • The spacious great room features 12' ceilings and an oversized sliding door to bring the outside indoors. Easily move into the kitchen and discover an island with an eating bar, along with a nearby pantry.
  • Four windows line the rear wall of the dining room, which provides enough space for an oversized table and a wet bar for entertaining.
  • The bathrooms are situated between the bedrooms to provide additional privacy.
  • Extra space in the 3-car garage is perfect for storage and a mudroom just inside serves as the ideal drop zone.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,545 sq. ft.
  • 1st Floor: 2,545 sq. ft.
  • Porch, Rear: 206 sq. ft.
  • Porch, Front: 115 sq. ft.
  • Basement Unfinished: 2,323 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 84' 0"
  • Depth: 64' 0"
  • Max ridge height: 26' 0"

Garage

  • Type: Attached
  • Area: 1047 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 0' 9"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Stick And Truss
