Country Ranch Plan with Optional Unfinished Basement

Plan 135142GRA

  • 1,602

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • The low maintenance exterior of this Country Ranch plan offers classic curb appeal, complete with a forward-facing, double garage and front porch.
  • A cathedral ceiling crowns the living room with a fireplace anchoring the left wall. Minimal walls in the shared living spaces create the open concept layout many desire.
  • Move easily in and around the island kitchen. A window above the double-bowl sink provides views onto the partially-covered patio and beyond.
  • The central living space serves as a barrier between the master bedroom and secondary bedrooms. The master bathroom features a walk-in closet that doubles as a safe room and a shortcut to the laundry / mudroom through.
  • The extra-deep, double garage provides enough space for a shop area with a workbench.

  • All elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

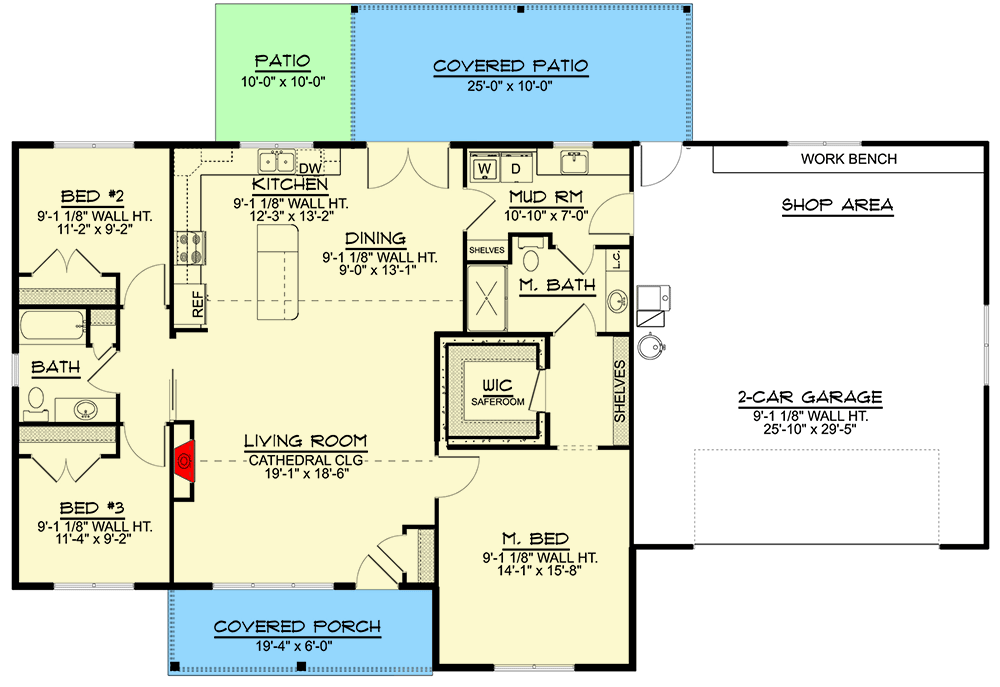

Country Ranch Plan with Optional Unfinished Basement - 135142GRA floor plan - Main Level

Unfinished Basement

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

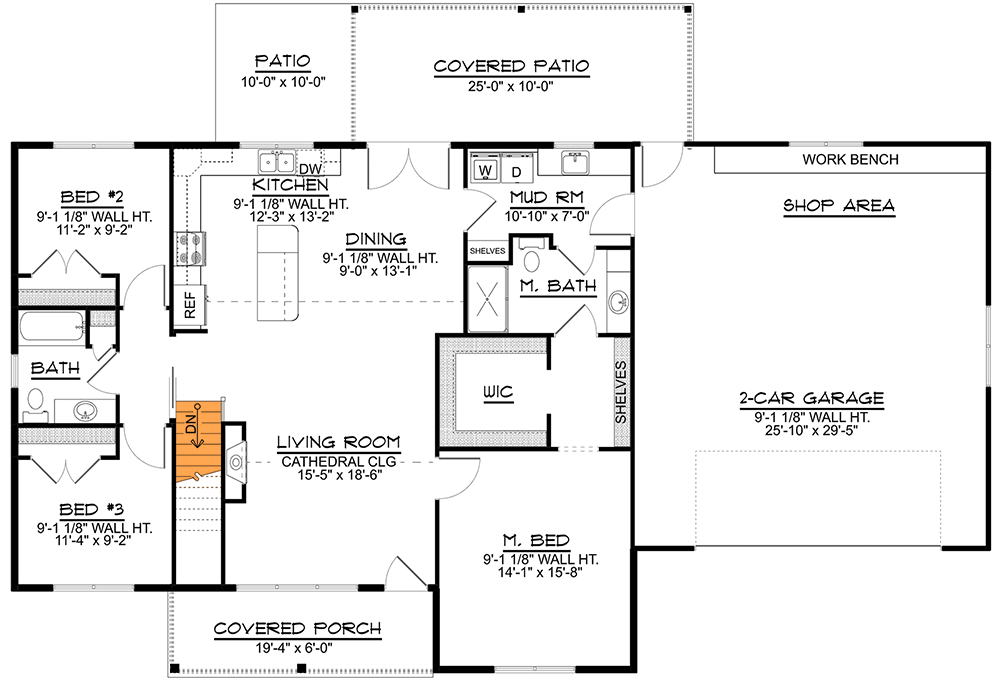

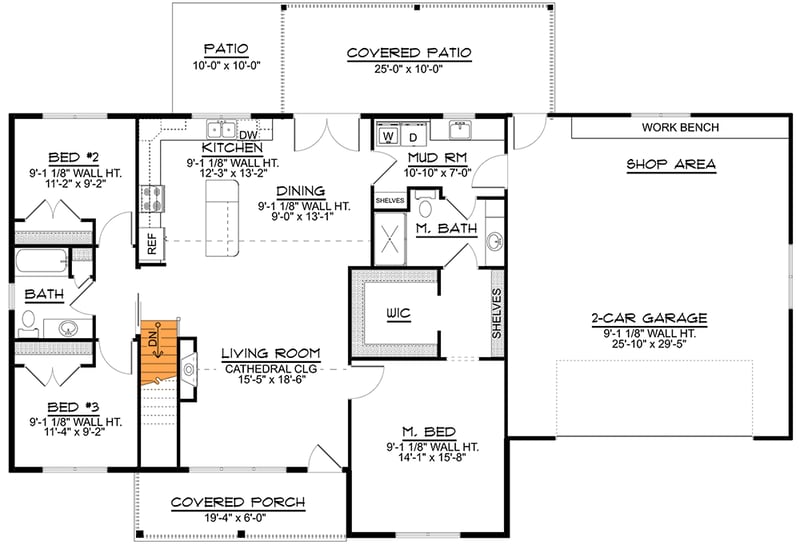

Country Ranch Plan with Optional Unfinished Basement - 135142GRA floor plan - Unfinished Basement

Country Ranch Plan with Optional Unfinished Basement

  • 1,602

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Unfinished Basement

Plan Details

Square Footage Breakdown

  • Total: 1,602 sq. ft.
  • 1st Floor: 1,602 sq. ft.

Dimensions

  • Width: 72' 0"
  • Depth: 49' 0"
  • Max ridge height: 17' 10"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 785 sq. ft.
  • Count: 2 Cars

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
