Plan 57106HA
Country Ranch with Atrium Views
Heated S.F.
1,532
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • Multiple gables and stonework deliver a warm and inviting exterior to this atrium ranch home plan.
  • The vaulted great room has a fireplace and spectacular views accomplished with a two-story atrium window wall.
  • The covered rear porch is easily accessed from the breakfast room or garage.
  • The atrium provides an ideal approach to an optional finished walk-out basement.
  • Related Plans: Get a 3-car garage and more space with house plan 5702HA (1,721 sq. ft., 2x4 walls) and get an alternate elevation and a 3-car garage with house plan 57231HA.
What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan

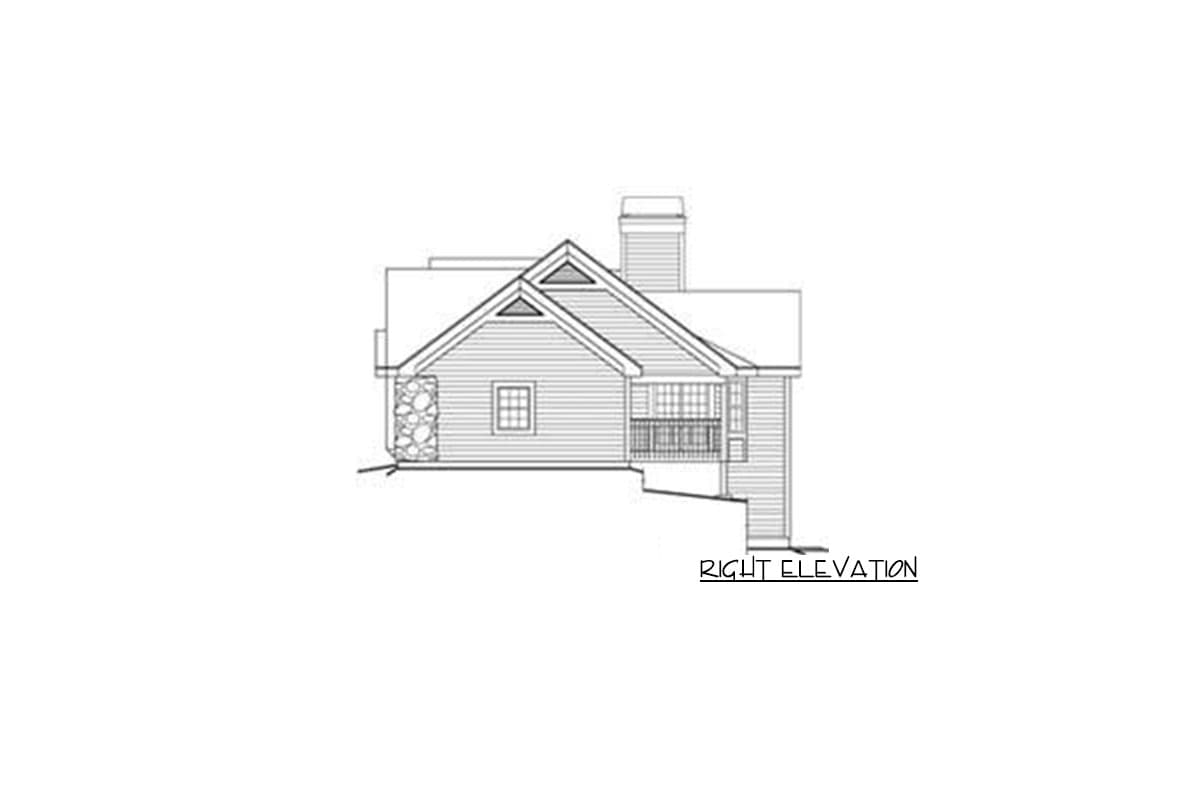

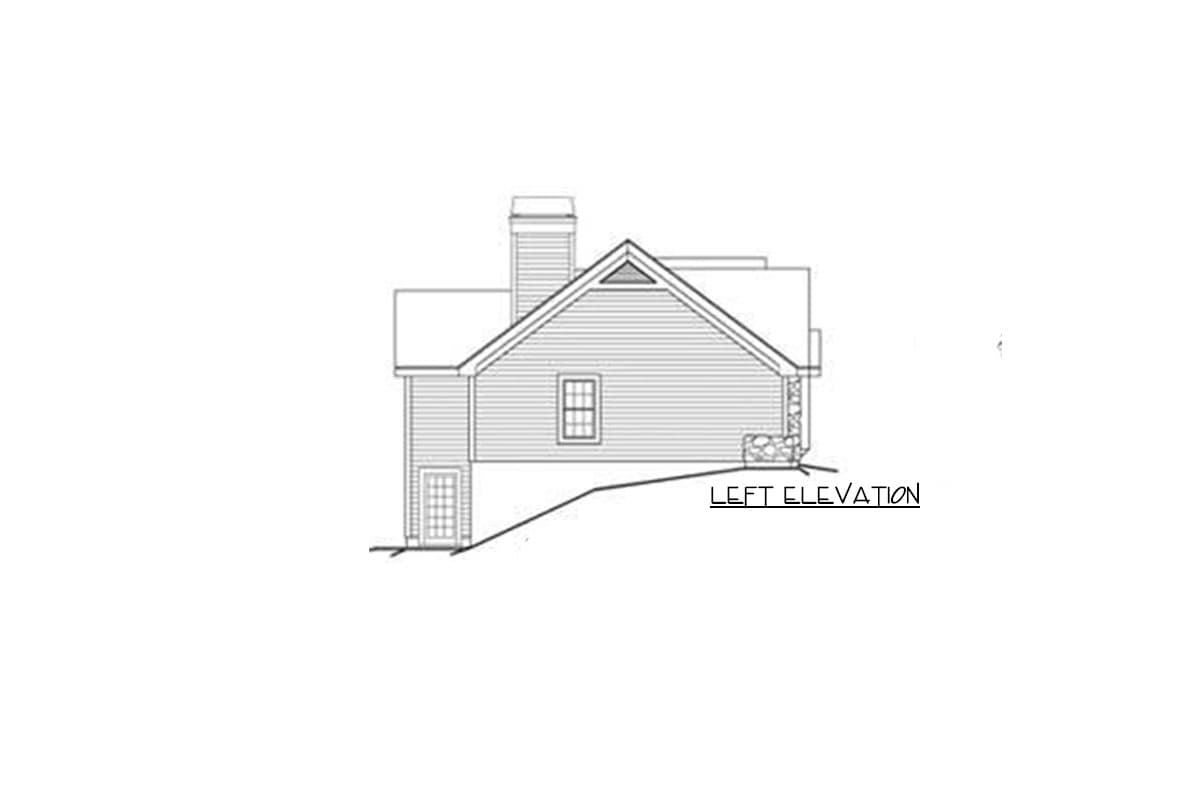

  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Country Ranch with Atrium Views

  • 1,532

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

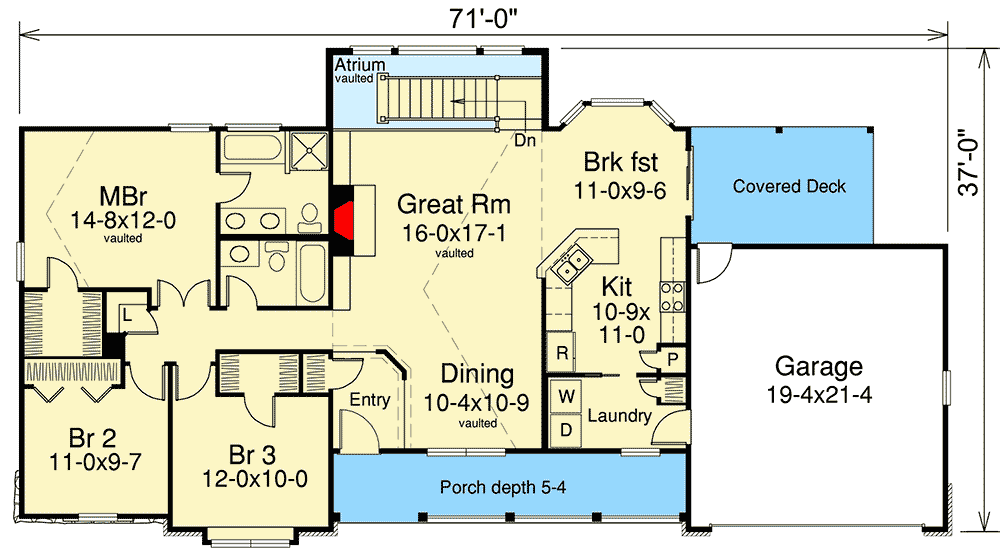

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,532 sq. ft.
  • 1st Floor: 1,532 sq. ft.

Dimensions

  • Width: 71' 0"
  • Depth: 37' 0"
  • Max ridge height: 21' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 412 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Truss
