Plan 135220GRA

Country-Style Barndominium with Drive-Through RV Bay and Wraparound Porch

Heated S.F.

2,682

Beds

3

Baths

3.5

Stories

2

Cars

2

Floor Plan

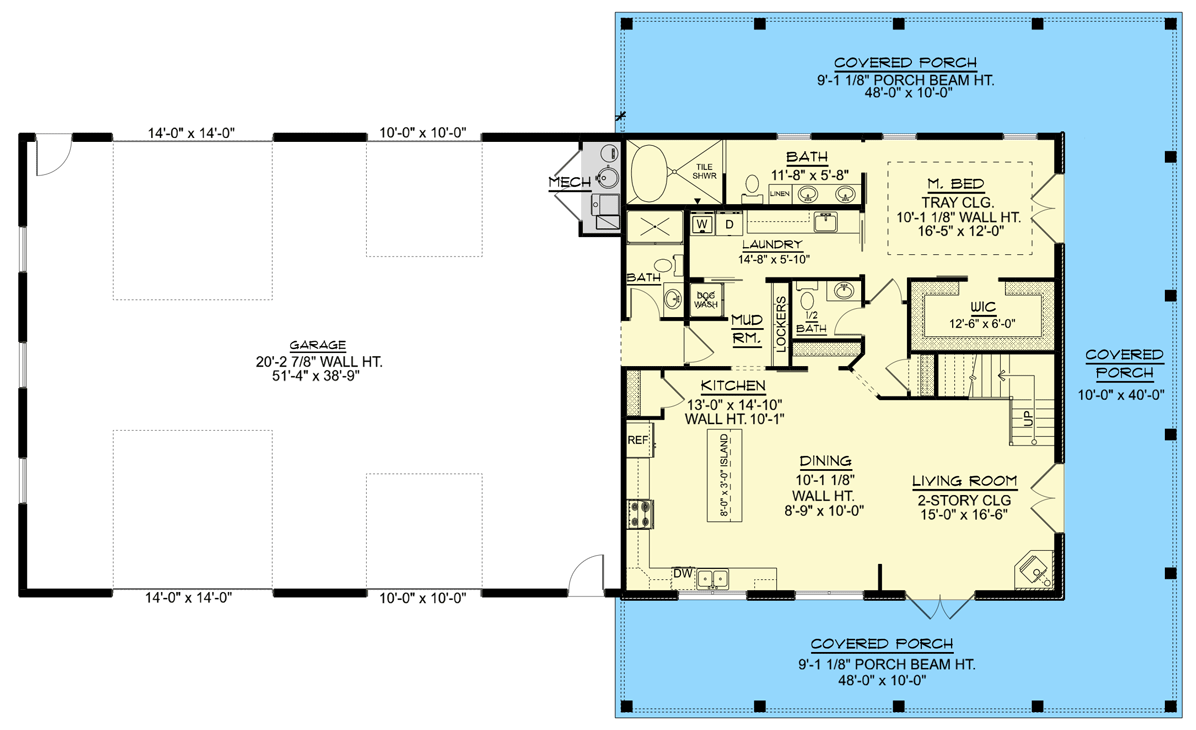

Main Level

floor plan image Main Level

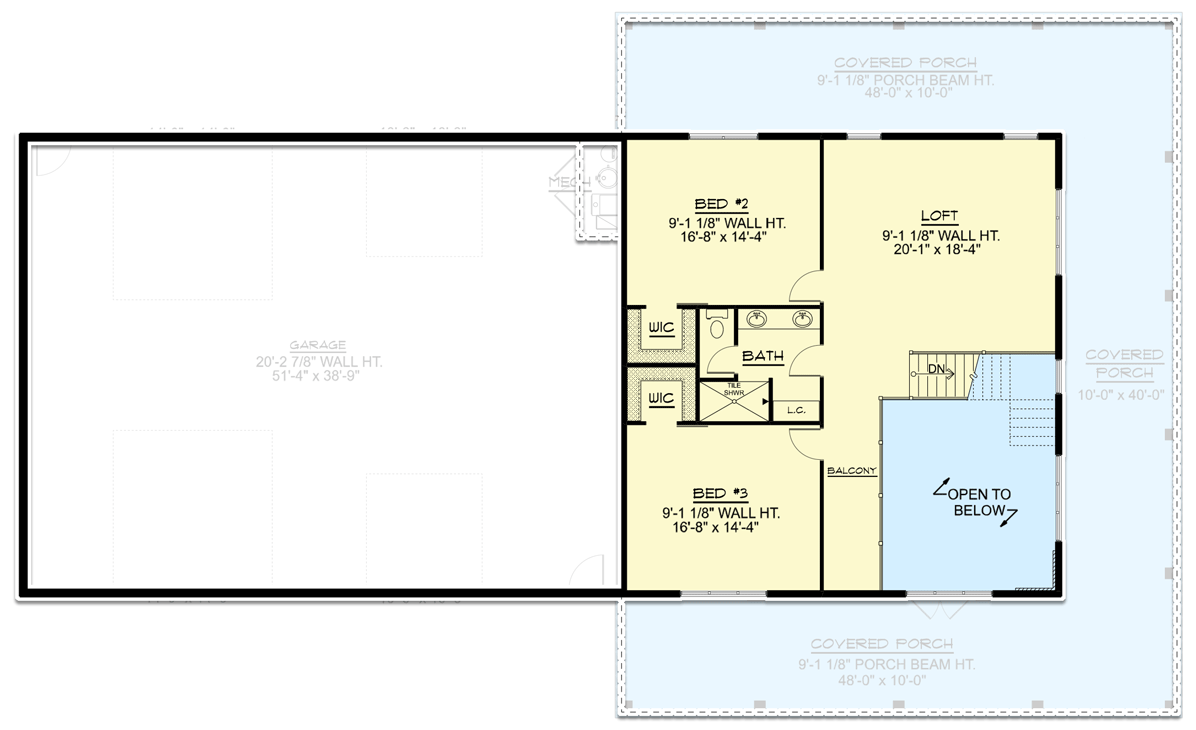

2nd Floor

floor plan image 2nd Floor

Plan Details

A mixture of vertical and clapboard siding, a metal roof and a wraparound porch give this 3-bed Barndominium-style house plan (stick-framing) great country styling.
The left side of this design is where you'll find the 2,123 square foot garage with two drive-through bays. The one on the left can accommodate an RV with 14' by 14' overhead doors front and back and the other one more standard vehicles with 10' by 10' overhead doors on both sides.
A wraparound porch surrounds the living room - open to the eat-in kitchen - as well as the master suite.
The master bedroom is located on the main level and features a tile shower in the attached bathroom, along with a shortcut to the laundry room.
Upstairs, discover a sizable loft overlooking the living room and two bedrooms with walk-in closet that share a full bath.
Related Plans: Get an alternate version with house plans 135075GRA and 135076GRA.

What's Included

Elevations
Fully Dimensioned Floor Plans
Roof Plan & Sections
Foundation plan
General Notes
Suggested Electrical Layout

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,682 sq. ft.

1st Floor

1,477 sq. ft.

2nd Floor

1,205 sq. ft.

Porch, Combined

1,359 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

100' 0"

Depth

60' 0"

Max Ridge Height

27' 3"

Garage

Type

Attached, RV Garage

Area

2123 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Modern Farmhouse

Special Features

Bedrooms - Split

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Wrap Around Porch

Square Footage Breakdown

Total Heated Area

2,682 sq. ft.

1st Floor

1,477 sq. ft.

2nd Floor

1,205 sq. ft.

Porch, Combined

1,359 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

100' 0"

Depth

60' 0"

Max Ridge Height

27' 3"

Garage

Type

Attached, RV Garage

Area

2123 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Modern Farmhouse

Special Features

Bedrooms - Split

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Wrap Around Porch
