Plan 430008LY

Courtyard Entry 4 Bed House Plan with Upstairs Game Room

Name: Plan 430008LY: Courtyard Entry 4 Bed House Plan with Upstairs Game Room
Brand: Architectural Designs
SKU: 430008LY
Price: 3064.84 USD
Availability: InStock

Heated S.F.

4,242

Beds

3 - 4

Baths

4.5

Stories

1-2

Cars

Floor Plan

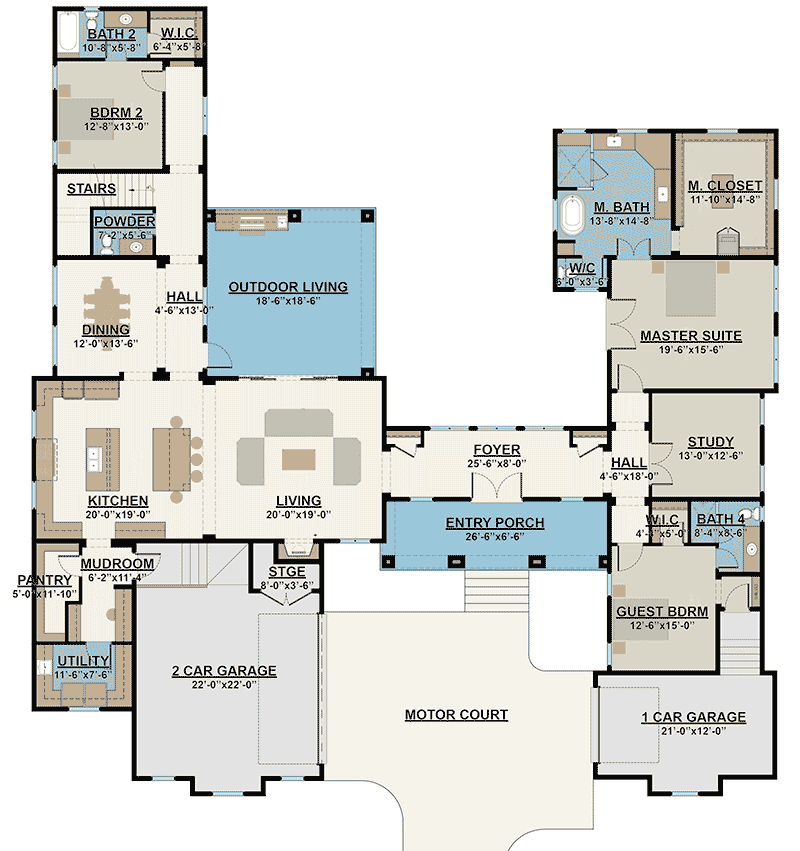

Main Level

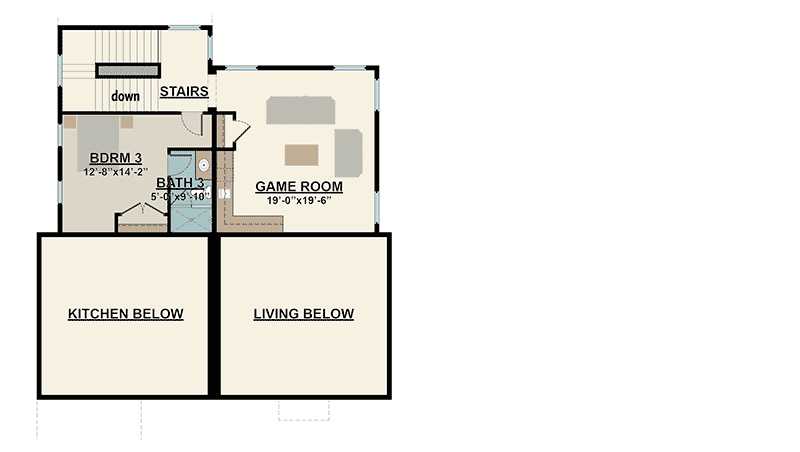

2nd Floor

Plan Details

A stunning Tuscan exterior with a courtyard entry separating your 2-car garage from your 1-car garage gives this 4 bed house plan great curb appeal.
French doors on the entry porch open the foyer which divides the home into two separate living wings.
The right wing has the master suite, guest bedroom and study. The master suite has French doors that open to the back. The study provides separation between it and the guest bedroom.
The left wing has an open living room and kitchen space with a fireplace in the living room. The back wall opens to reveal the outdoor living room which has an outdoor kitchen.
The kitchen has a large island with seating and access to a walk-in pantry and the 2-car garage through the mudroom making unloading groceries a breeze.
A hall goes past the dining room to the other bedroom in back.

What's Included

Cover sheet
Plot Plan (survey must be provided)
Roof plan
Floor plan

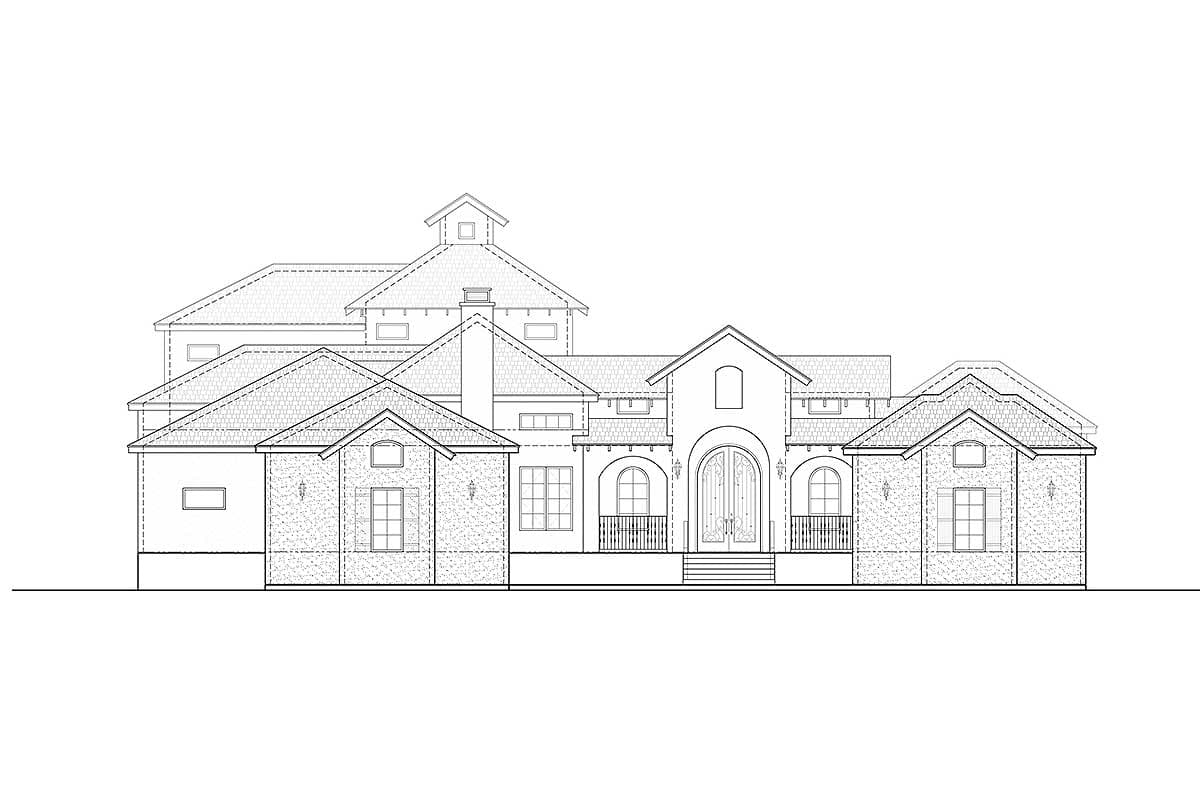

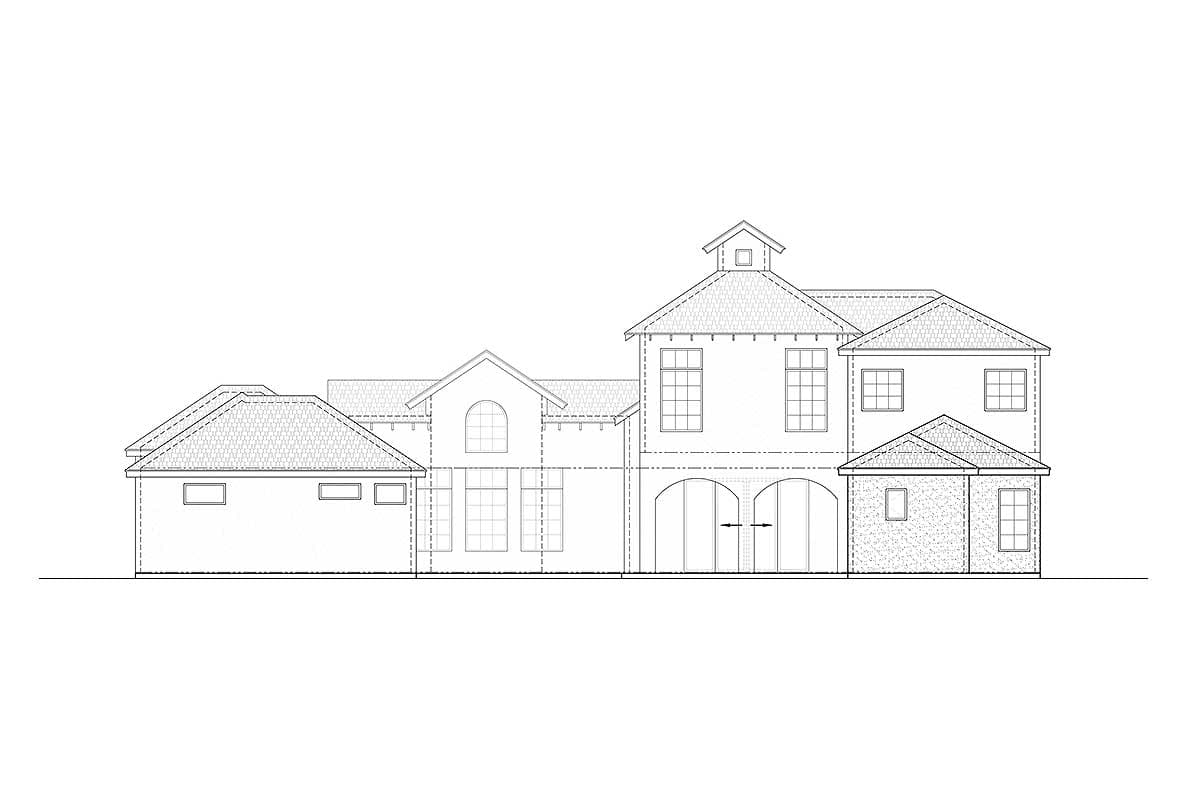

Exterior elevations
Typical wall sections
Ceiling treatment plans
Electrical floor plans
Interior elevations

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Foundations are engineered locally based on soil samples which is why a “typical” foundation plan is not provided.
