Plan 24021BG

Courtyards and Lanais

Heated S.F.
3,324
Beds
3
Baths
3.5
Stories
1
Cars
3

Floor Plan

Plan 24021BG

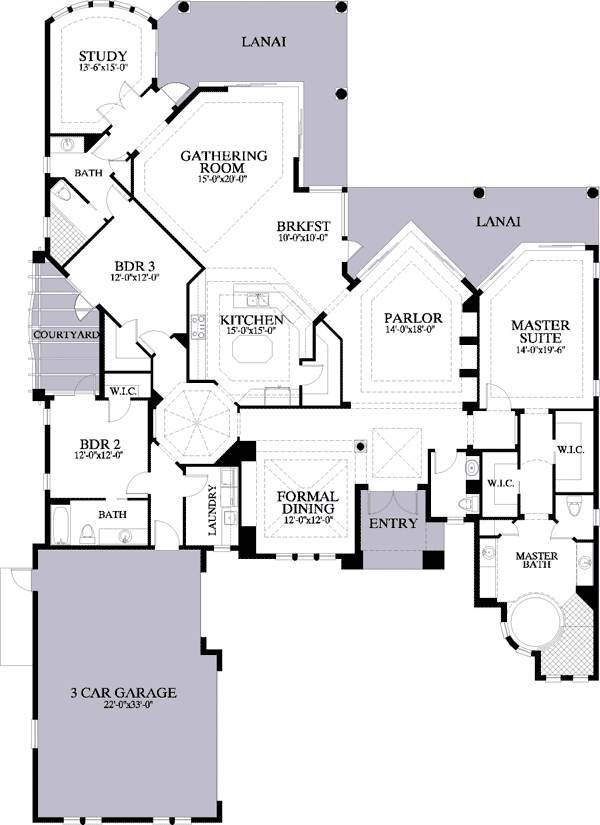

Main Level
Main Level

Plan 24021BG

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 24021BG: Courtyards and Lanais - Floor Plan - Main Level - Florida-Style, Mediterranean

Plan Details

  • Enjoy the outdoors with both a courtyard and two covered lanais in this elegant Mediterranean home plan.
  • Tray ceilings can be found in almost every room of the home including the kitchen that is open to the breakfast nook and the informal gathering room.
  • For those who work at home, a study in the rear has access to one of the lanais.
  • The master suite occupies the whole right wing of the home and enjoys a tray ceiling and access to another lanai. A spa-like retreat can be found in the master bath with a round soaking tub, two sinks and a walk-in shower.
  • Two guest or family bedrooms each open onto the delightful courtyard and have their own bath.

What's Included

  • Cover page showing front elevation, contents and notes
  • Fully dimensioned floor plans including ceiling heights
  • Roof plan
  • All four exterior elevations
  • Typical cross section
  • Suggested electrical schematic

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Framing - layouts with beam sizes and locations
  • Energy calculations - handled locally when required
  • Roof truss design - to be created by the truss manufacturer in accordance with local code requirements
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,324 sq. ft.

1st Floor

3,324 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

69' 8"

Depth

101' 4"

Max Ridge Height

25' 2"

Garage

Type

Attached

Area

726 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Florida-Style

Mediterranean

Special Features

Bedrooms - Split

Breakfast Nook

Courtyard

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Walk-in Pantry

Plan Collections

Luxury

Photo Gallery

Premium Collection

Square Footage Breakdown

Total Heated Area

3,324 sq. ft.

1st Floor

3,324 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

69' 8"

Depth

101' 4"

Max Ridge Height

25' 2"

Garage

Type

Attached

Area

726 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Florida-Style

Mediterranean

Special Features

Bedrooms - Split

Breakfast Nook

Courtyard

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Walk-in Pantry

Plan Collections

Luxury

Photo Gallery

Premium Collection
