Covered Lanai Down and Balconies Up

Plan 31820DN

4,665
Heated s.f.
4
Beds
4.5
Baths
2
Stories
3
Cars

This new American style house plan has an exciting transverse floor plan that extends back on an angle creating dynamic spaces inside.
The foyer opens to the great room with a tray ceiling and has views extending to the covered lanai.
The master suite occupies the left portion of the home and enjoys great privacy. Note the large bath with its own Zen garden and the large walk-in closets.

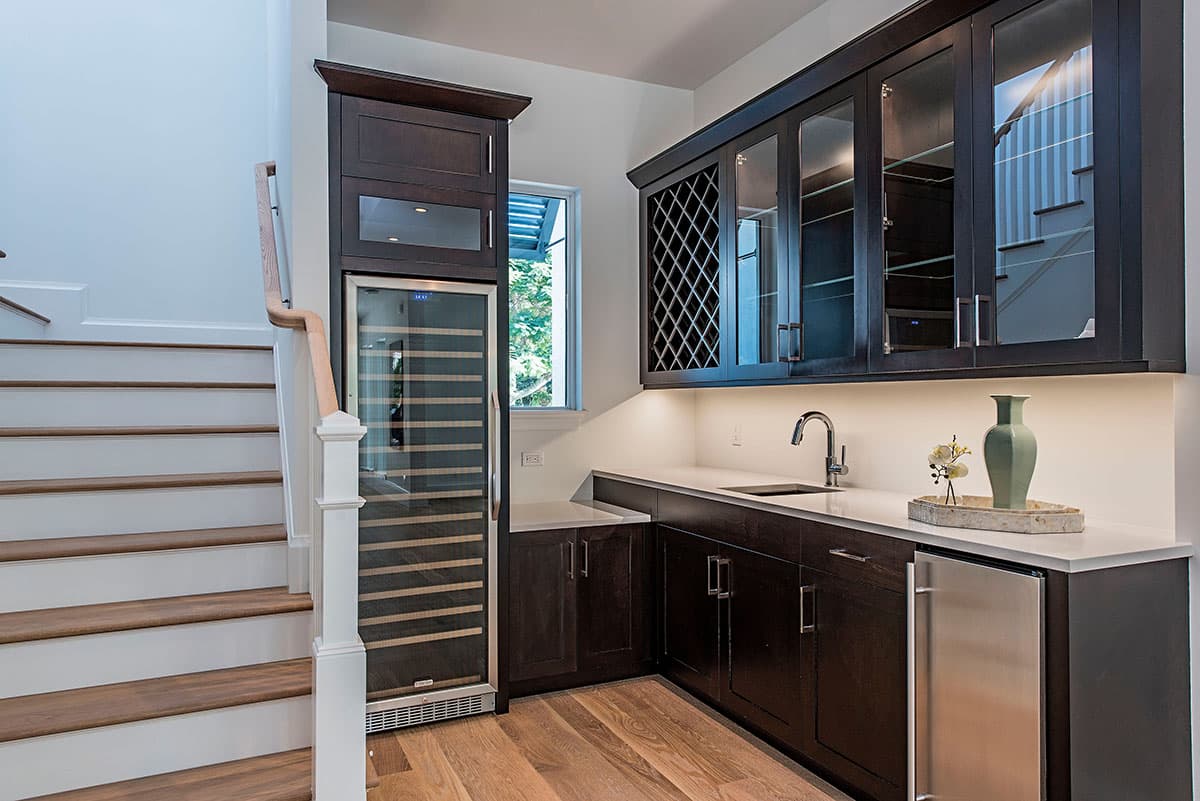

The kitchen has views to both the great rom and casual dining area. Functional plusses include the large pantry, easy garage access for grocery unloading and a walk-through wine room to help serve guests.
There is a guest suite on the main floor plus two more bedrooms - or one plus a media room - upstairs. Note the balconies on the second floor.
HOUSE PLAN VIDEO: See this house plan from every angle in our YouTube video.

Each plan set includes the following:

Slab Plan
First Floor Notes
First Floor Dimensions
Second Floor Notes
Second Floor Dimensions
Door and Window Schedules
First Floor Electrical
Second Floor Electrical
First Floor Ceiling Plan
Second Floor Ceiling Plan
Front Elevation
Right Elevation
Rear Elevation
Left Elevation
Lower Roof Plan
Upper Roof Plan
Building Sections
Wall Sections
Fastener Requirements

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

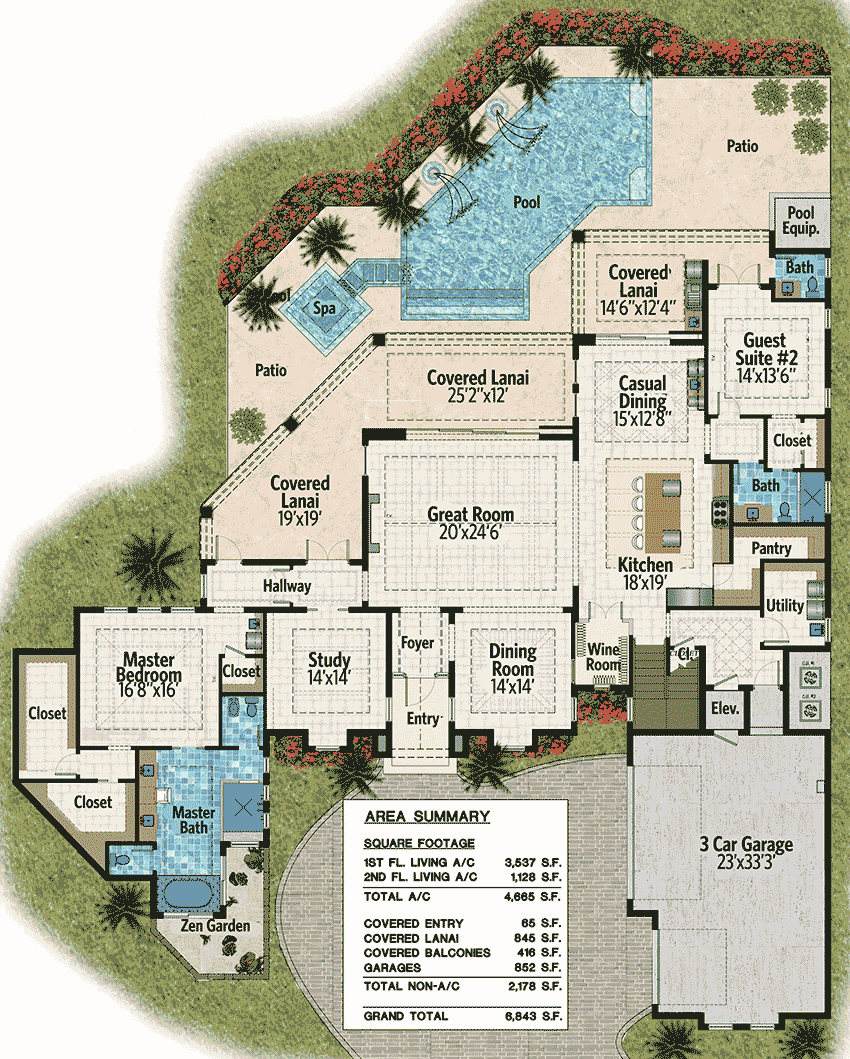

Covered Lanai Down and Balconies Up - 31820DN floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

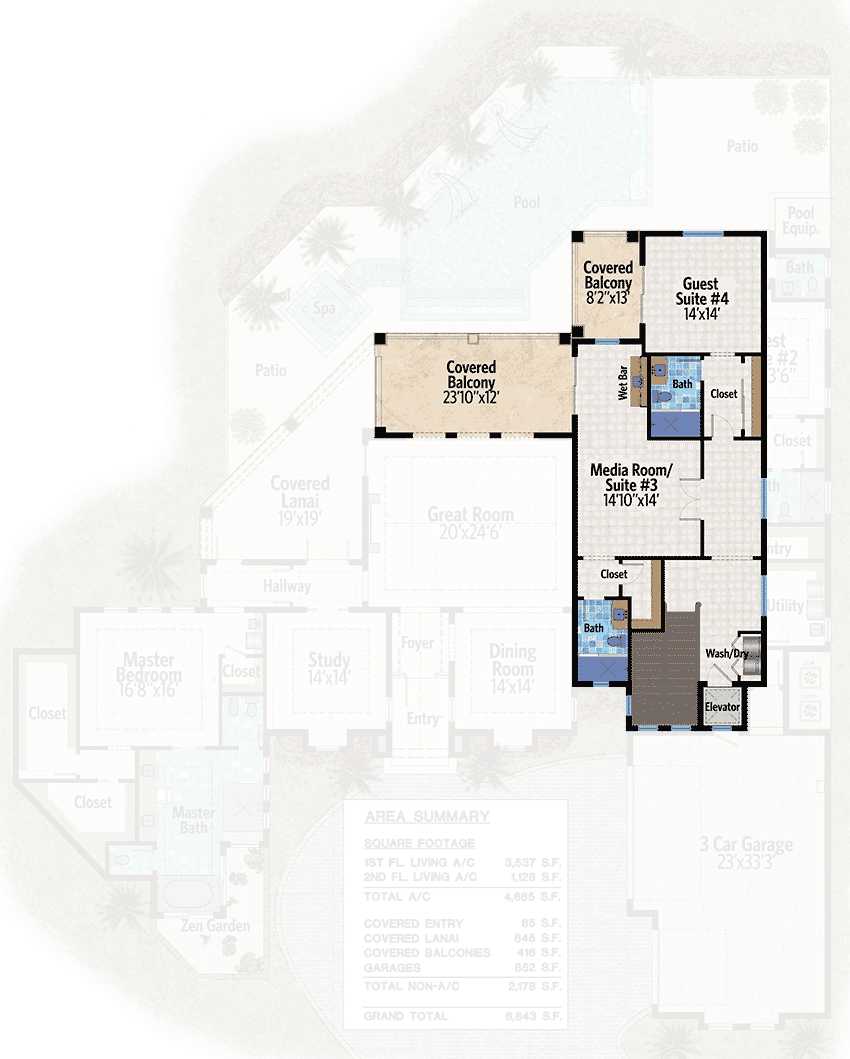

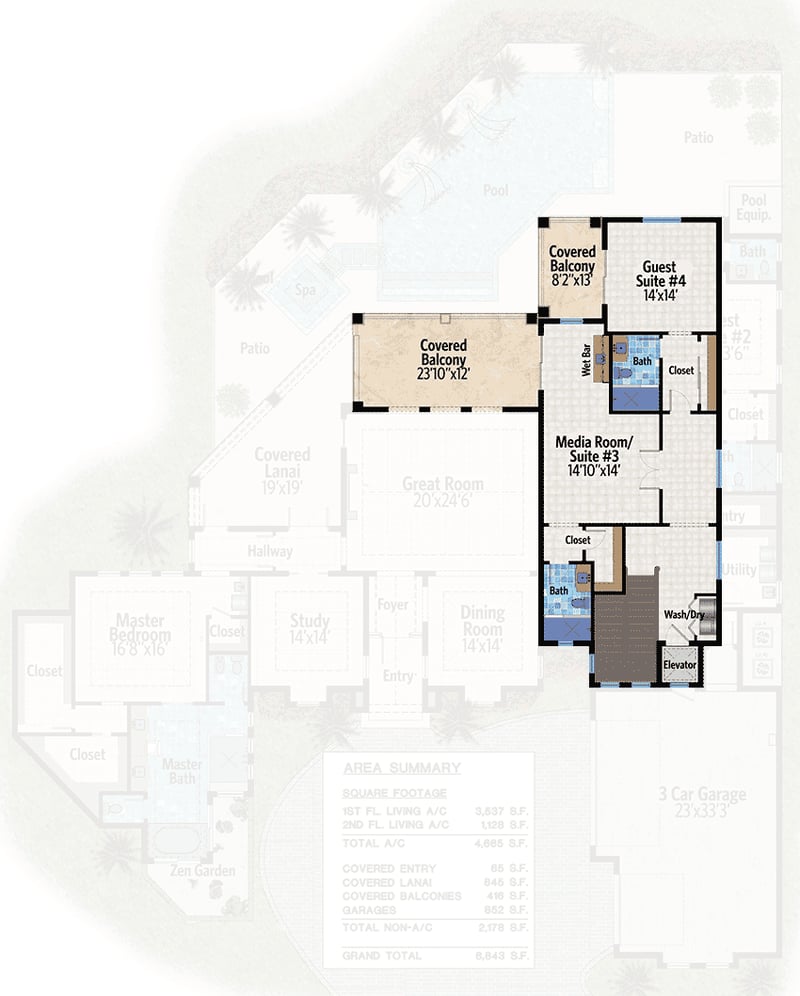

Covered Lanai Down and Balconies Up - 31820DN floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 4,665 sq. ft.
1st Floor: 3,537 sq. ft.
2nd Floor: 1,128 sq. ft.

Lanai: 845 sq. ft.
Balcony / Veranda: 416 sq. ft.
Entry: 65 sq. ft.

Beds/Baths

Bedrooms: 4

Full bathrooms: 4
Half bathrooms: 1

Foundation Type

Standard Foundations: Slab

Exterior Walls

Standard Type(s): Block / CMU (main floor)

Dimensions

Width: 97' 10"
Depth: 92' 2"
Max ridge height: 30' 0"

Garage

Type: Attached
Area: 852 sq. ft.
Count: 3 Cars
Entry Location: Courtyard

Ceiling Heights

Floor / Height: First Floor / 10' 0" Second Floor / 10' 0"

Roof Details

Framing Type: Truss

Architectural Style

Special features

Plan Collections
