Plan 51161MM

Craftsman Bungalow With Bonus

Heated S.F.
1,816
Beds
3
Baths
2
Stories
1-2
Cars
2

Floor Plan

Plan 51161MM

Main Level
Main Level
Bonus
Bonus

Plan 51161MM

M-F 9am-5pm EST |

1-203-761-8500

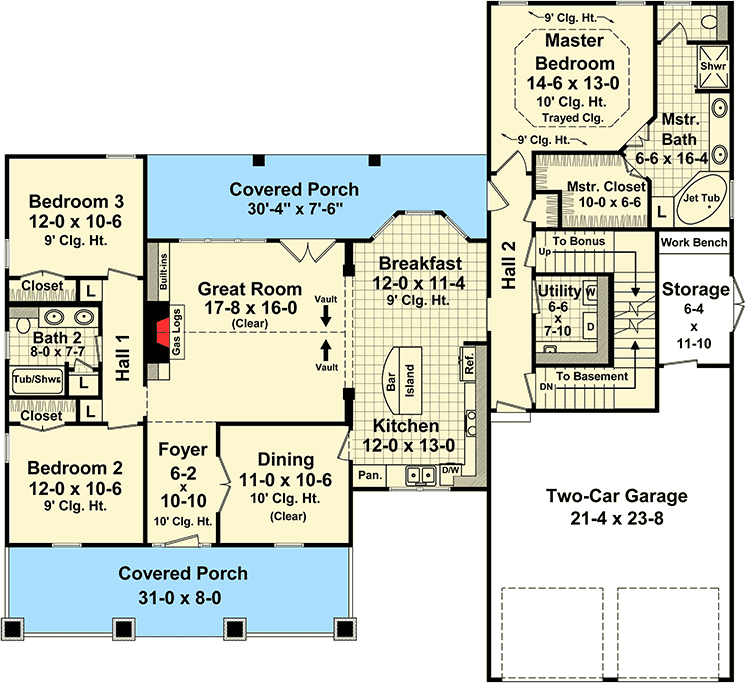

Main Level

Plan 51161MM: Craftsman Bungalow With Bonus - Floor Plan - Main Level - Country, Craftsman, Northwest

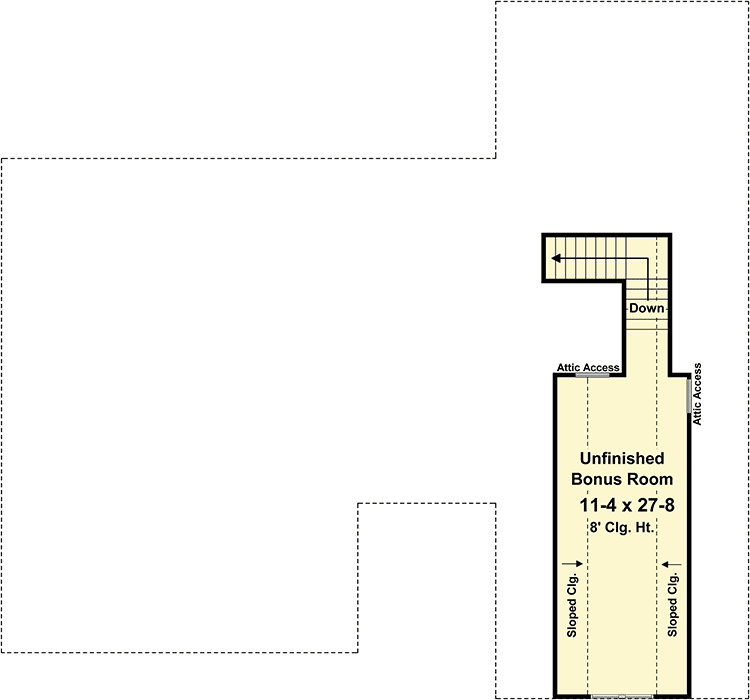

Bonus

Plan 51161MM: Craftsman Bungalow With Bonus - Floor Plan - Bonus - Country, Craftsman, Northwest

Plan Details

  • This inviting home plan has Craftsman styling with upscale features. It is a very flexible home with lots of options to choose from.

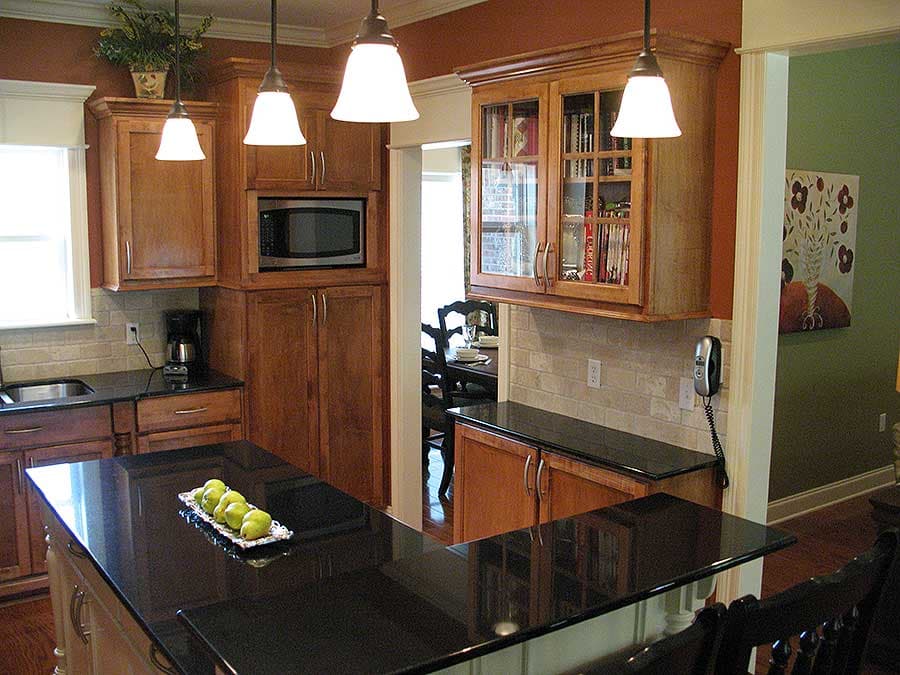

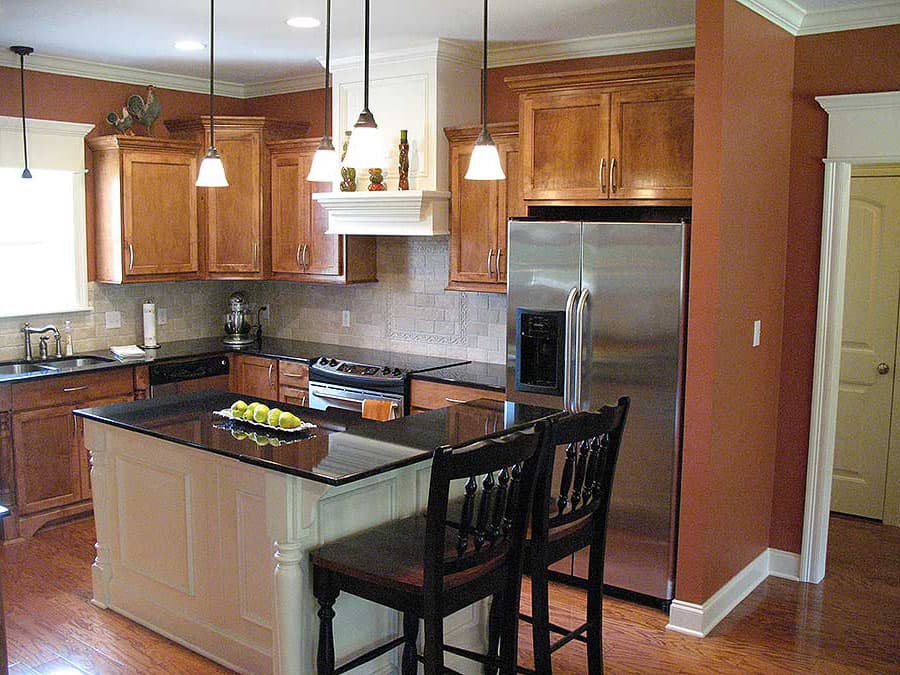

  • The front and rear covered porches add usable outdoor living space. The great room is vaulted with built-in cabinets and a gas fireplace. The spacious kitchen has an island with an eating bar. The hall bath is equipped with dual lavatories for convenience.

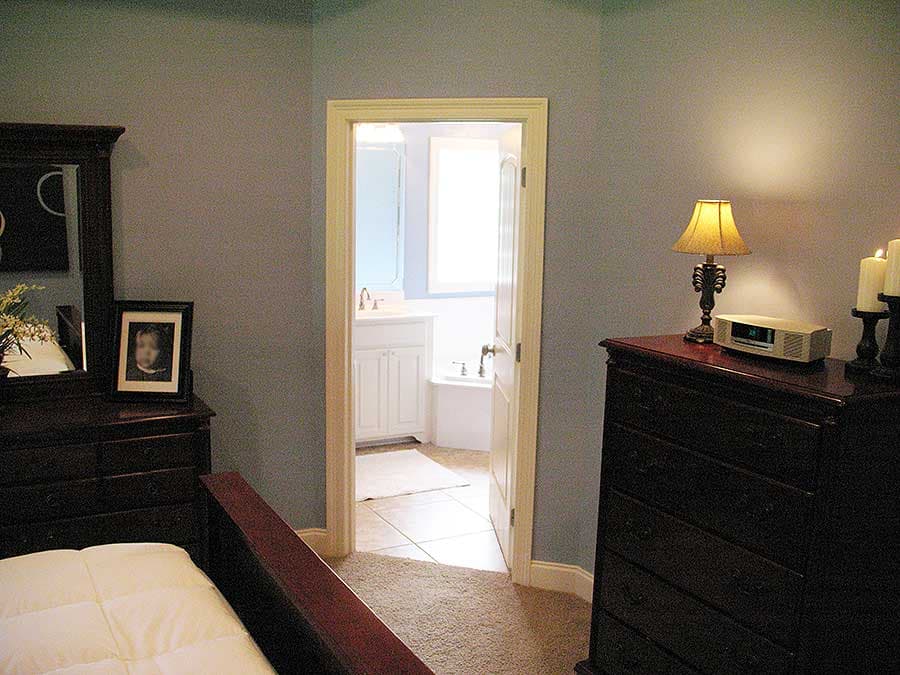

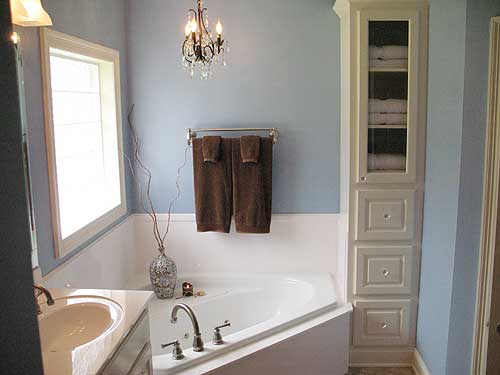

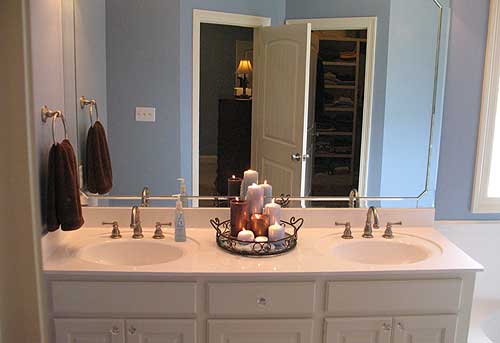

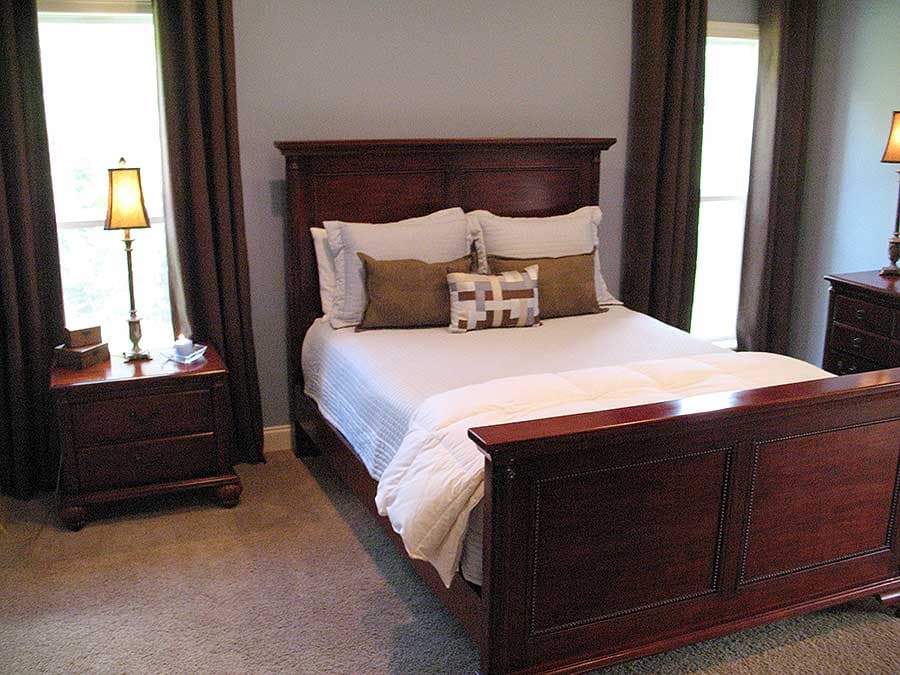

  • The master bedroom has a raised ceiling and opens into the well-equipped bath with dual lavatories, corner tub and walk in closet.
  • Expand upstairs with the bonus option included with plan purchase and with the basement as well.
  • The garage has a workbench and storage area.
  • The roof is stick framed with an 8:12 pitch.
  • Related Plans: Get a slab or crawlspace with house plan 51132MM. Build in reverse with a slightly-altered interior with house plan 51144MM (1,940 sq. ft.). Get a coffered great room with house plan 51065MM (2,108 sq. ft.).

What's Included

This plan set consists of eight pages as follows:
  1. Cover sheet
  2. Foundation sheet with notes and details
  3. Main floor plan and unfinished bonus room plan
  4. Front and right elevations, bracket and column details

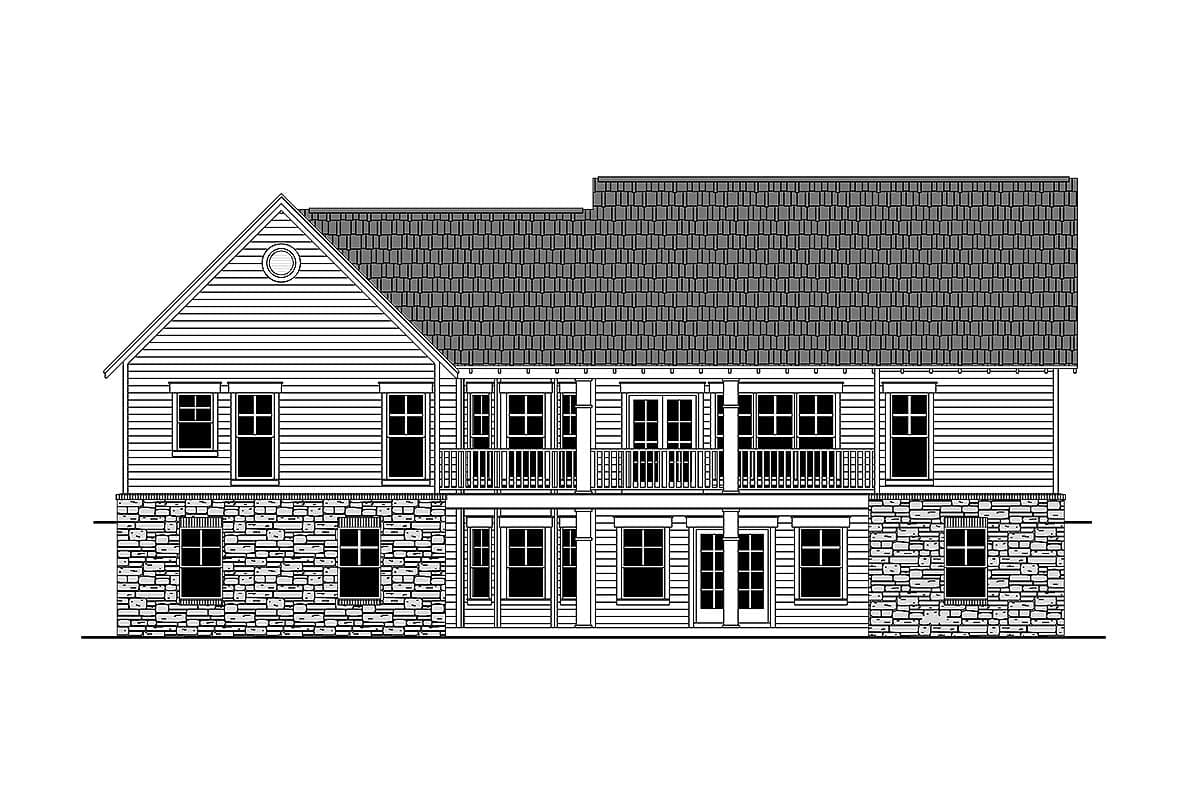

  5. Rear and left elevations with typical exterior wall section
  6. Cross section, garage section, stair section
  7. Rafter layout, roof drainage, cabinet elevations
  8. Electrical plans
  9. Optional carport foundation, elevations, cross section, floor plan, roof framing and drainage plans

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,816 sq. ft.

1st Floor

1,816 sq. ft.

Bonus

357 sq. ft.

Porch, Front

248 sq. ft.

Porch, Rear

211 sq. ft.

Storage

85 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

60' 5"

Depth

60' 8"

Max Ridge Height

21' 7"

Garage

Type

Attached

Area

554 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Dining Room

10' 0''

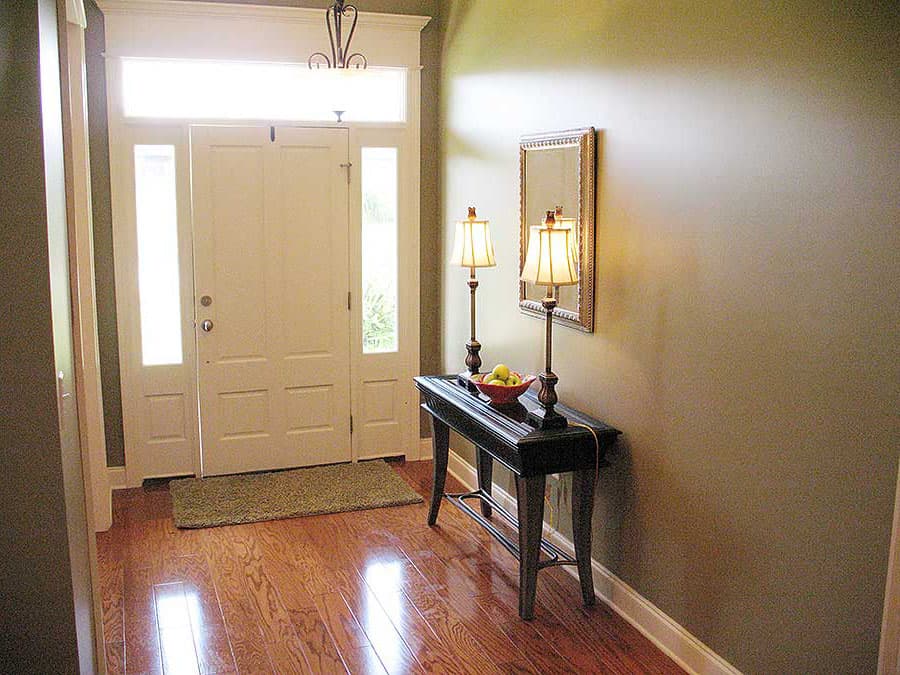

Foyer

10' 0''

Master Bedroom

Tray

9' 0''

Great Room

Vaulted

10' 0''

Bonus

8' 0''

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

Northwest

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Plan Collections

USDA Approved

Square Footage Breakdown

Total Heated Area

1,816 sq. ft.

1st Floor

1,816 sq. ft.

Bonus

357 sq. ft.

Porch, Front

248 sq. ft.

Porch, Rear

211 sq. ft.

Storage

85 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

60' 5"

Depth

60' 8"

Max Ridge Height

21' 7"

Garage

Type

Attached

Area

554 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Dining Room

10' 0''

Foyer

10' 0''

Master Bedroom

Tray

9' 0''

Great Room

Vaulted

10' 0''

Bonus

8' 0''

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

Northwest

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Plan Collections

USDA Approved
