Plan 765034TWN Craftsman Carriage House Plan with 1-Bed Apartment

980 1 1 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Craftsman Carriage House Plan with 1-Bed Apartment

Plan 765034TWN

  • 980

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Stories

  • 2

    Cars

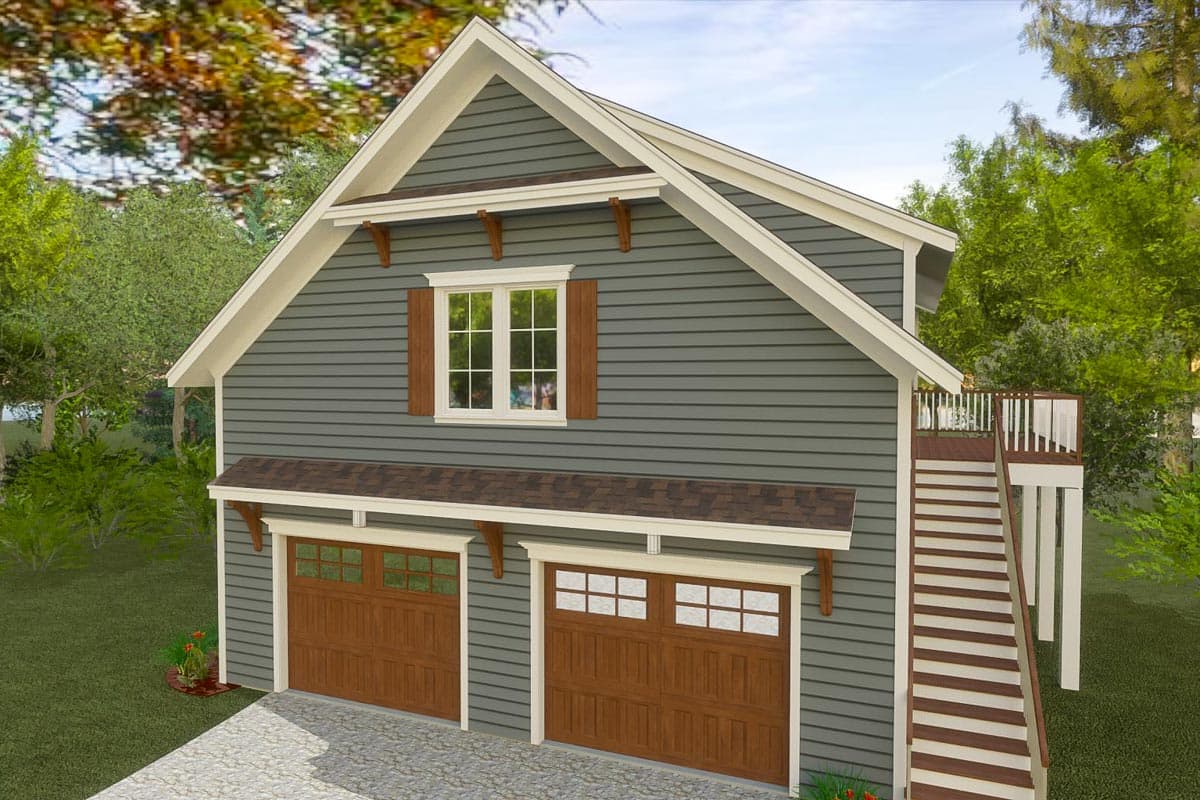

  • Craftsman details on the exterior of this Carriage house plan lend curb appeal and character.
  • The rectangular footprint creates an extra-deep double garage on the main level.

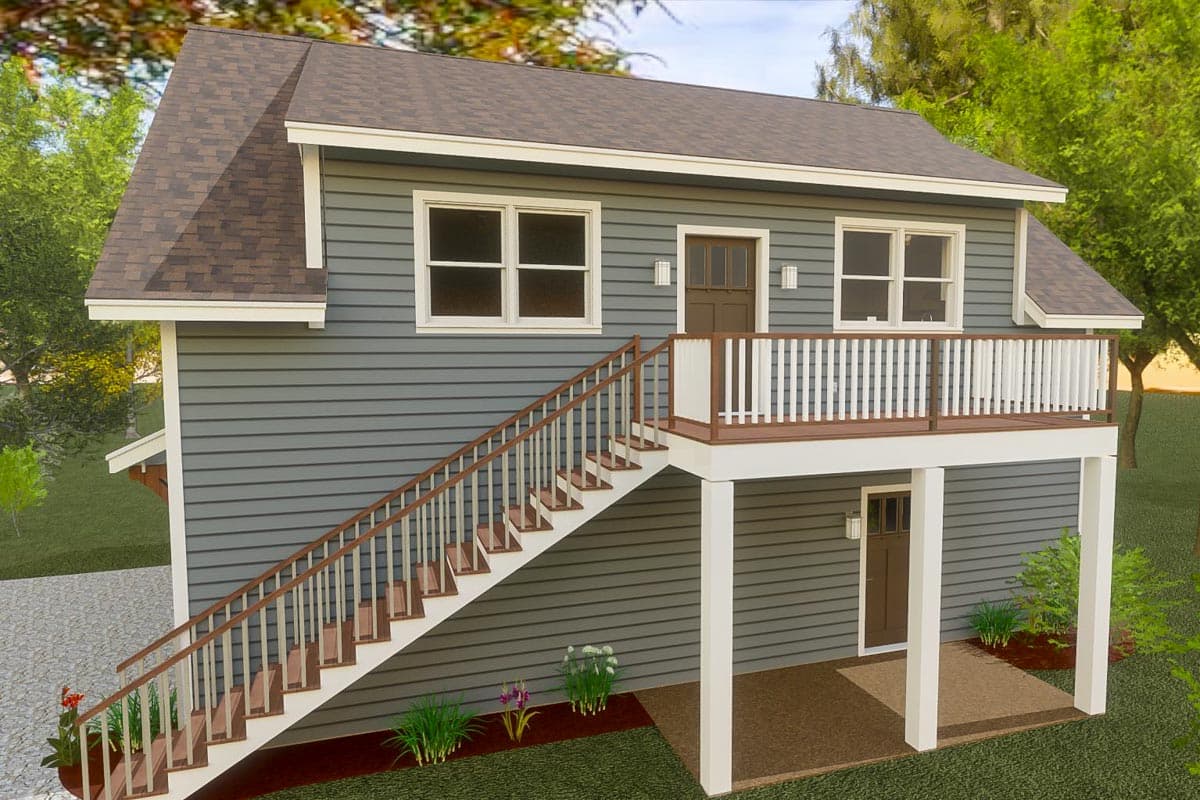

  • Access the 1-bedroom apartment from the exterior staircase that guides you to a charming 7'-deep porch.

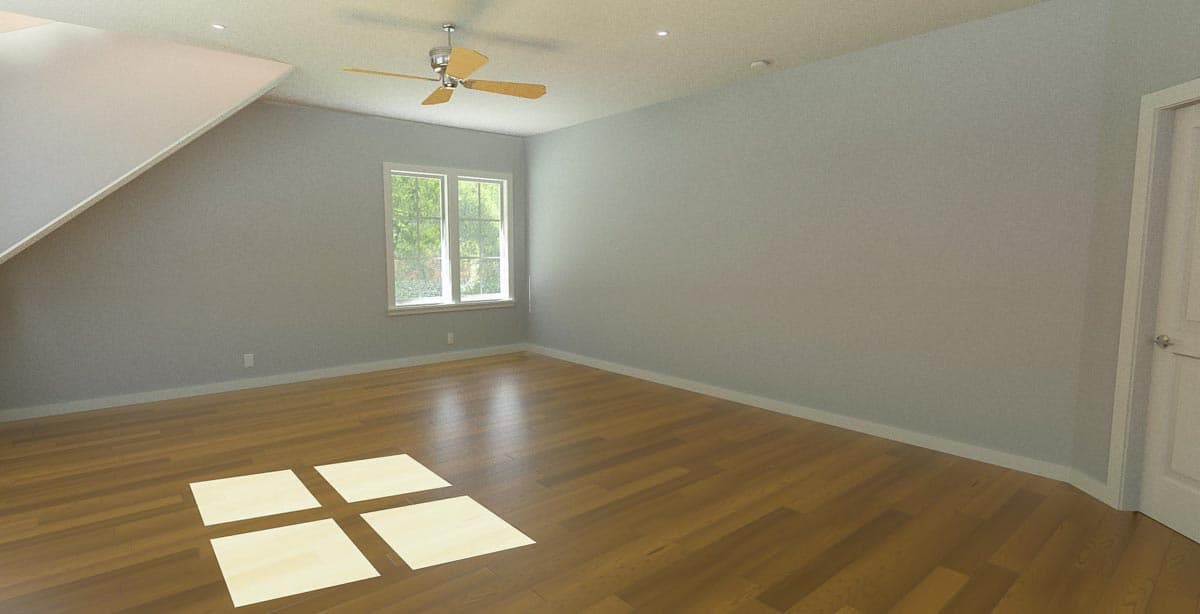

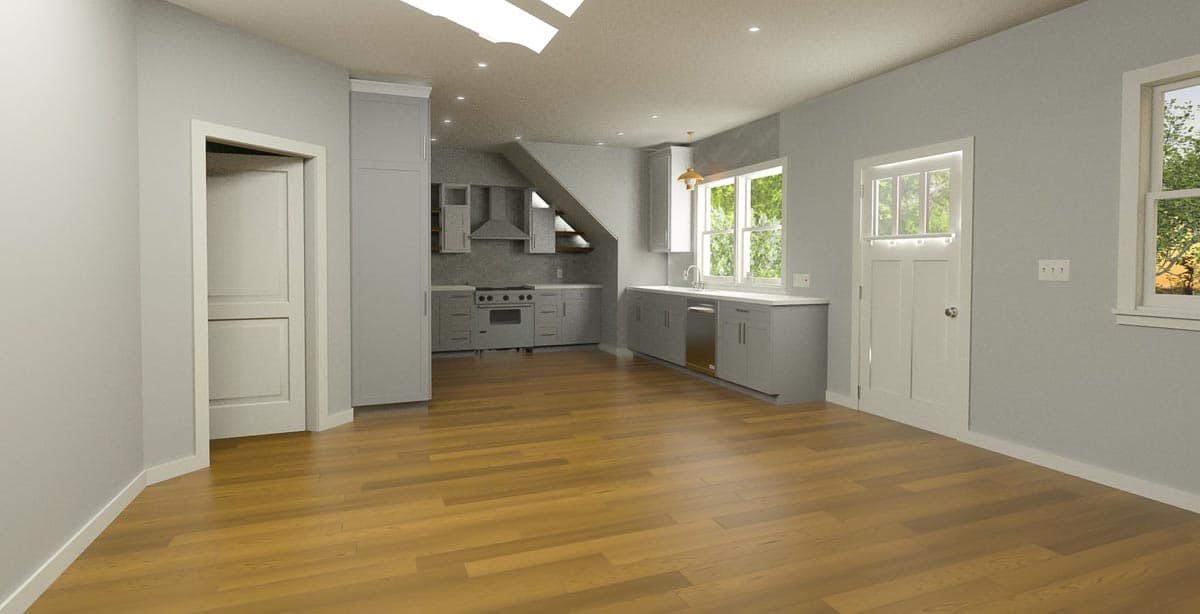

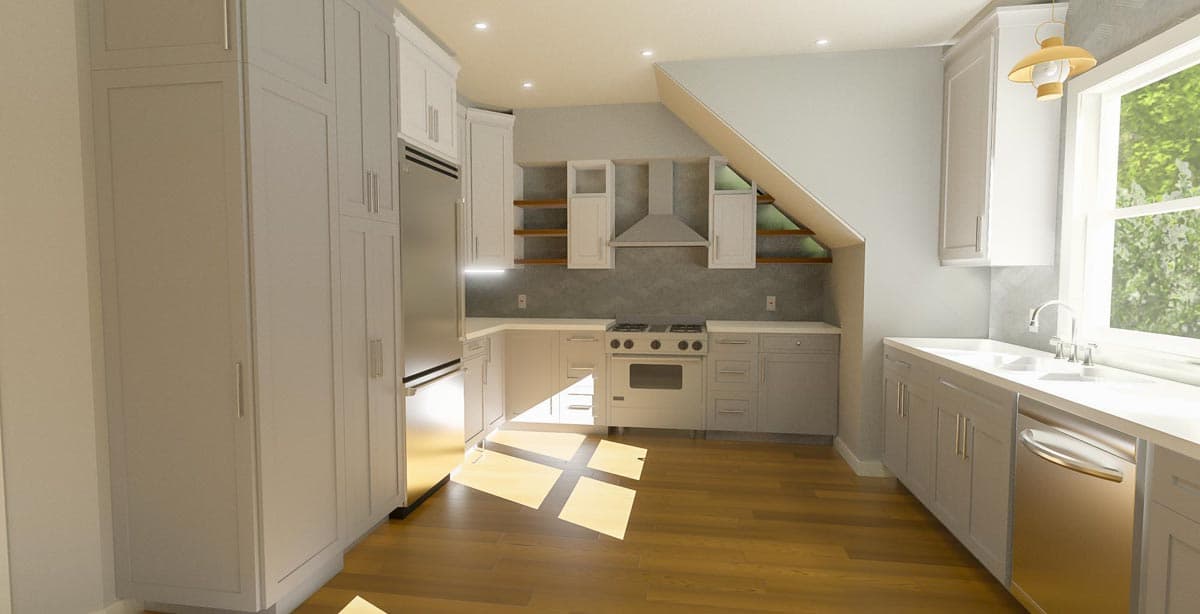

  • Inside, the living, dining, and kitchen areas are open to one another. U-shaped cabinetry defines the kitchen and provides plenty of workspace.
  • The flexible floor plan offers a variety of layout options for the 4-fixture bathroom and walk-in closet / laundry combo.
  • Related Plans: Move the stairs inside with house plan 765035TWN and get a slightly smaller 25'-deep version with carriage house plan 765010TWN.

This designer's plans include the following:

  • Cover sheet with general notes
  • Foundation page
  • Detailed floor plans
  • Roof plan
  • Electrical plans
  • Elevations
  • Typical wall section and cross section
  • General details
  • Cabinet elevations
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

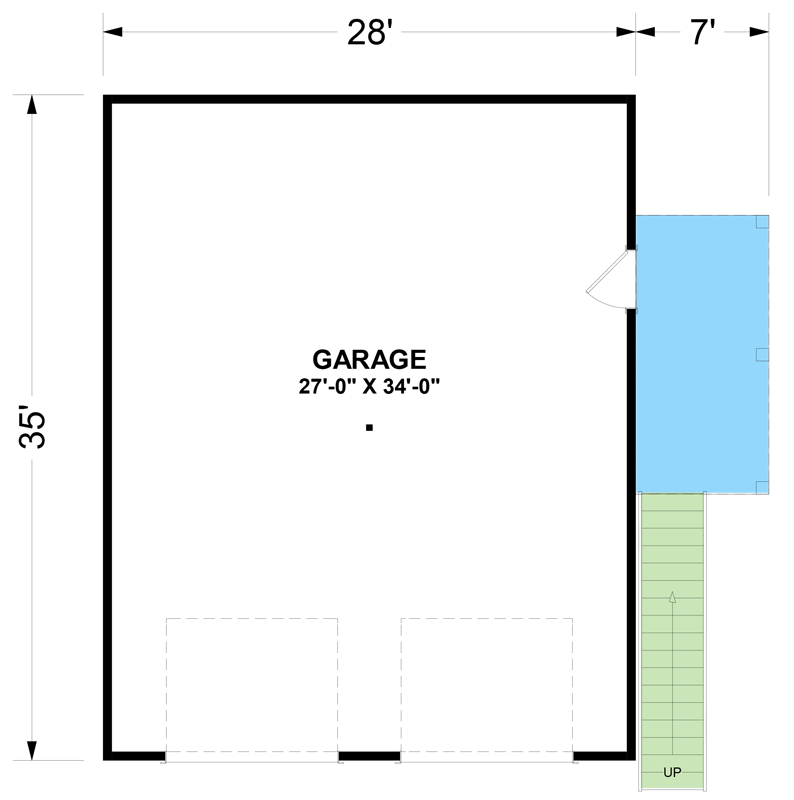

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Craftsman Carriage House Plan with 1-Bed Apartment - 765034TWN floor plan - Main Level

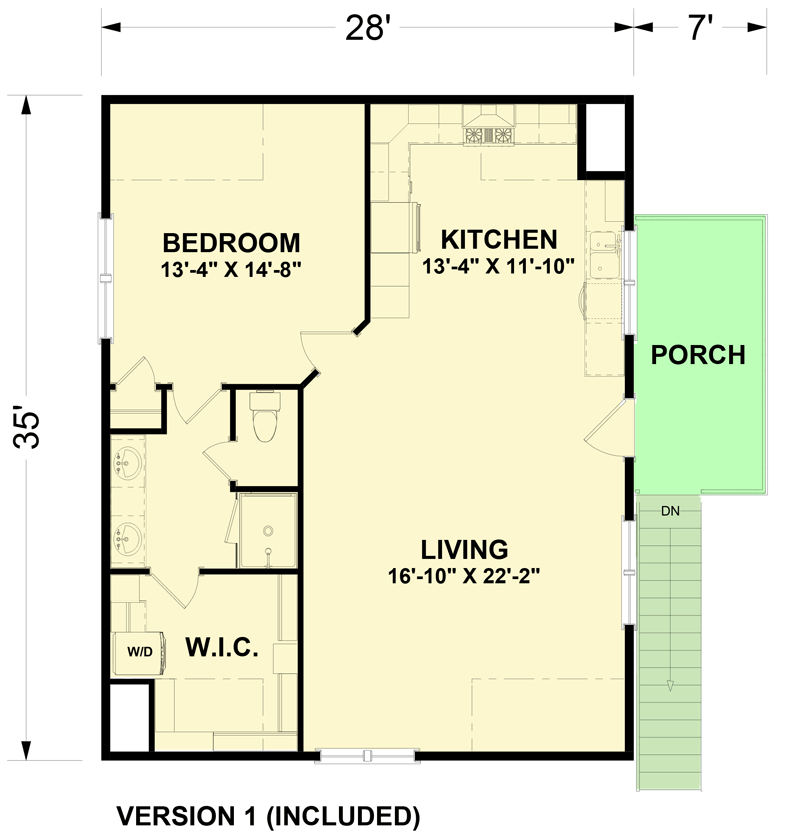

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Craftsman Carriage House Plan with 1-Bed Apartment - 765034TWN floor plan - 2nd Floor

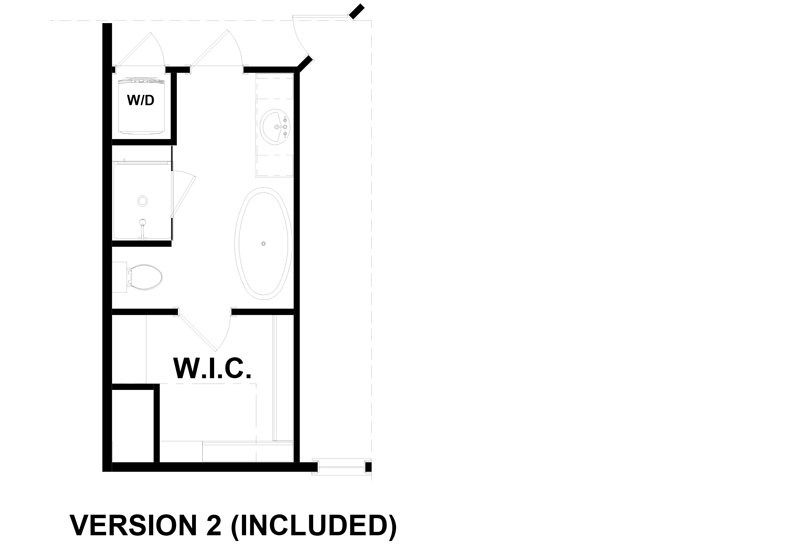

Bathroom Option 2

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Craftsman Carriage House Plan with 1-Bed Apartment - 765034TWN floor plan - Bathroom Option 2

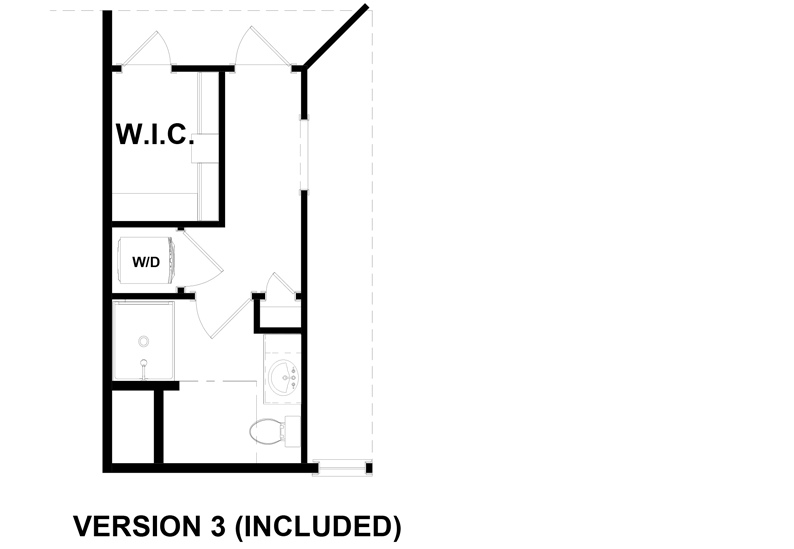

Bathroom Option 3

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Craftsman Carriage House Plan with 1-Bed Apartment - 765034TWN floor plan - Bathroom Option 3

Plan details

Square Footage Breakdown

  • Total Heated Area: 980 sq. ft.
  • 2nd Floor: 980 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 35' 0"
  • Depth: 35' 0"
  • Max ridge height: 26' 11"

Garage

  • Area: 918 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12

Architectural Style

Special features

Plan Collections

Craftsman Carriage House Plan with 1-Bed Apartment

  • 980

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $800
  • Chief Architect Plan File - Single Build $1,600
  • View all purchase option online

About This Plan

  • Craftsman details on the exterior of this Carriage house plan lend curb appeal and character.
  • The rectangular footprint creates an extra-deep double garage on the main level.
  • Access the 1-bedroom apartment from the exterior staircase that guides you to a charming 7'-deep porch.
  • Inside, the living, dining, and kitchen areas are open to one another. U-shaped cabinetry defines the kitchen and provides plenty of workspace.
  • The flexible floor plan offers a variety of layout options for the 4-fixture bathroom and walk-in closet / laundry combo.
  • Related Plans: Move the stairs inside with house plan 765035TWN and get a slightly smaller 25'-deep version with carriage house plan 765010TWN.

Floor Plans

  • Main Level

  • 2nd Floor

  • Bathroom Option 2

  • Bathroom Option 3

Plan Details

Square Footage Breakdown

  • Total Heated Area: 980 sq. ft.
  • 2nd Floor: 980 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 35' 0"
  • Depth: 35' 0"
  • Max ridge height: 26' 11"

Garage

  • Area: 918 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
