Plan 849133PGE

Craftsman Cottage House Plan with Three Bedrooms and Flexible Space

Heated S.F.
2,620
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 849133PGE

Main Level
Main Level
2nd Level
2nd Level
Optionally Finished Basement
Optionally Finished Basement

Plan 849133PGE

M-F 9am-5pm EST |

1-203-761-8500

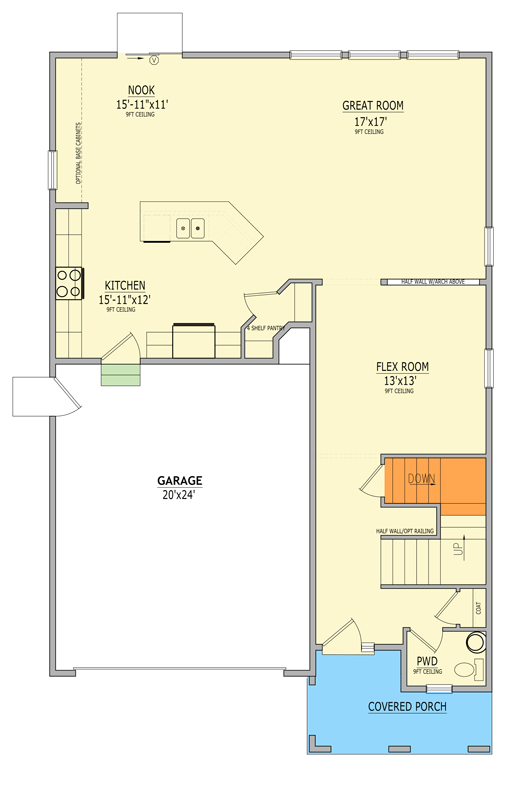

Main Level

Plan 849133PGE: Craftsman Cottage House Plan with Three Bedrooms and Flexible Space - Floor Plan - Main Level - Cottage, Craftsman, Farmhouse

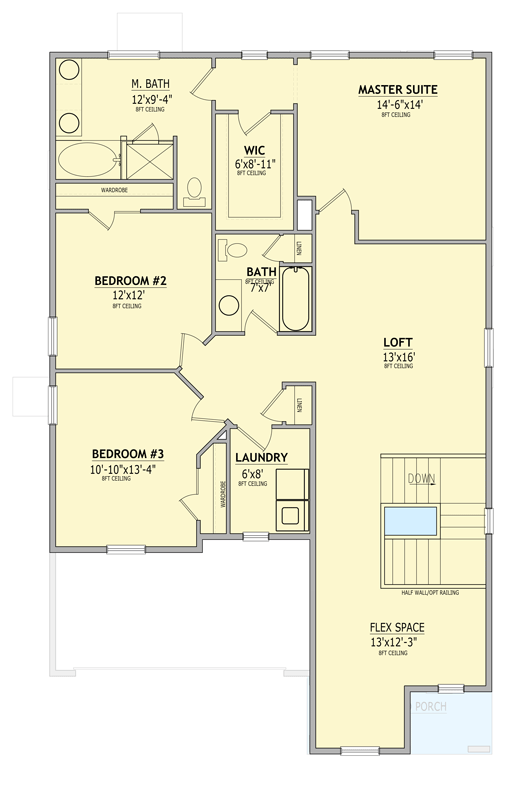

2nd Level

Plan 849133PGE: Craftsman Cottage House Plan with Three Bedrooms and Flexible Space - Floor Plan - 2nd Level - Cottage, Craftsman, Farmhouse

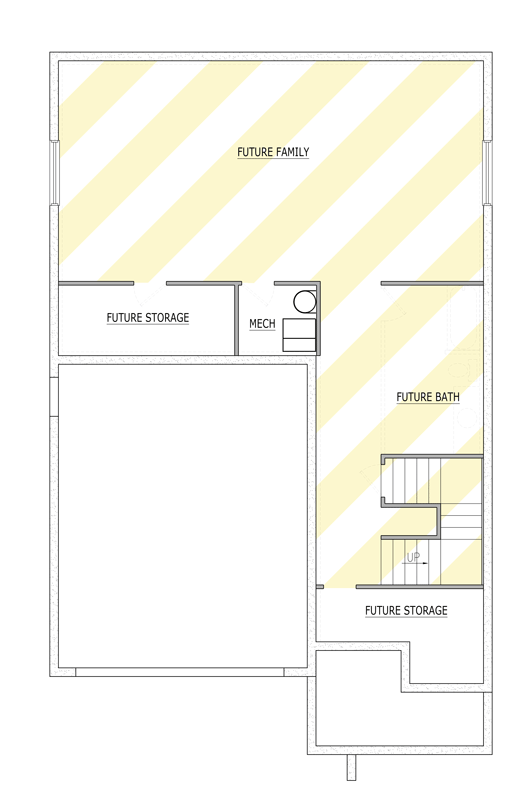

Optionally Finished Basement

Plan 849133PGE: Craftsman Cottage House Plan with Three Bedrooms and Flexible Space - Floor Plan - Optionally Finished Basement - Cottage, Craftsman, Farmhouse

Plan Details

  • This inviting home offers 2,620 square feet of finished living space, including three bedrooms, 2.5 baths, and an attached two-car garage.

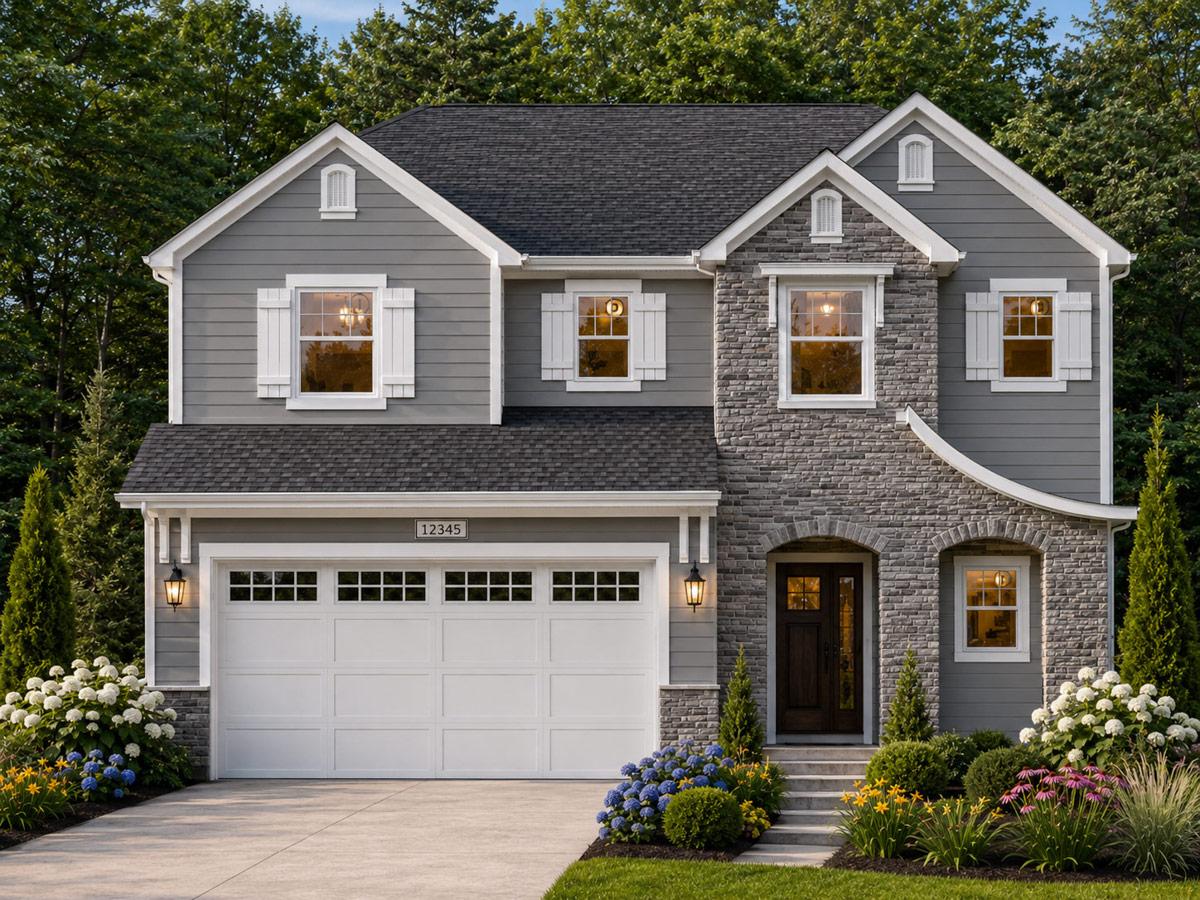

  • The exterior embodies a classic Craftsman cottage aesthetic that feels both timeless and approachable.
  • Upon entry, the thoughtful floor plan leads you through a welcoming foyer that opens into a bright, airy main level characterized by nine-foot ceilings.
  • The heart of the home features a seamless flow between the living area and a functional kitchen, which is complemented by a convenient walk-in pantry and a cozy breakfast nook for casual morning meals.
  • Upstairs, the expansive primary suite serves as a peaceful retreat, while the upper level also hosts a flexible loft area perfect for a home office or reading nook.
  • The design maximizes utility with an upstairs laundry room and an unfinished basement that provides ample potential for future expansion or storage.

What's Included

  • Cover Sheet
  • Elevations
  • Foundation Plan
  • Floor Plan
  • Electrical Plan
  • Details and Schedules
  • Upper Floor Framing Plan
  • Roof Flaming Plan
  • Details
  • Sections and Notes
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,620 sq. ft.

1st Floor

1,140 sq. ft.

2nd Floor

1,480 sq. ft.

Basement Unfinished

1,042 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 0"

Depth

54' 0"

Max Ridge Height

25' 10"

Garage

Type

Standard

Area

460 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Cottage

Craftsman

Farmhouse

Special Features

Bedrooms - Clustered

Breakfast Nook

Formal Dining

Laundry - Upstairs

Library/Study

Loft

Master Suite - Upstairs

Walk-in Pantry
