Plan 20049GA

Craftsman Details and Modern Touches

Pageloader

Craftsman Details and Modern Touches

Plan 20049GA

  • 2,953

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Stories

  • 3

    Cars

  • Come home to old world charm in this 2,953 square foot house plan. Craftsman details warm the entry with stone accents and a covered porch.
  • Once inside, form and function join together to create a home which is totally livable! An open floorplan features both a family room and a hearth room which leads to a screened porch.
  • Chefs will delight in this gourmet kitchen adjoined by a cozy breakfast room with a computer desk. A hidden room, cleverly concealed behind cabinet doors, is located off the breakfast room providing space for a safe-room, storage of valuables or security.
  • Holiday meals and family celebrations will be memorable in the spacious dining room. Completing the lower level is a guest bedroom with an attached bath and walk-in closet.
  • A convenient elevator eliminates the vertical challenge of upper level bedrooms. A traditional staircase also leads to the upstairs where luxury abounds with bedroom suites. Suite #2 features a built-in bookcase and an activity area. Suite #3 has a walk-in shower.
  • Relax and unwind in the master suite. Its dramatic vaulted dual-bath layout features "her" area with a soaking tub and "his" with an oversized shower. The areas are divided by down-lit glass shelves and adorned by a large radius window. Expandable his-and-hers closets are a dream come true! French doors lead to a private upper level screened porch. The laundry room is located on this bedroom level.
  • The three-car garage has a workshop with a utility sink.
  • Related Plans: Building in reverse? See house plan 20048GA.
  • For an alternate layout, see house plan 20051GA and 20050GA (reverse layout).

Each plan set includes the following:

  •  Digital exterior rendering cover page
  •  Exterior elevation page
  •  Main floor plan page with electrical, 3-D floor plan, and window and door schedule
  •  Upper level floor plan page with upper floor framing schematic, and 3-D floor plan
  •  Cross sections and interior elevation page
  •  Roof framing plan with 3-D roof framing schematic
  •  IRC code specifications and methodologies
  •  General construction details

Floor Plan

Plan details



Craftsman Details and Modern Touches

  • 2,953

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,195
  • 5 Sets $1,245
  • 8 Sets $1,295
  • Reproducible Set $1,445
  • CAD $1,695
  • PDF - multi-use $1,695
  • CAD - multi-use $2,195
  • View all purchase option online

About This Plan

  • Come home to old world charm in this 2,953 square foot house plan. Craftsman details warm the entry with stone accents and a covered porch.
  • Once inside, form and function join together to create a home which is totally livable! An open floorplan features both a family room and a hearth room which leads to a screened porch.
  • Chefs will delight in this gourmet kitchen adjoined by a cozy breakfast room with a computer desk. A hidden room, cleverly concealed behind cabinet doors, is located off the breakfast room providing space for a safe-room, storage of valuables or security.
  • Holiday meals and family celebrations will be memorable in the spacious dining room. Completing the lower level is a guest bedroom with an attached bath and walk-in closet.
  • A convenient elevator eliminates the vertical challenge of upper level bedrooms. A traditional staircase also leads to the upstairs where luxury abounds with bedroom suites. Suite #2 features a built-in bookcase and an activity area. Suite #3 has a walk-in shower.
  • Relax and unwind in the master suite. Its dramatic vaulted dual-bath layout features "her" area with a soaking tub and "his" with an oversized shower. The areas are divided by down-lit glass shelves and adorned by a large radius window. Expandable his-and-hers closets are a dream come true! French doors lead to a private upper level screened porch. The laundry room is located on this bedroom level.
  • The three-car garage has a workshop with a utility sink.
  • Related Plans: Building in reverse? See house plan 20048GA.
  • For an alternate layout, see house plan 20051GA and 20050GA (reverse layout).

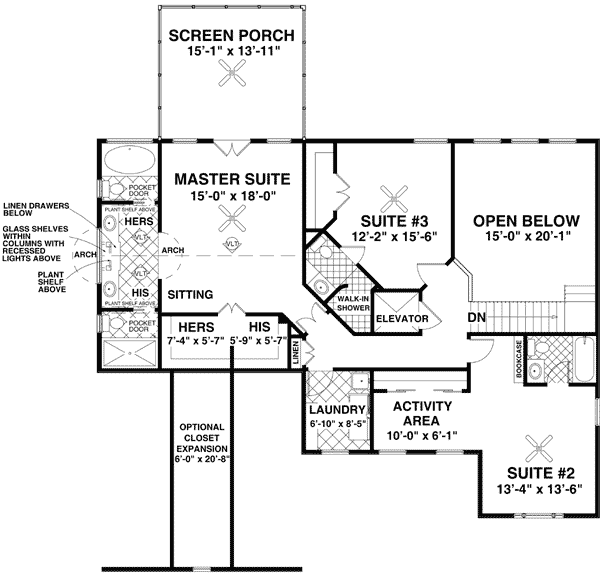

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,953 sq. ft.
  • 1st Floor: 1,586 sq. ft.
  • 2nd Floor: 1,367 sq. ft.
  • Porch, Front: 89 sq. ft.
  • Screened Porch: 205 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Basement, Walkout
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 53' 2"
  • Depth: 60' 8"

Garage

  • Type: Attached
  • Area: 735 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
