Craftsman Florida Home Plan with Game Room and 3-Car Garage

Plan 65664BS

  • 3,054

    Heated s.f.

  • 3-4

    Beds

  • 4

    Baths

  • 1

    Stories

  • 3

    Cars

  • At over 3,000 sq ft of living space, this Craftsman Florida home plan features an open living space, large covered terrace, and a 3-car garage.
  • Each of the rear-facing rooms flow onto the sizable covered terrace for an indoor outdoor lifestyle.
  • Entertaining is made easy with this deluxe kitchen, and a game room lends a fun space for all to enjoy, or step into the study for some peace and quiet
  • The master suite occupies the right side of the home, and features two walk-in closets and a 5-fixture bathroom.
  • Related Plans: Get alternate versions with house plans 65625BS. 65742BS and 86018BS.
  • BUILDING RESTRICTION: This plan my not be built in Lee and Collier Counties, Florida as well as Sarasota, Florida.

Plans include the following:

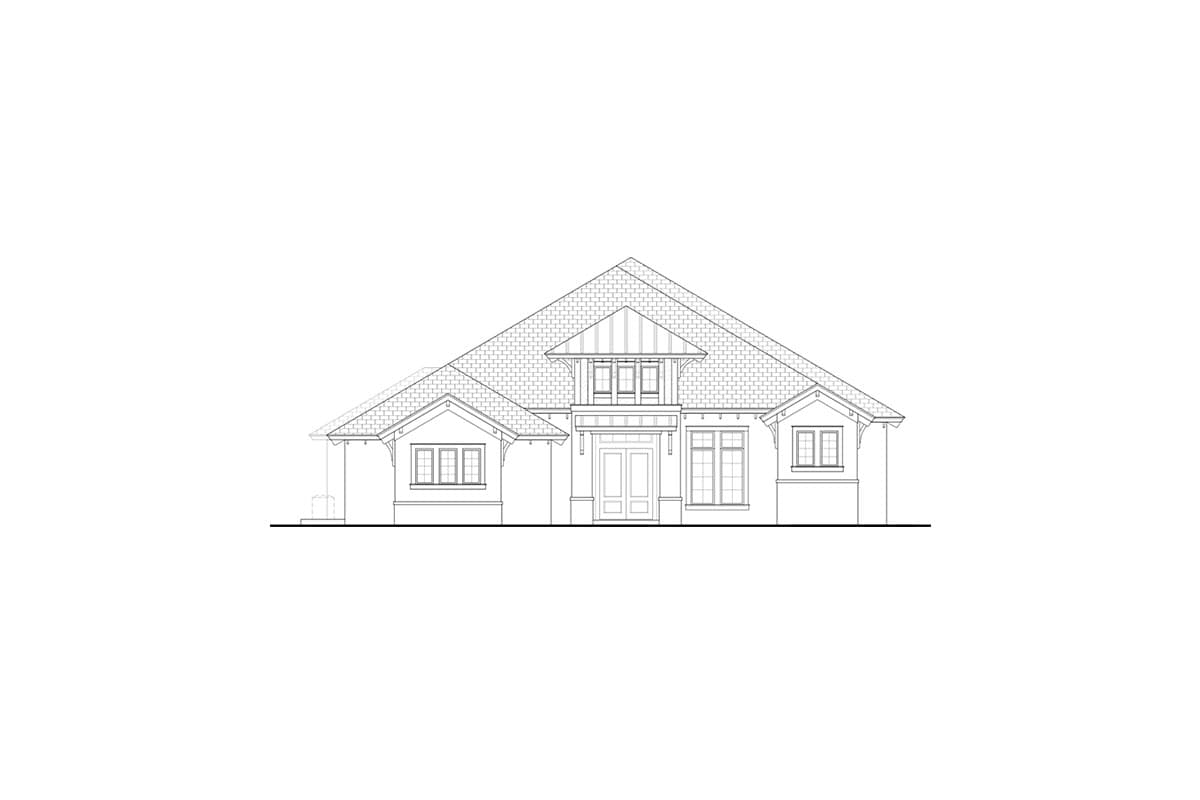

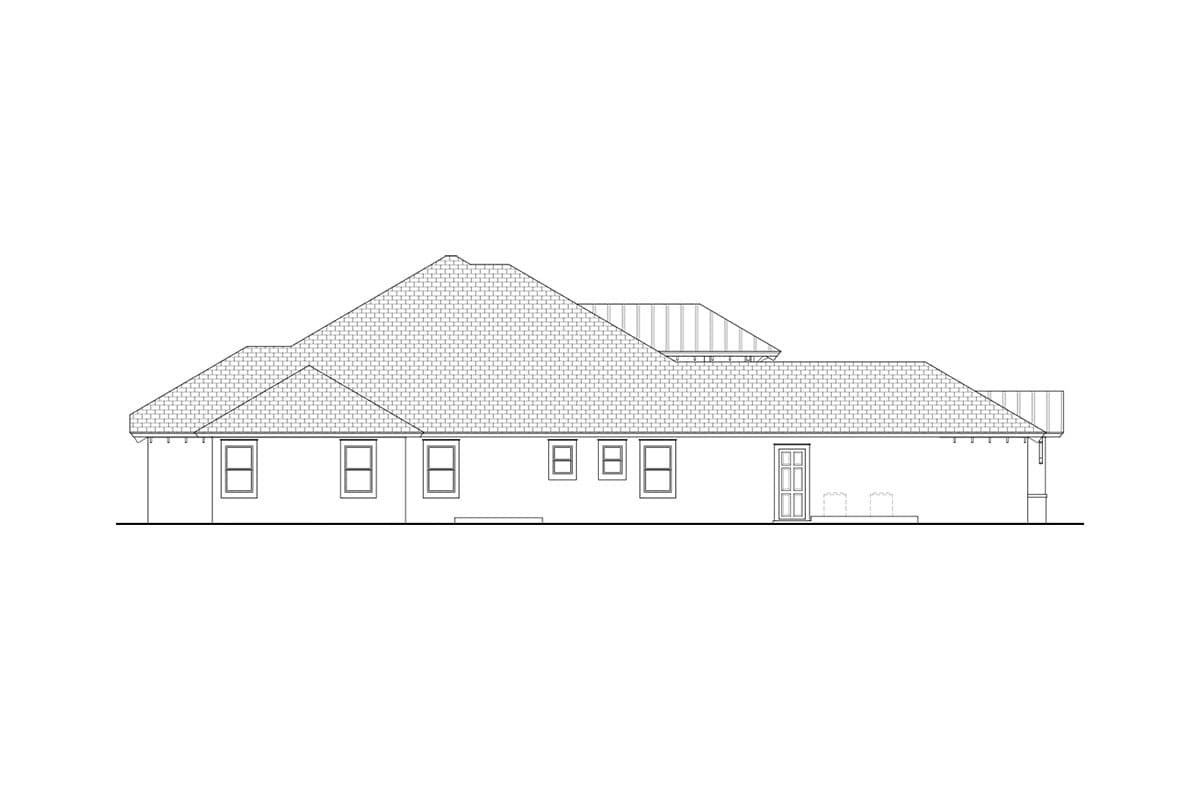

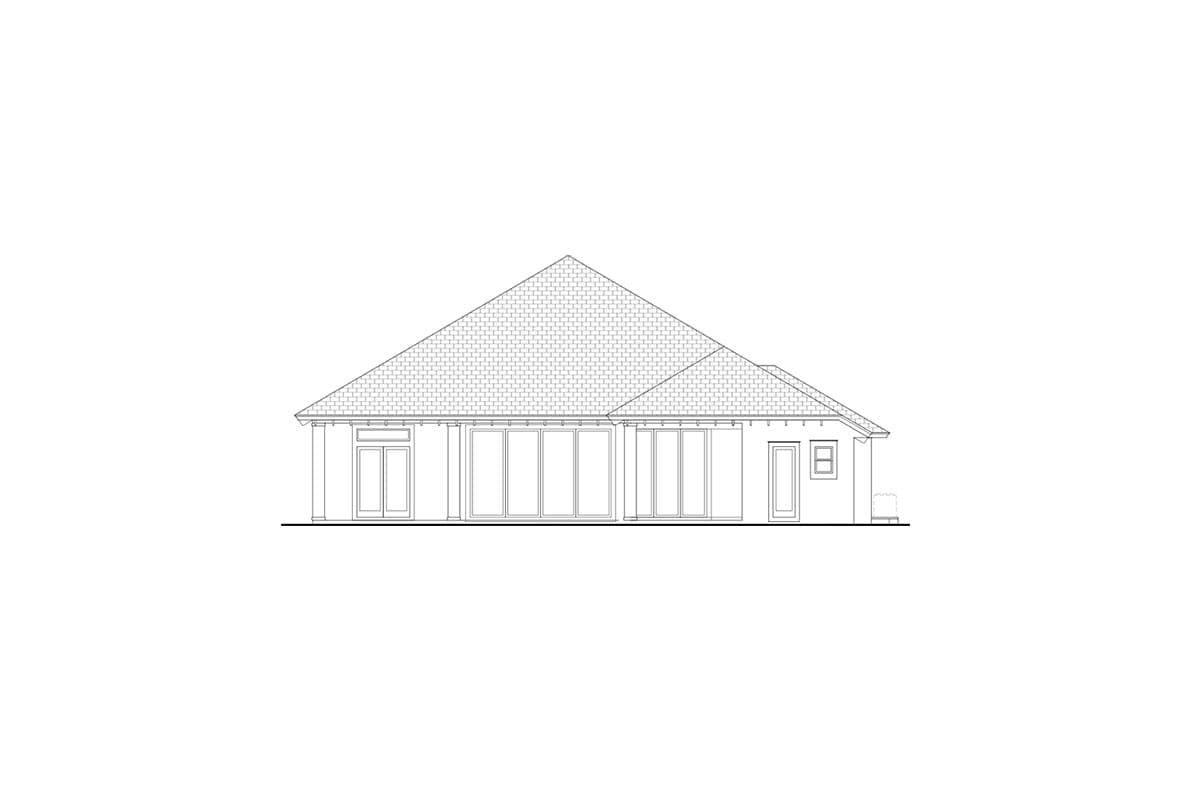

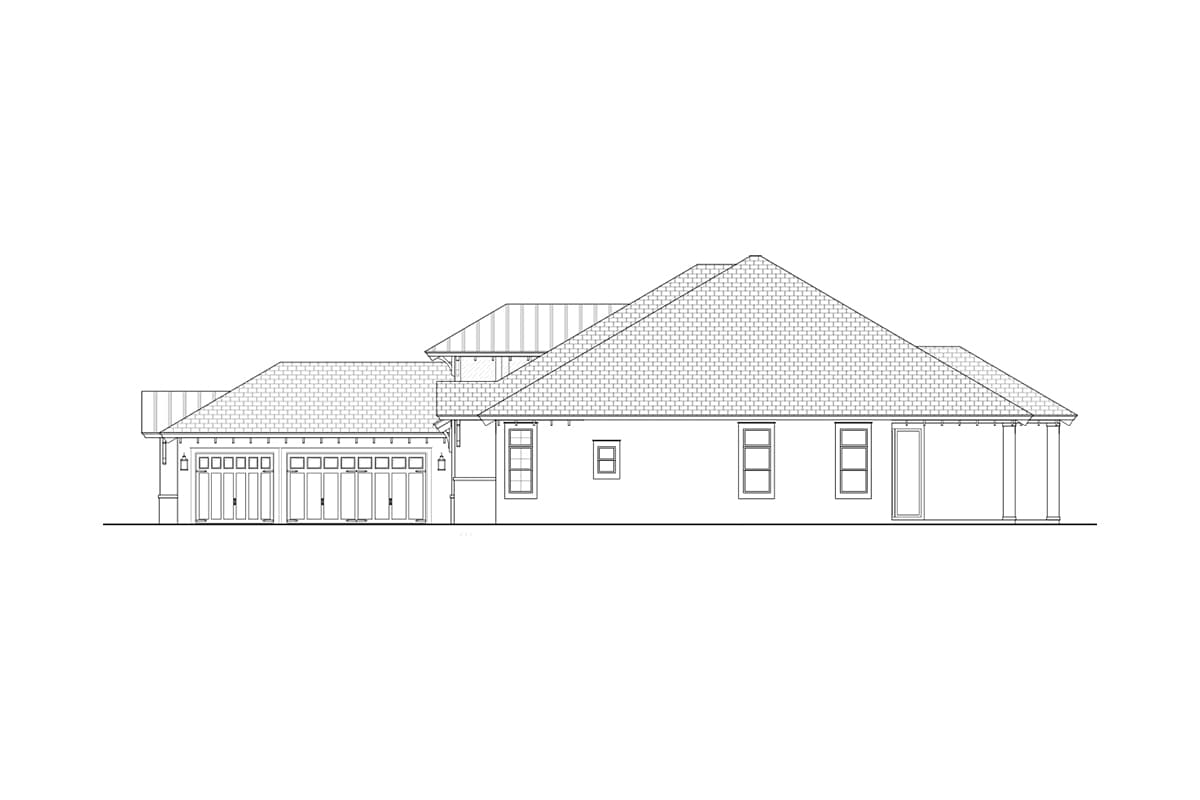

Elevations:

Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes

Electrical Layouts:

  • Building Section Markers
  • All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale

Roof Design Plan:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections:
Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness
  • Insulation Type and Thickness

Miscellaneous Notes and Details:

  • Miscellaneous General Notes
  • Stairway Details (if applicable)
IMPORTANT NOTE:  Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc.  Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

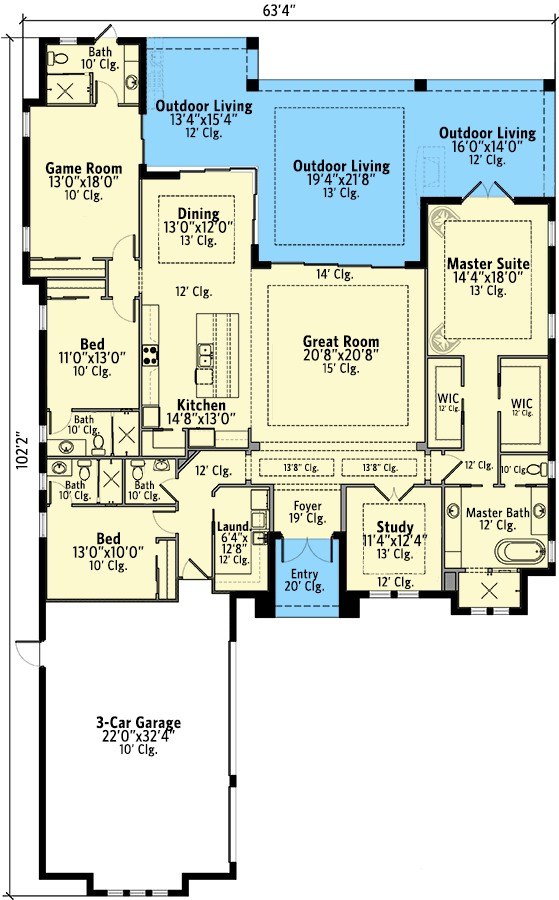

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Craftsman Florida Home Plan with Game Room and 3-Car Garage - 65664BS floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,054 sq. ft.
  • 1st Floor: 3,054 sq. ft.
  • Lanai: 856 sq. ft.
  • Entry: 85 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 63' 4"
  • Depth: 102' 2"
  • Max ridge height: 29' 8"

Garage

  • Type: Attached
  • Area: 807 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Roof Details

  • Primary Pitch: 7 on 12
  • Framing Type: Truss

Architectural Style

Special features

Craftsman Florida Home Plan with Game Room and 3-Car Garage

  • 3,054

    Heated s.f.

  • 3-4

    Beds

  • 4

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • CAD + PDF - Single-Build $3,054
  • PDF - Single-Build $3,054
  • View all purchase option online

About This Plan

  • At over 3,000 sq ft of living space, this Craftsman Florida home plan features an open living space, large covered terrace, and a 3-car garage.
  • Each of the rear-facing rooms flow onto the sizable covered terrace for an indoor outdoor lifestyle.
  • Entertaining is made easy with this deluxe kitchen, and a game room lends a fun space for all to enjoy, or step into the study for some peace and quiet
  • The master suite occupies the right side of the home, and features two walk-in closets and a 5-fixture bathroom.
  • Related Plans: Get alternate versions with house plans 65625BS. 65742BS and 86018BS.
  • BUILDING RESTRICTION: This plan my not be built in Lee and Collier Counties, Florida as well as Sarasota, Florida.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,054 sq. ft.
  • 1st Floor: 3,054 sq. ft.
  • Lanai: 856 sq. ft.
  • Entry: 85 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 63' 4"
  • Depth: 102' 2"
  • Max ridge height: 29' 8"

Garage

  • Type: Attached
  • Area: 807 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Roof

  • Primary Pitch: 7 on 12
  • Framing Type: Truss
Plan 65664BS
View this and more for this plan by visiting www.architechtecturaldesigns.com/65664BS
|
Need Help? 800-854-7852
|
