Plan 25419TF Craftsman Garage Apartment with Ground Floor Shop

708 1 1 2 3
watch
video Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Craftsman Garage Apartment with Ground Floor Shop

Plan 25419TF

  • 708

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Stories

  • 3

    Cars

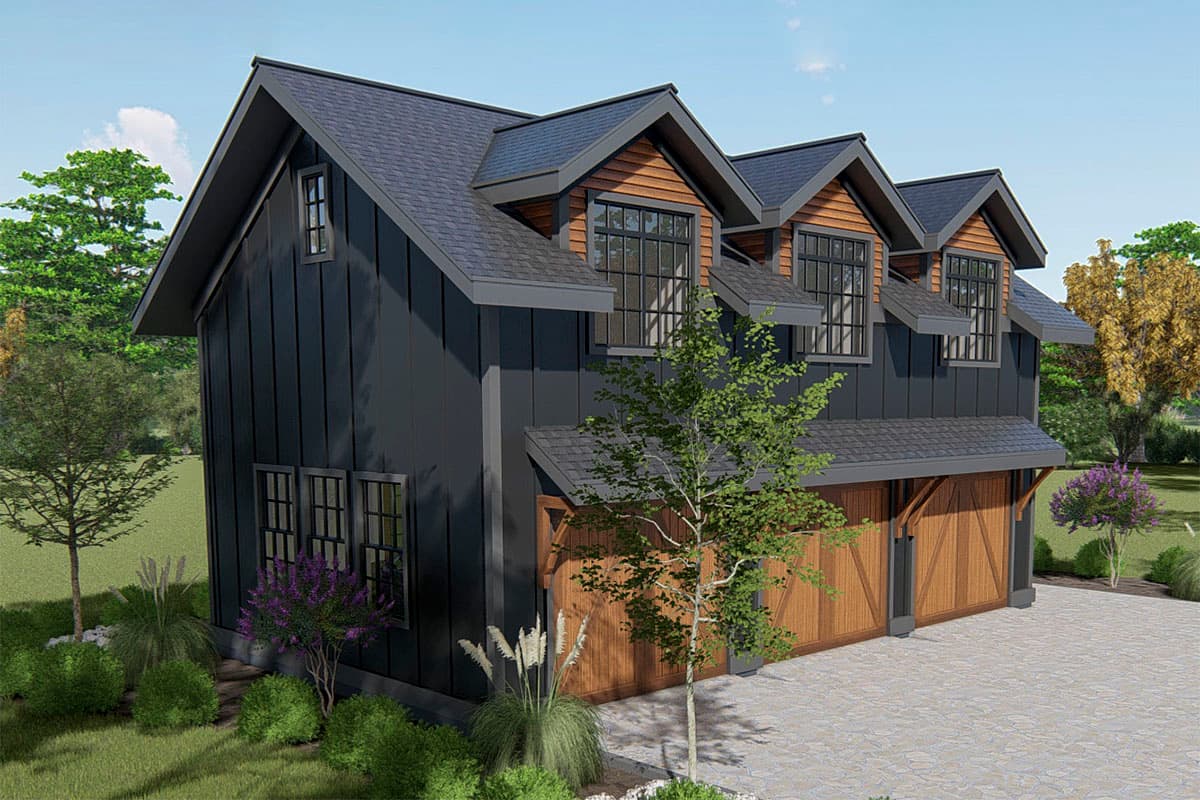

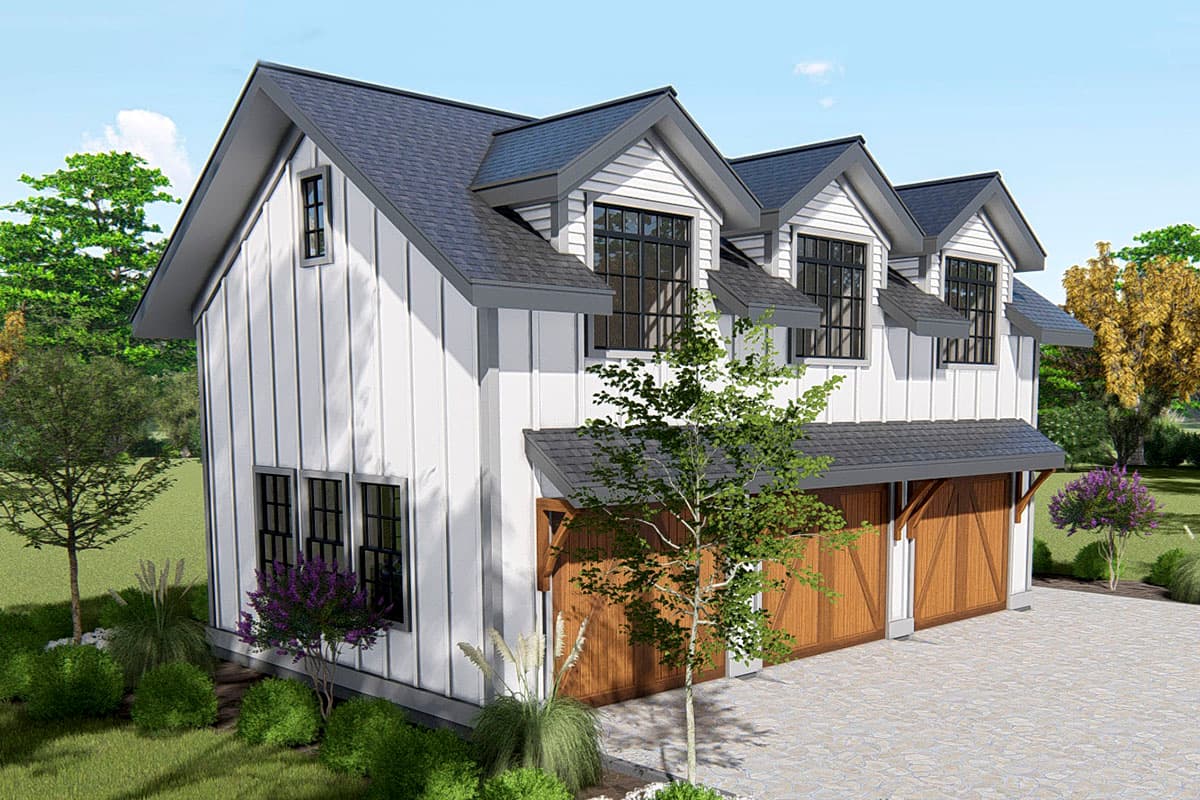

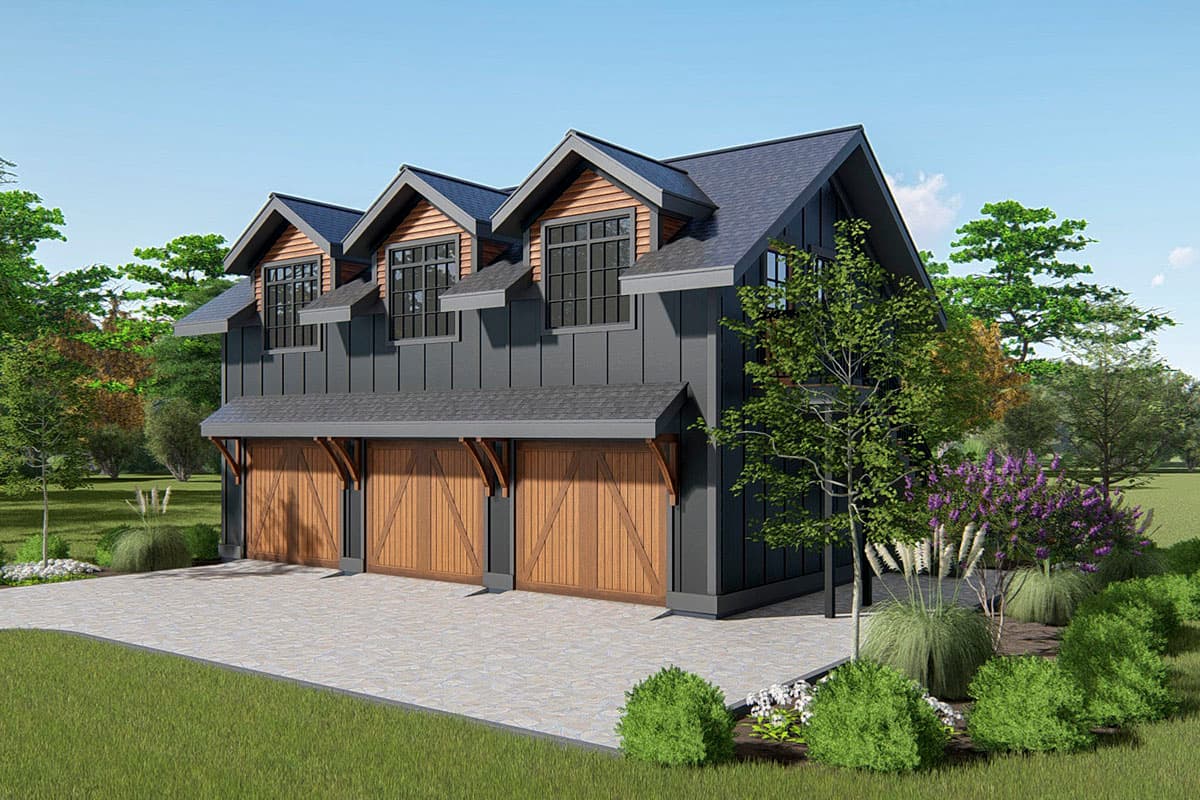

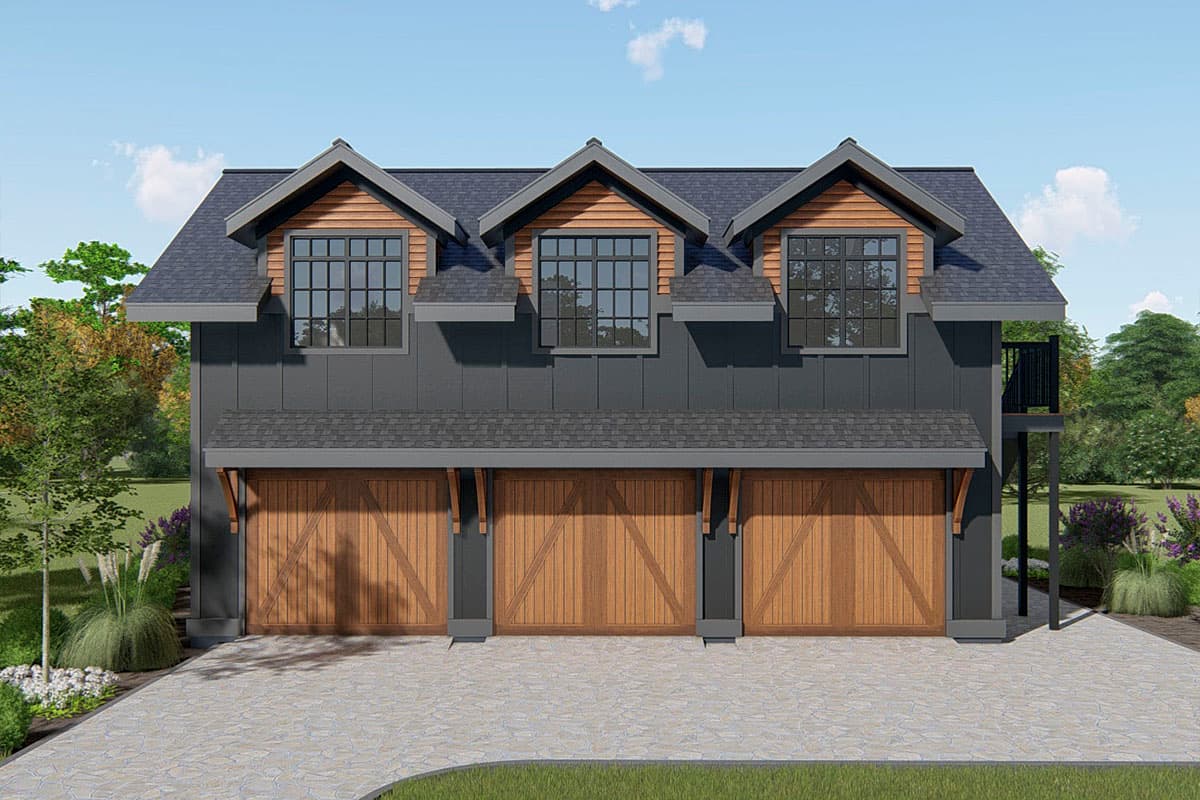

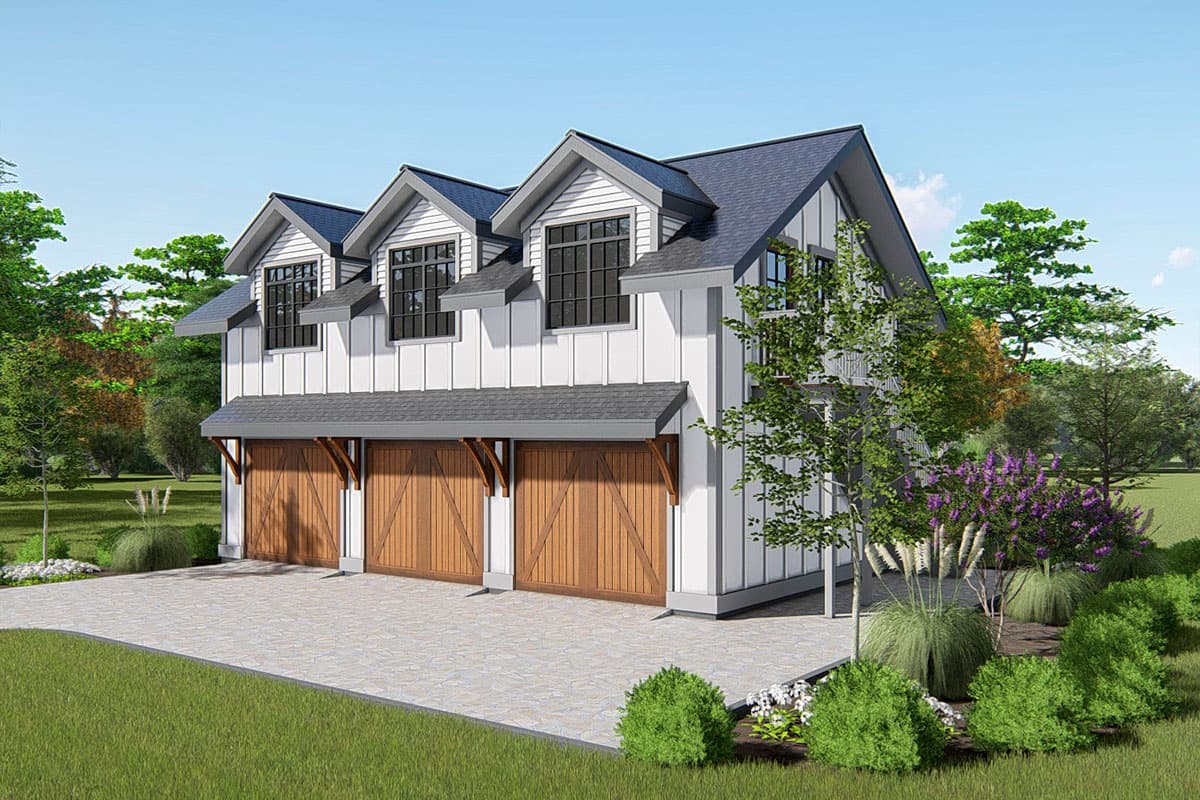

  • Three dormer windows protrude from the gable roof of this Craftsman Garage Apartment, each centered above an overhead garage door.
  • Utilize the third bay as a wood shop or storage space for lawn / farm equipment.

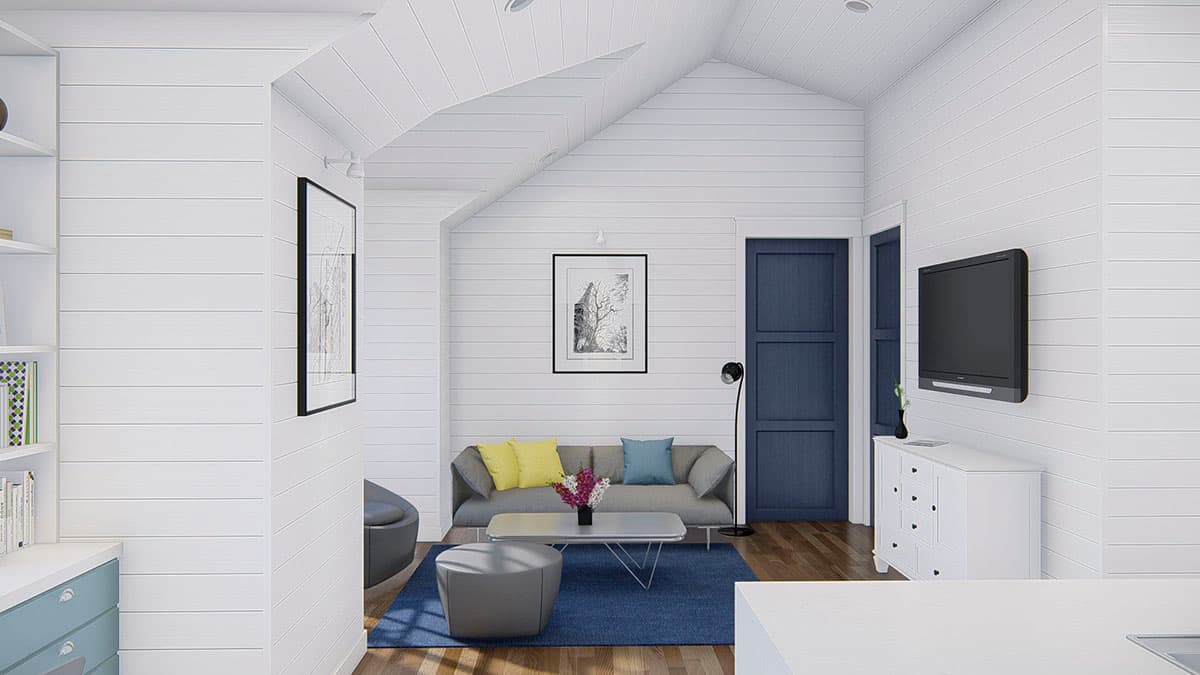

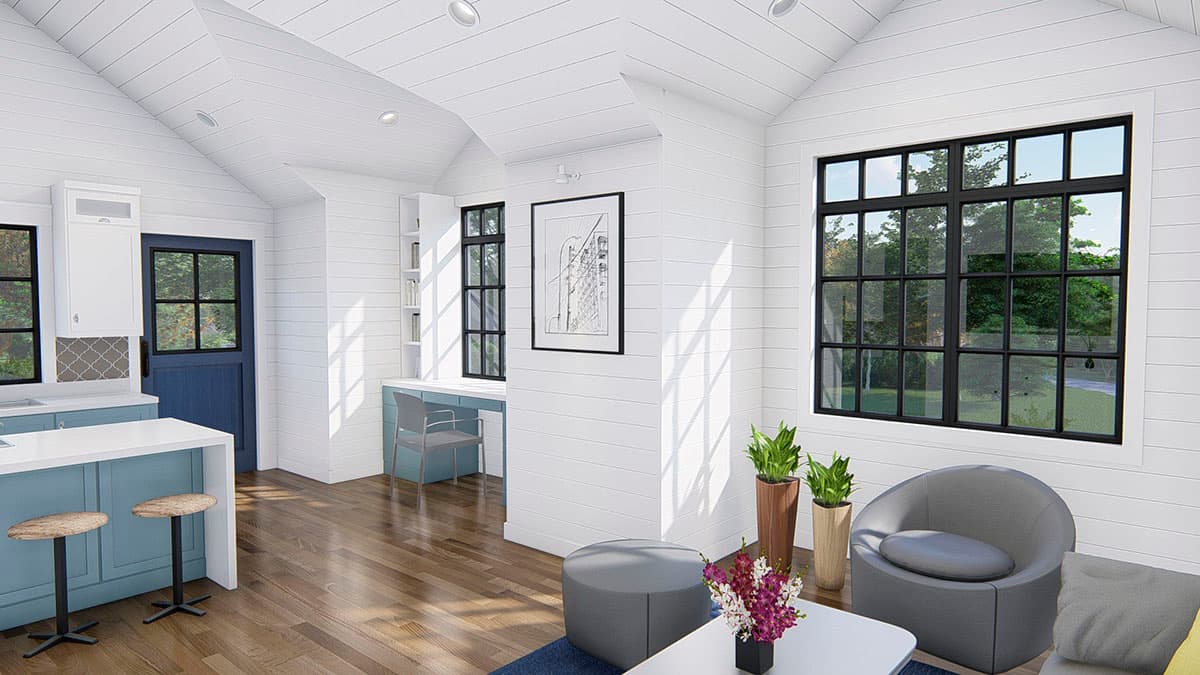

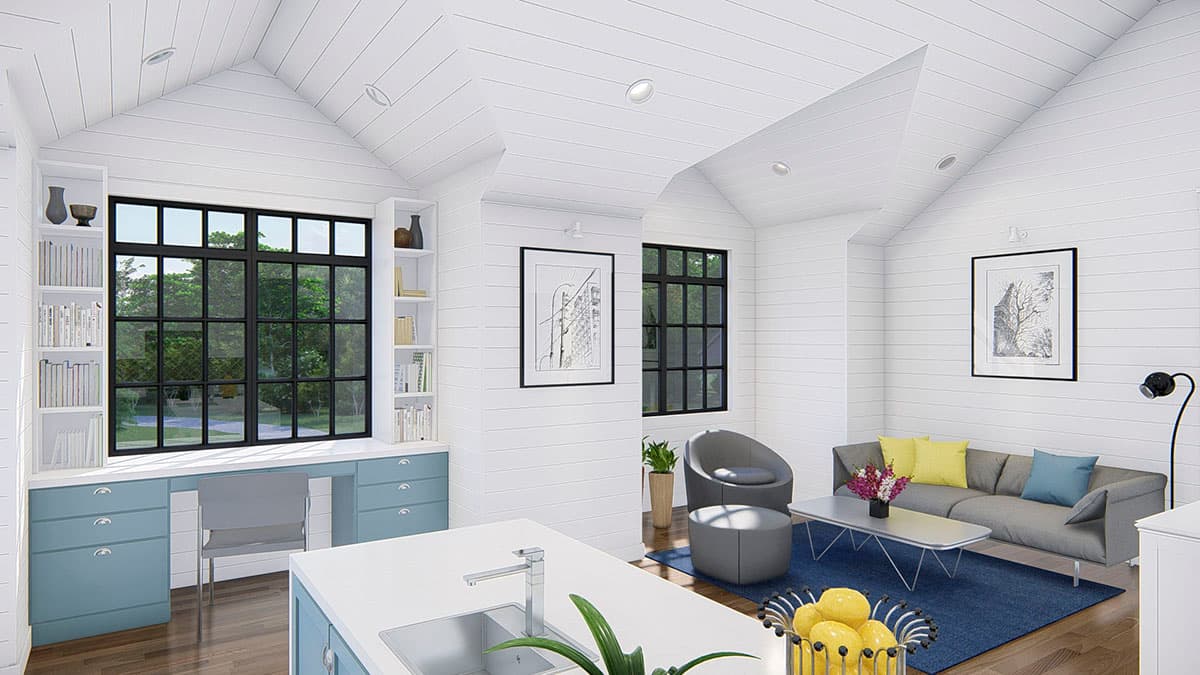

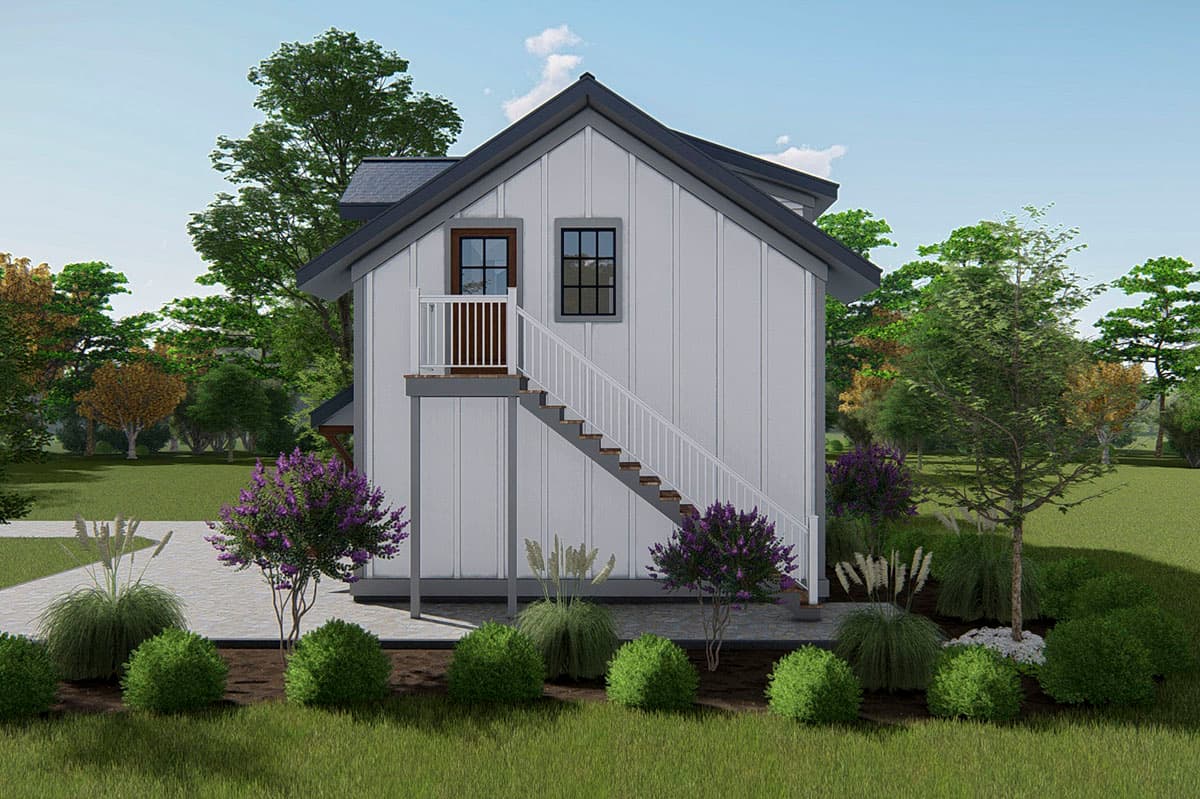

  • The staircase, attached to the exterior of the garage, guides you up to the second-level apartment. An open kitchen and living area greet you, complete with a sitting nook (or study).

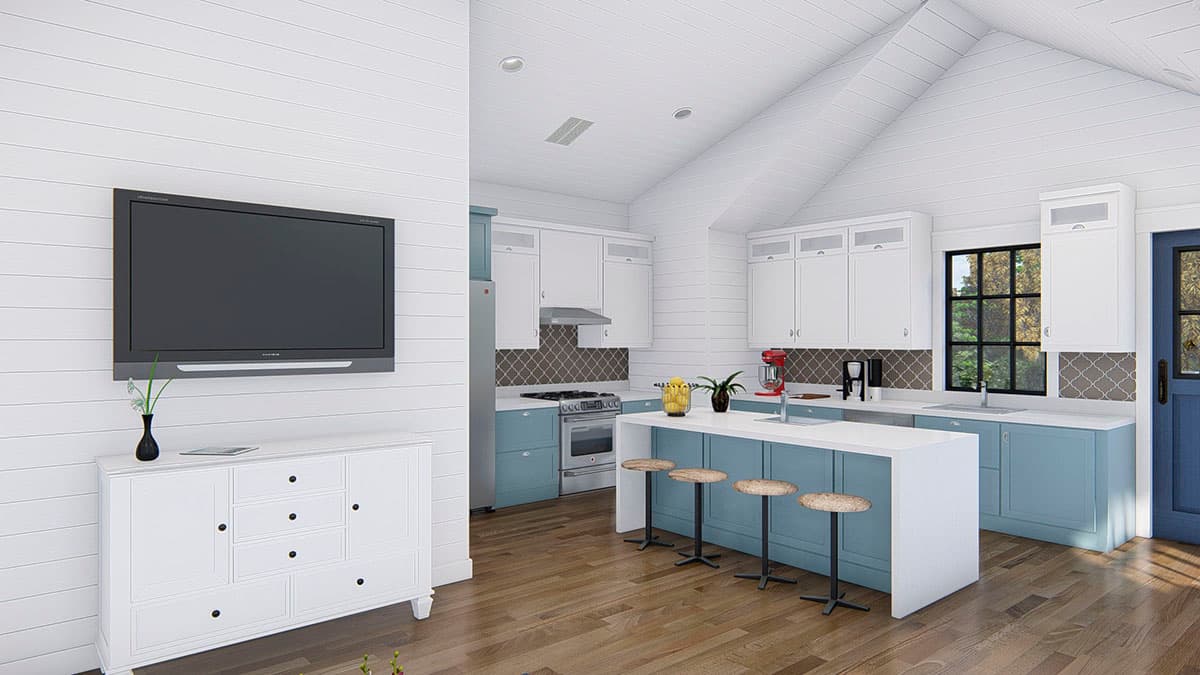

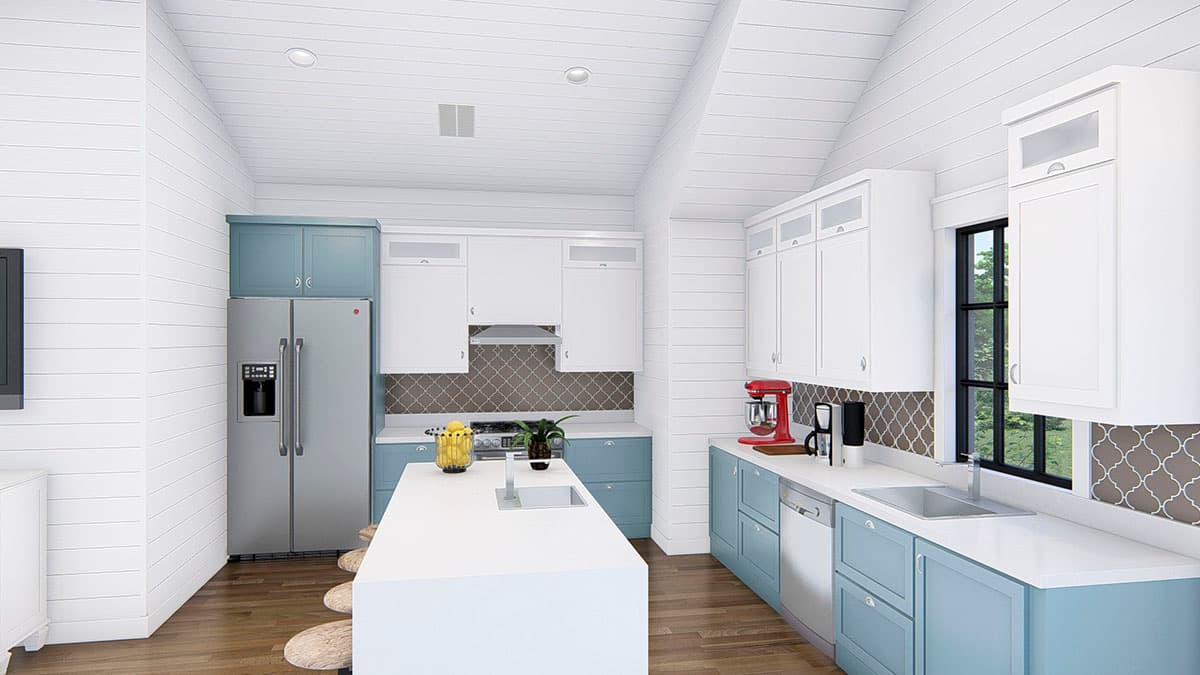

  • The kitchen provides enough space for a central dining table that can double as an island for additional workspace.

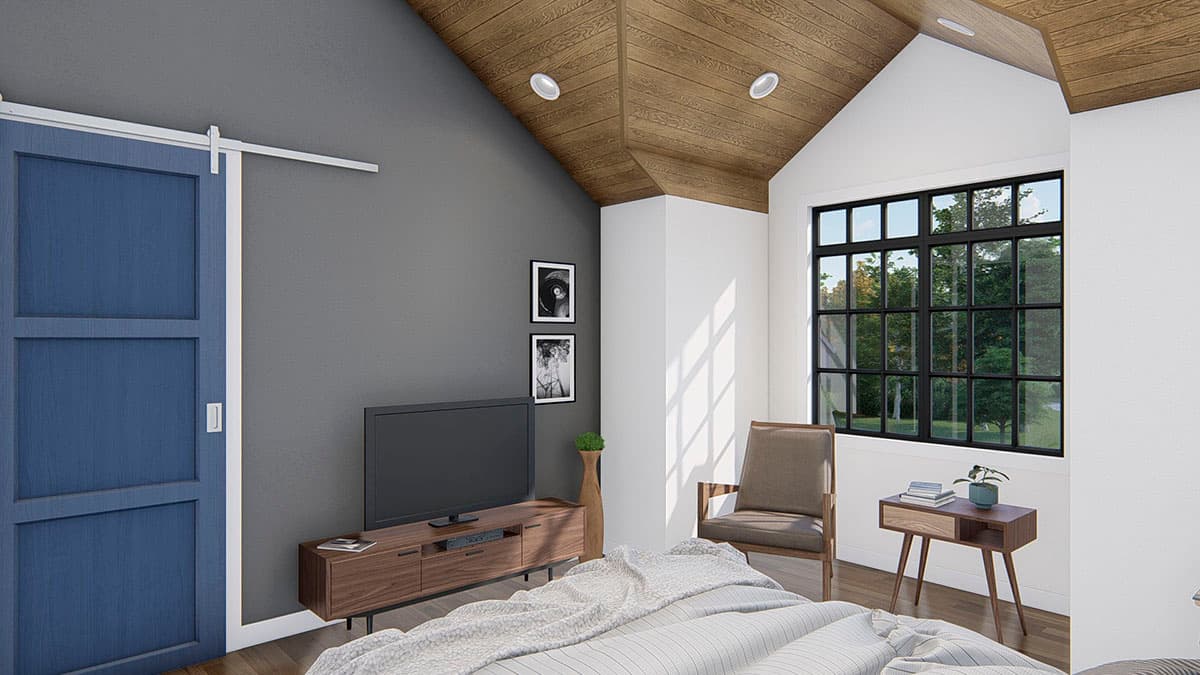

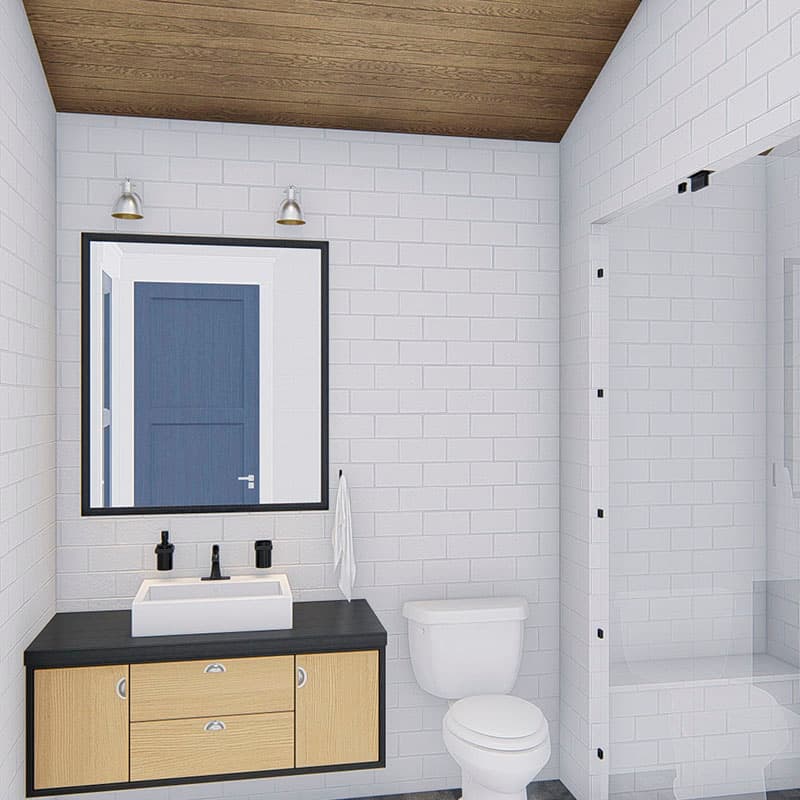

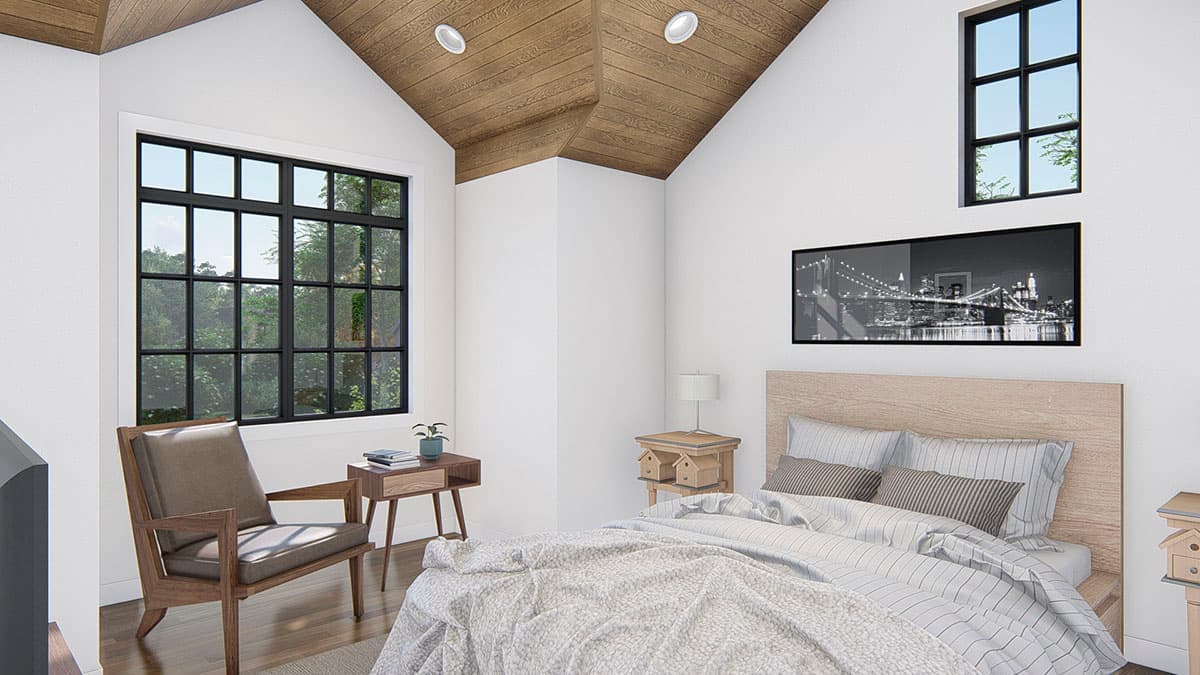

  • A barn door reveals the bedroom, which includes a walk-in closet, stackable washer / dryer unit, and access to a full bath.

Plans include the following:
  • Cover Sheet w/General Notes
  • Foundation Plan (Dimension Control)
  • Floor Plan(s) w/Door and Window Schedule
  • Roof Plan
  • Building Section (through the whole space) + Wall Section (showing materials, etc)
  • Exterior Elevations
  • Carriage House Floor Plan, Electrical Plan and Roof Plan (when applicable)
  • Carriage House Elevations (when applicable)
  • Electrical Floor Plan(s) w/legend
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

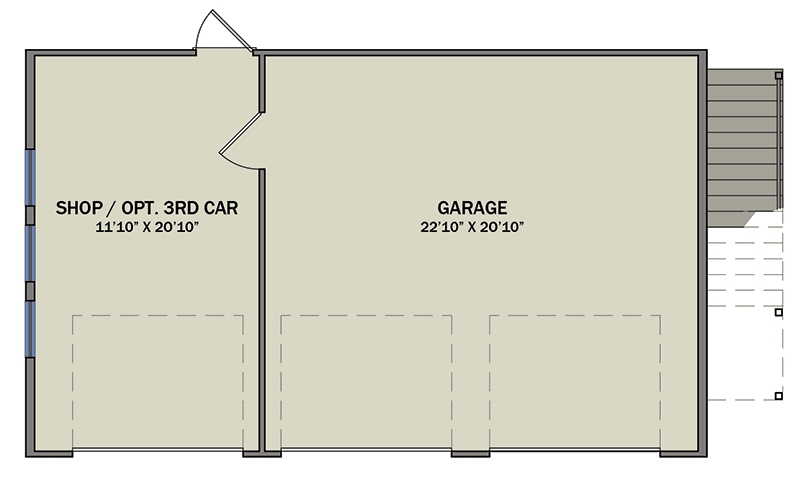

Craftsman Garage Apartment with Ground Floor Shop - 25419TF floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

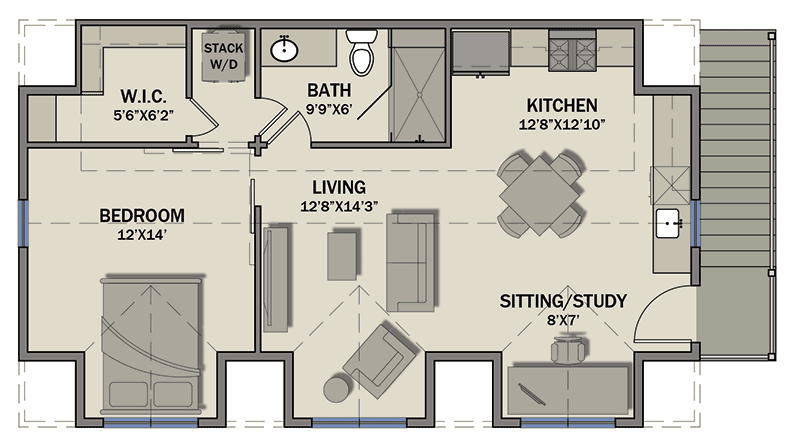

Craftsman Garage Apartment with Ground Floor Shop - 25419TF floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 708 sq. ft.
  • 1st Floor: 708 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 39' 11"
  • Depth: 21' 6"
  • Max ridge height: 23' 0"

Garage

  • Type: Attached
  • Area: 711 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Craftsman Garage Apartment with Ground Floor Shop

  • 708

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $889
  • 5 Sets $999
  • CAD - Single-Build $1,489
  • View all purchase option online

About This Plan

  • Three dormer windows protrude from the gable roof of this Craftsman Garage Apartment, each centered above an overhead garage door.
  • Utilize the third bay as a wood shop or storage space for lawn / farm equipment.
  • The staircase, attached to the exterior of the garage, guides you up to the second-level apartment. An open kitchen and living area greet you, complete with a sitting nook (or study).
  • The kitchen provides enough space for a central dining table that can double as an island for additional workspace.
  • A barn door reveals the bedroom, which includes a walk-in closet, stackable washer / dryer unit, and access to a full bath.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 708 sq. ft.
  • 1st Floor: 708 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 39' 11"
  • Depth: 21' 6"
  • Max ridge height: 23' 0"

Garage

  • Type: Attached
  • Area: 711 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick
Plan 25419TF
View this and more for this plan by visiting www.architechtecturaldesigns.com/25419TF
|
