Craftsman Home For Your Narrow or In-Fill Lot

Plan 85173MS

  • 1,986

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 1

    Cars

  • This house pan is great for a narrow or in-fill lot and comes in two versions with nearly identical exteriors and different upstairs layouts.
  • Come in off the covered porch and find yourself in a spacious living room/dining room, just off the U-shaped kitchen.
  • Head upstairs to find two vaulted bedrooms, a vaulted loft, and a vaulted master suite, complete with his/hers sinks and a separate shower/tub.
  • Related Plans: Get an alternate second floor with house plan 85171MS. And an alternate exterior with house plan 85172MS.

Each plan set is drawn to 1/4" scale and includes the following:

  • Elevations: Front, Right, Rear, Left
  • Fully Dimensioned Floor Plans (window and door sizes called out at openings)
  • Foundation Plan with notes
  • Roof Framing Plan with notes
  • Section Views
  • Electrical Layout
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

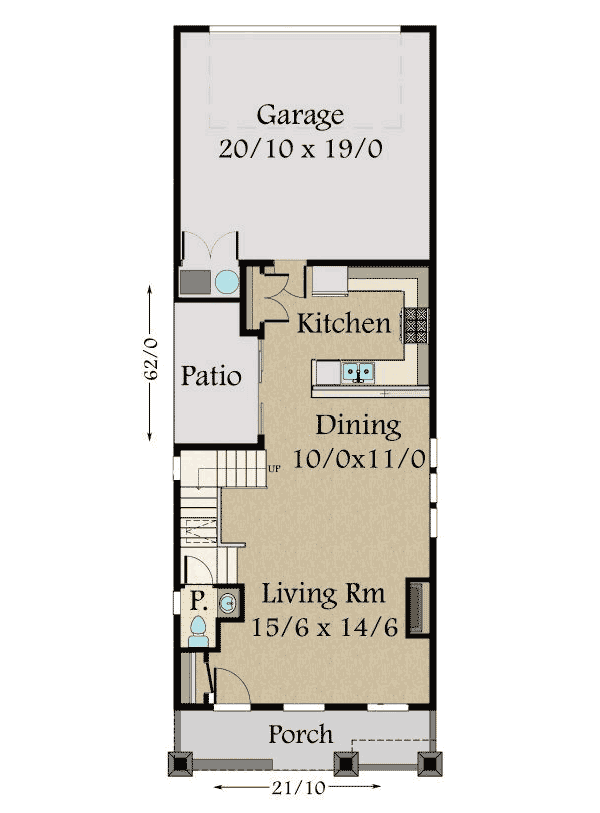

Craftsman Home For Your Narrow or In-Fill Lot - 85173MS floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

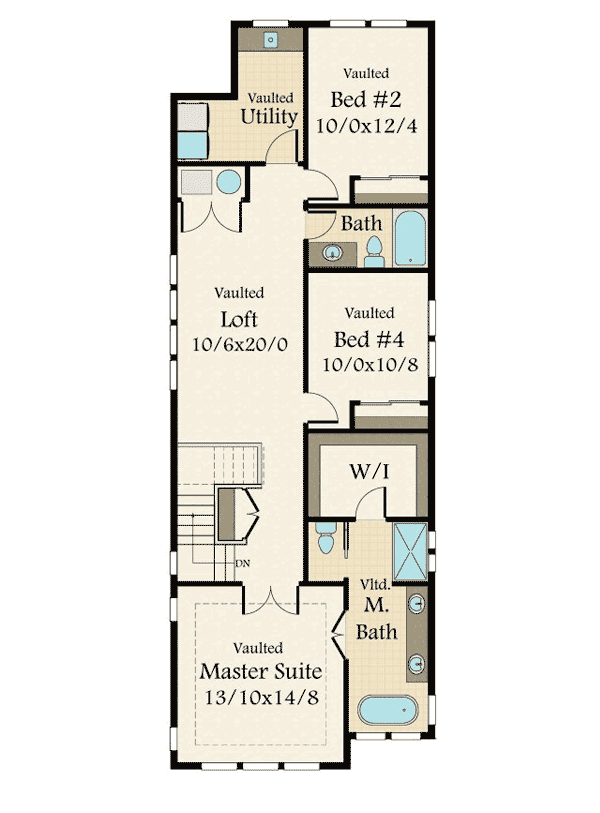

Craftsman Home For Your Narrow or In-Fill Lot - 85173MS floor plan - 2nd Floor

Architectural Style

Plan Collections

Craftsman Home For Your Narrow or In-Fill Lot

  • 1,986

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 1

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,986 sq. ft.
  • 1st Floor: 721 sq. ft.
  • 2nd Floor: 1,265 sq. ft.

Dimensions

  • Width: 21' 0"
  • Depth: 62' 0"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 426 sq. ft.
  • Count: 1 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6
