Plan 270017AF
Craftsman Home Plan with Optional Lower-Level Apartment
Heated S.F.
2,458
Beds
4-6
Baths
3.5 - 4.5
Stories
2
Cars
2
Floor Plan
Optional Lower Level
Reverse Floor Plan
Craftsman Home Plan with Optional Lower-Level Apartment - 270017AF floor plan - Optional Lower Level
Plan Details
  • Shake siding adorns the facade of this Craftsman home plan, adding texture and character to the exterior. Choose to finish the lower level as designed and gain a 2-bedroom apartment for in-laws or an income property.

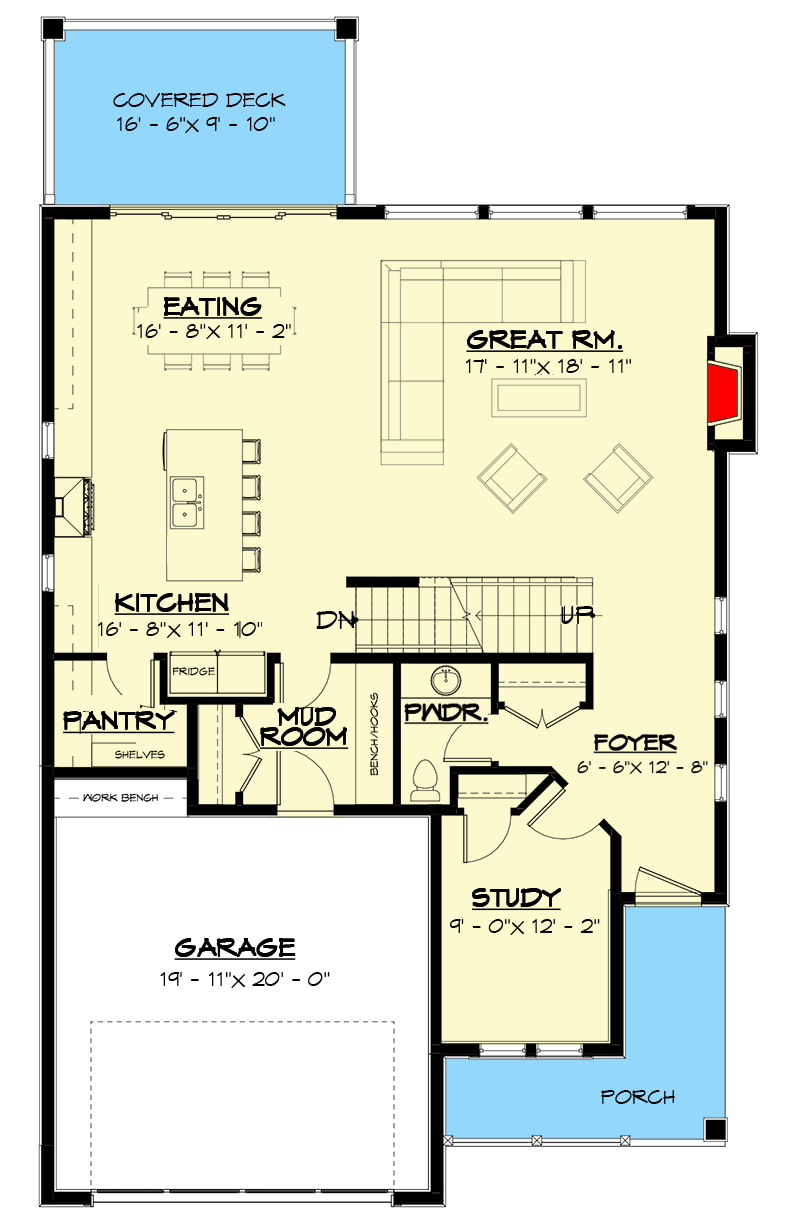

  • A coat closet and powder bath are conveniently located near the foyer, which neighbors a quiet study. The remainder of the main level is primarily open to one another, creating an ideal space for family and friends to gather.
  • The kitchen features a large island with seating for casual meals, and a corner pantry maximizes storage space. The nearby mudroom includes a built-in bench and hooks, and leads to the double garage.

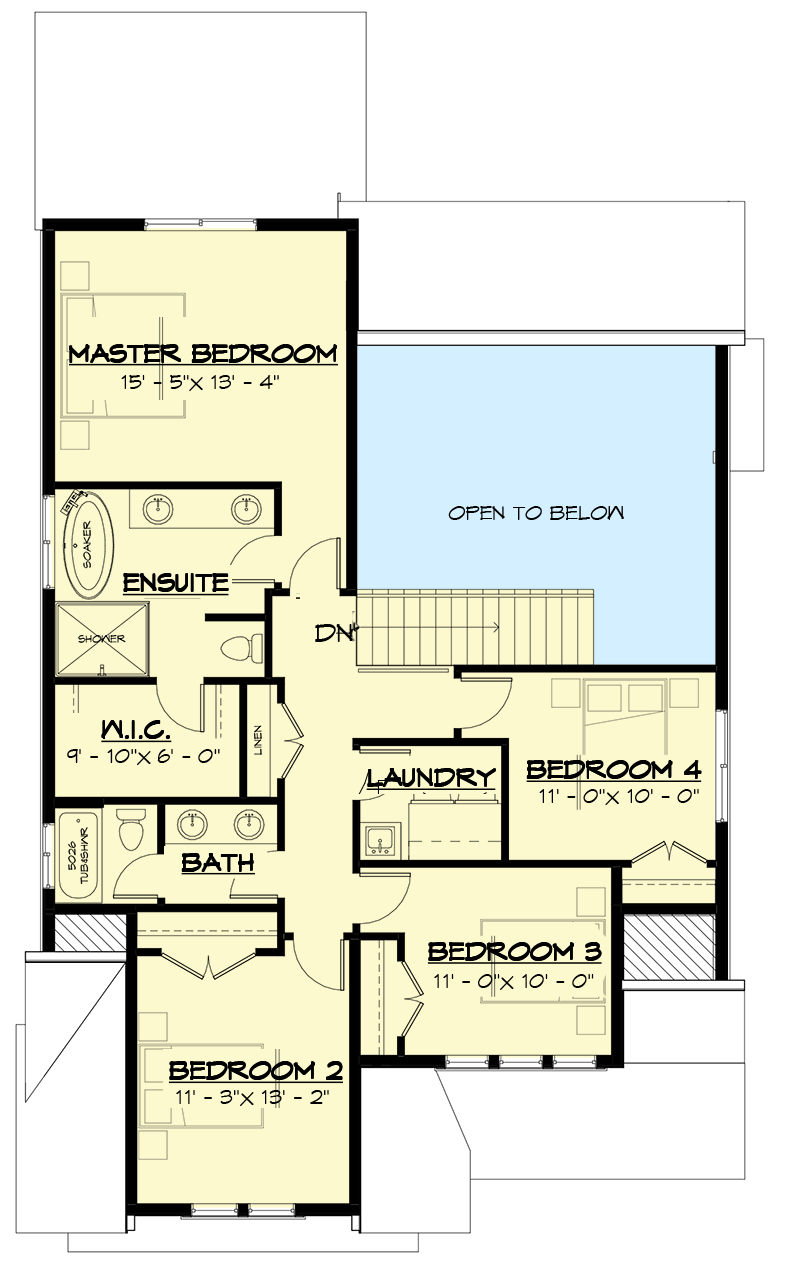

  • Four bedrooms reside upstairs, including the master bedroom with a comfortable 5-fixture en suite, and the centrally located laundry room reduces time spent hauling clothes up and down stairs.

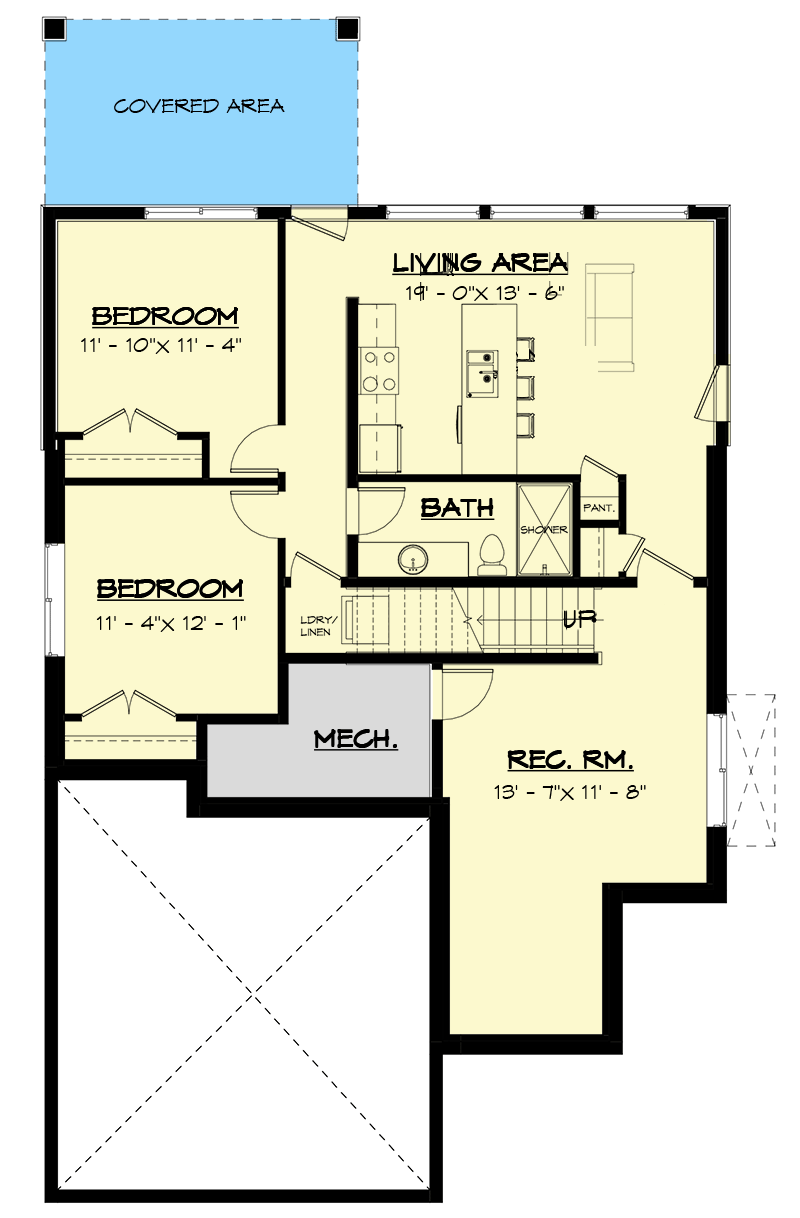

  • The optional lower-level is 851 square feet, and includes a recreation room, along with a 2-bedroom apartment with a private entrance.
  • Related Plan: Get an expanded version with the master suite on the main floor with house plan 270018AF.
What's Included
  • Foundation Plan
  • Floor Plan(s) with Door and Window Opening Sizes
  • Roof Plan showing pitches, valleys, ridges
  • Exterior Elevations
  • Building Section
  • Typical Construction Details/Sections

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Plumbing & Electrical plans
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Framing - layouts with beam sizes and locations
  • Renderings, photography, or marketing imagery
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Craftsman Home Plan with Optional Lower-Level Apartment

  • 2,458

    Heated s.f.

  • 4-6

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,458 sq. ft.
  • 1st Floor: 1,290 sq. ft.
  • 2nd Floor: 1,168 sq. ft.

Dimensions

  • Width: 36' 0"
  • Depth: 52' 0"
  • Max ridge height: 29' 0"

Beds/Baths

  • Bedrooms: 4, 5, or 6
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 439 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Slab, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 14 on 12
  • Framing Type: Truss
