Plan 20123GA

Craftsman Home with a Hideaway and a Sports Court

Heated S.F.
2,659
Beds
3 - 4
Baths
3
Stories
2
Cars
3

Floor Plan

Plan 20123GA

Main Level
Main Level
2nd Floor
2nd Floor
Lower Level
Lower Level

Plan 20123GA

M-F 9am-5pm EST |

1-203-761-8500

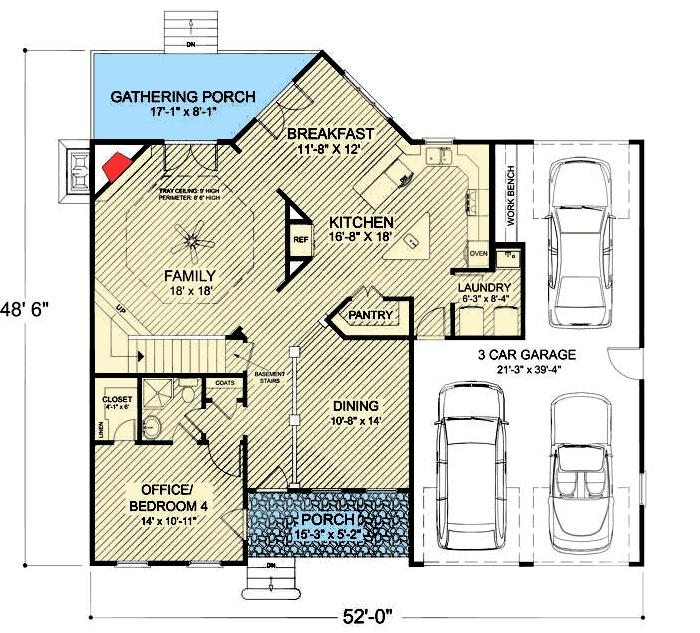

Main Level

Plan 20123GA: Craftsman Home with a Hideaway and a Sports Court - Floor Plan - Main Level - Craftsman, Northwest

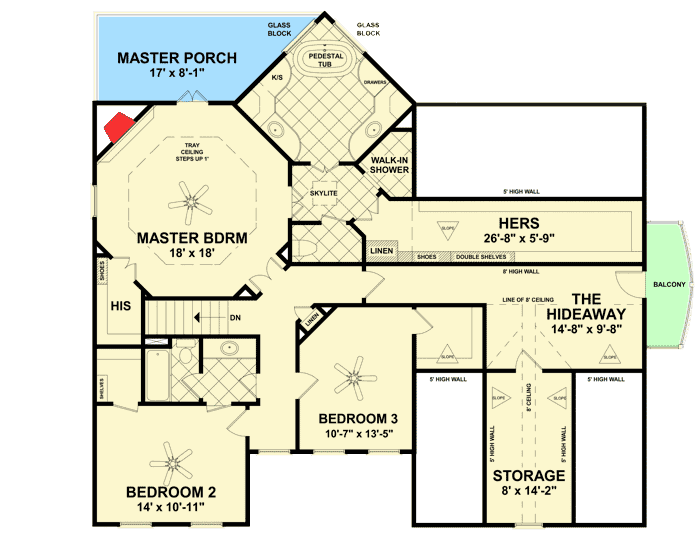

2nd Floor

Plan 20123GA: Craftsman Home with a Hideaway and a Sports Court - Floor Plan - 2nd Floor - Craftsman, Northwest

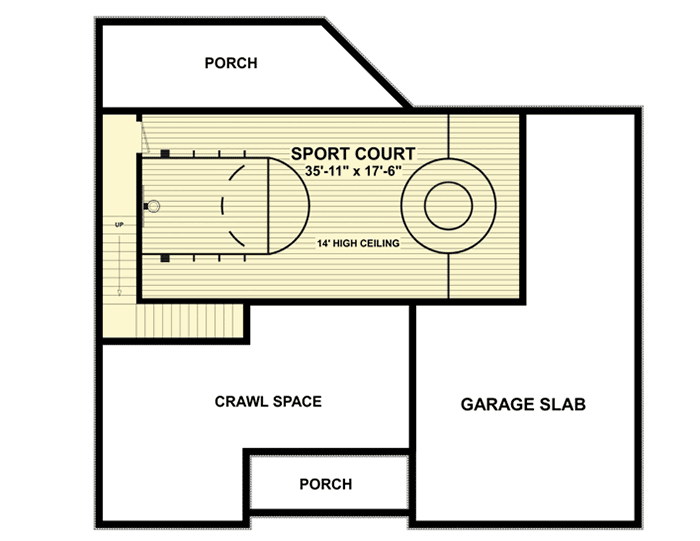

Lower Level

Plan 20123GA: Craftsman Home with a Hideaway and a Sports Court - Floor Plan - Lower Level - Craftsman, Northwest

Plan Details

  • There are plenty of unique features to this Craftsman home to make it stand out.
  • A half wall separates the foyer from the dining room, preserving the views and making both feel larger.
  • Choose from a home office or a fourth bedroom with its walk-in closet and nearby bathroom.
  • The octagonal family room gets a lovely tray ceiling and a corner fireplace to gather around.
  • Climb the angled stairs to reach the second floor where you have the other three bedrooms and an adorable hideaway.
  • Storage will never be a problem in this house with its huge "her" walk-in closet (lined with a shoe shelf and a row of double shelves) and a big storage room by the hideaway.
  • The pedestal tub in the master bathroom takes center stage with glass block windows on either side.
  • The master suite mirrors the octagonal family room below, right down to another corner fireplace.
  • The three car garage has a tandem bay with a work bench.
  • Your whole family will love the optional 630 square feet lower level sports court!
  • The hideaway adds 190 square feet and the storage area is 128 square feet.

What's Included

  • Digital exterior rendering cover page
  • Exterior elevation page
  • Main floor plan page with electrical, 3-D floor plan, and window and door schedule
  • Upper level floor plan page with upper floor framing schematic, and 3-D floor plan
  • Cross sections and interior elevation page
  • Roof framing plan with 3-D roof framing schematic
  • IRC code specifications and methodologies
  • General construction details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Price Guarantee

Explore the costs

Discover the cost to build & furnish this home.

Need a modified version?

Get a free quote within 3 business days.

Square Footage Breakdown

Total Heated Area

2,659 sq. ft.

1st Floor

1,346 sq. ft.

2nd Floor

1,313 sq. ft.

Porch, Front

80 sq. ft.

Sports Court

630 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

52' 0"

Depth

48' 6"

Max Ridge Height

31' 6"

Garage

Type

Attached

Area

703 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Craftsman

Northwest

Special Features

Home Office

Master Suite - Upstairs

Sport Court

Tandem Garage

Walk-in Pantry

Plan Collections

Home Office

Unlimited Build License
