Craftsman home with Spectacular Master Suite

Plan 77636FB

  • 6,438

    Heated s.f.

  • 5

    Beds

  • 6.5

    Baths

  • 1-2

    Stories

  • 3-4

    Cars

  • Get the master suite of your dreams in this stunning Craftsman house plan!
  • Both the bedroom and the large master sitting room have fireplaces and gorgeous tray ceilings.
  • There's even a private master laundry room and an enormous walk-in closet with a built-in island.
  • Three of the family bedrooms have the huge game room close by and there's a quiet guest suite across the house.
  • The kitchen has a huge and unique island with two sinks and enough space for more than one family member to help out with the cooking.
  • This home offers both an office and a music room or library.
  • Bonus space on the second floor can be configured to suit your needs.
  • Gain an extra 3,652 square feet by finishing the optional lower level that has a home theater, craft room and exercise room plus a massive great room ready for any party you want to throw.

The plan includes:

  • cover page
  • foundation plan
  • main floor plan
  • second floor plan
  • all four elevation views
  • one section view
  • enlarged construction details
  • electrical layout
  • and roof plan if needed

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally whe

Floor Plan

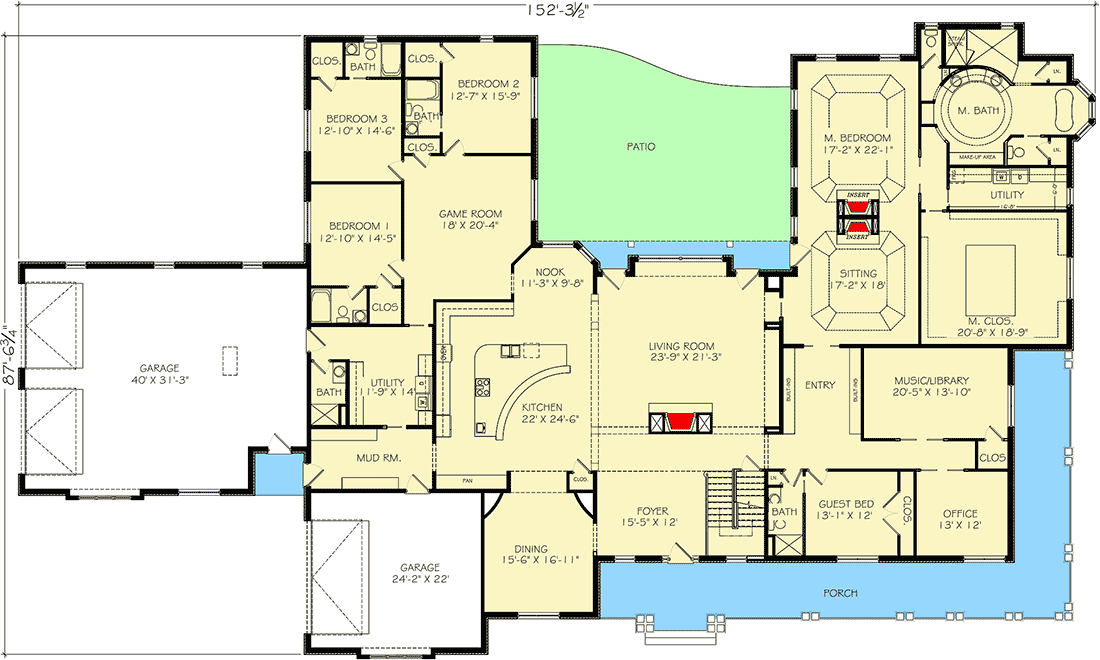

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Craftsman home with Spectacular Master Suite - 77636FB floor plan - Main Level

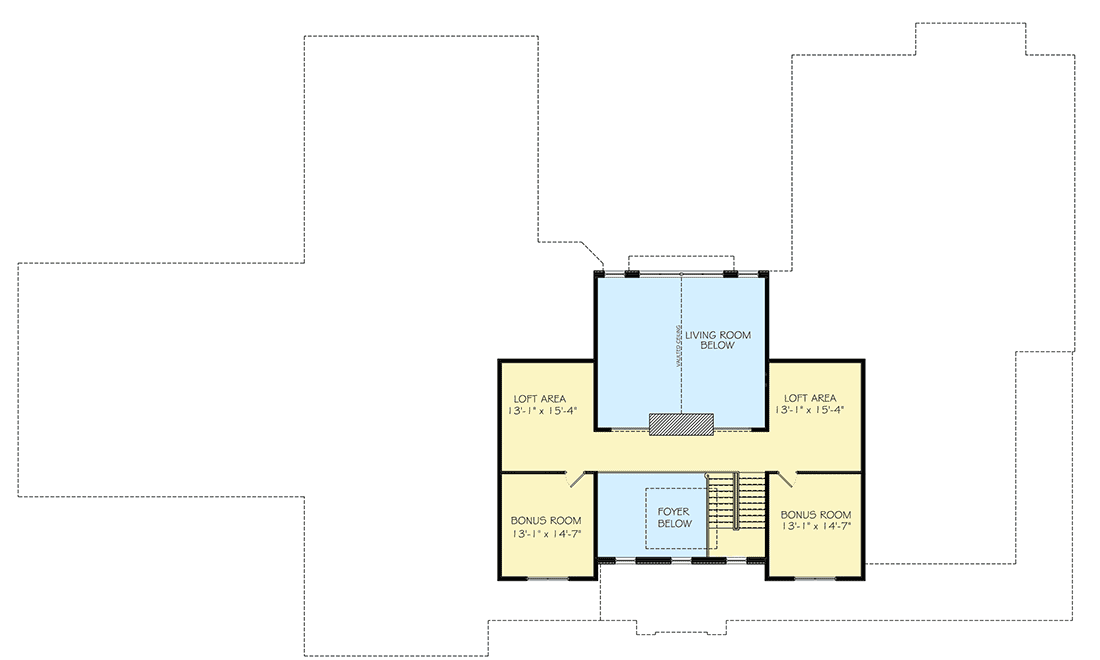

Bonus Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Craftsman home with Spectacular Master Suite - 77636FB floor plan - Bonus Level

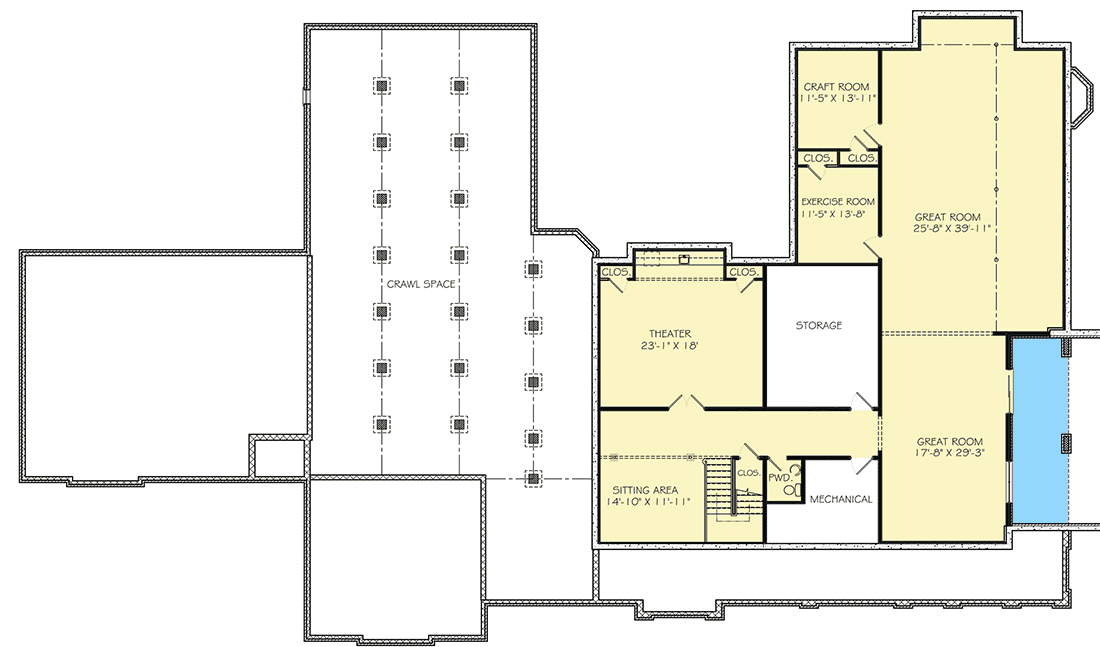

Optional Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Craftsman home with Spectacular Master Suite - 77636FB floor plan - Optional Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 6,438 sq. ft.
  • 1st Floor: 6,438 sq. ft.
  • Porch, Combined: 835 sq. ft.
  • Bonus: 1,027 sq. ft.
  • Optional Lower Level: 3,652 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 6
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl, Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 152' 3"
  • Depth: 87' 7"
  • Max ridge height: 32' 2"

Garage

  • Type: Attached
  • Area: 1027 sq. ft.
  • Count: 3 or 4 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 3 on 12

Architectural Style

Special features

Plan Collections

Craftsman home with Spectacular Master Suite

  • 6,438

    Heated s.f.

  • 5

    Beds

  • 6.5

    Baths

  • 1-2

    Floors

  • 3 - 4

    Car garage

Buy This Plan
  • PDF - Single-Build $1,995
  • 5 Sets + PDF $2,295
  • CAD - Single-Build $2,495
  • View all purchase option online

About This Plan

  • Get the master suite of your dreams in this stunning Craftsman house plan!
  • Both the bedroom and the large master sitting room have fireplaces and gorgeous tray ceilings.
  • There's even a private master laundry room and an enormous walk-in closet with a built-in island.
  • Three of the family bedrooms have the huge game room close by and there's a quiet guest suite across the house.
  • The kitchen has a huge and unique island with two sinks and enough space for more than one family member to help out with the cooking.
  • This home offers both an office and a music room or library.
  • Bonus space on the second floor can be configured to suit your needs.
  • Gain an extra 3,652 square feet by finishing the optional lower level that has a home theater, craft room and exercise room plus a massive great room ready for any party you want to throw.

Floor Plans

  • Main Level

  • Bonus Level

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 6,438 sq. ft.
  • 1st Floor: 6,438 sq. ft.
  • Porch, Combined: 835 sq. ft.
  • Bonus: 1,027 sq. ft.
  • Optional Lower Level: 3,652 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 6
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl, Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 152' 3"
  • Depth: 87' 7"
  • Max ridge height: 32' 2"

Garage

  • Type: Attached
  • Area: 1027 sq. ft.
  • Count: 3 or 4 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 3 on 12
Plan 77636FB
View this and more for this plan by visiting www.architechtecturaldesigns.com/77636FB
|
Need Help? 800-854-7852
|
Plan 77636FB
