Plan 64544SC

Craftsman House Plan for a Pie-Shaped or Rear View Lot - 2734 Sq Ft

Name: Plan 64544SC: Craftsman House Plan for a Pie-Shaped or Rear View Lot - 2734 Sq Ft
Brand: Architectural Designs
SKU: 64544SC
Price: 1795.0 USD
Availability: InStock

Heated S.F.

2,734

Beds

3 - 6

Baths

3 - 6

Stories

Cars

Floor Plan

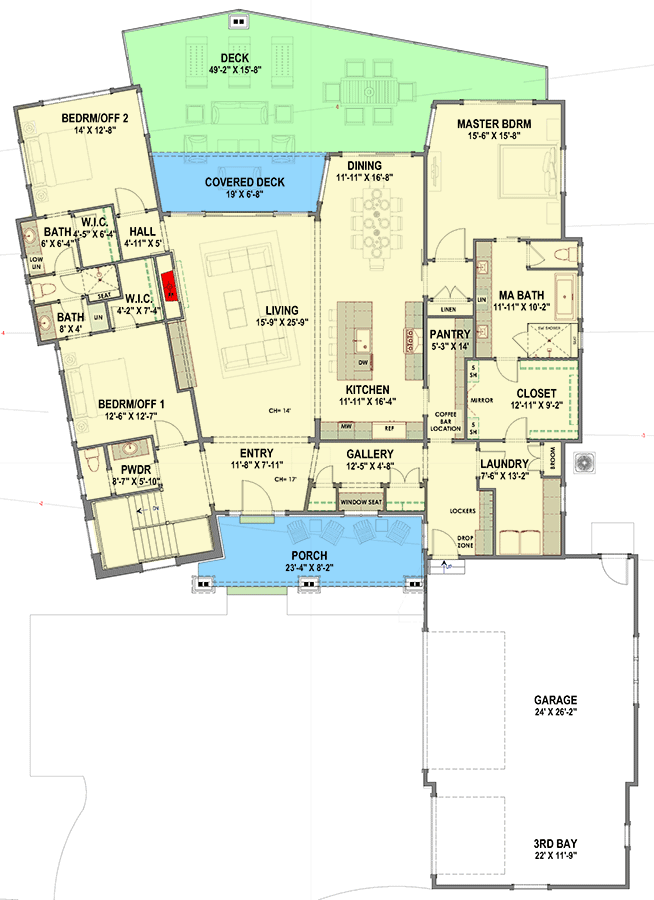

Main Level

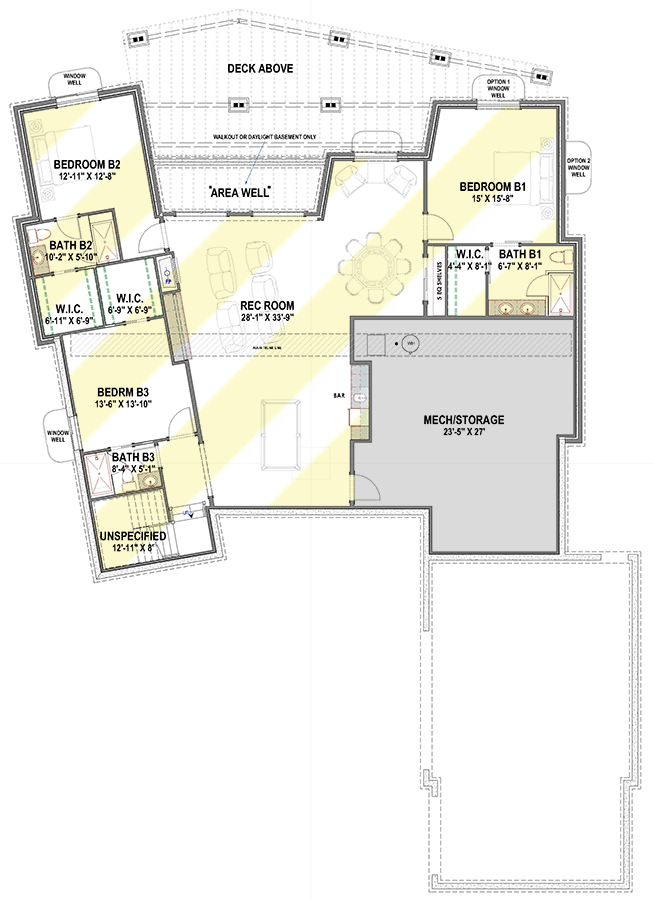

Optional Lower Level

Plan Details

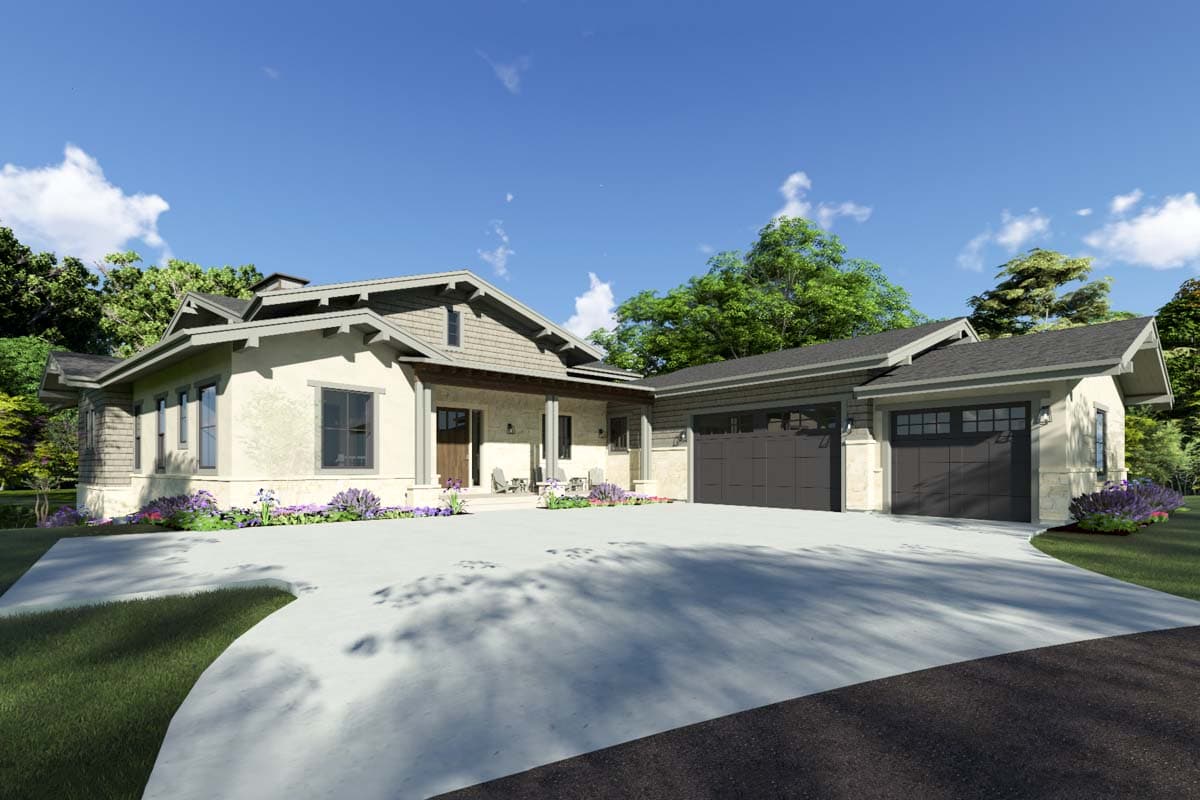

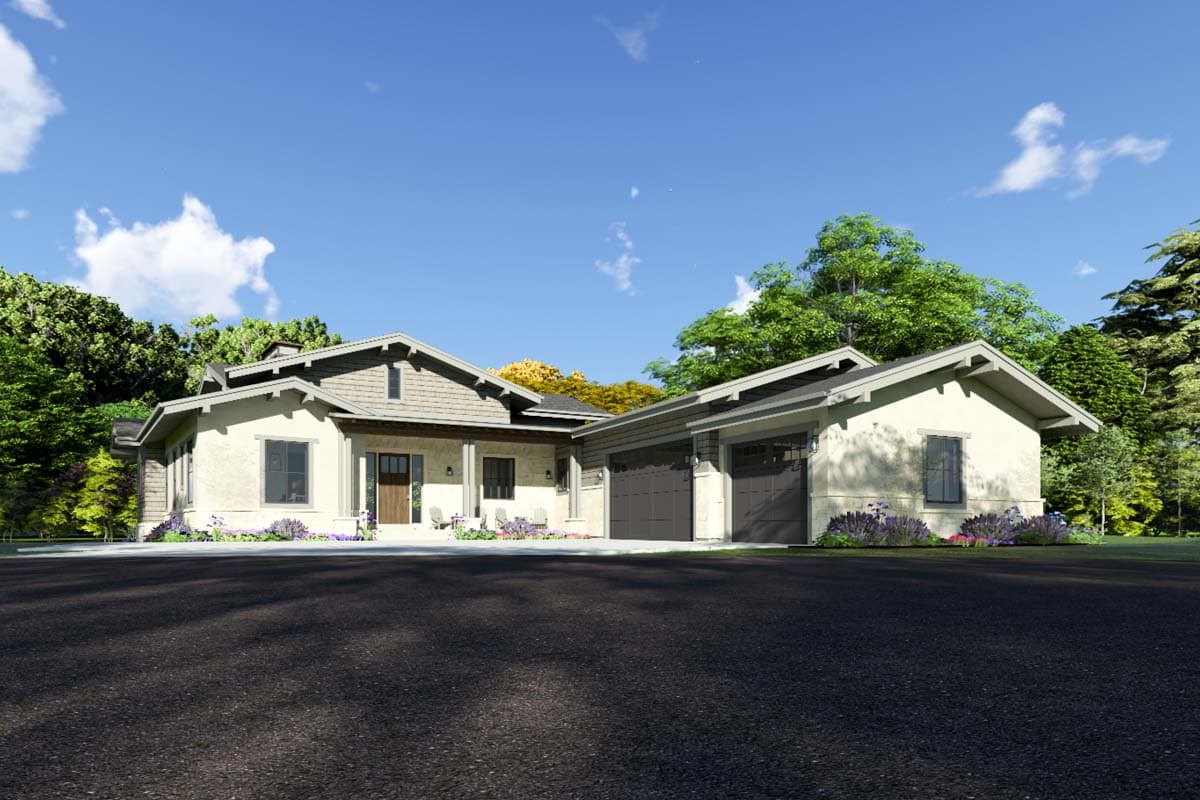

This Craftsman house plan is designed for a cul-de-sac situation on a pie-shaped lot and would also work particularly well for any lot that has a great view out the back. It gives you 2734 square feet of heated living with 3 beds, 3 baths.

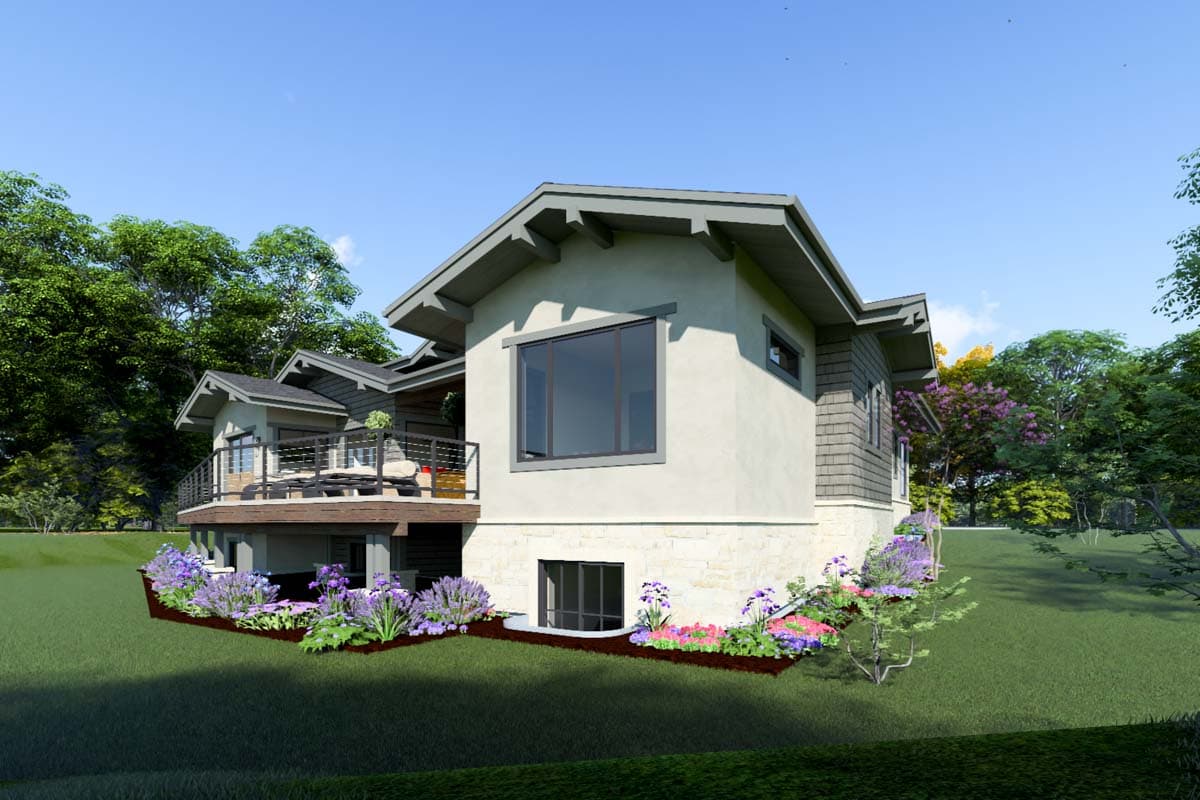

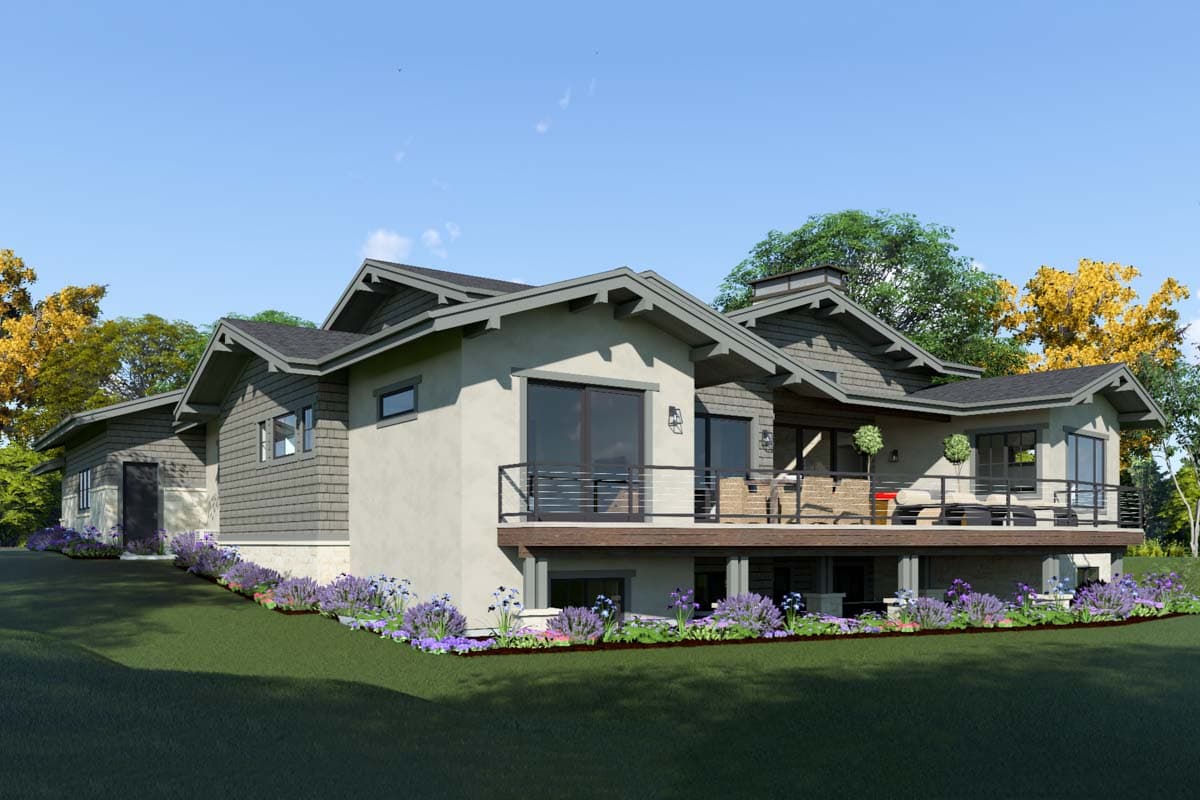

An 8'2"-deep porch welcomes you and gives you 200 square feet of outdoor space. In back, there's a large open deck (583 square feet) in addition to a smaller covered one (127 square feet).
The island kitchen is open to the living room with 14' ceilings and the dining room.
The bedrooms are in a split layout with the master suite on the right enjoying direct laundry access from the walk-in closet and porch access from the bedroom suite. Across the home, Beds 1 and 2 can each be flexed to be offices if needed.
Finish the lower level later and get 2191 square feet of expansion space.

What's Included

Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
Upper Level Plan (if needed) - same information as Main Level.
Roof Plan - layout with pitch markers, dimensions and notes.
Main Level Electrical Plan - electrical outlets, switches and light locations shown.
Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.

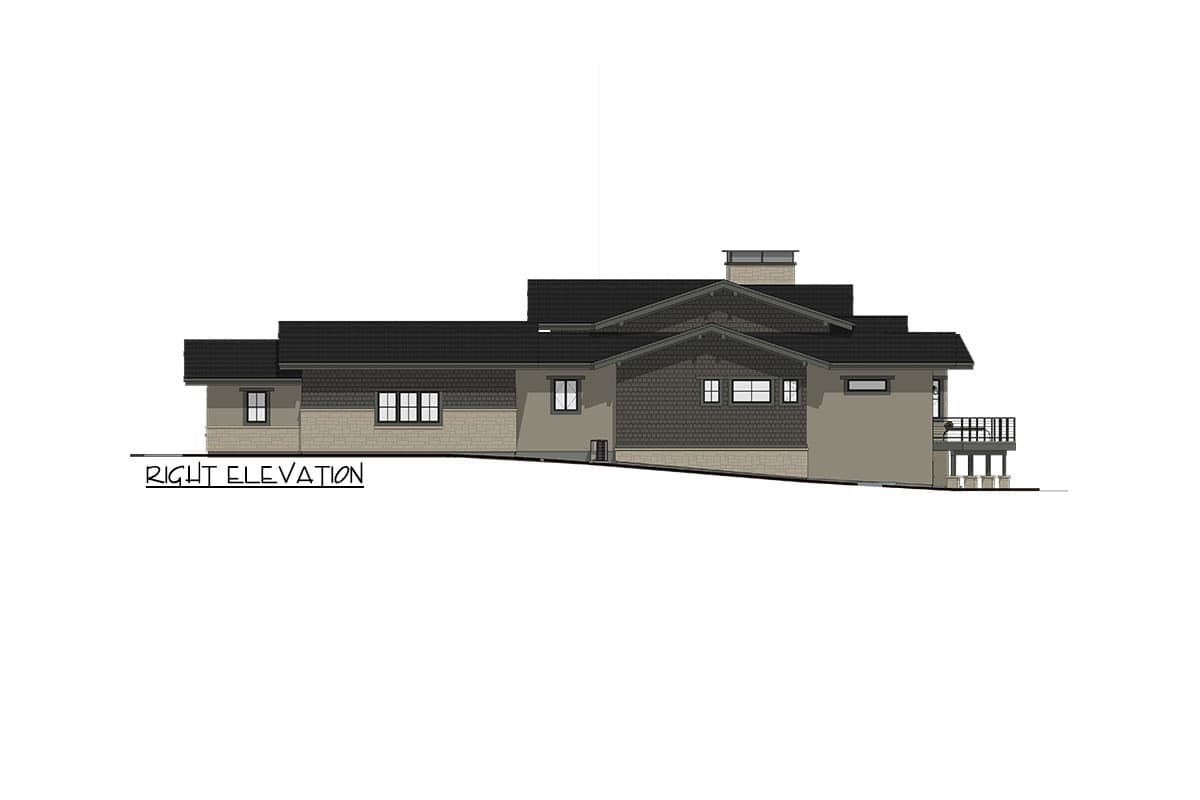

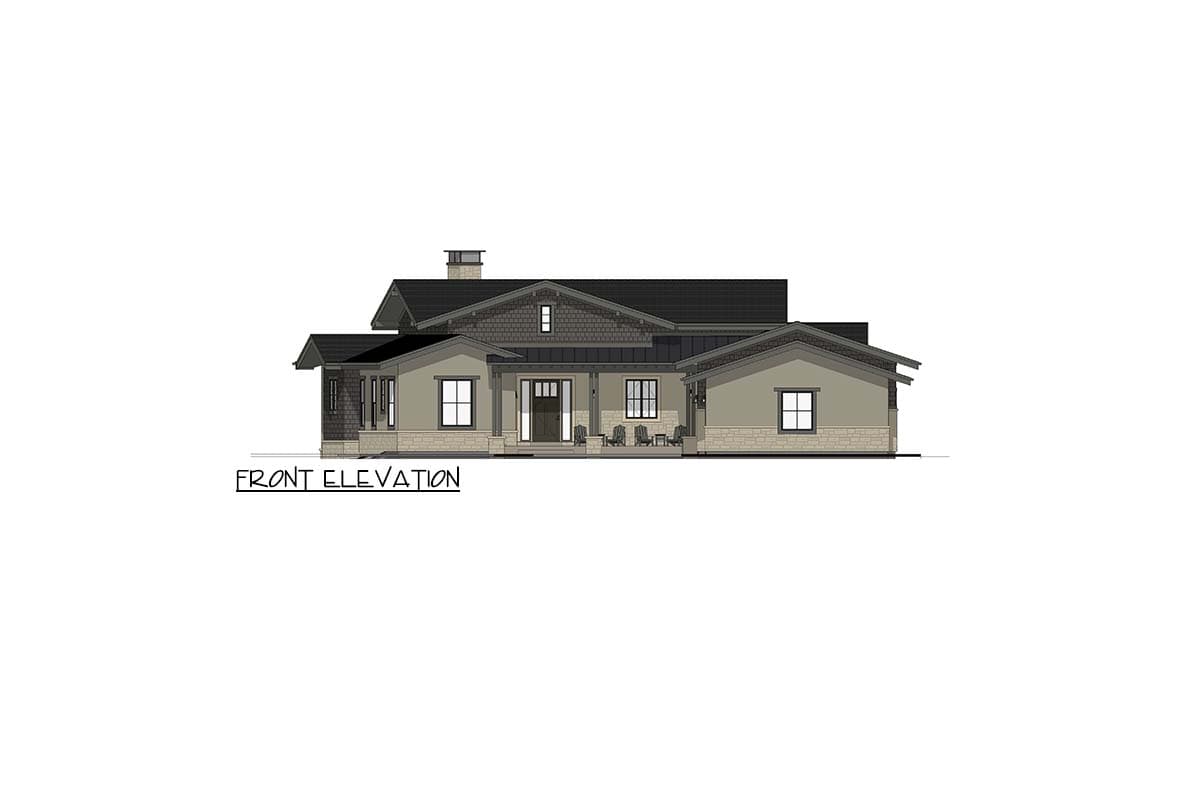

Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.

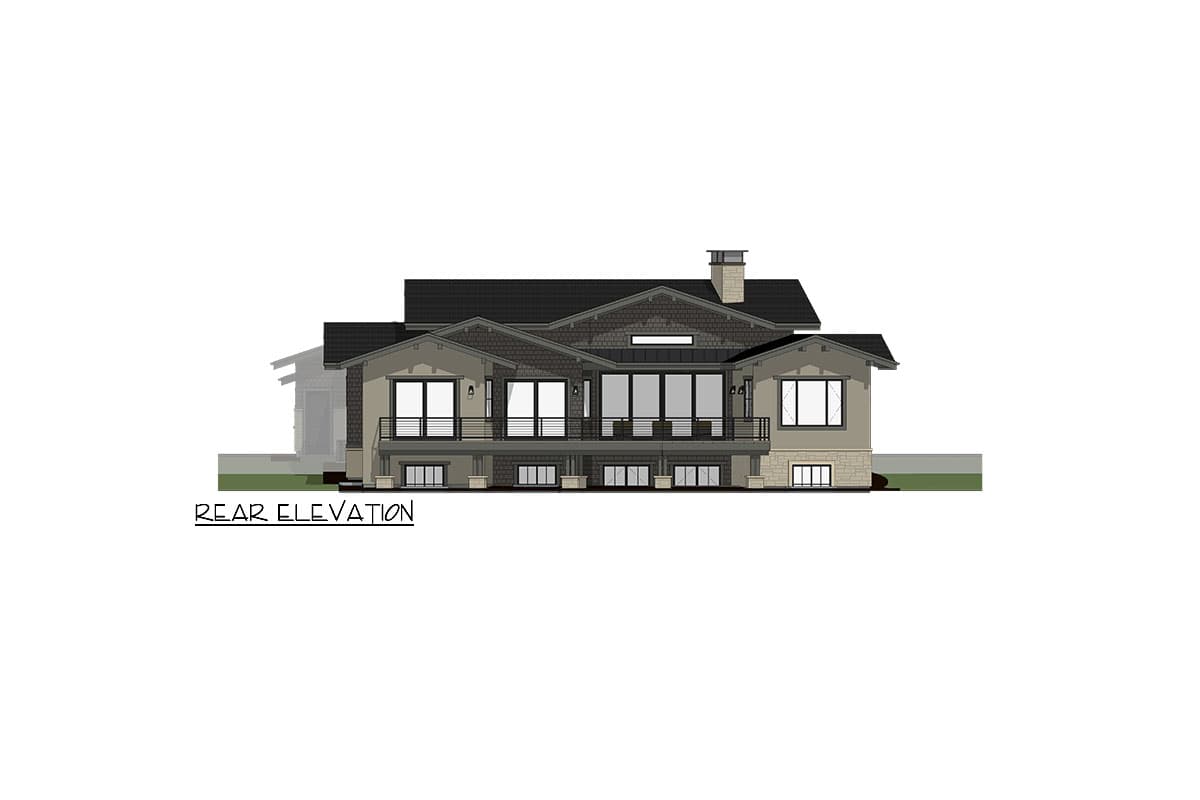

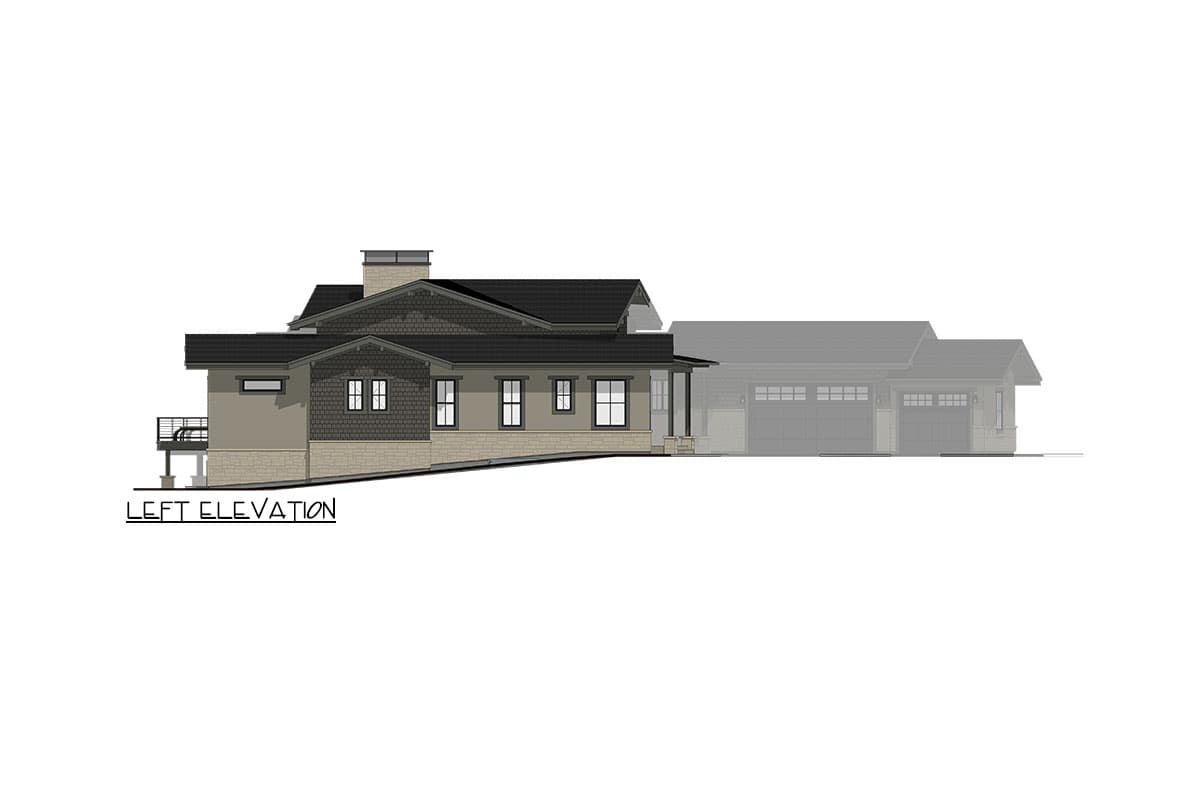

Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
