Craftsman House Plan for a View Lot

Plan 890067AH

  • 4,856

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This reverse floor plan has positioned the main living level on the second floor with a spacious loft and bedroom area above.
  • As you enter the home on the ground level, you’ll find two bedrooms that share a Jack and Jill bath to your right and a family/game room directly ahead.
  • On the second level, the open concept floor plan enjoys a spacious kitchen that flows into the dining and great rooms to the left.
  • Each of the spaces on the living level are defined with unique ceilings; a cathedral in the dining room, a step ceiling in the kitchen and a coffered ceiling in the great room.
  • A wrap around deck from the main level adds another entire form of living to this home.
  • The master suite lies to the front of the second level and includes a walk-in closet and dual sinks.
  • A second bedroom is found across the hall with walk-in closet and access and private bath.
  • This is the perfect lake or forest view home.

Plans include the following:

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What is NOT included in the plans:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

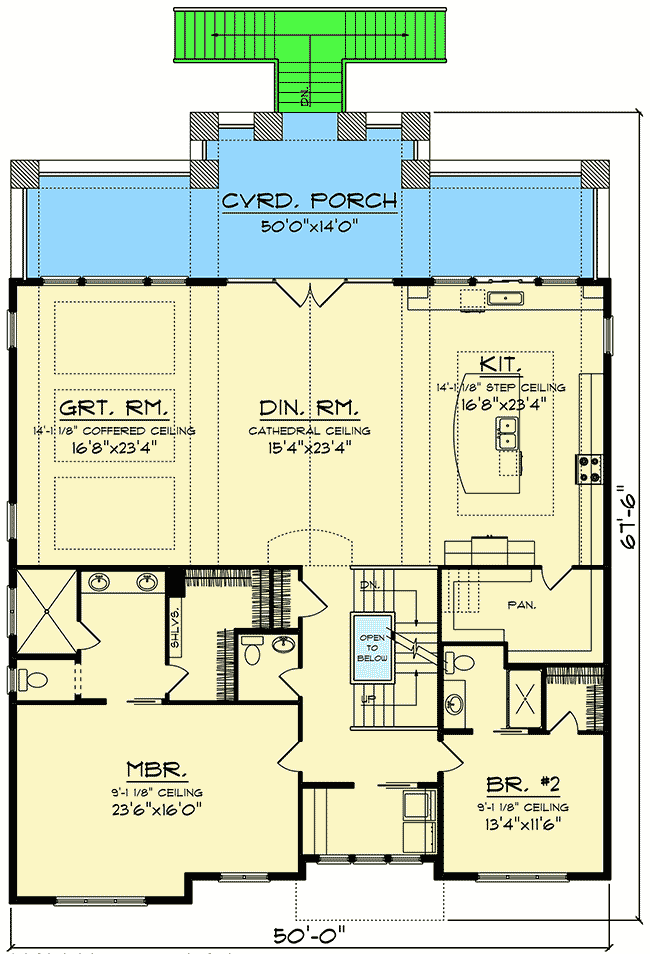

Craftsman House Plan for a View Lot - 890067AH floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

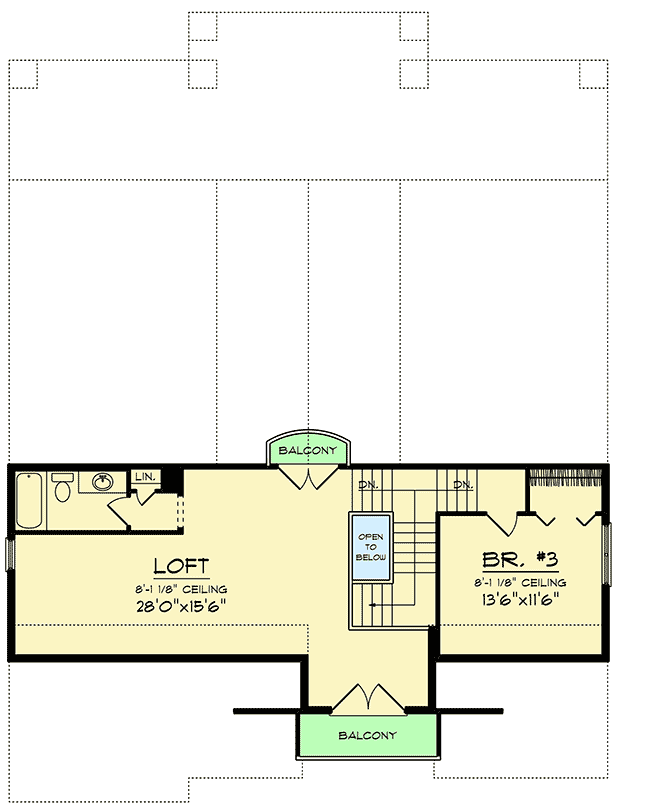

Craftsman House Plan for a View Lot - 890067AH floor plan - Second Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

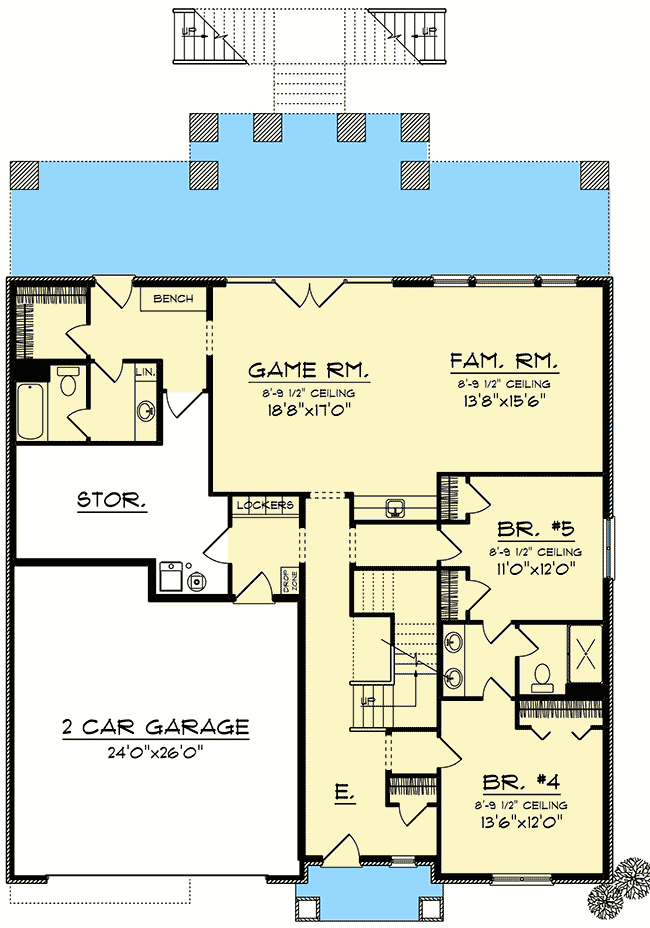

Craftsman House Plan for a View Lot - 890067AH floor plan - Lower Level

Craftsman House Plan for a View Lot

  • 4,856

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Second Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 4,856 sq. ft.
  • Lower Level: 1,587 sq. ft.
  • 1st Floor: 2,514 sq. ft.
  • 2nd Floor: 755 sq. ft.

Dimensions

  • Width: 50' 0"
  • Depth: 67' 6"
  • Max ridge height: 34' 6"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Garage

  • Type: Drive Under
  • Area: 599 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
