Plan 290045IY

Craftsman House Plan in Three Sizes

Heated S.F.
2,922
Beds
4 - 6
Baths
3.5 - 4.5
Stories
2
Cars
3

Floor Plan

Plan 290045IY

Main Level
Main Level
2nd Floor
2nd Floor
Optional Lower Level
Optional Lower Level

Plan 290045IY

M-F 9am-5pm EST |

1-203-761-8500

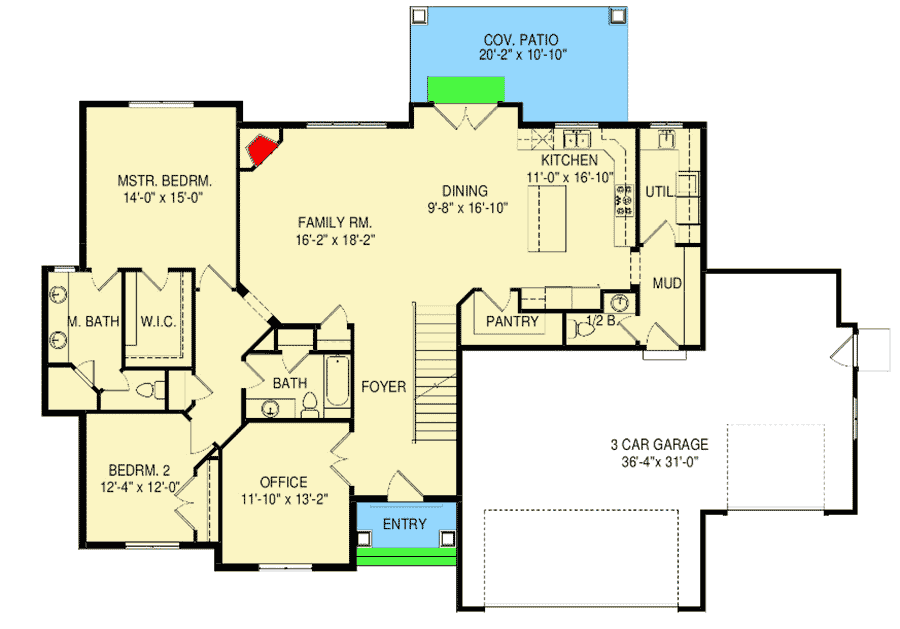

Main Level

Plan 290045IY: Craftsman House Plan in Three Sizes - Floor Plan - Main Level - Craftsman, Northwest

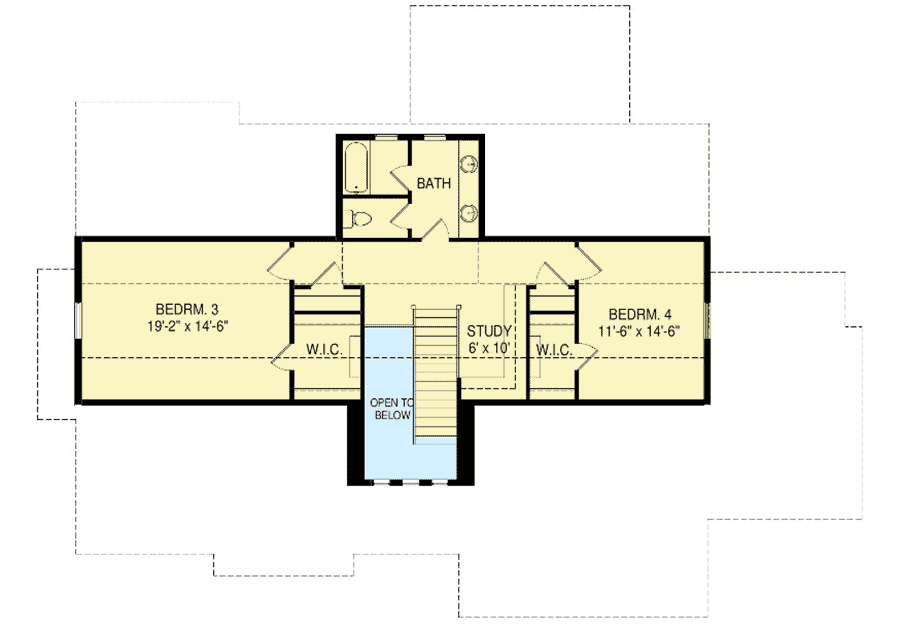

2nd Floor

Plan 290045IY: Craftsman House Plan in Three Sizes - Floor Plan - 2nd Floor - Craftsman, Northwest

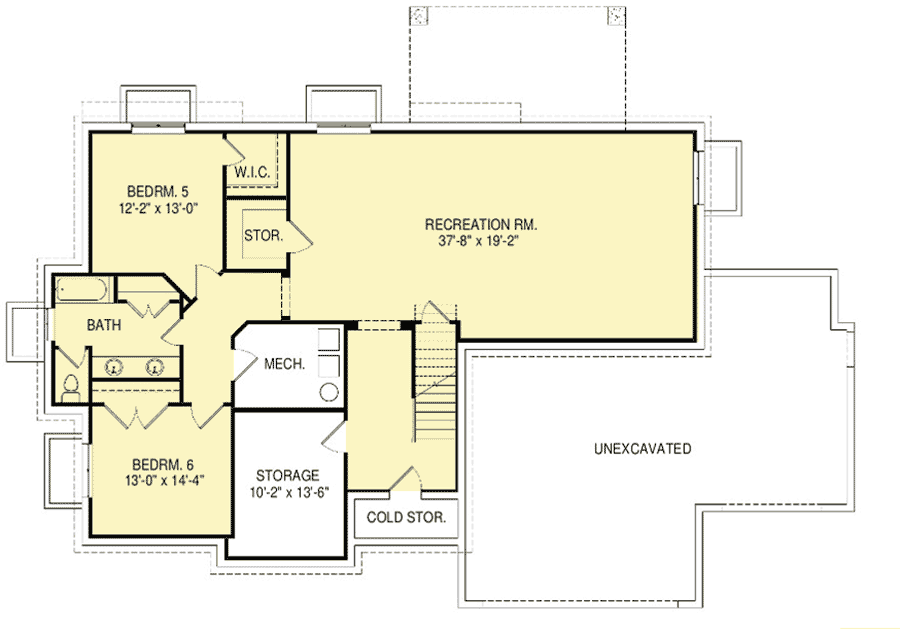

Optional Lower Level

Plan 290045IY: Craftsman House Plan in Three Sizes - Floor Plan - Optional Lower Level - Craftsman, Northwest

Plan Details

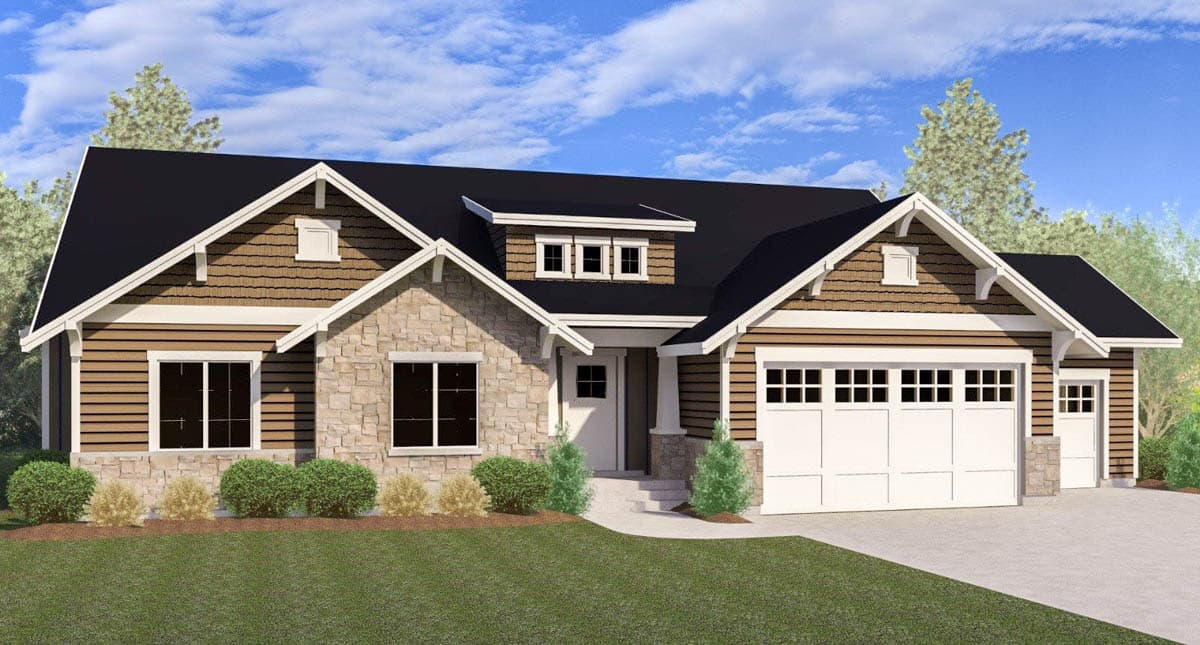

  • A shed dormer adds great visual appeal to this Craftsman house plan.
  • The foyer has views extending to the back of the home. French doors on your left open to your own home office or den.
  • The open layout in back connects the family room to the dining room and kitchen making the home feel larger.
  • Excellent storage comes from the addition of a kitchen  island and a walk-in pantry.
  • Two bedrooms on the second floor share a loft play area or teen hangout.
  • Finish the optional lower level to gain two more bedrooms, another bathroom and an enormous rec room with wet bar.
  • Related Plans: Downsize with house plans 290029IY (2,658 sq. ft.) and 290030IY (2,712 sq. ft.).

What's Included

  • Cover sheet (with rendering)
  • Notes page
  • Complete schedule page
  • Foundation plan
  • Floor plans
  • Dimension plans

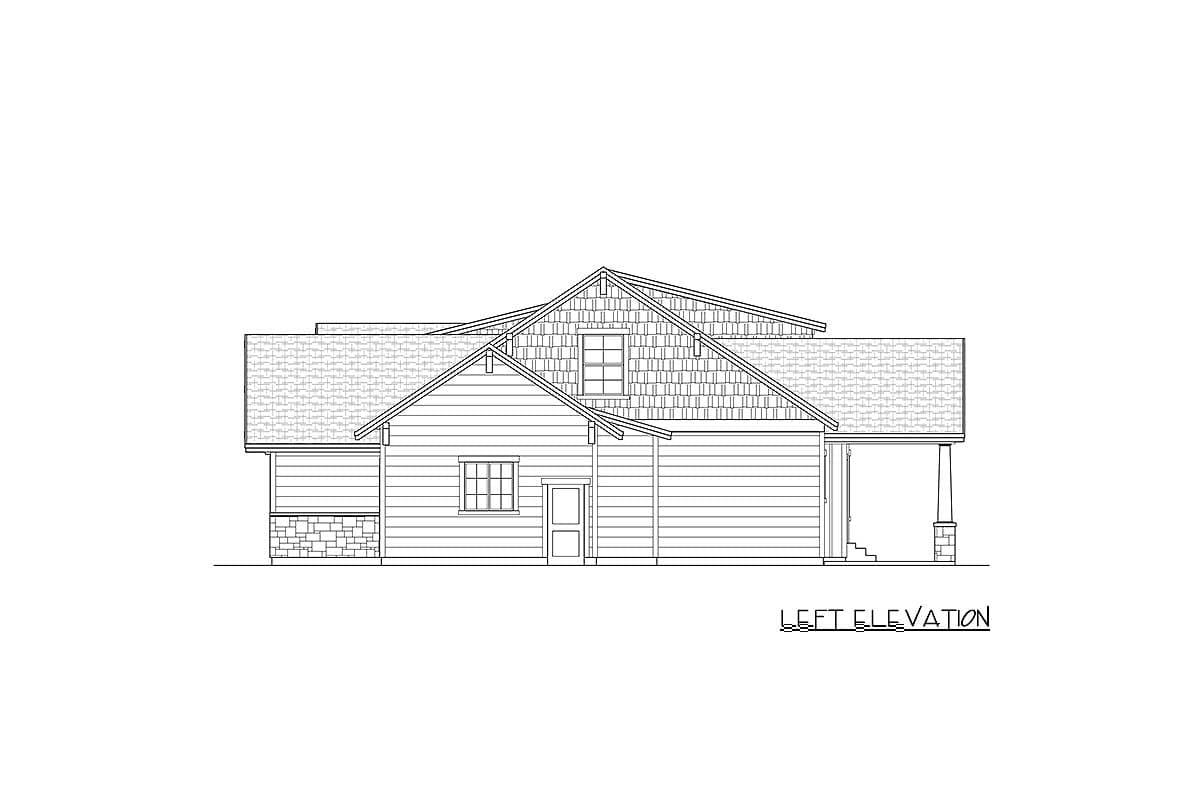

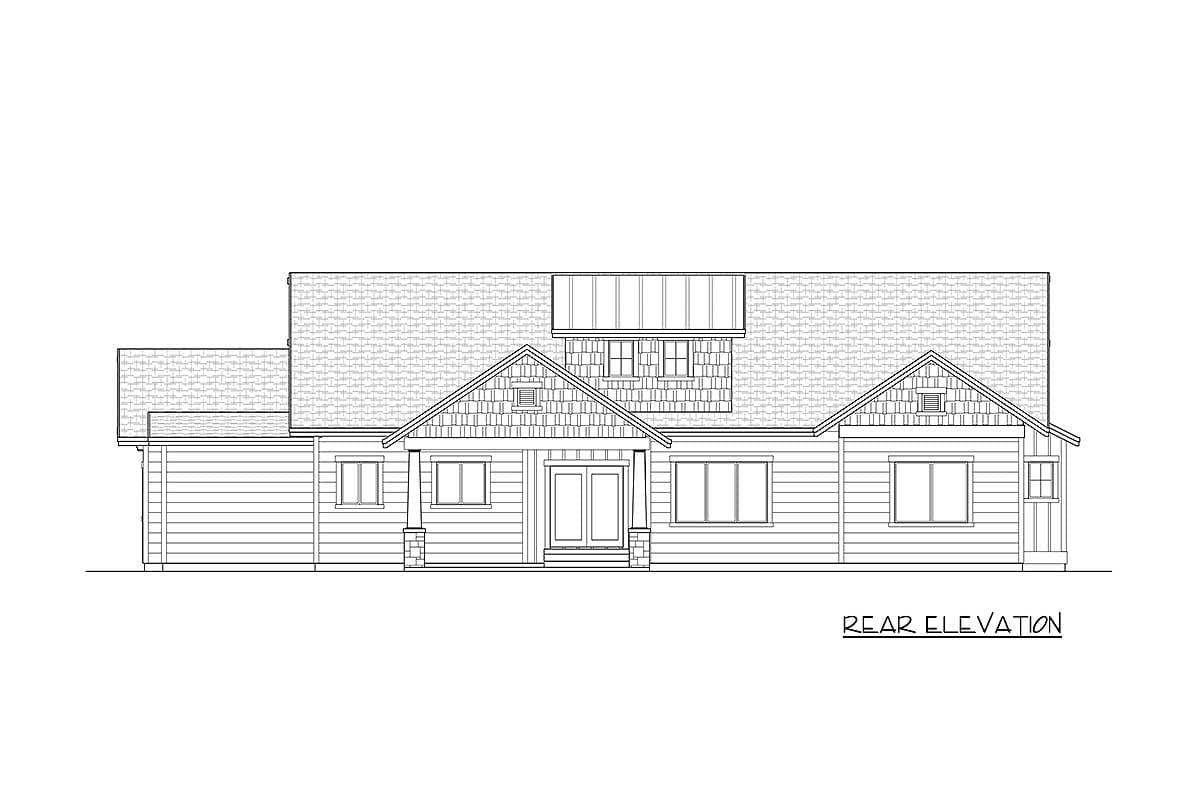

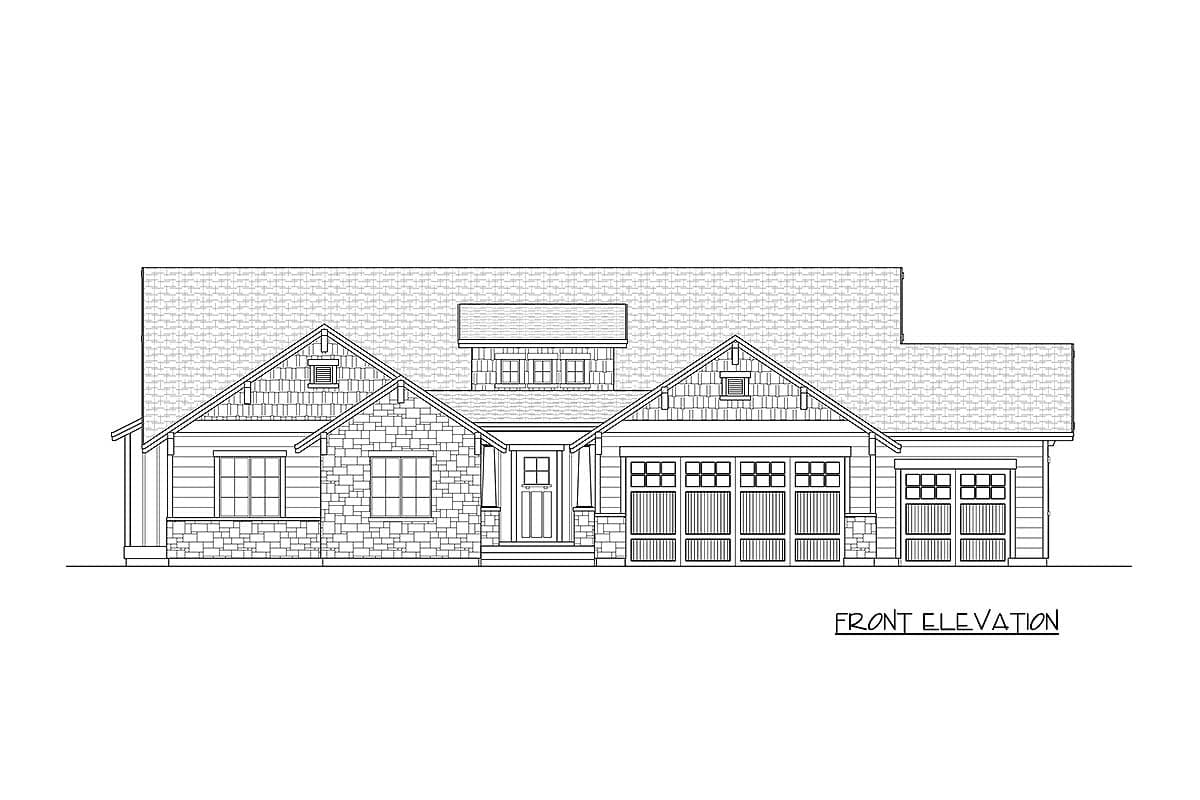

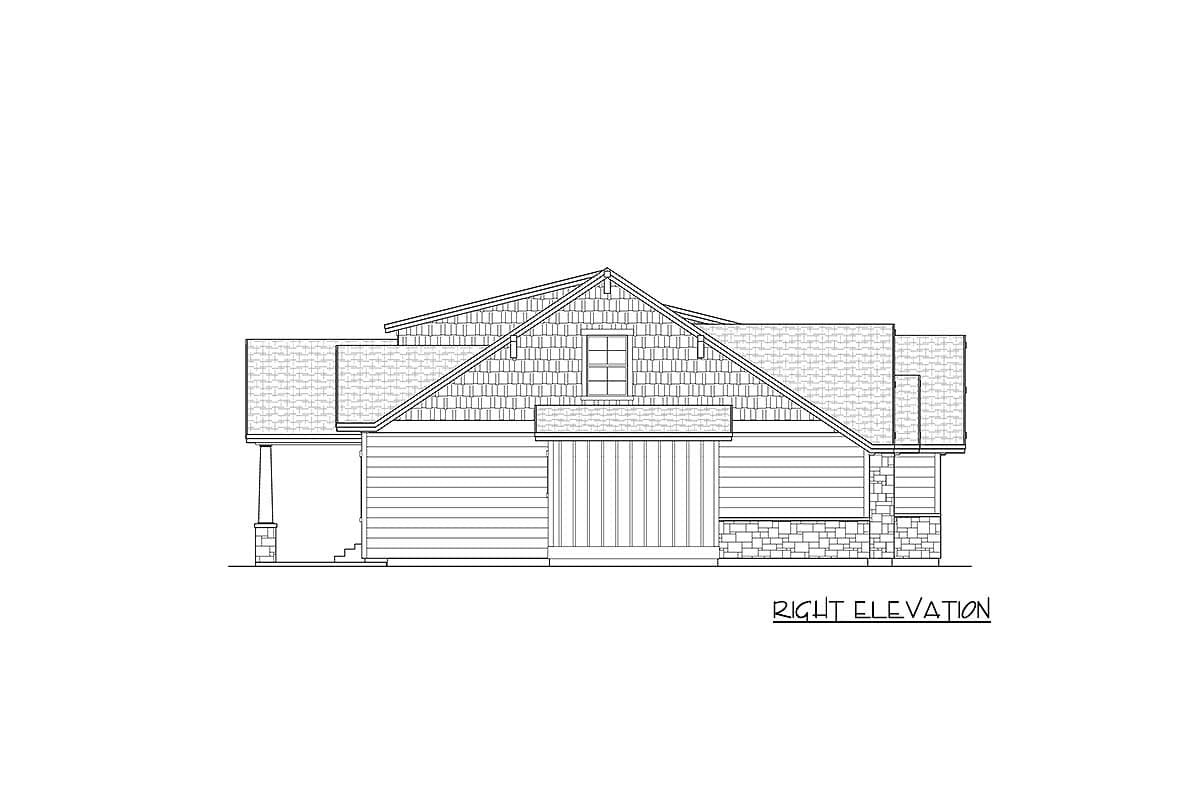

  • Elevations
  • Sections
  • Architectural details
  • 3D perspective views (not included with all plans)
  • Floor finish plans
  • Roof plan
  • Lighting plans, and power plans.

Note: Contact us if building in Utah as these plans may not be available for construction in certain areas in that state.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,922 sq. ft.

1st Floor

1,962 sq. ft.

2nd Floor

960 sq. ft.

Optional Lower Level

1,516 sq. ft.

Beds/Baths

Bedrooms

4, 5, or 6

Full bathrooms

3 or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

75' 8"

Depth

56' 2"

Max Ridge Height

24' 7"

Garage

Type

Attached

Area

860 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9' 8"

Second Floor

8'

Architectural Style

Craftsman

Northwest

Special Features

Butler Walk-in Pantry

Den

Game/Rec Room

Home Office

Loft

Master Suite - 1st Floor

Wet Bar

Plan Collections

Home Office
