Plan 42737DB

Craftsman House Plan with 3 Bedrooms Den and 2-Car Garage

Heated S.F.
1,649
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 42737DB

Main Level
Main Level
2nd Floor
2nd Floor

Plan 42737DB

M-F 9am-5pm EST |

1-203-761-8500

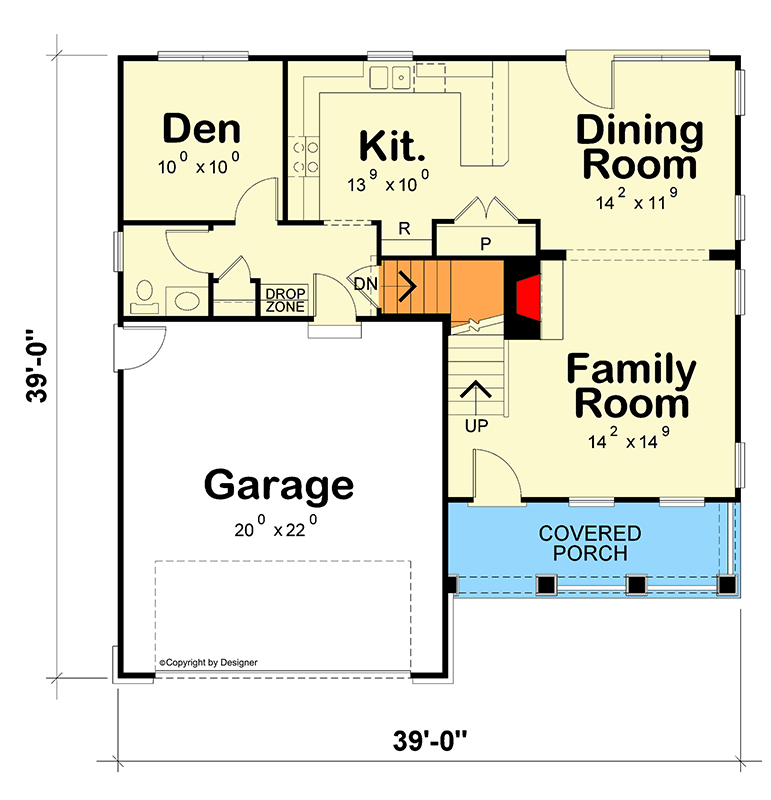

Main Level

Plan 42737DB: Craftsman House Plan with 3 Bedrooms Den and 2-Car Garage - Floor Plan - Main Level - Craftsman, Traditional

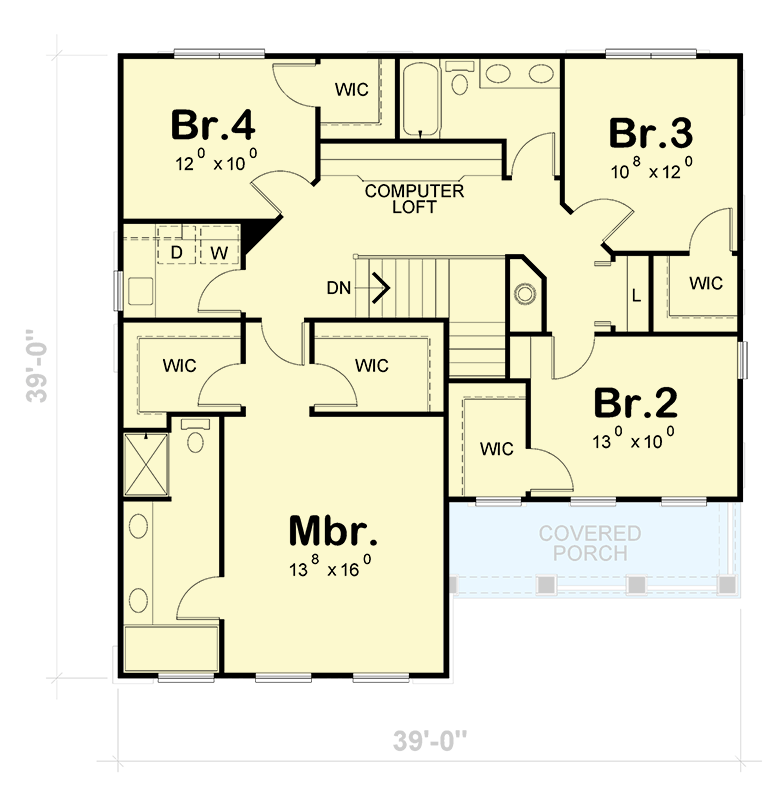

2nd Floor

Plan 42737DB: Craftsman House Plan with 3 Bedrooms Den and 2-Car Garage - Floor Plan - 2nd Floor - Craftsman, Traditional

Plan Details

  • This inviting Craftsman and Traditional House Plan offers 1,649 sq ft of living space, 3 bedrooms, 2.5 bathrooms, and an attached 2-car garage spanning 487 sq ft.
  • Step onto the welcoming covered front porch, leading into an efficient layout that includes a convenient mudroom off the garage entry and a private den perfect for a home office.
  • On the first floor, a versatile den provides a quiet retreat, while the practical mudroom serves as a functional transition from the attached 2-car garage.
  • The primary suite is thoughtfully located upstairs for privacy, while the secondary bedrooms are clustered together, sharing a full bathroom, ideal for families.
  • An upstairs loft offers flexible space, perfect for a cozy reading nook, a dedicated study area, or an additional media zone.
  • Enjoy morning coffee or evening relaxation on the charming covered front porch, enhancing the home's curb appeal.
  • A full basement foundation provides ample opportunity for future expansion, allowing for a personalized recreation room, guest suite, or additional storage as your needs evolve.

What's Included

  • General Notes

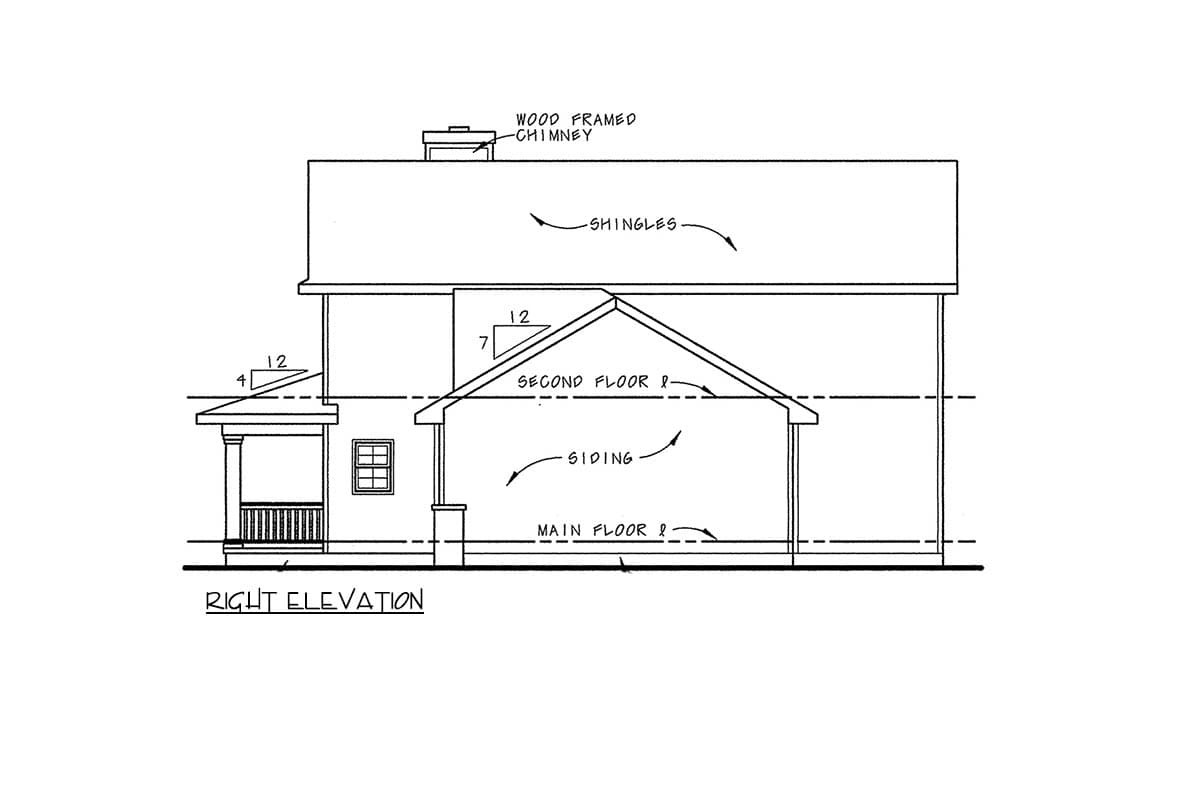

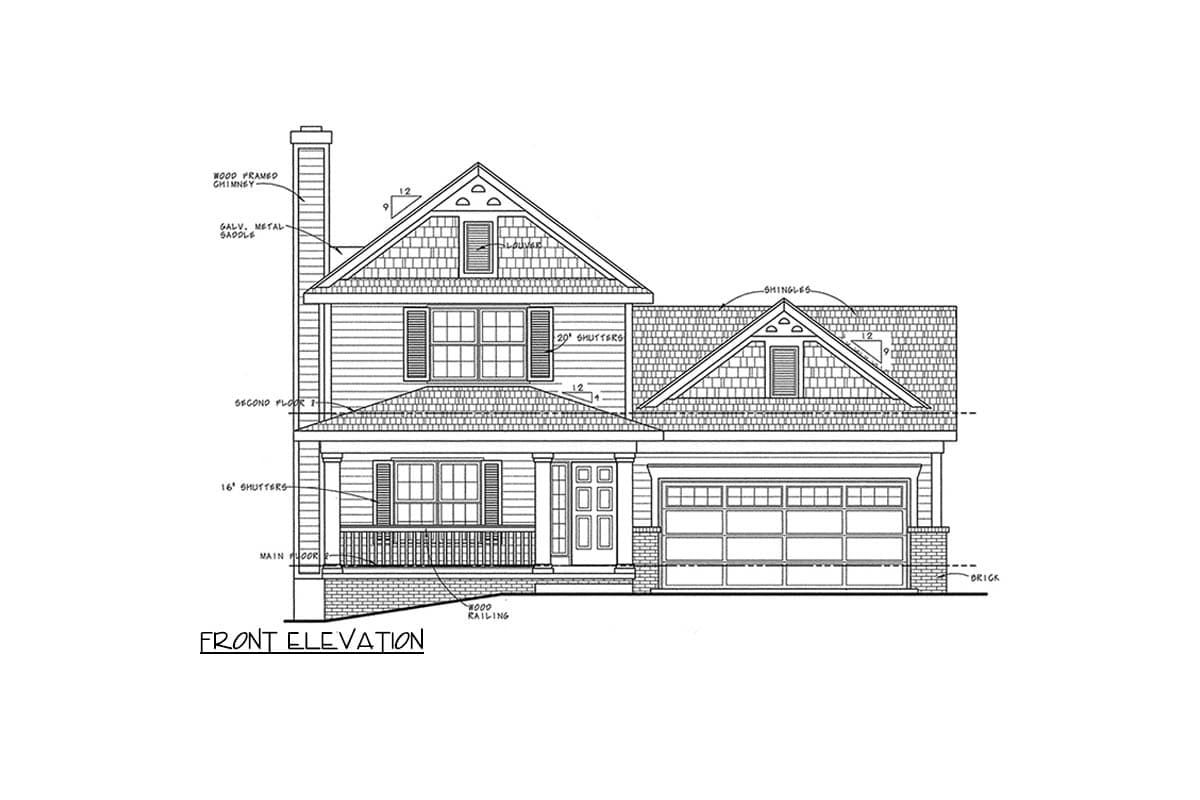

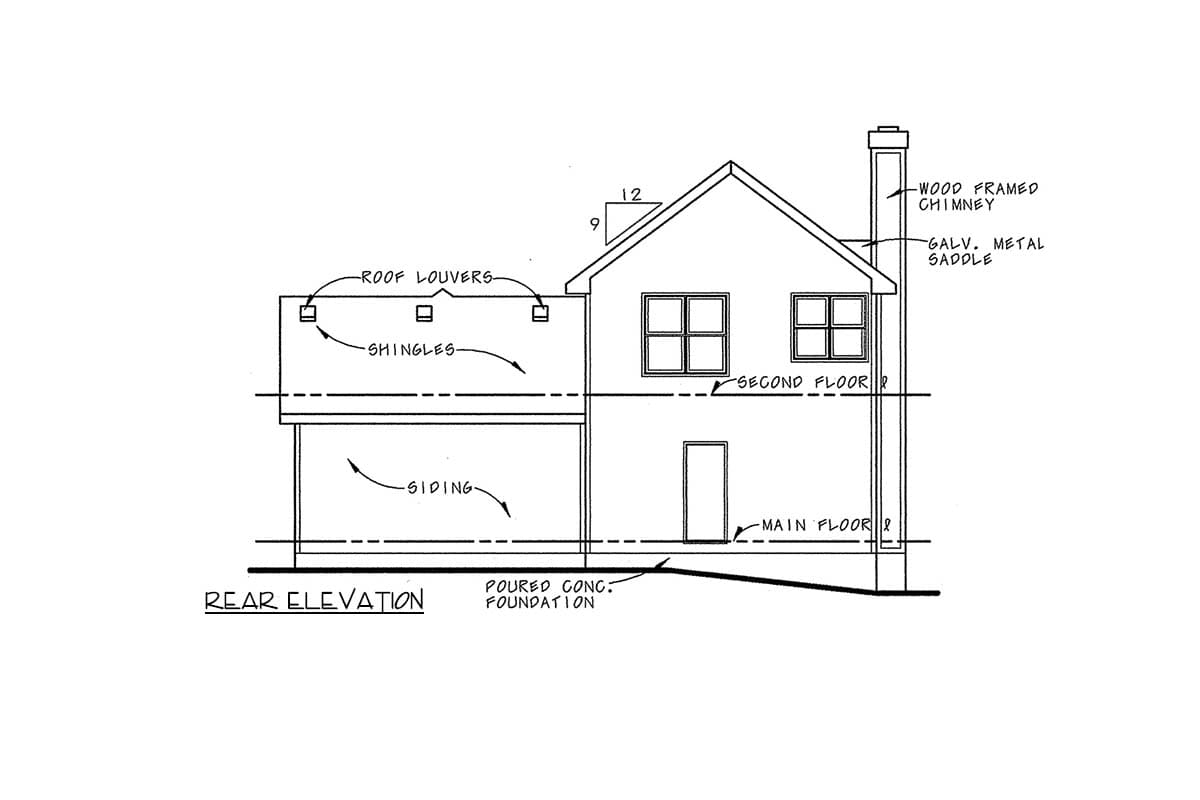

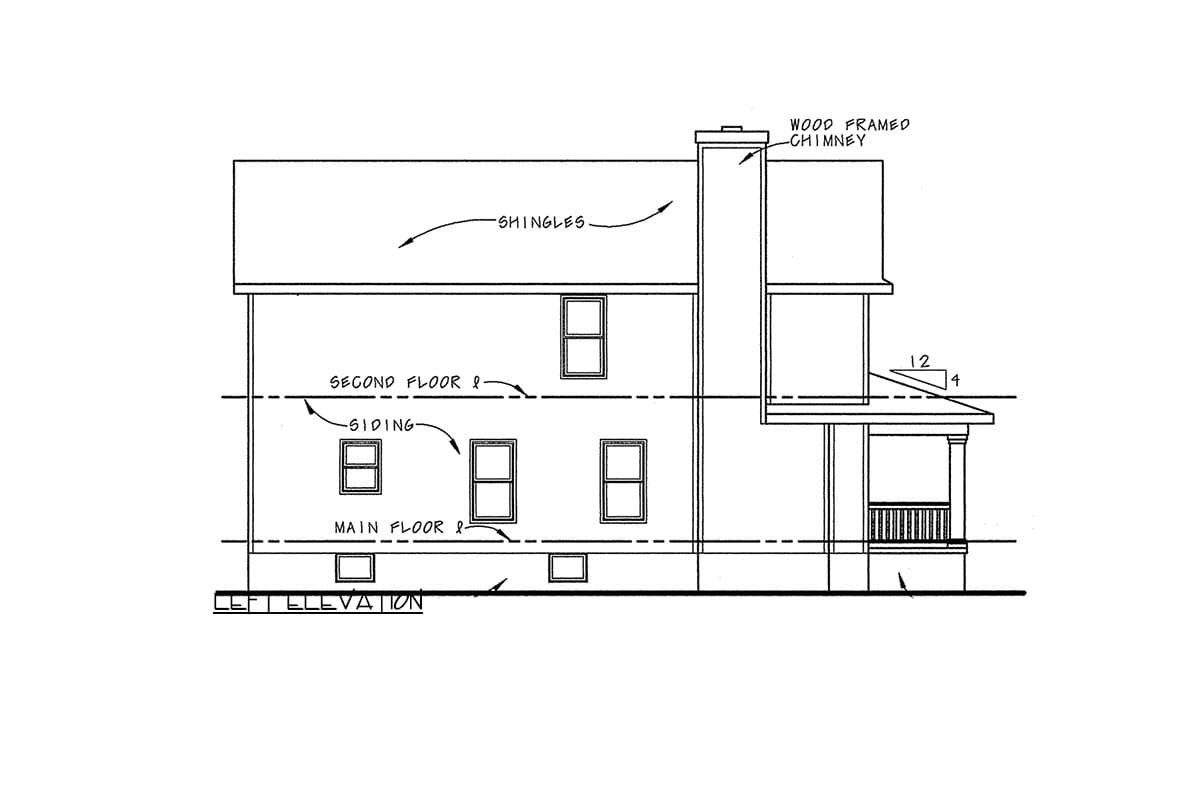

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,649 sq. ft.

1st Floor

853 sq. ft.

2nd Floor

796 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

40' 0"

Depth

49' 4"

Max Ridge Height

28' 0"

Garage

Type

Standard, Attached

Area

487 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Architectural Style

Craftsman

Traditional

Special Features

Bedrooms - Clustered

Den

Laundry - Upstairs

Loft

Master Suite - Upstairs

Mudroom
