Craftsman House Plan with 3 Car Angled Garage

Plan 36075DK

  • 2,971

    Heated s.f.

  • 3-6

    Beds

  • 2.5 - 3.5

    Baths

  • 1-2

    Stories

  • 3

    Cars

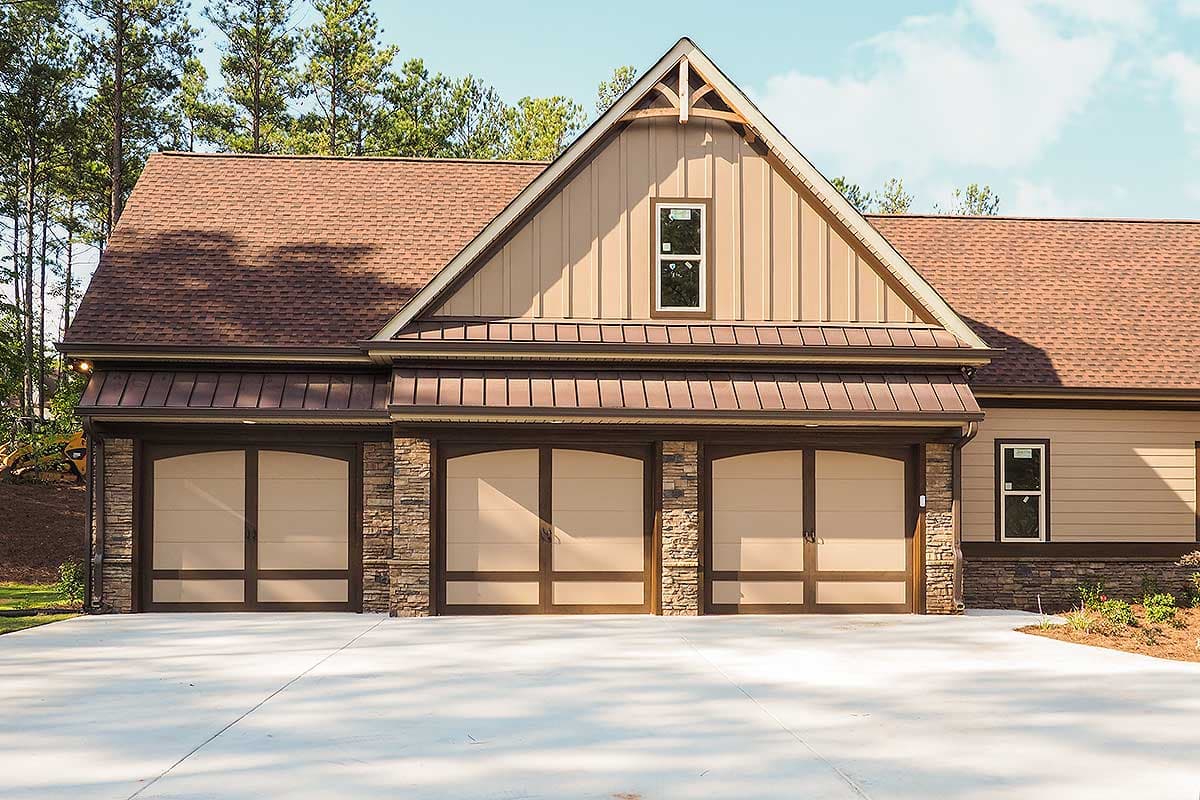

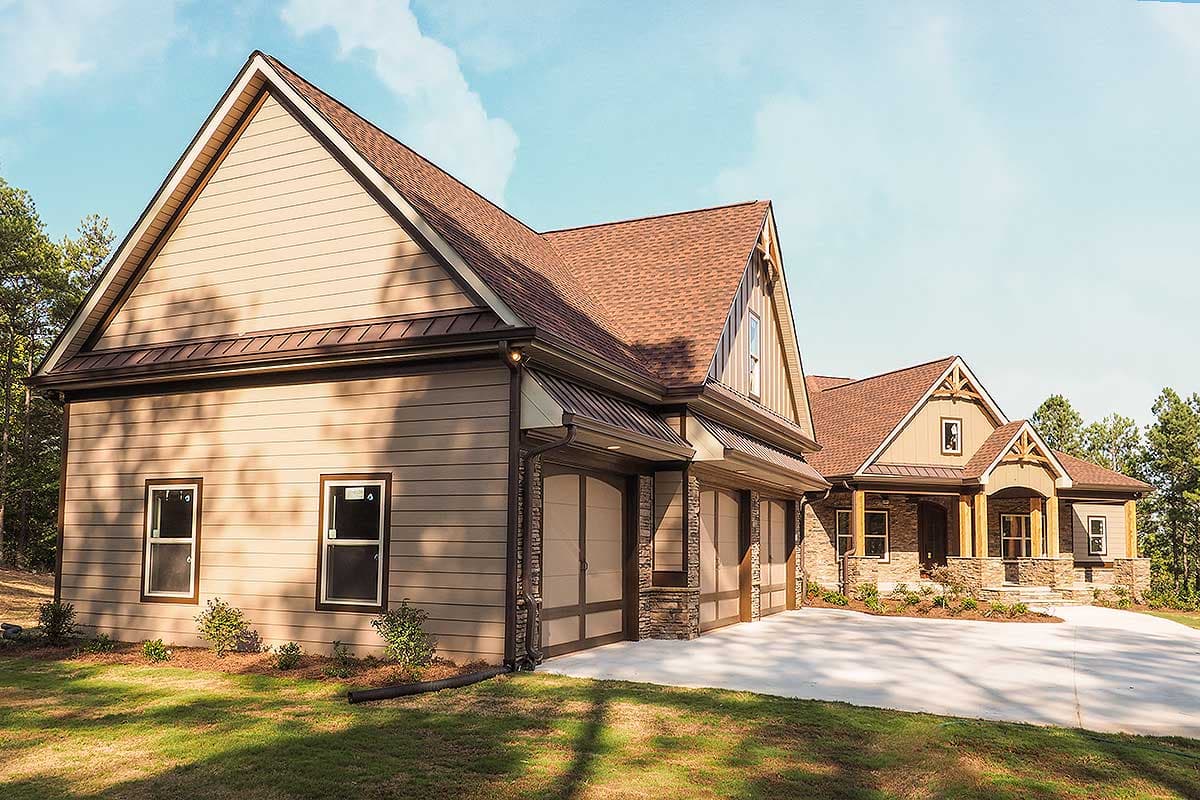

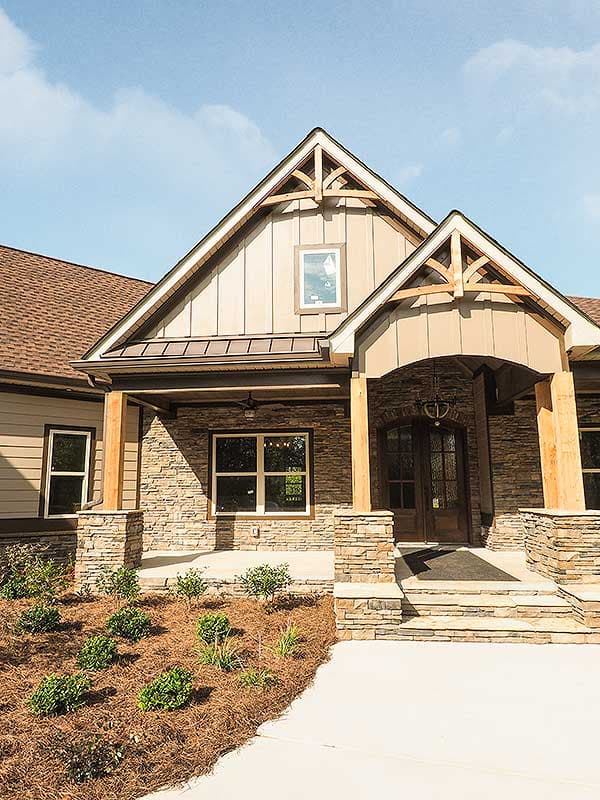

  • An angled 3-car garage adds visual interest to this high-end Craftsman house plan.

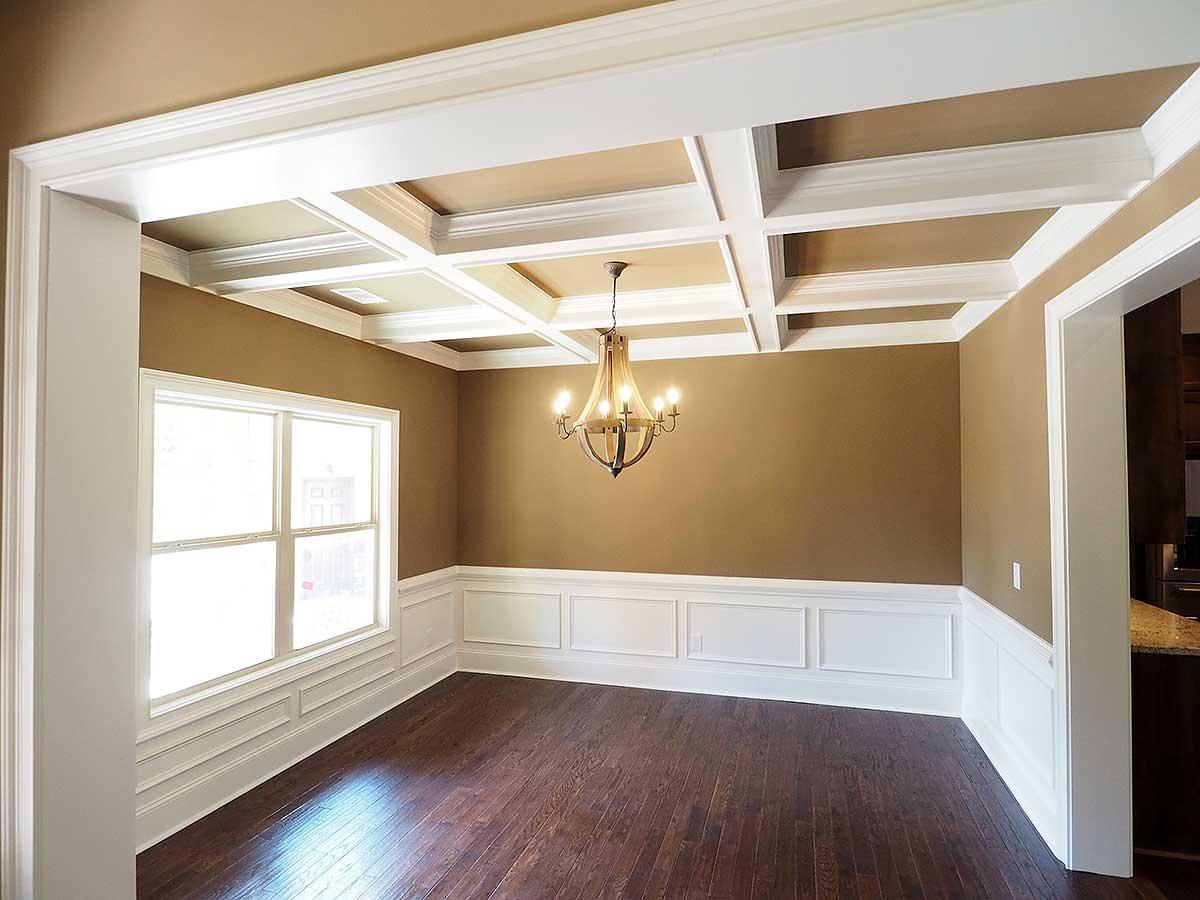

  • The vaulted entry porch gives way to the vaulted foyer that has the study and dining room on each side.

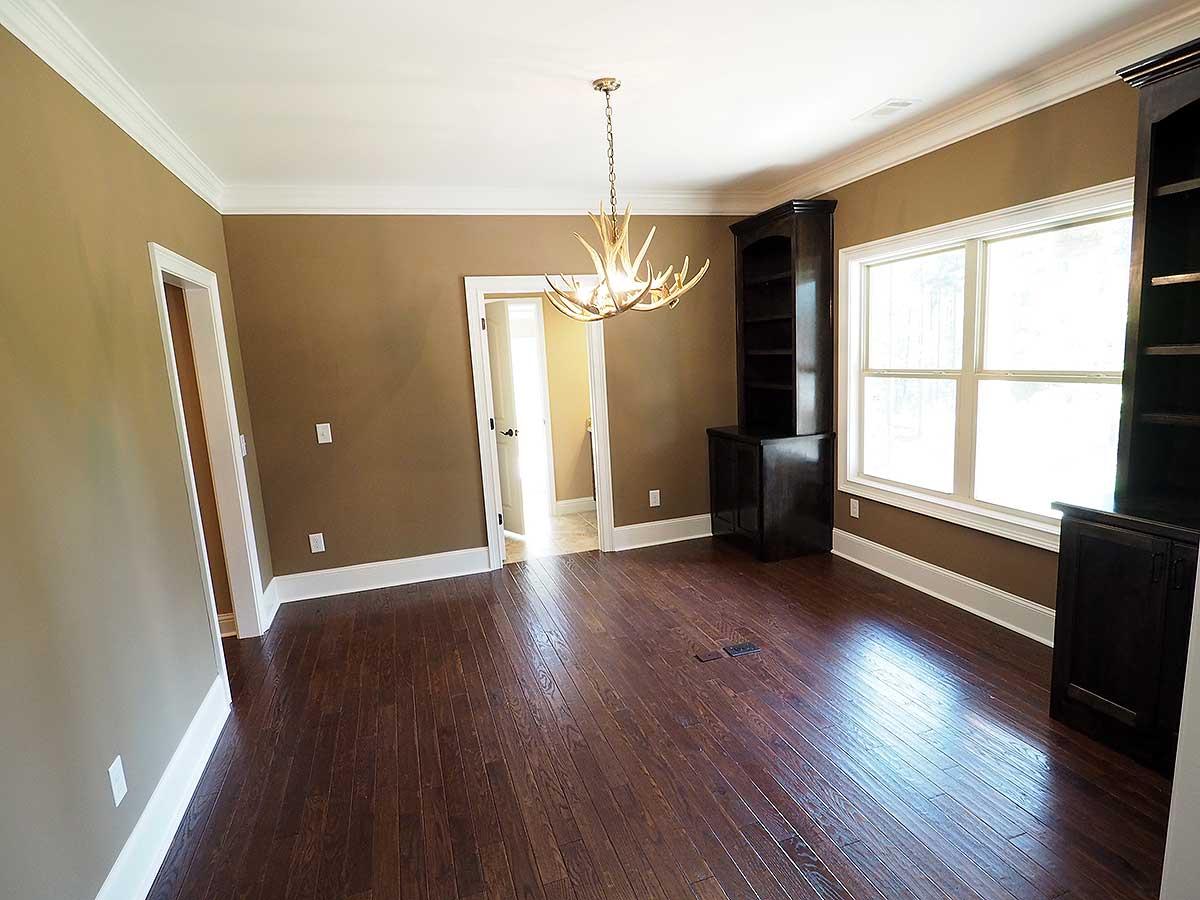

  • The study could easily be adapted to become the fourth bedroom by closing off the wall from the foyer.

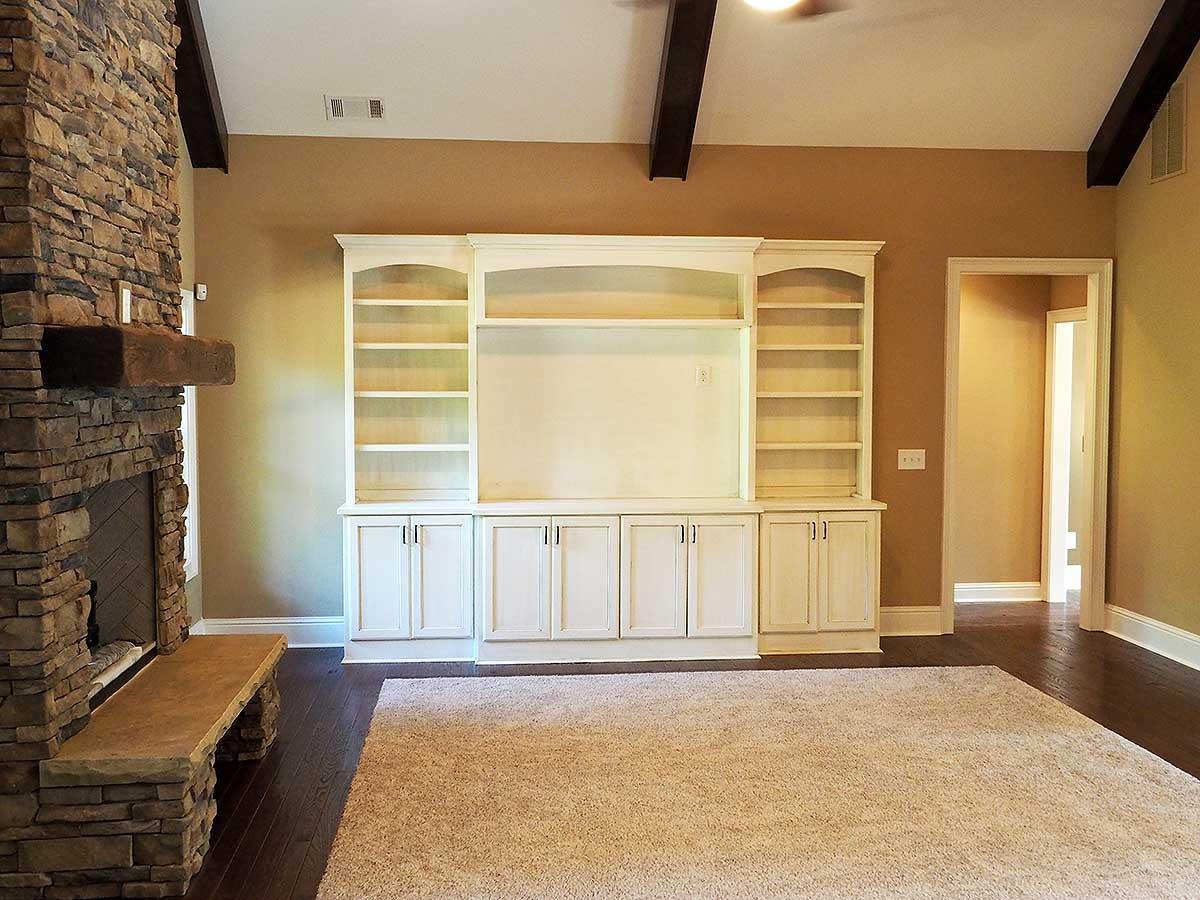

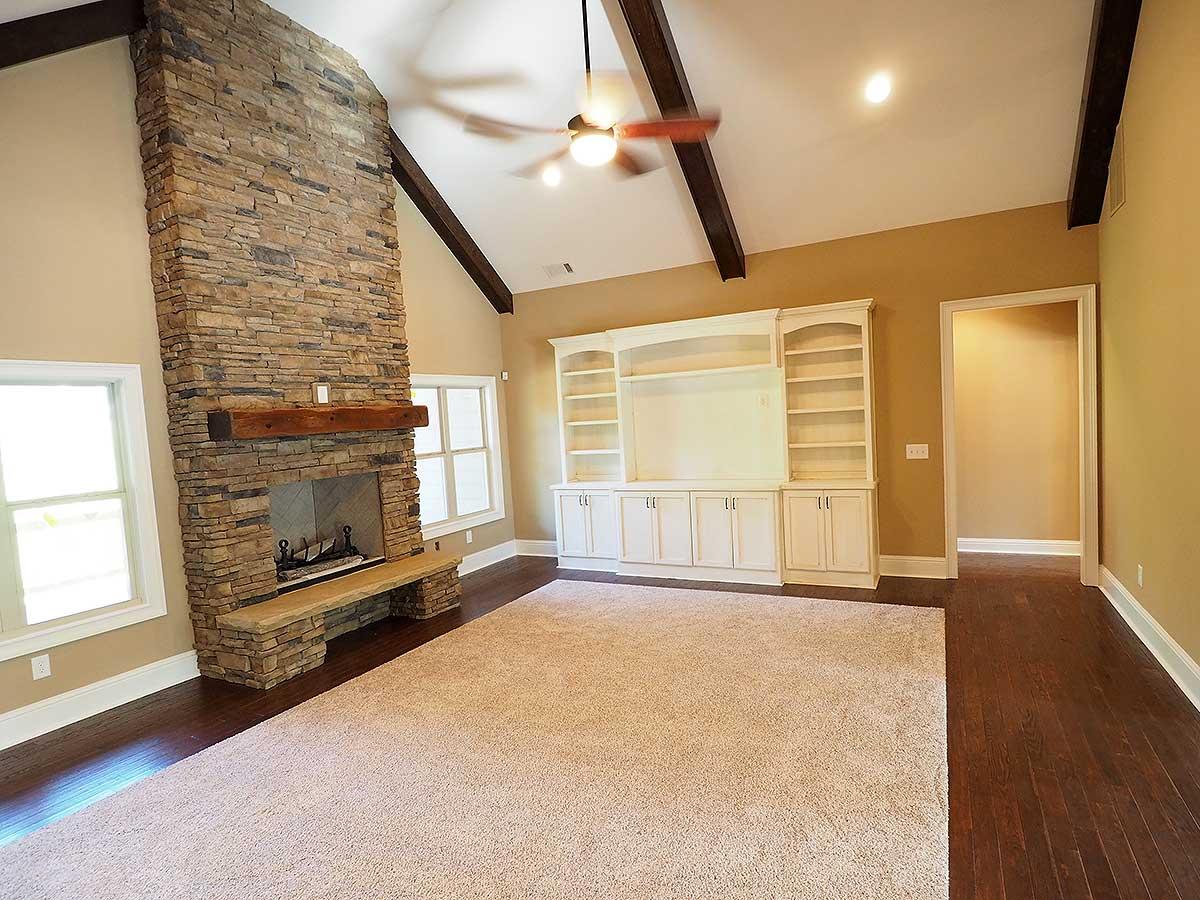

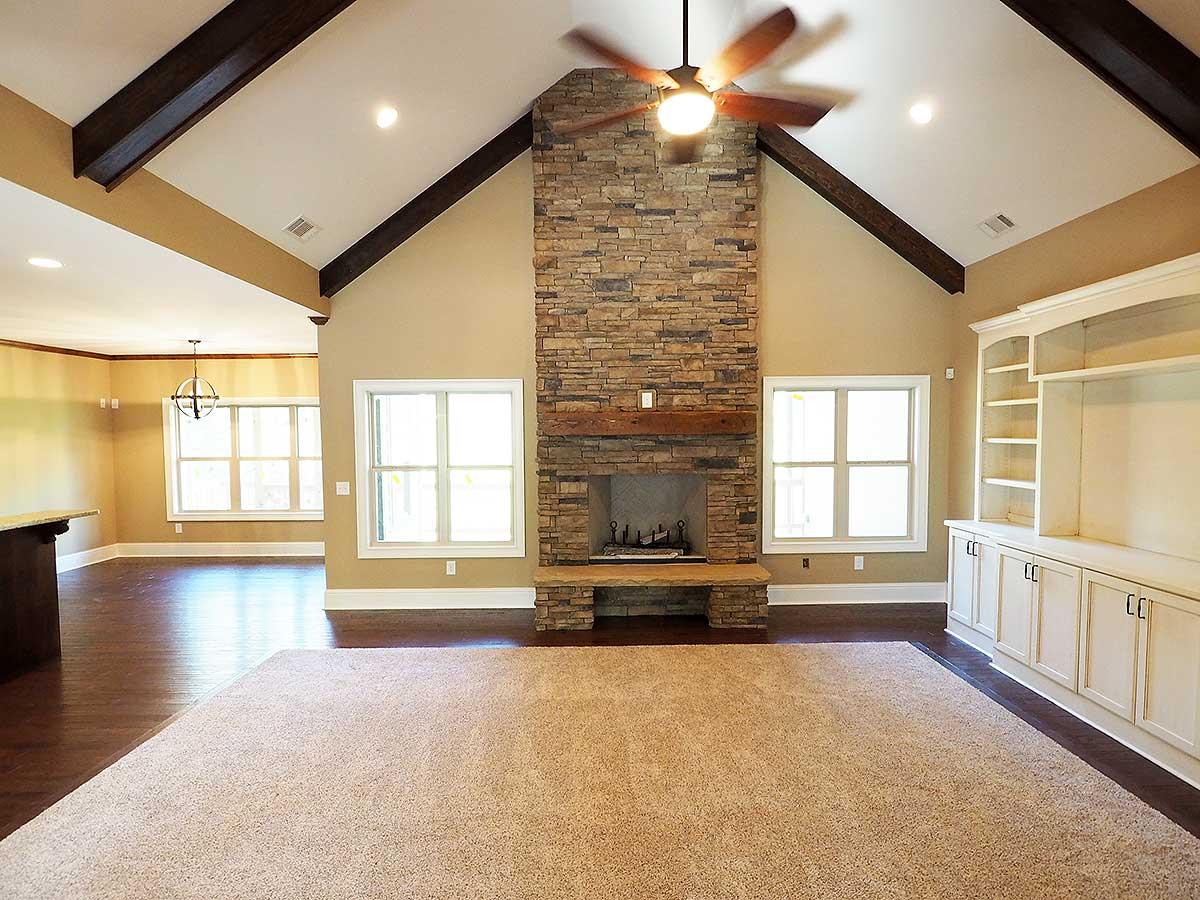

  • Further back, the family room ceiling vaults up in a different direction and has a big fireplace as the focal point.

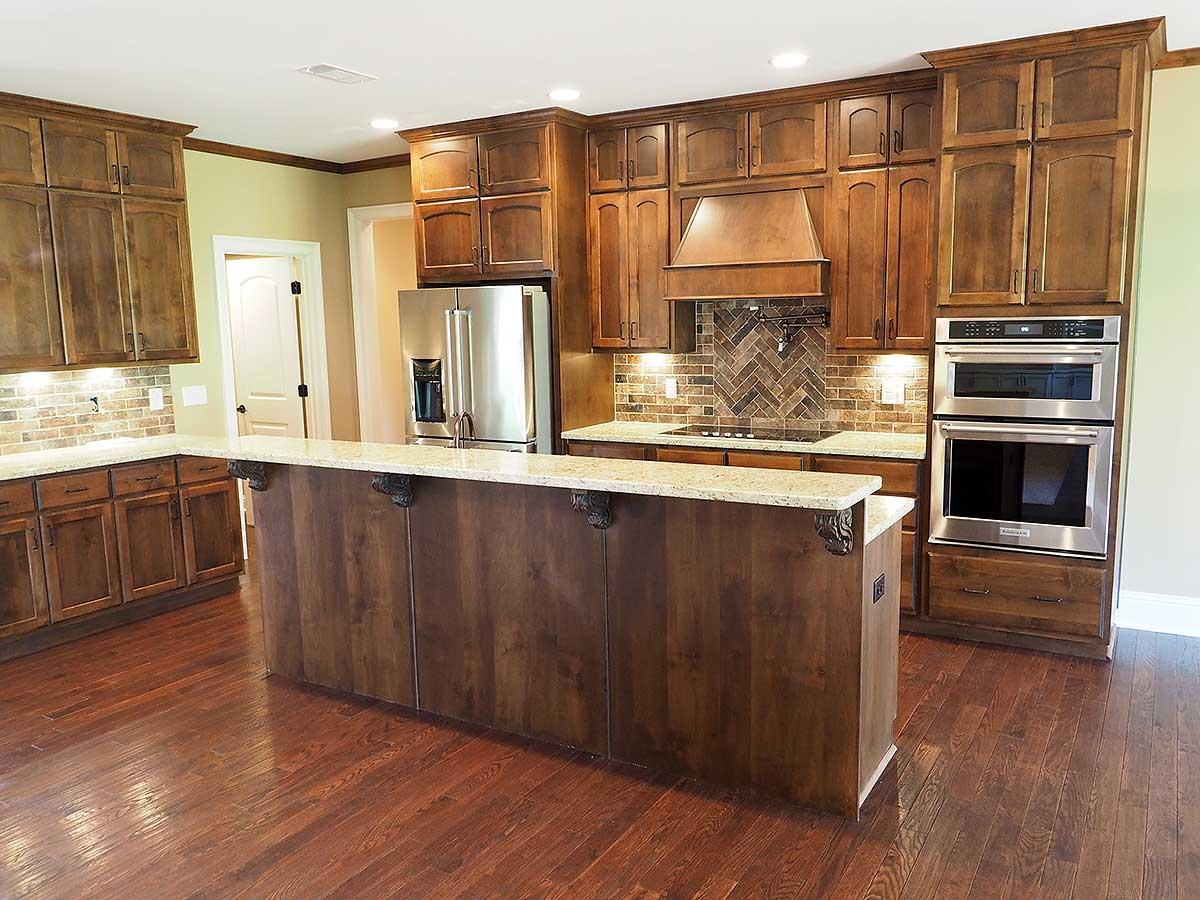

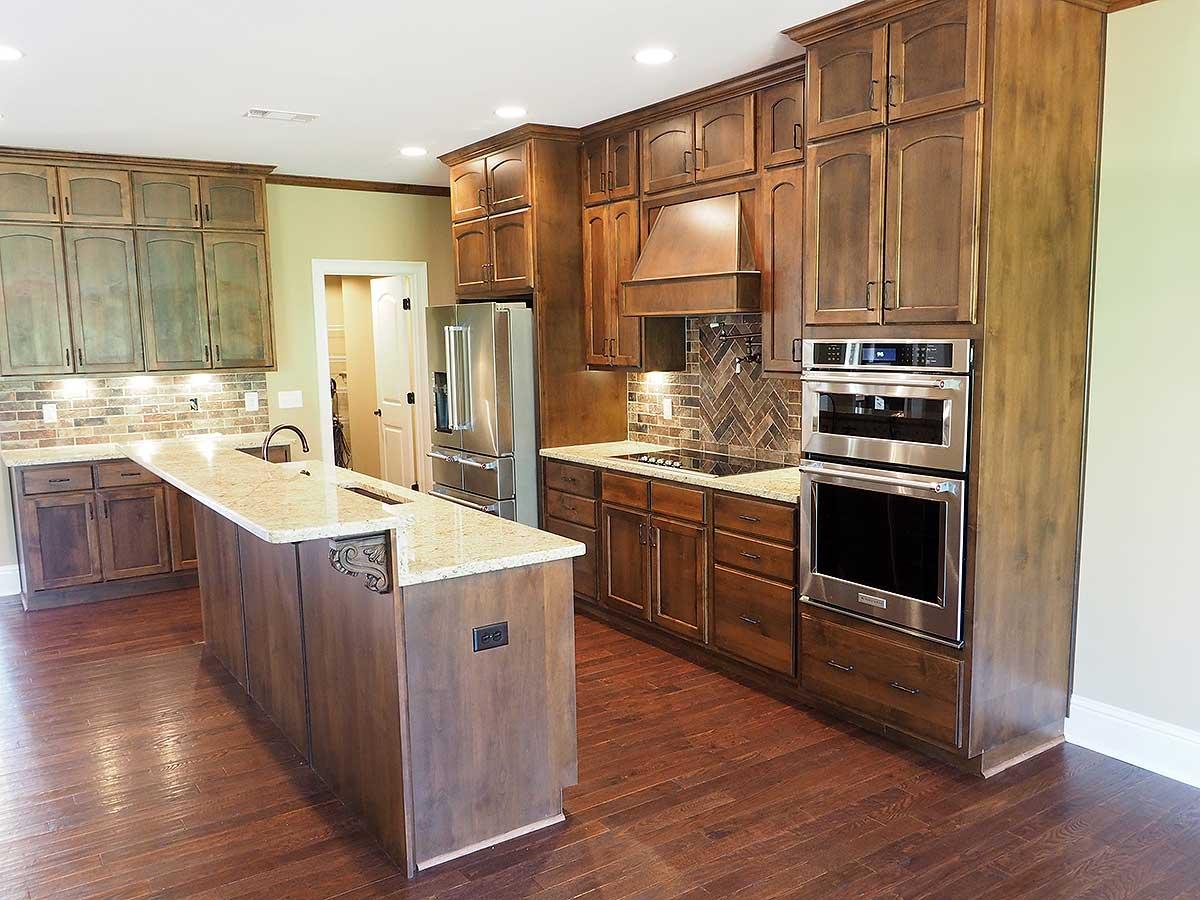

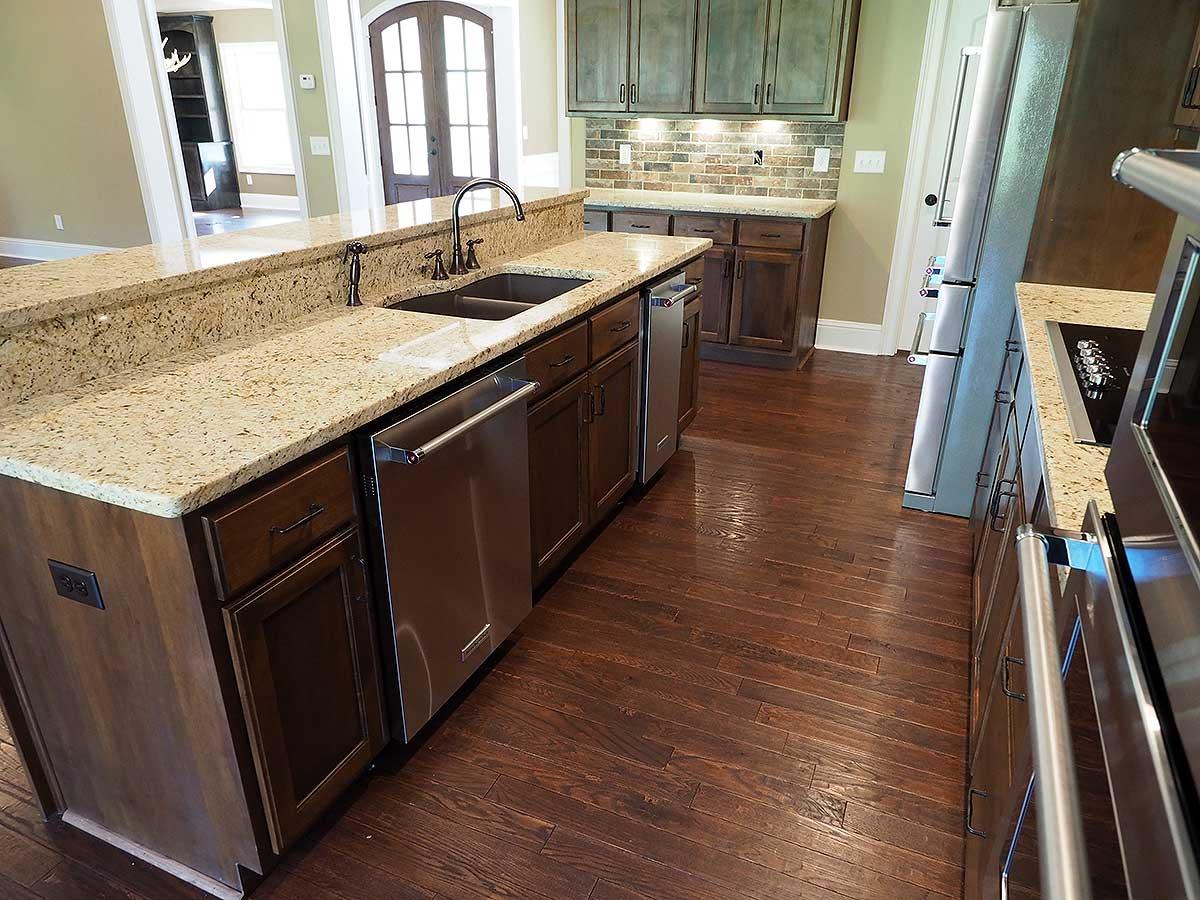

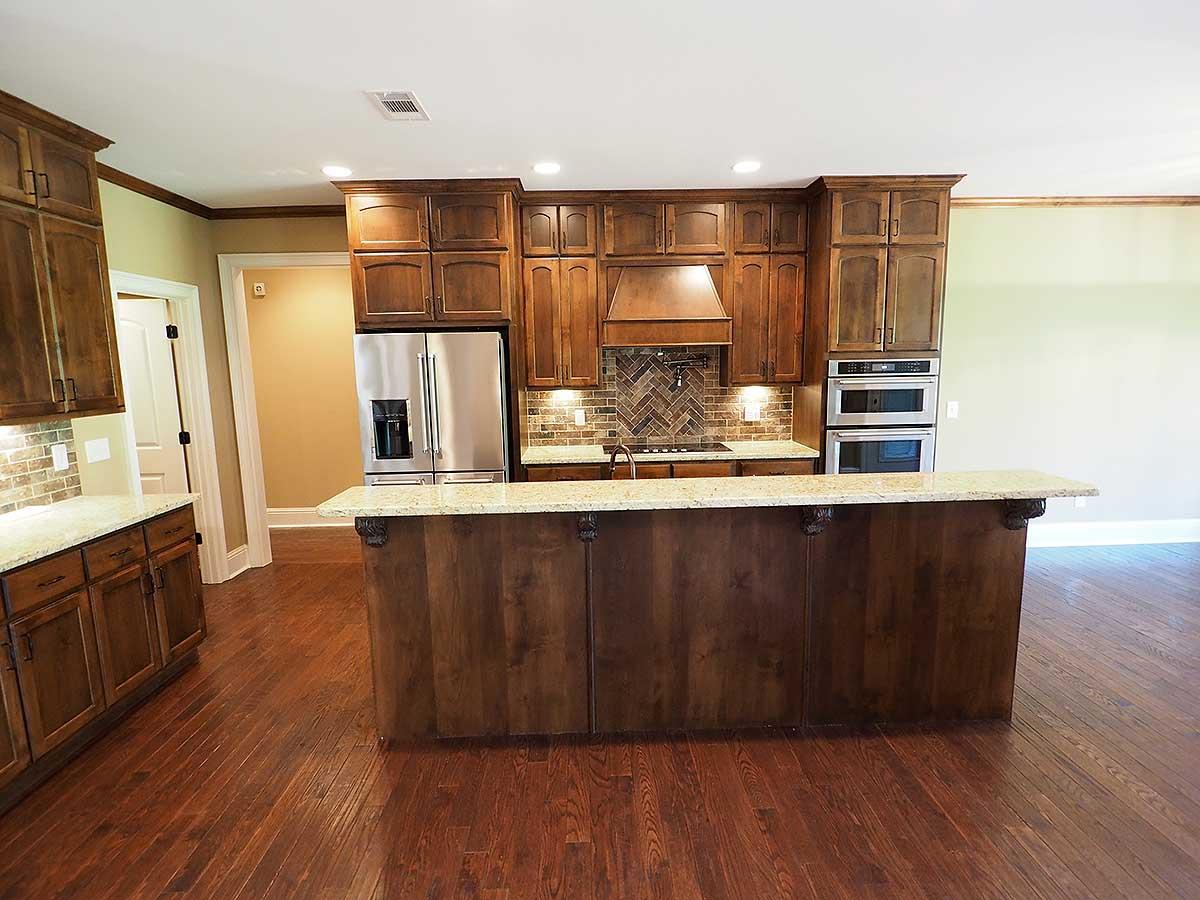

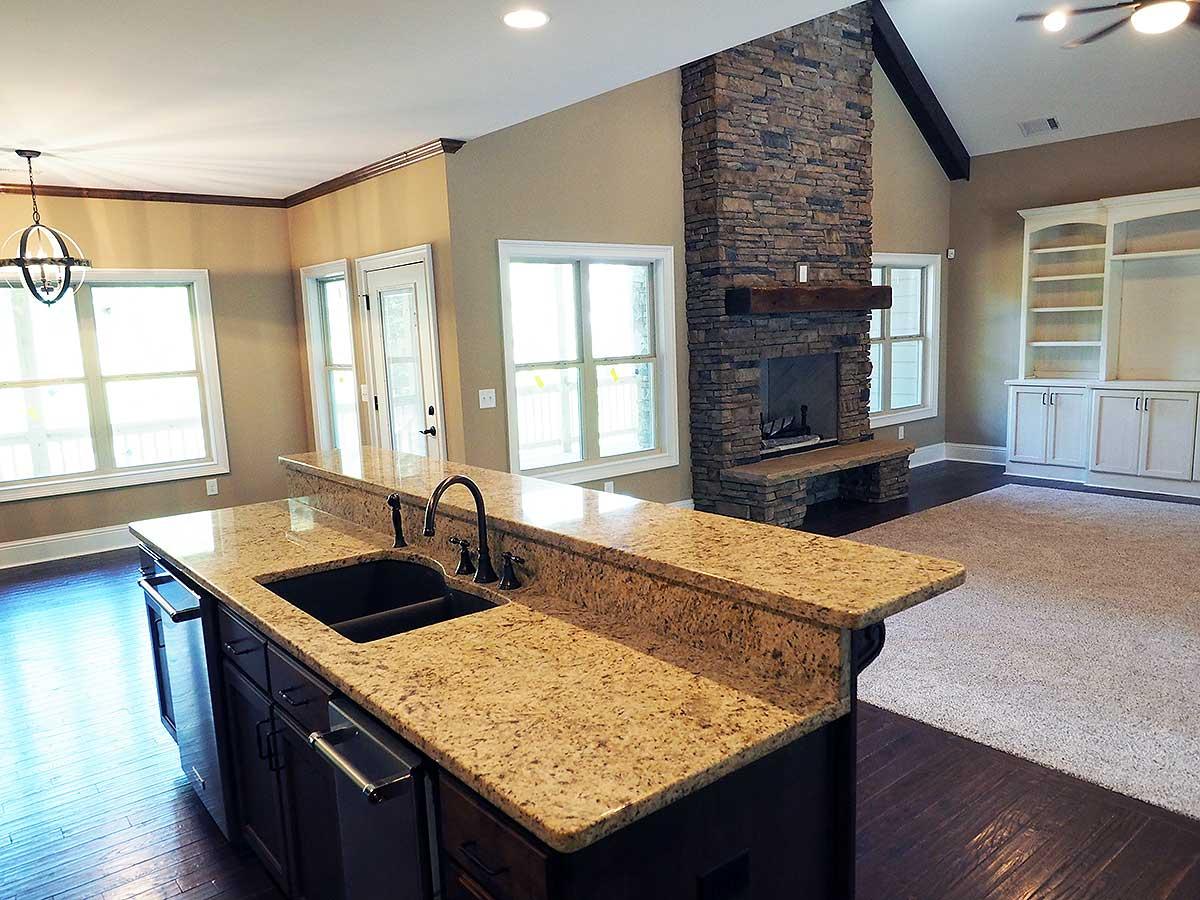

  • A great big island in the large kitchen faces the family room so you can enjoy the fire while cooking.

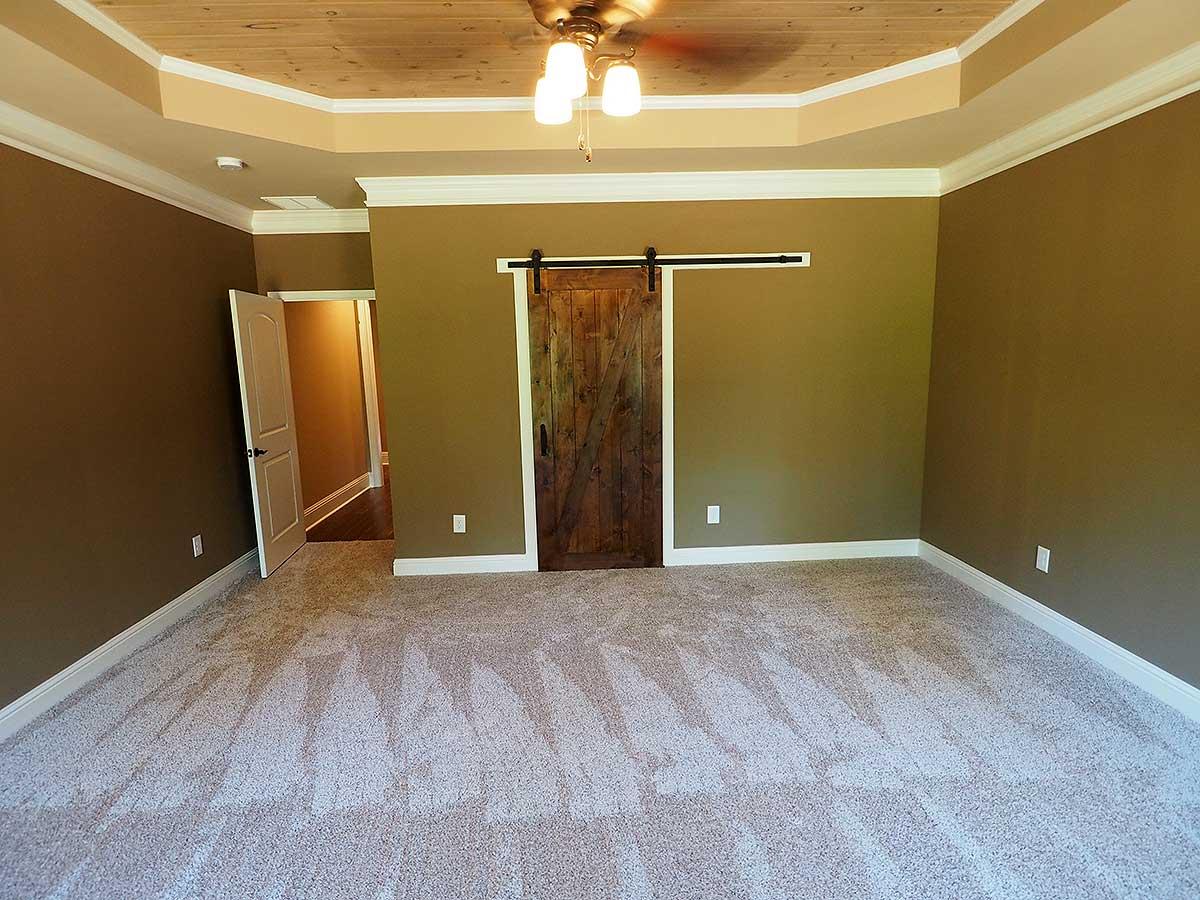

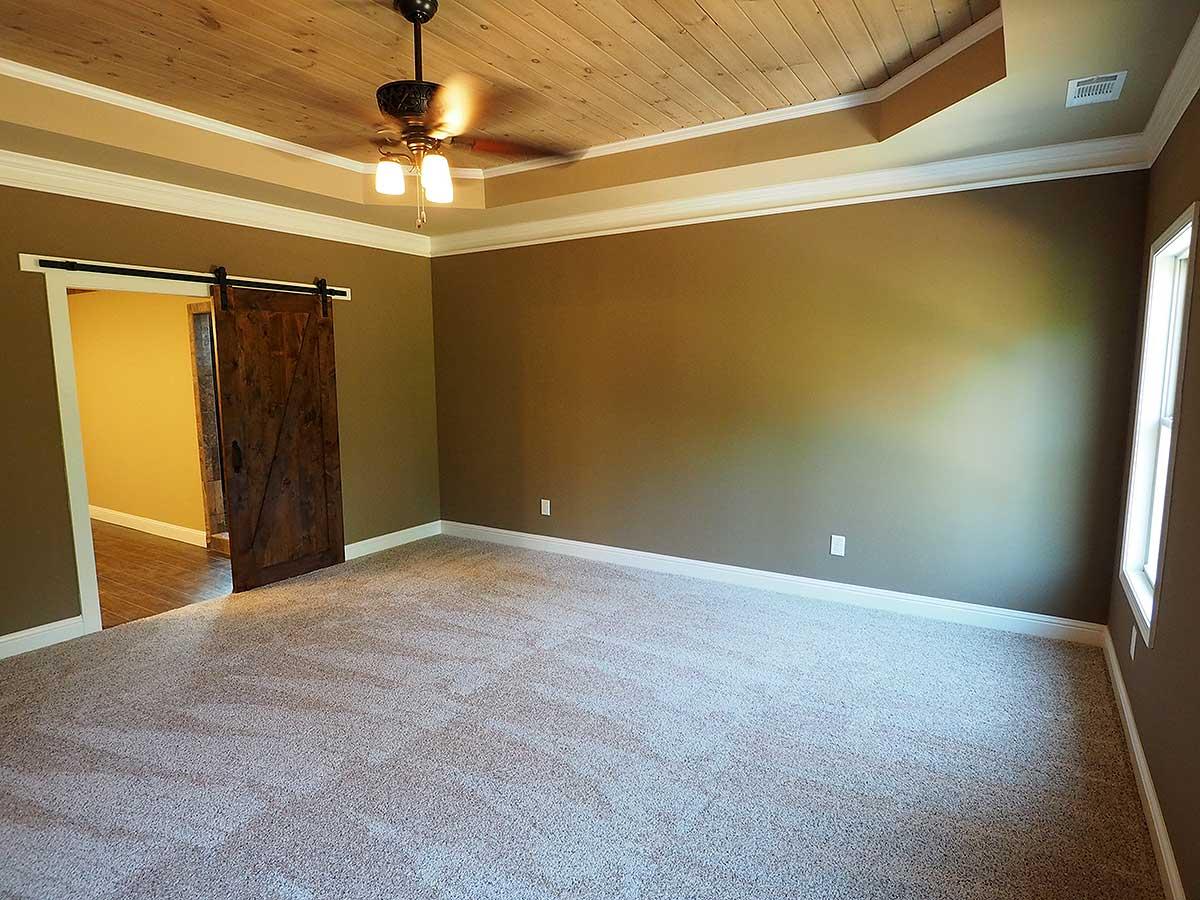

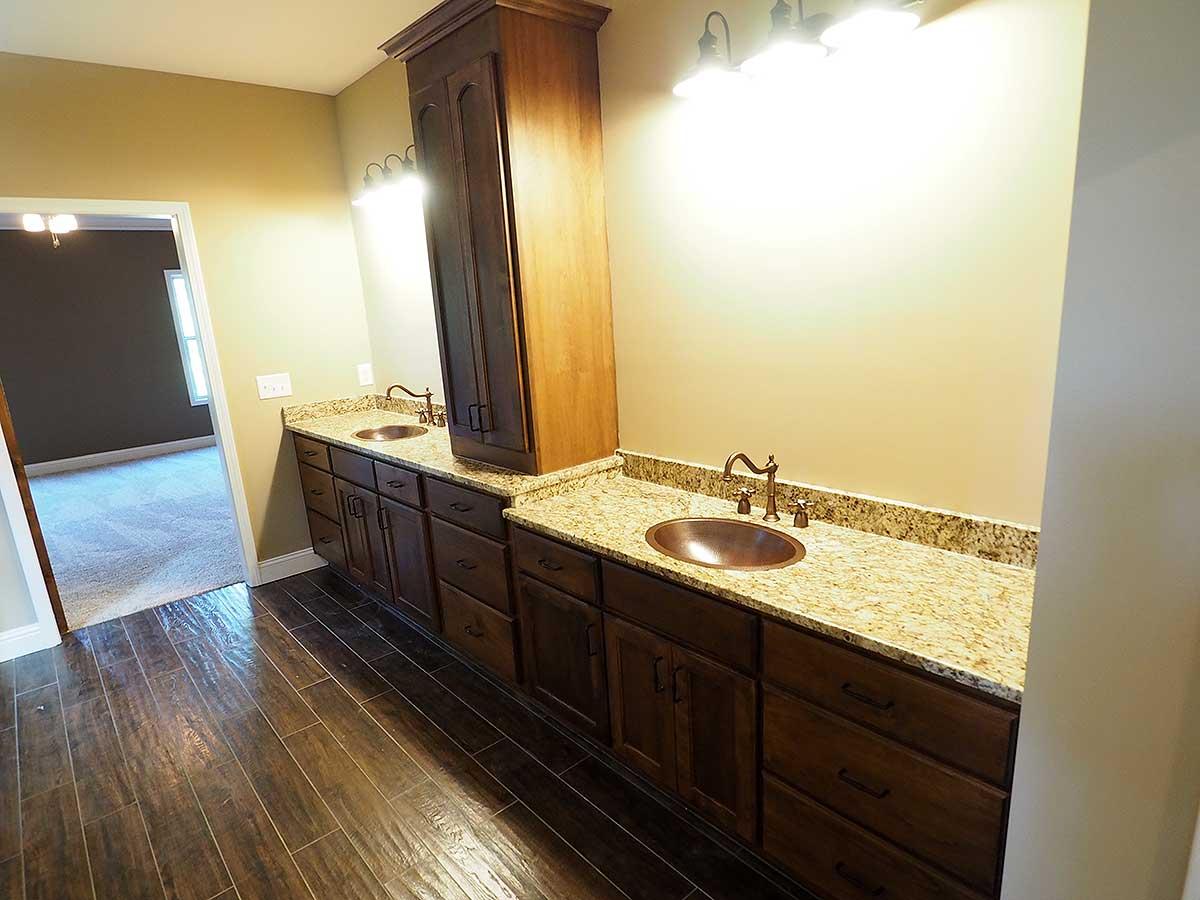

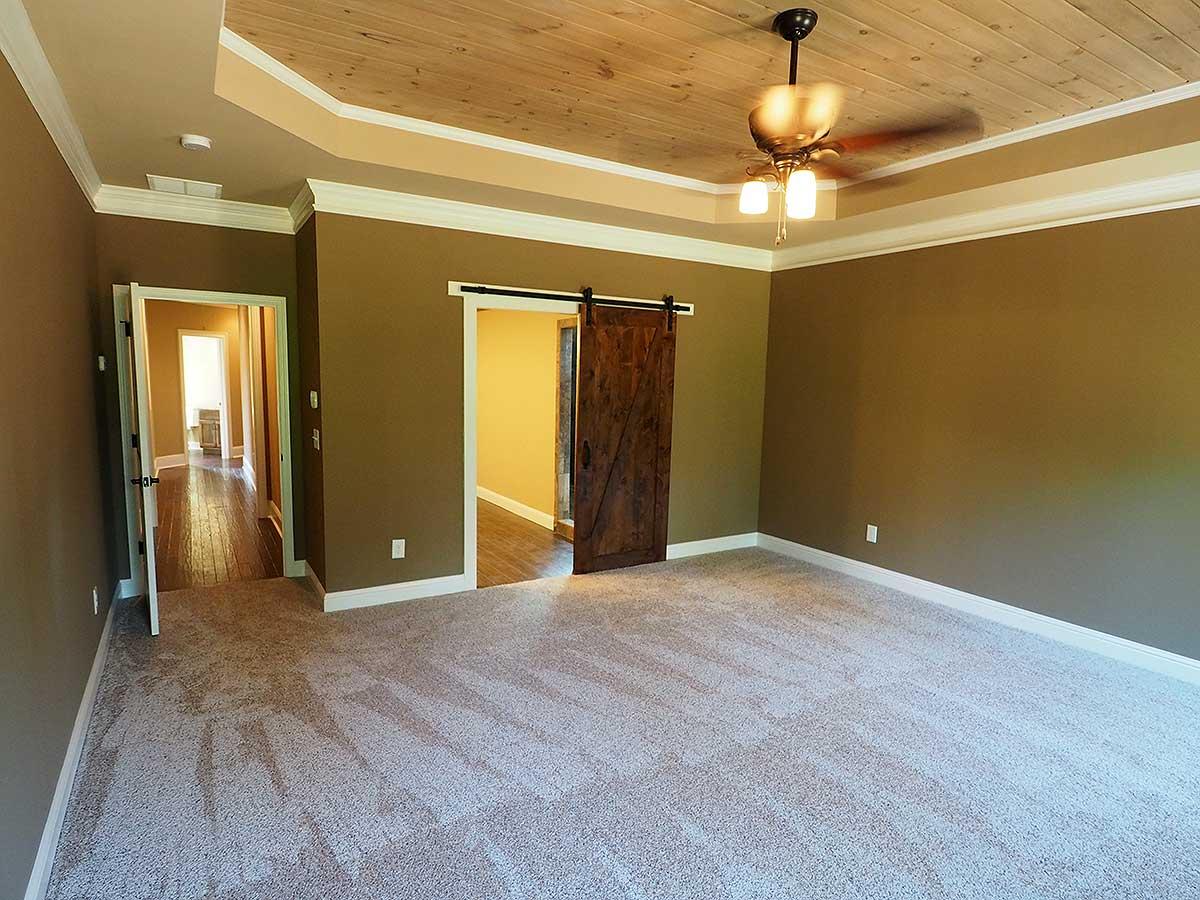

  • The master suite occupies the right wing of the home and has a tray ceiling and deluxe master bathroom.

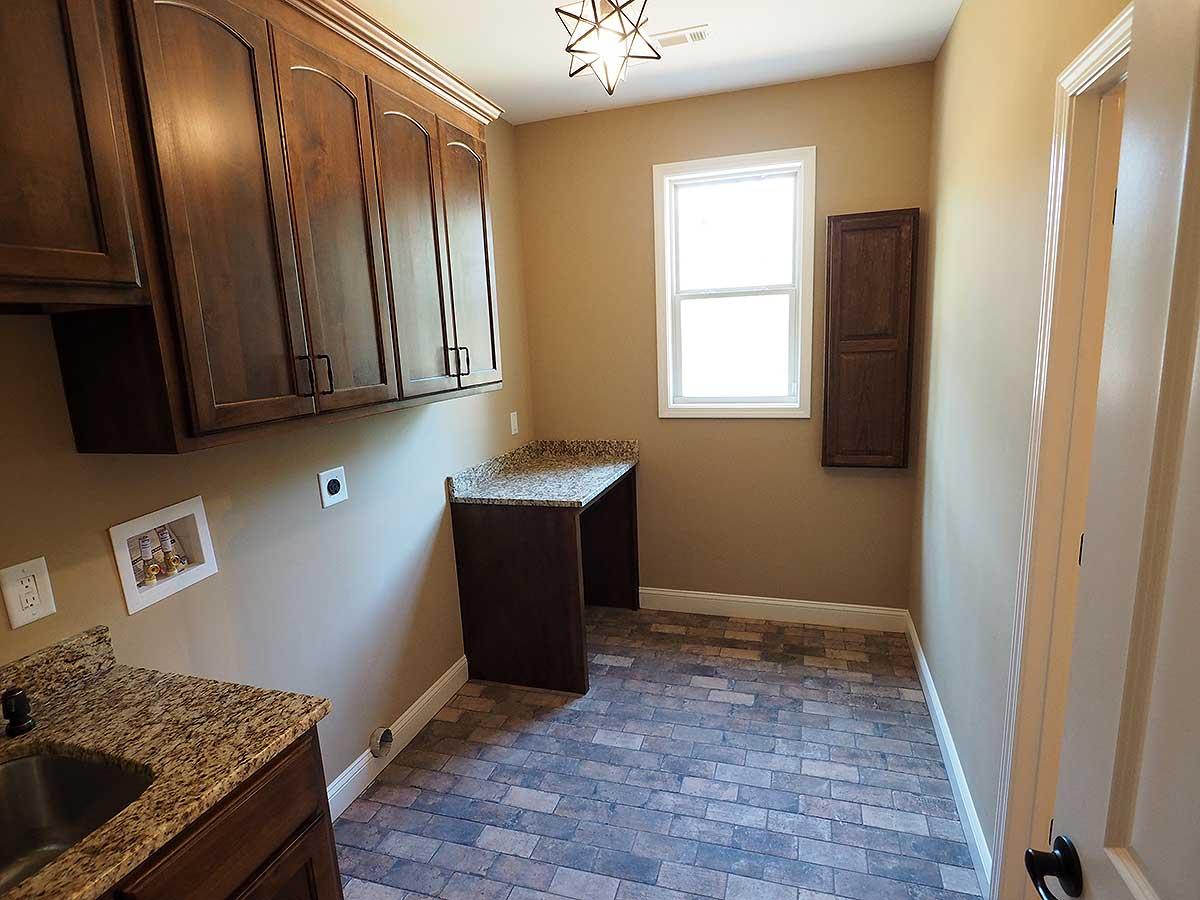

  • The master walk-in closet even has an island for extra storage and it opens directly into the laundry room through pocket doors.
  • Bonus space lies over the garage where any sound does not disturb any rooms below.
  • Related Plans: Get a little more living space with house plan 360012DK (3,204 sq. ft.), 360080DK (3,206 sq. ft.) and 360042DK (3,038 sq. ft.). Get a smaller version with house plan 360089DK (2,618 sq. ft.). Get a 2-car garage with house plan 36032DK.

This plan includes the following details:

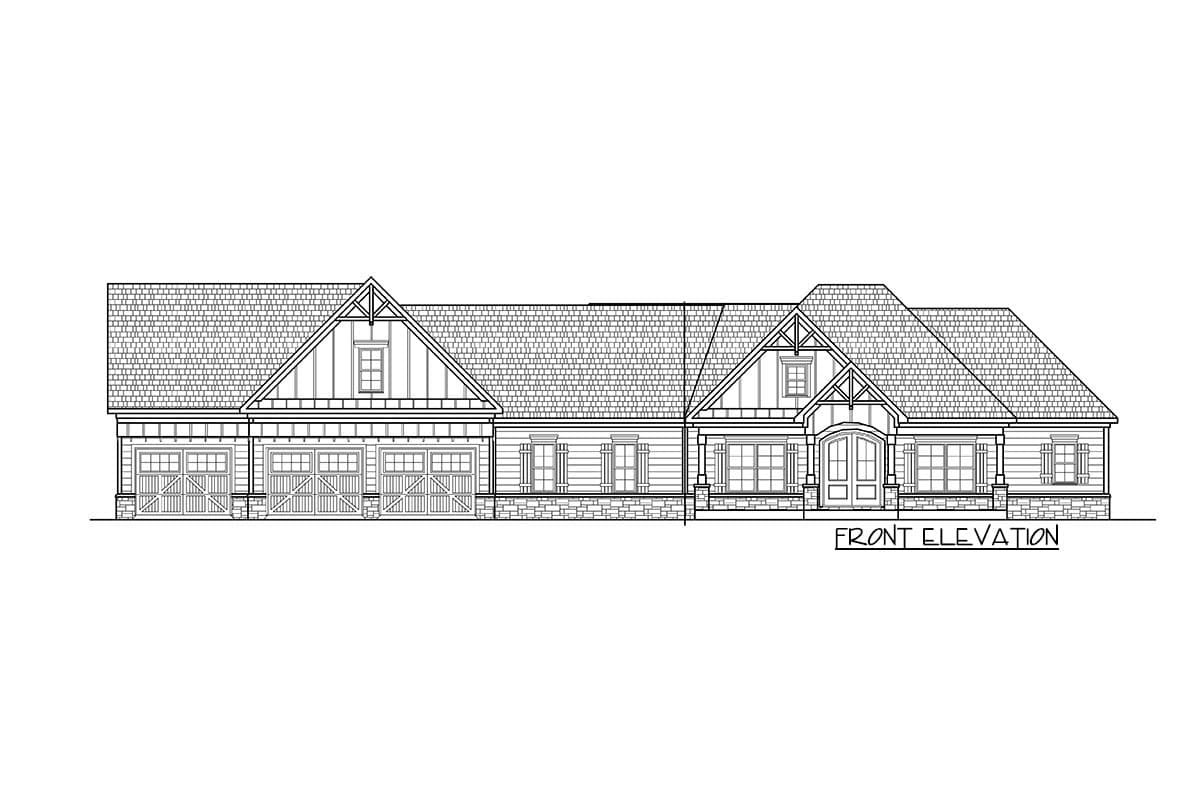

  • Front Elevation

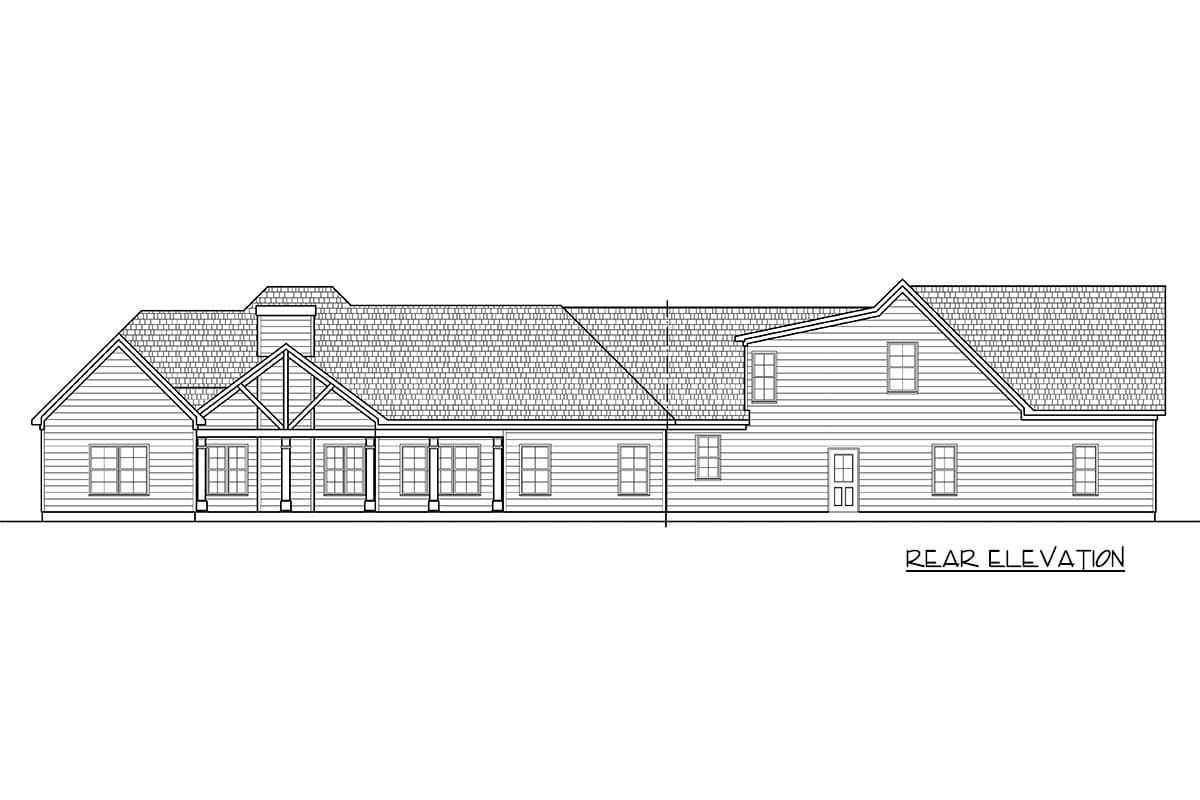

  • Rear Elevation

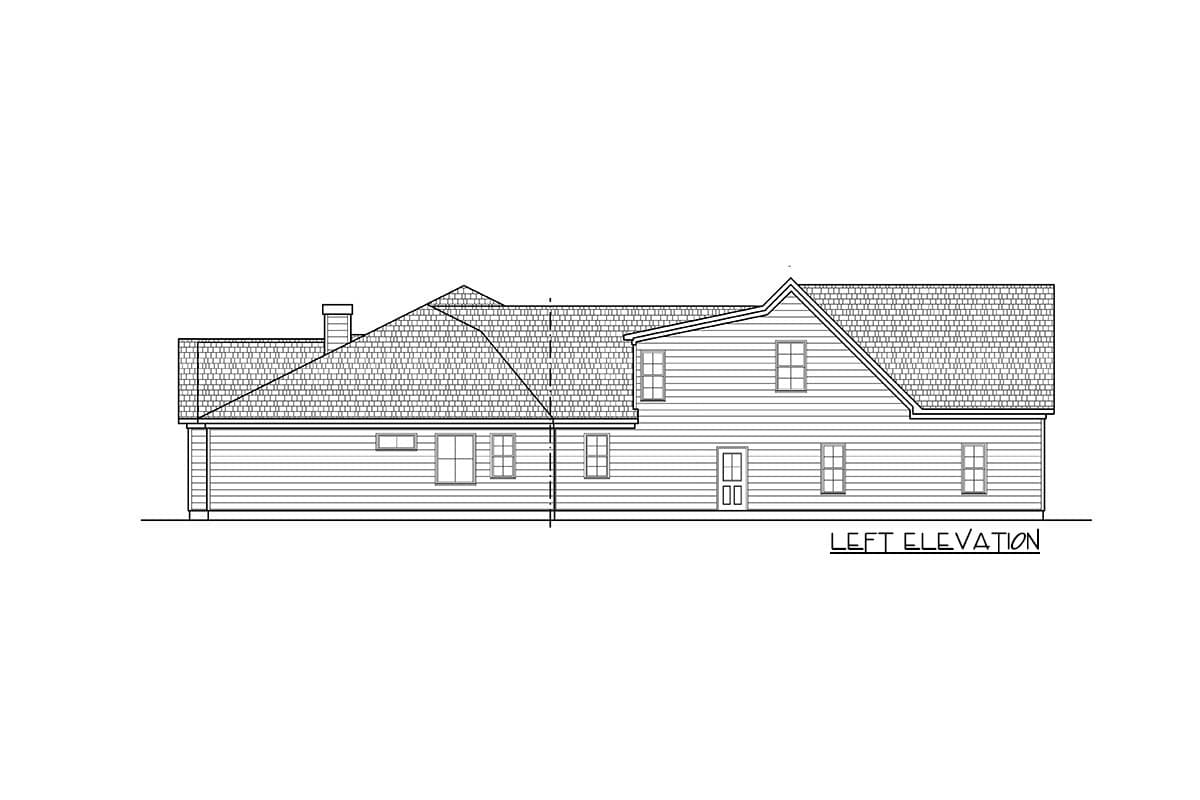

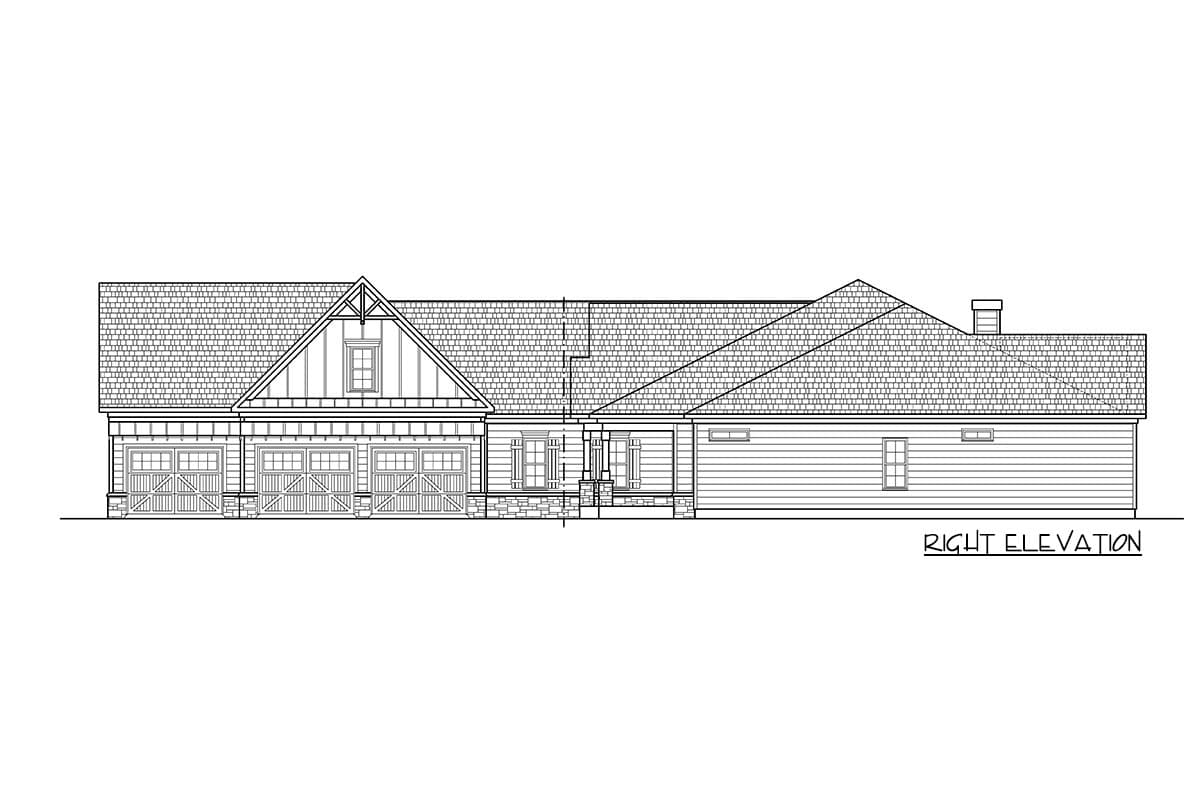

  • Right Side Elevation
  • Left Side Elevation
  • Roof Plan Diagram with pitch designations
  • Quick View Floor Plan
  • Terrace Level Slab Foundation Plan
  • Terrace Level Floor Plan
  • Main Level Floor Plan with framing information
  • Upper Level Floor Plan with framing information
  • Electrical plans for all levels
  • Construction Detail Sheet
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

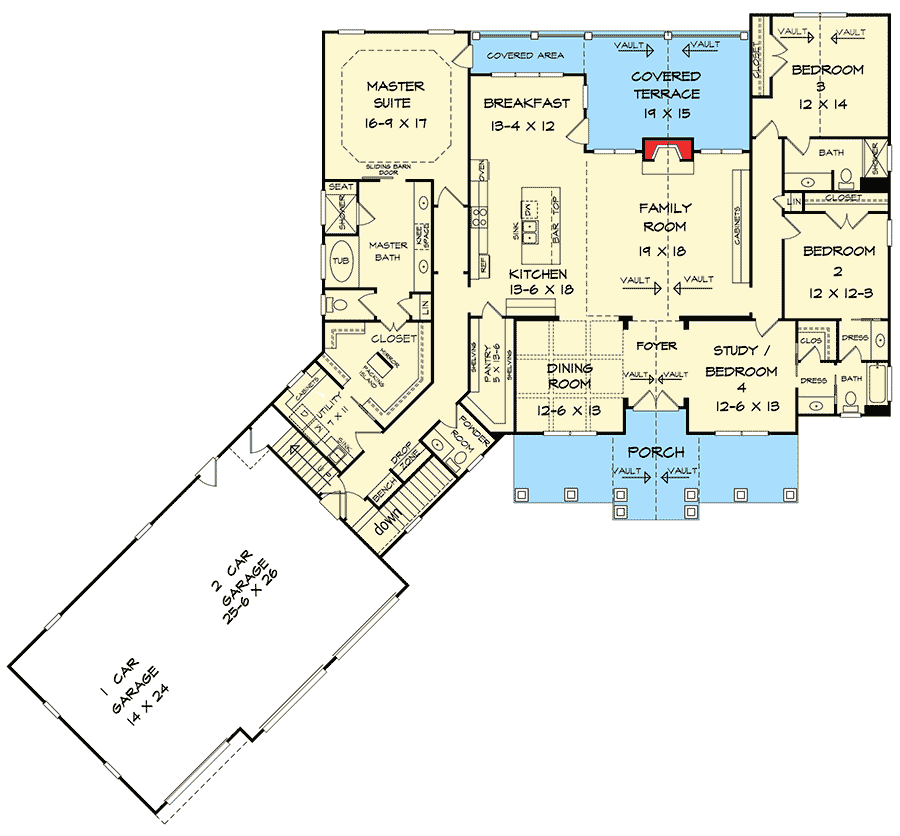

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Craftsman House Plan with 3 Car Angled Garage - 36075DK floor plan - Main Level

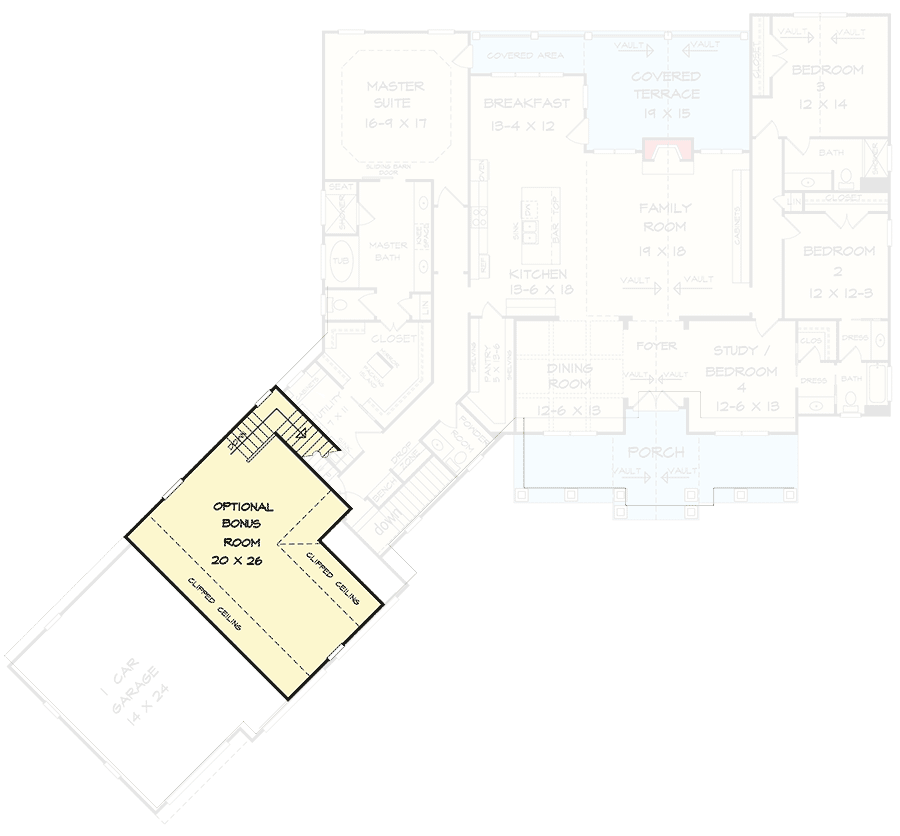

Bonus

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Craftsman House Plan with 3 Car Angled Garage - 36075DK floor plan - Bonus

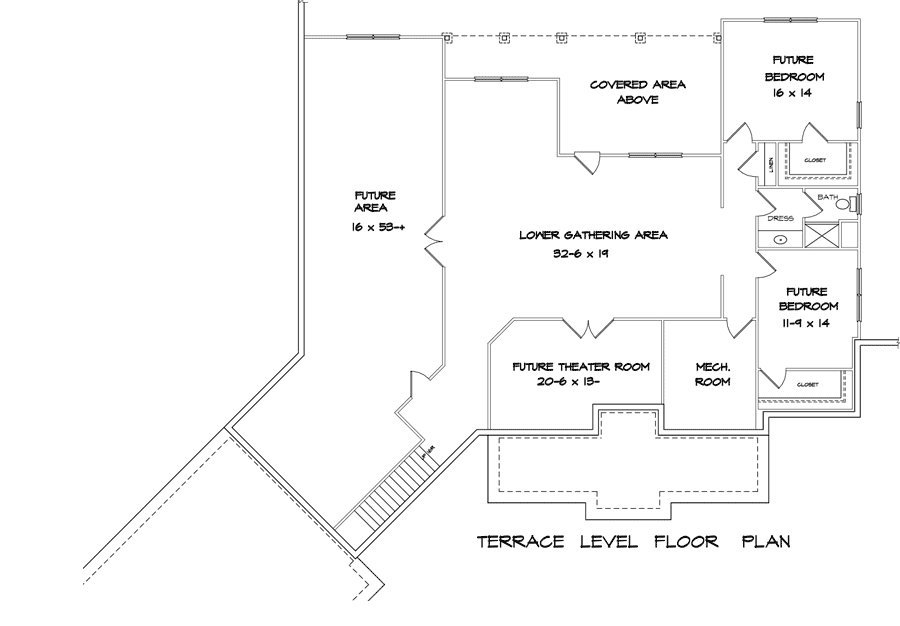

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Craftsman House Plan with 3 Car Angled Garage - 36075DK floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,971 sq. ft.
  • 1st Floor: 2,971 sq. ft.
  • Bonus: 545 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, 5, or 6
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 103' 5"
  • Depth: 91' 10"
  • Max ridge height: 24' 6"

Garage

  • Type: Attached
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Family Room Vaulted

Roof Details

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Craftsman House Plan with 3 Car Angled Garage

  • 2,971

    Heated s.f.

  • 3-6

    Beds

  • 2.5 - 3.5

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,300
  • PDF Light $1,800
  • CAD + PDF - Single-Build $2,100
  • View all purchase option online

About This Plan

  • An angled 3-car garage adds visual interest to this high-end Craftsman house plan.
  • The vaulted entry porch gives way to the vaulted foyer that has the study and dining room on each side.
  • The study could easily be adapted to become the fourth bedroom by closing off the wall from the foyer.
  • Further back, the family room ceiling vaults up in a different direction and has a big fireplace as the focal point.
  • A great big island in the large kitchen faces the family room so you can enjoy the fire while cooking.
  • The master suite occupies the right wing of the home and has a tray ceiling and deluxe master bathroom.
  • The master walk-in closet even has an island for extra storage and it opens directly into the laundry room through pocket doors.
  • Bonus space lies over the garage where any sound does not disturb any rooms below.
  • Related Plans: Get a little more living space with house plan 360012DK (3,204 sq. ft.), 360080DK (3,206 sq. ft.) and 360042DK (3,038 sq. ft.). Get a smaller version with house plan 360089DK (2,618 sq. ft.). Get a 2-car garage with house plan 36032DK.
