Expanded Country Craftsman Home Plan with 3-Car Angled Garage

Plan 360042DK

  • 3,038

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • This house was designed in response to requests for a larger version of house plan 360011DK. Like the original, it has an angled 3-car garage and a covered gabled entry.
  • The vaulted foyer (14' ceiling) is flanked by the study and dining and leads you directly into the vaulted family room (16' ceiling) with fireplace.
  • A large island in the kitchen faces the family room giving you views across to the fireplace. The adjacent dining area opens tot he covered terrace with 16' vaulted ceiling.
  • The master suite occupies the left side of the home and has a tray ceiling, a deluxe master bathroom with laundry access and a door leading to the outdoors. The master walk-in closet even has an island for extra storage and it opens directly into the laundry room through pocket doors.
  • Three bedrooms share two baths - one a Jack and Jill - across the home.
  • Bonus space lies over the garage with a full bath.
  • Related Plans: Get alternate 3-car versions with house plans 360011DK, 36075DK , 360012DK, 360080DK and 360089DK (2,618 sq. ft.). Get a 2-car version with house plan 36032DK.

This plan includes the following elements:

  • All Elevations
  • Birds Eye Roof Plan
  • Floor plans
  • Foundation Plan
  • Suggested Electrical Layout
  • General Construction Details
  • Some plans include a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

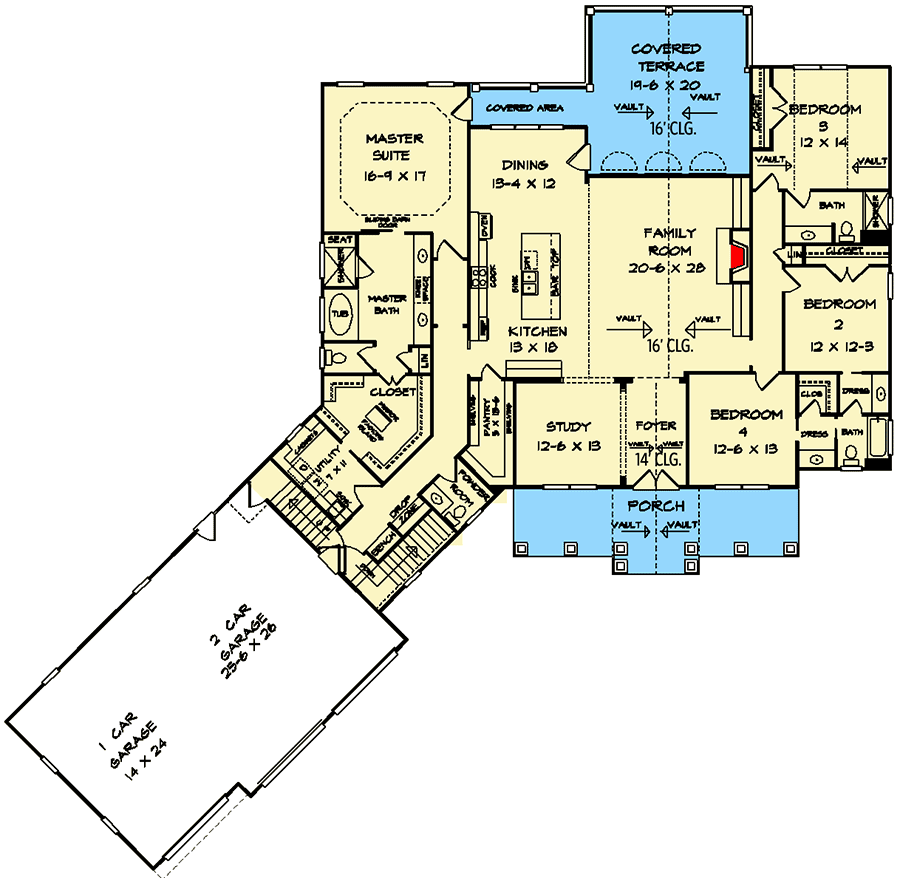

Expanded Country Craftsman Home Plan with 3-Car Angled Garage - 360042DK floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

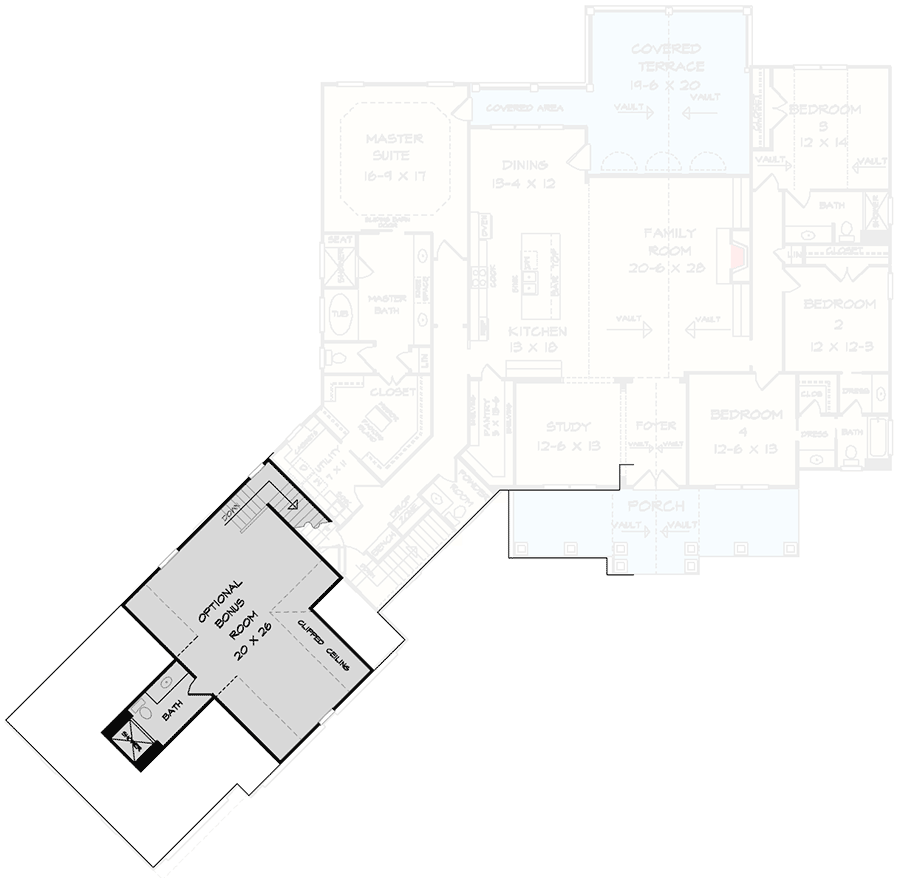

Expanded Country Craftsman Home Plan with 3-Car Angled Garage - 360042DK floor plan - 2nd Floor

3rd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

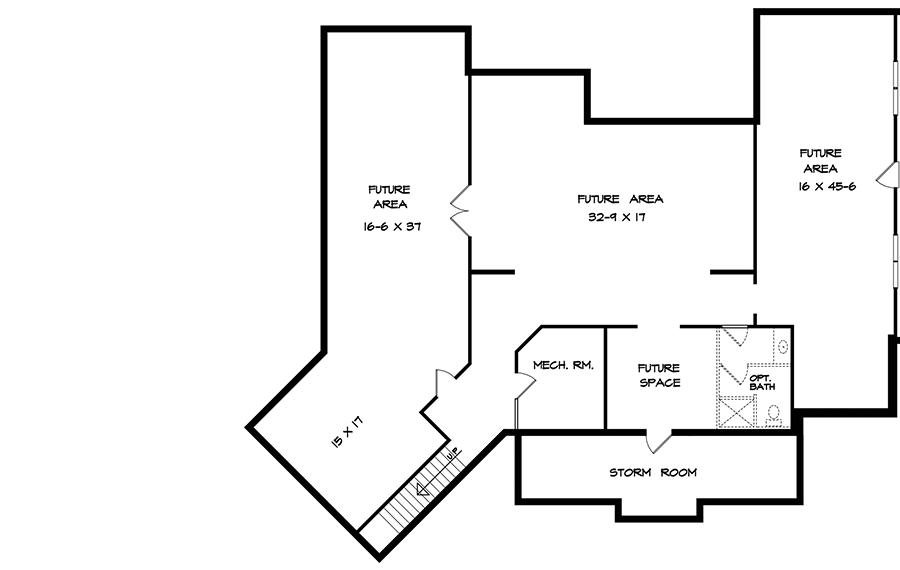

Expanded Country Craftsman Home Plan with 3-Car Angled Garage - 360042DK floor plan - 3rd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,038 sq. ft.
  • 1st Floor: 3,038 sq. ft.
  • Bonus: 621 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 103' 5"
  • Depth: 100' 10"
  • Max ridge height: 24' 10"

Garage

  • Type: Attached
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Expanded Country Craftsman Home Plan with 3-Car Angled Garage

  • 3,038

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,038 sq. ft.
  • 1st Floor: 3,038 sq. ft.

Dimensions

  • Width: 103' 5"
  • Depth: 100' 10"
  • Max ridge height: 24' 10"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
