Plan 849087PGE

Craftsman House Plan with Elevator, Potential In-Law Suite, and 3-Car Garage

Heated S.F.
5,942
Beds
3 - 6
Baths
4.5+
Stories
1
Cars
3

Floor Plan

Plan 849087PGE

Main Level
Main Level
2nd Floor
2nd Floor
Walkout Basement
Walkout Basement

Plan 849087PGE

M-F 9am-5pm EST |

1-203-761-8500

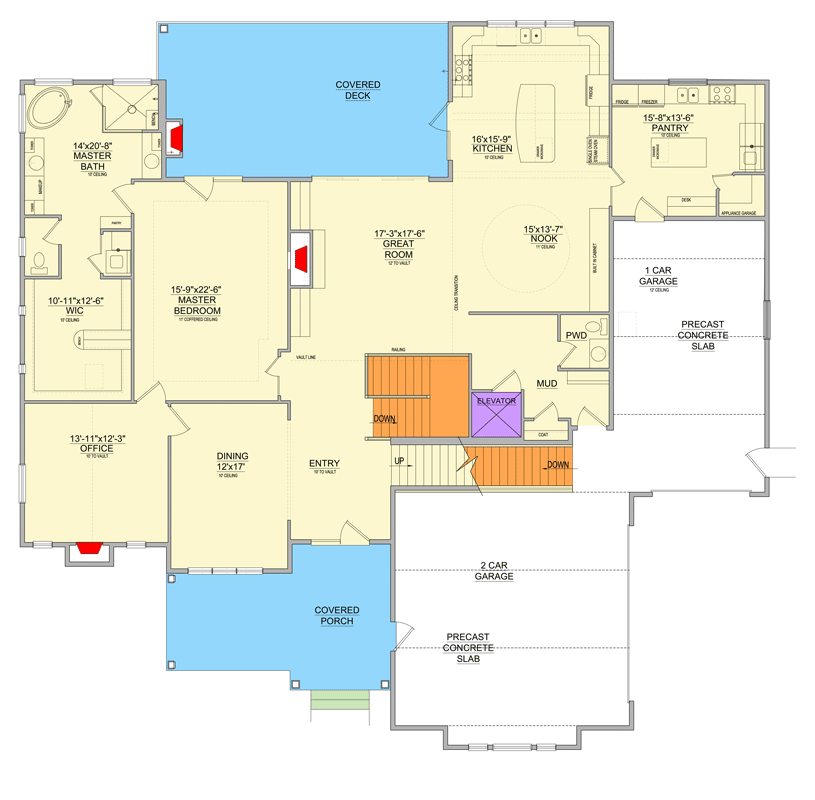

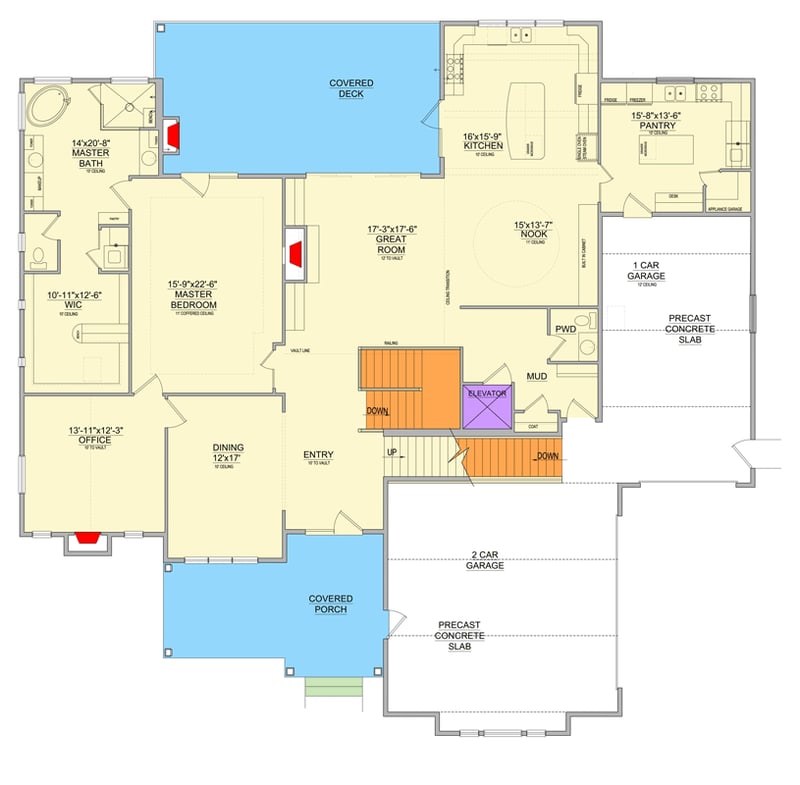

Main Level

Plan 849087PGE: Craftsman House Plan with Elevator, Potential In-Law Suite, and 3-Car Garage - Floor Plan - Main Level - Acadian, Cape Cod, Cottage, Craftsman

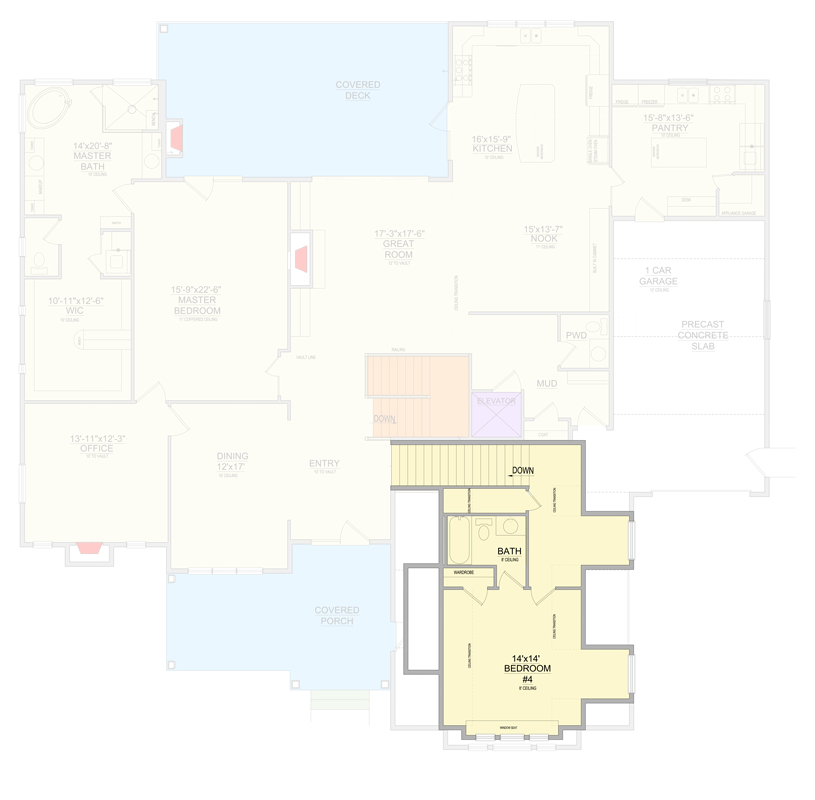

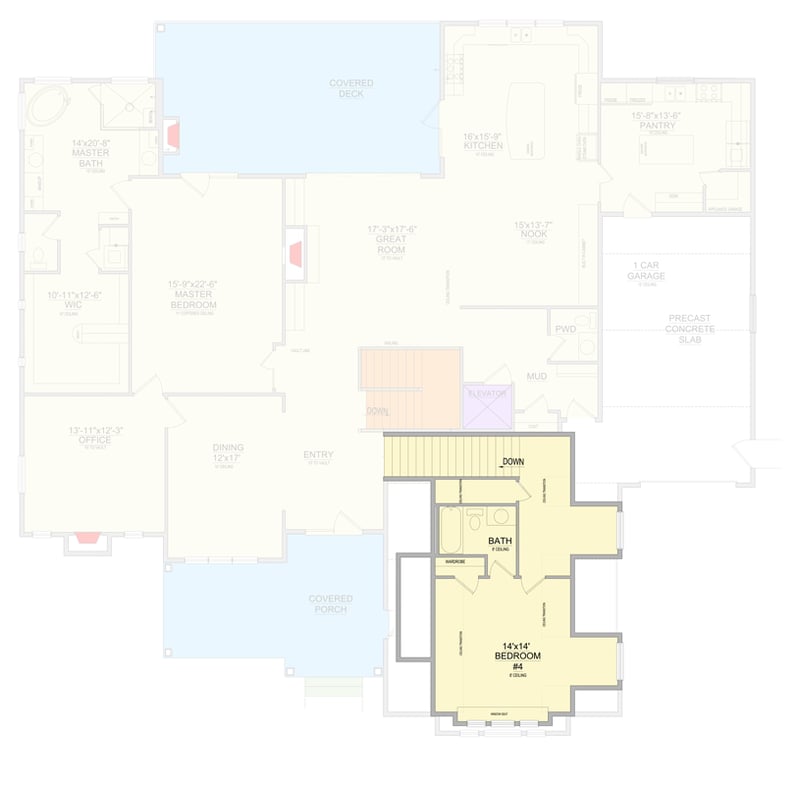

2nd Floor

Plan 849087PGE: Craftsman House Plan with Elevator, Potential In-Law Suite, and 3-Car Garage - Floor Plan - 2nd Floor - Acadian, Cape Cod, Cottage, Craftsman

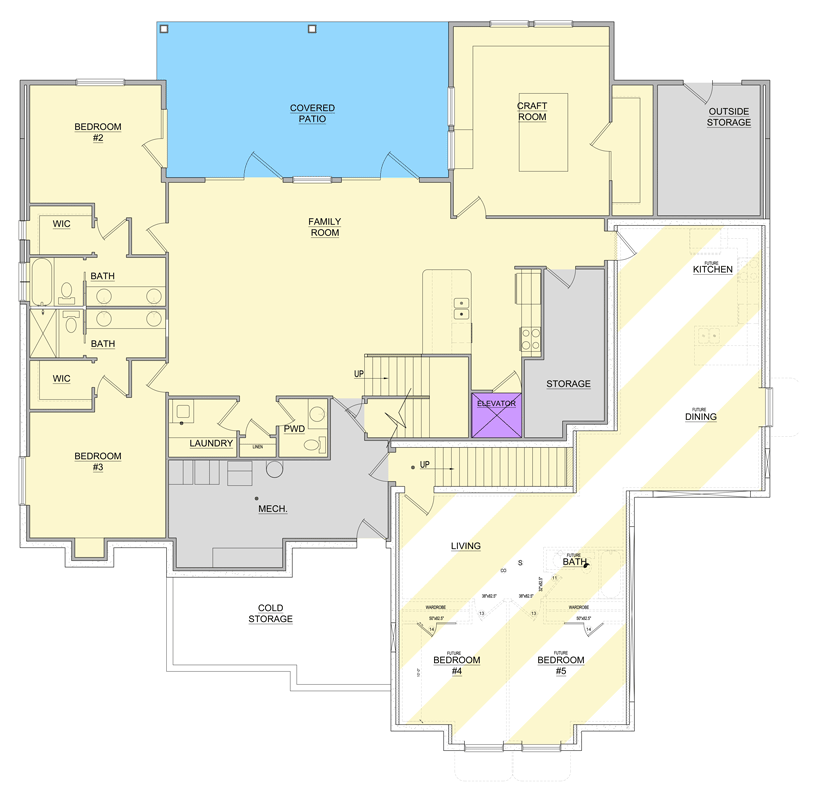

Walkout Basement

Plan 849087PGE: Craftsman House Plan with Elevator, Potential In-Law Suite, and 3-Car Garage - Floor Plan - Walkout Basement - Acadian, Cape Cod, Cottage, Craftsman

Plan Details

  • This expansive Craftsman-style house plan offers 5,942 finished sq ft, 4 full and 2 half baths, flexible 3 to 6 bedrooms, and a generous 1,154 sq ft 3-car garage.
  • A welcoming covered front porch leads into an impressive foyer, revealing a thoughtful layout designed for comfort and elegance, featuring high 10-foot ceilings on the first floor.
  • The first floor boasts a formal dining area, a breakfast nook, and a walk-in pantry, all flowing seamlessly into the main living spaces, with a home office providing dedicated workspace.
  • The primary suite enjoys a private wing with convenient laundry access, while the flexible bedroom count (3-6) can accommodate various family needs, including an in-law suite.
  • Enjoy a finished bonus room for entertainment or hobbies, and the convenience of an elevator connecting all levels.
  • Relax on the expansive 230 sq ft front porch or the generous 464 sq ft rear porch, both perfect for outdoor living, with an outdoor fireplace adding ambiance.
  • The walkout lower level offers 2,696 sq ft of space, with an optional 1,264 sq ft finishable area, ideal for future expansion or customization.

What's Included

  • Cover Sheet
  • Elevations
  • Foundation Plan
  • Floor Plan
  • Electrical Plan
  • Details and Schedules
  • Upper Floor Framing Plan
  • Roof Flaming Plan
  • Details
  • Sections and Notes
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

5,942 sq. ft.

Lower Level

2,696 sq. ft.

1st Floor

2,770 sq. ft.

2nd Floor

476 sq. ft.

Optional Lower Level

1,264 sq. ft.

Porch, Front

230 sq. ft.

Porch, Rear

464 sq. ft.

Beds/Baths

Bedrooms

3, 4, 5, or 6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

77' 0"

Depth

74' 10"

Max Ridge Height

29' 3"

Garage

Type

Standard

Area

1154 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

9'

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Acadian

Cape Cod

Cottage

Craftsman

Special Features

Bedrooms - Split

Breakfast Nook

Elevator

Finished Bonus Room

Formal Dining

Home Office

In-Law Suite

Laundry Access from Master Suite

Laundry - Lower Level

Mudroom

Outdoor Fireplace

Walk-in Pantry

Plan Collections

Attached Apartments

Square Footage Breakdown

Total Heated Area

5,942 sq. ft.

Lower Level

2,696 sq. ft.

1st Floor

2,770 sq. ft.

2nd Floor

476 sq. ft.

Optional Lower Level

1,264 sq. ft.

Porch, Front

230 sq. ft.

Porch, Rear

464 sq. ft.

Beds/Baths

Bedrooms

3, 4, 5, or 6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

77' 0"

Depth

74' 10"

Max Ridge Height

29' 3"

Garage

Type

Standard

Area

1154 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

9'

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Acadian

Cape Cod

Cottage

Craftsman

Special Features

Bedrooms - Split

Breakfast Nook

Elevator

Finished Bonus Room

Formal Dining

Home Office

In-Law Suite

Laundry Access from Master Suite

Laundry - Lower Level

Mudroom

Outdoor Fireplace

Walk-in Pantry

Plan Collections

Attached Apartments
