Plan 69631AM

Craftsman House Plan with Flex Bonus Space

Craftsman House Plan with Flex Bonus Space

Plan 69631AM

  • 3,156

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1-2

    Stories

  • 3

    Cars

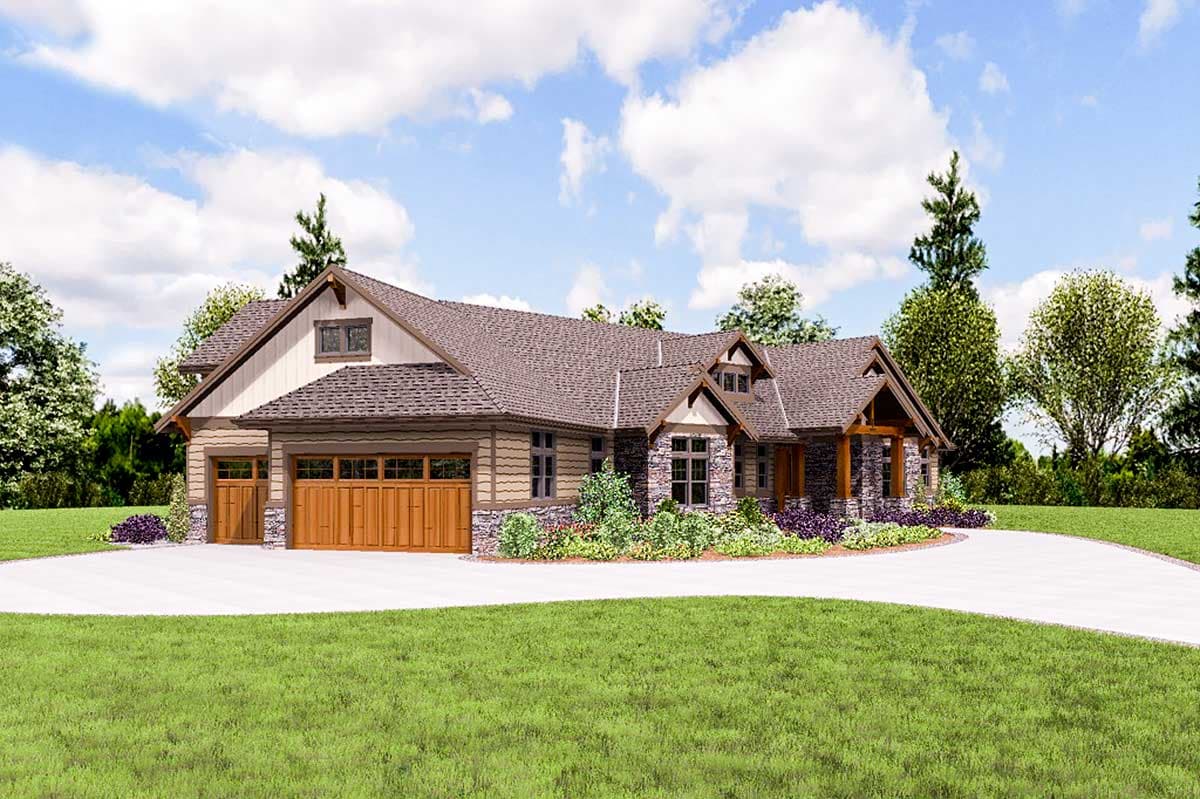

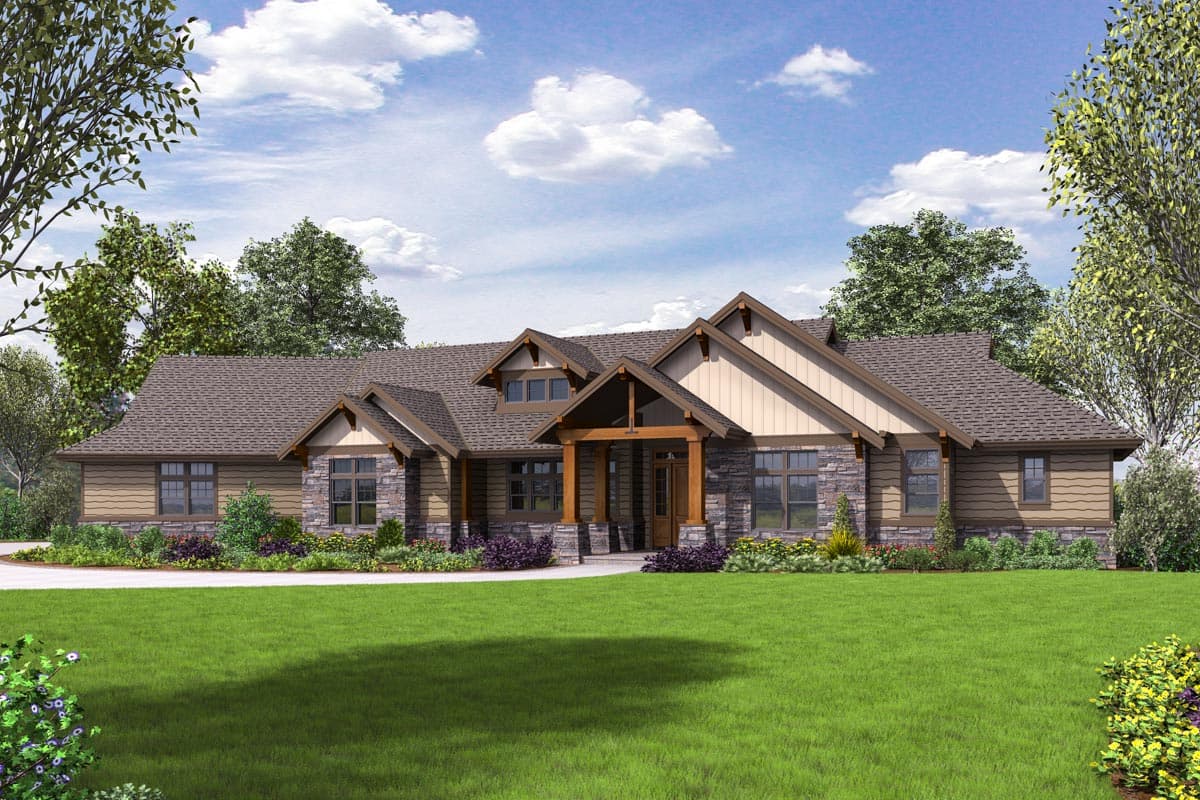

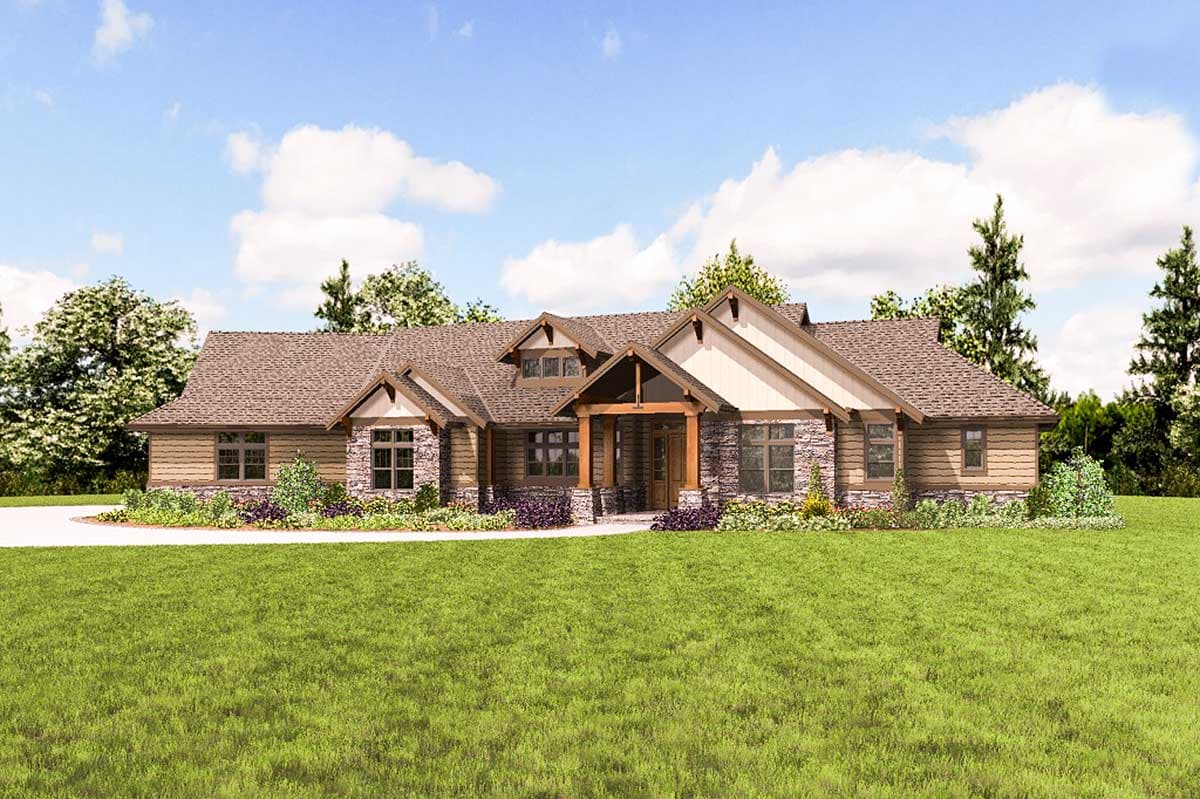

  • Angles and an irregular foundation shape give this Craftsman home a unique appearance.
  • The 11' high foyer opens right up into the massive vaulted great room where views sweep around to the kitchen and dining area.
  • Designed for informal, casual living, the house does away with a formal dining room.
  • Homeowners get a luxurious master suite with a media built-in, a bathroom with a free standing tub and a huge walk-in closet with an island in the middle.
  • Two family bedrooms lie on the opposite side of the home, each with a walk-in closet.

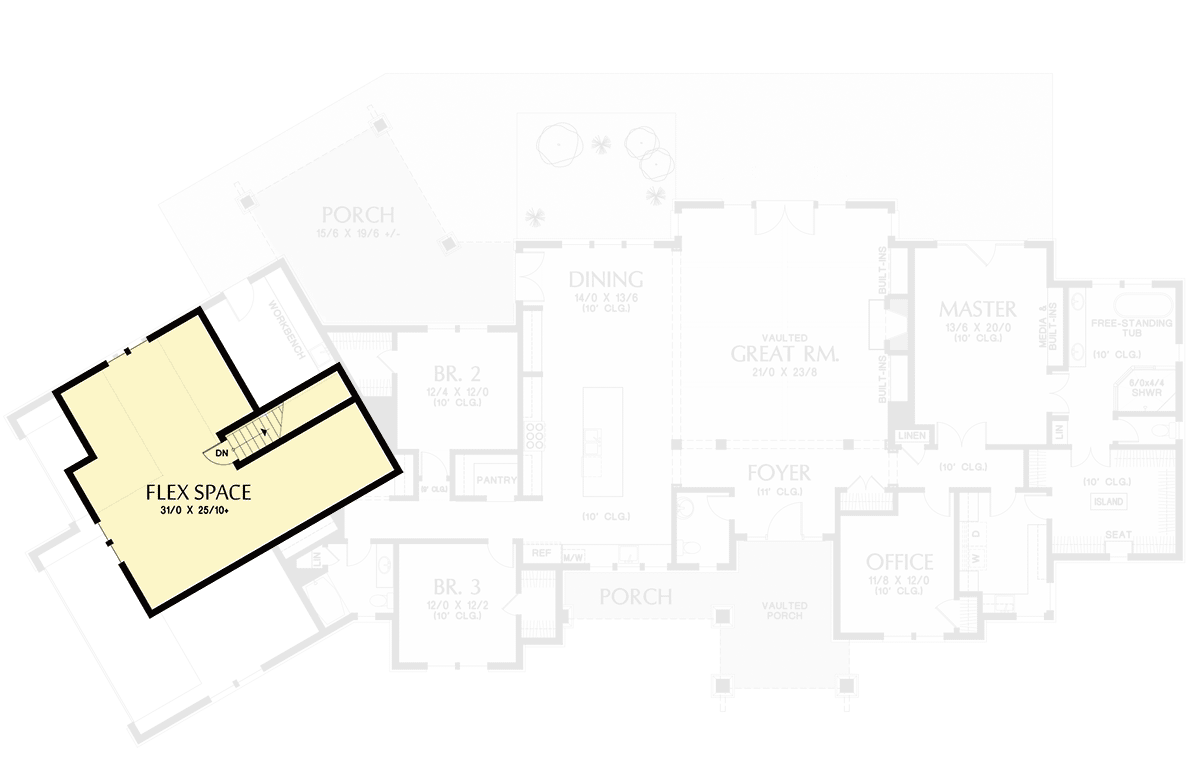

  • Step up to the second floor flex room that adds 632 square feet of living space to the total living area of the home.

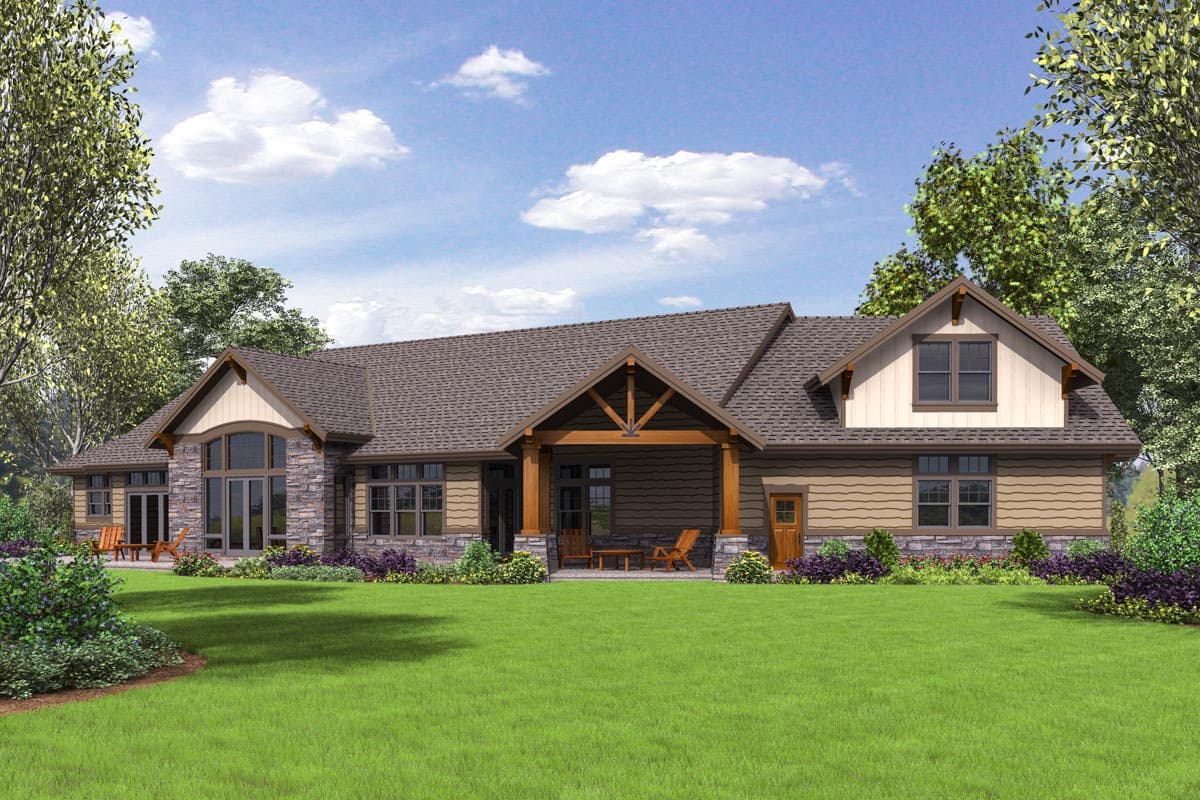

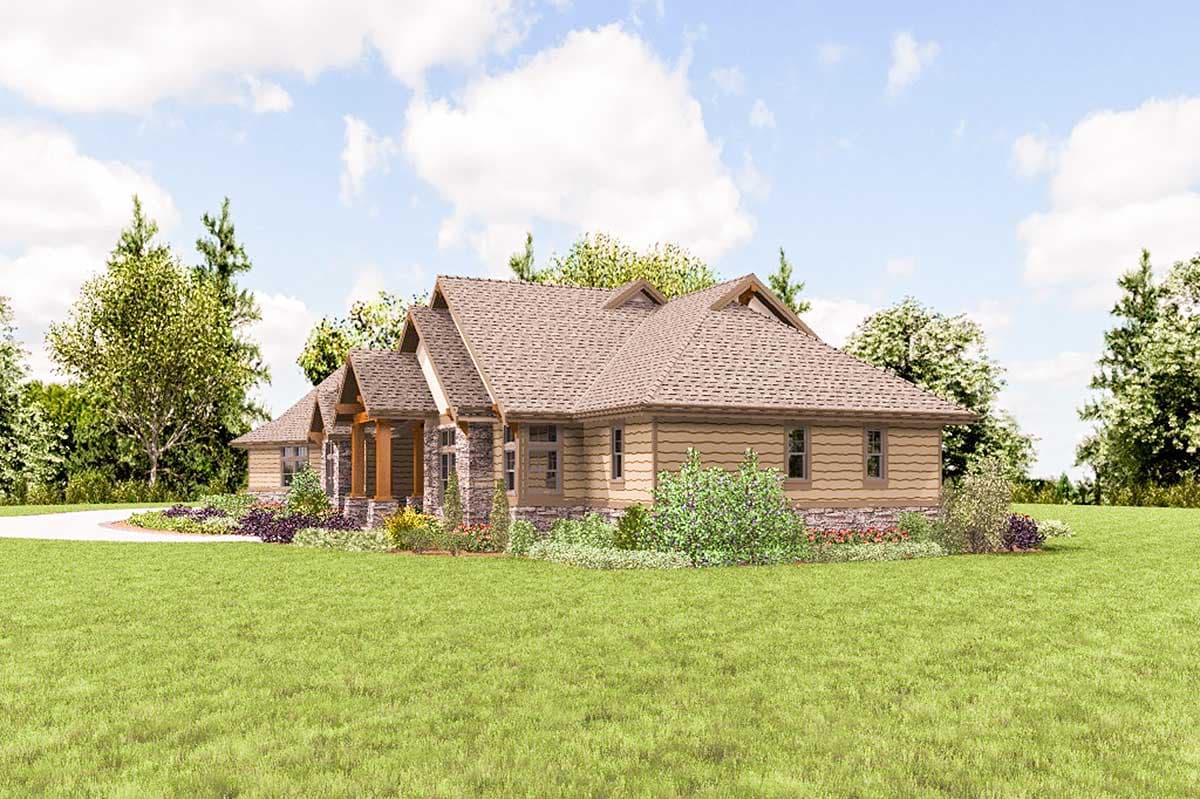

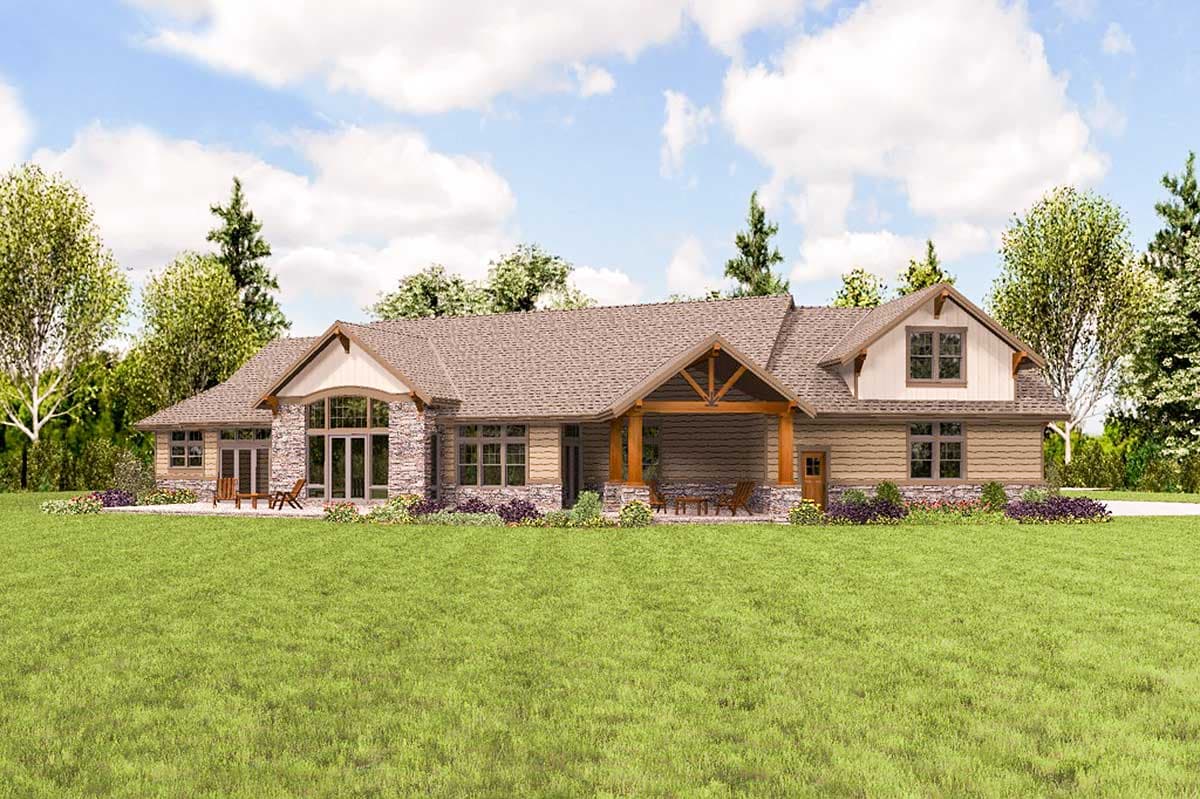

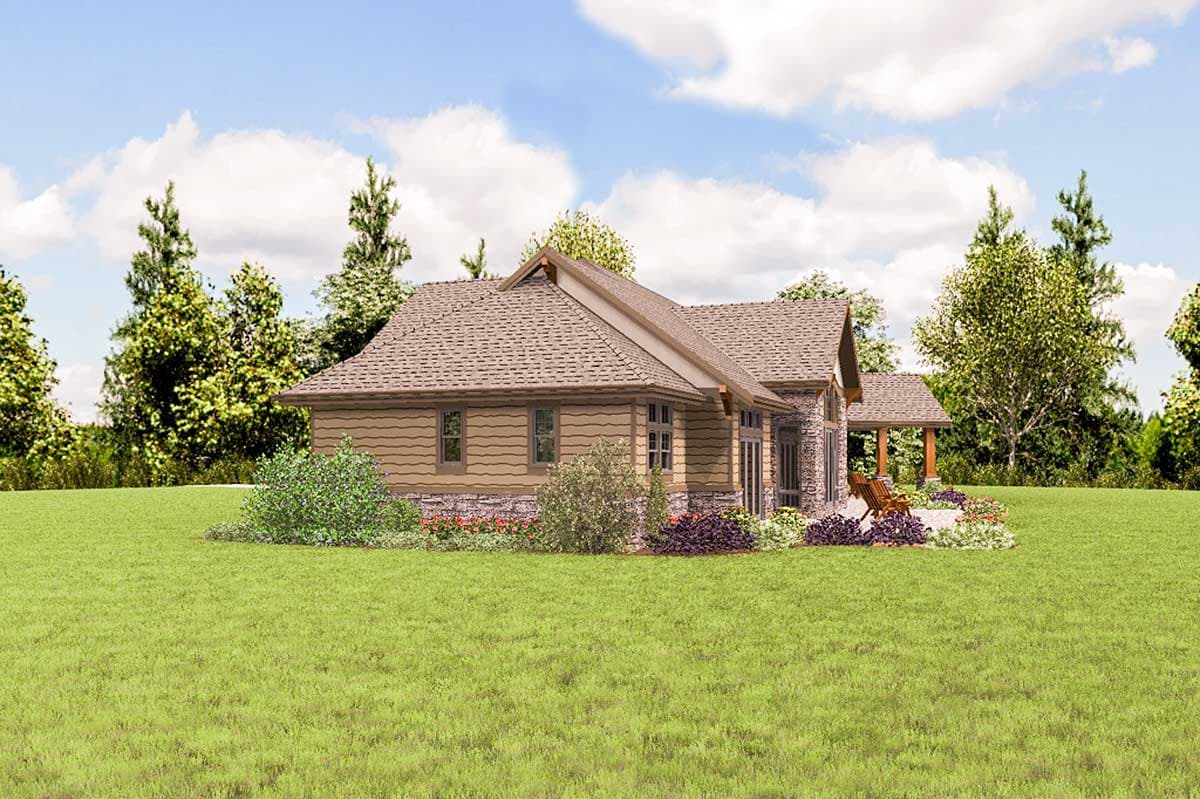

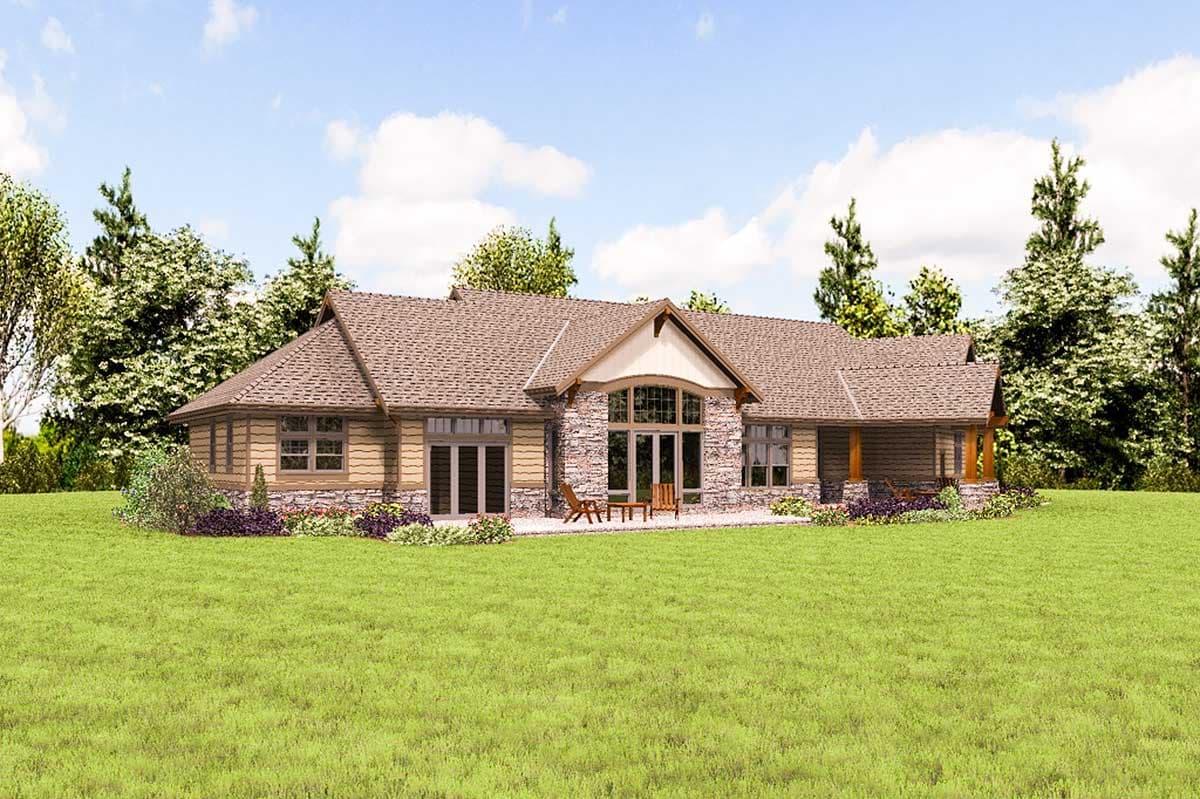

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

Floor Plan

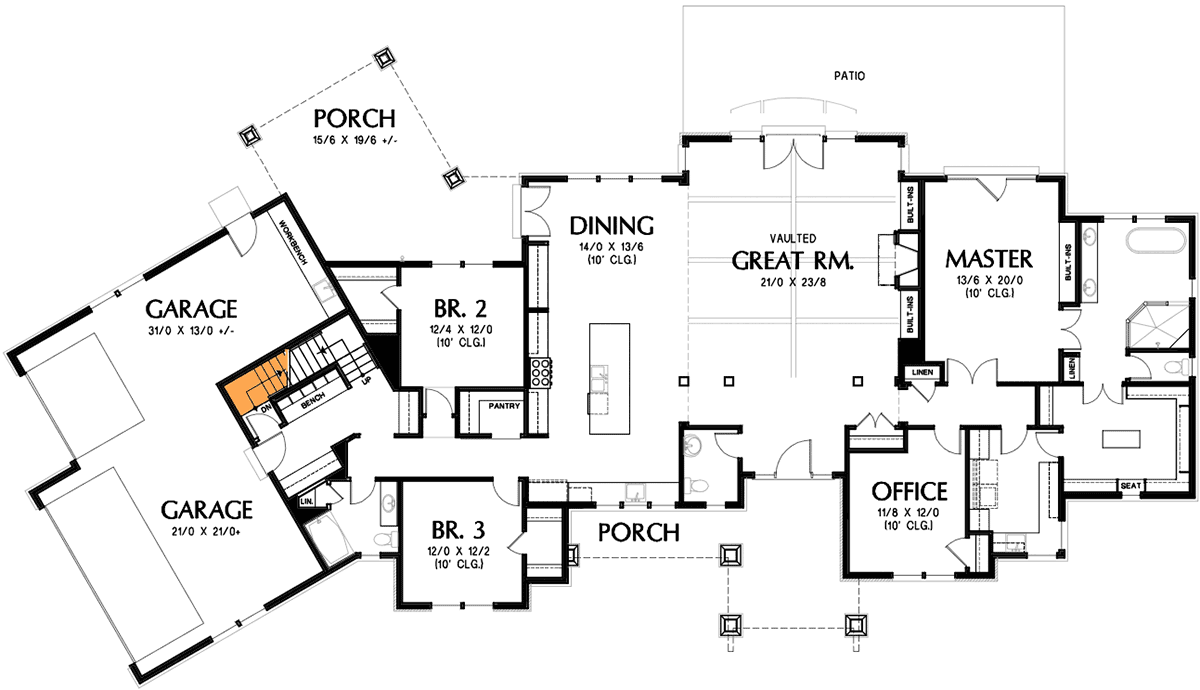

Main Level - Basement Version

Craftsman House Plan with Flex Bonus Space - 69631AM floor plan - Main Level - Basement Version

Plan details



Craftsman House Plan with Flex Bonus Space

  • 3,156

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • Digital Study Set $1,239
  • PDF - single-use $1,589
  • 5 Sets $1,739
  • 5 Sets PLUS $1,789
  • CAD - multi-use $3,178
  • View all purchase option online

About This Plan

  • Angles and an irregular foundation shape give this Craftsman home a unique appearance.
  • The 11' high foyer opens right up into the massive vaulted great room where views sweep around to the kitchen and dining area.
  • Designed for informal, casual living, the house does away with a formal dining room.
  • Homeowners get a luxurious master suite with a media built-in, a bathroom with a free standing tub and a huge walk-in closet with an island in the middle.
  • Two family bedrooms lie on the opposite side of the home, each with a walk-in closet.
  • Step up to the second floor flex room that adds 632 square feet of living space to the total living area of the home.

Floor Plans

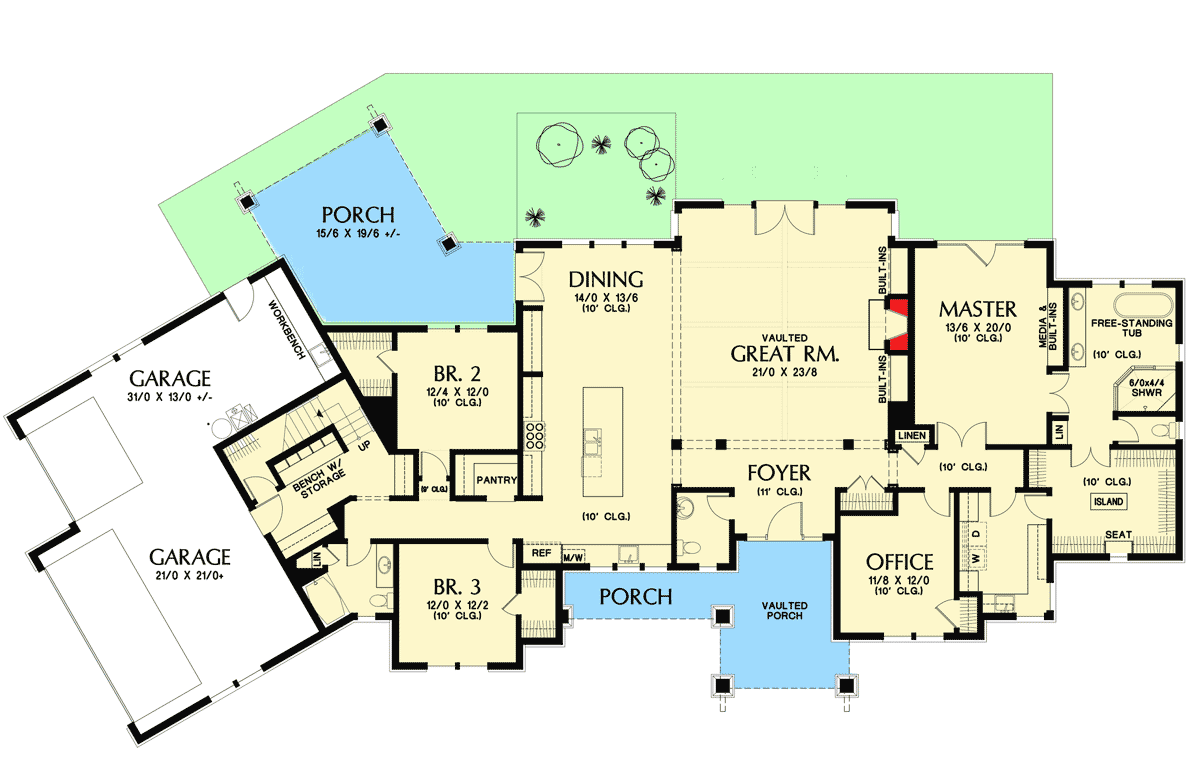

  • Main Level

  • Bonus Room

  • Main Level - Basement Version

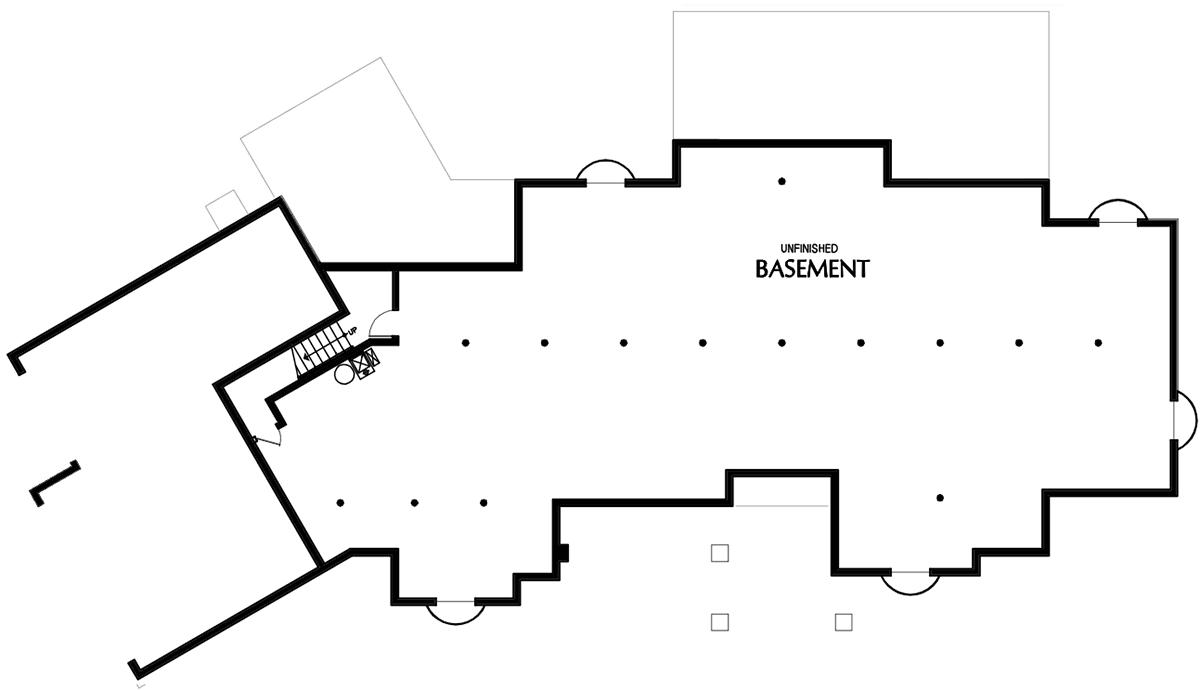

  • Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,156 sq. ft.
  • 1st Floor: 3,156 sq. ft.
  • Bonus: 644 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 118' 4"
  • Depth: 62' 8"
  • Max ridge height: 23' 11"

Garage

  • Type: Attached
  • Area: 886 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Framing Type: Truss
