Craftsman House Plan with In-Law Accommodations

Heated S.F.
2,655
Beds
5
Baths
4
Stories
2
Cars
1

Floor Plan

Plan 80857PM

Main Level
Main Level
Main Level
Main Level
2nd Floor
2nd Floor
2nd Floor
2nd Floor

Plan 80857PM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

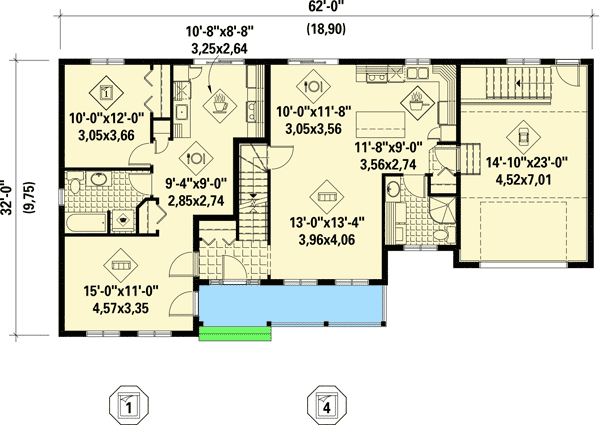

Plan 80857PM: Craftsman House Plan with In-Law Accommodations - Floor Plan - Main Level - Craftsman, Northwest

Main Level

Plan 80857PM: Craftsman House Plan with In-Law Accommodations - Floor Plan - Main Level - Craftsman, Northwest

2nd Floor

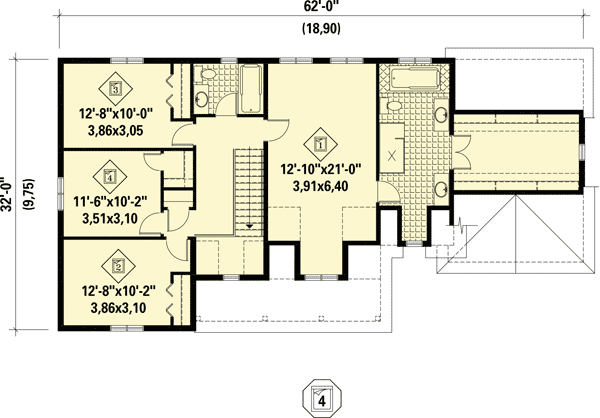

Plan 80857PM: Craftsman House Plan with In-Law Accommodations - Floor Plan - 2nd Floor - Craftsman, Northwest

2nd Floor

Plan 80857PM: Craftsman House Plan with In-Law Accommodations - Floor Plan - 2nd Floor - Craftsman, Northwest

Plan Details

  • Decorative wood trim and lots of dormers add a distinctive look to this Craftsman house plan.
  • Take care of Mom and Dad with an attached in-law suite that gives them their own kitchen, dining and living room.
  • In the main house, views flow from the living room to the dining area to the kitchen, thanks to the open layout.
  • Upstairs, all four bedrooms occupy the whole second floor.
  • Homeowners get a huge walk-in closet and spacious private bathroom.

What's Included

Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,655 sq. ft.

1st Floor

1,275 sq. ft.

2nd Floor

1,380 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

62' 0"

Depth

32' 0"

Max Ridge Height

34' 2"

Garage

Type

Attached

Area

369 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

In-Law Suite

Master Suite - Upstairs

Plan Collections

Canadian House Plans

Metric

Square Footage Breakdown

Total Heated Area

2,655 sq. ft.

1st Floor

1,275 sq. ft.

2nd Floor

1,380 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

62' 0"

Depth

32' 0"

Max Ridge Height

34' 2"

Garage

Type

Attached

Area

369 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

In-Law Suite

Master Suite - Upstairs

Plan Collections

Canadian House Plans

Metric
