Plan 140069RK

Craftsman House Plan with Main Level Master Suite and Loft

Heated S.F.
2,124
Beds
3
Baths
3.5
Stories
2
Cars
2

Floor Plan

Plan 140069RK

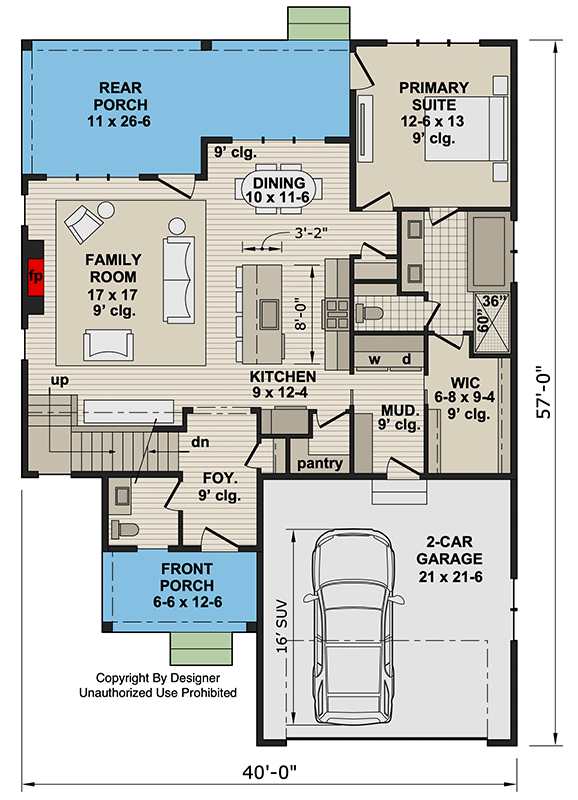

Floor Plan 1

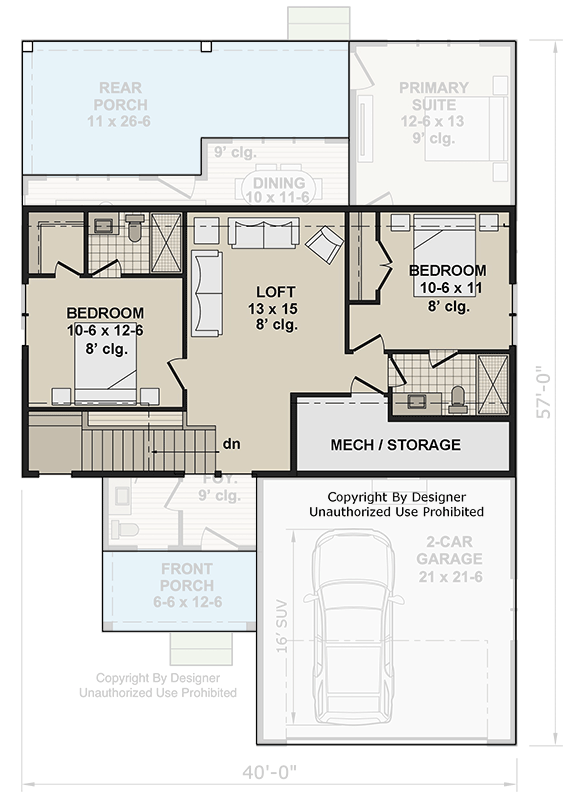

Floor Plan 2

Plan 140069RK

M-F 9am-5pm EST |

1-203-761-8500

Plan 140069RK: Craftsman House Plan with Main Level Master Suite and Loft - Floor Plan - - Craftsman, Traditional

Plan 140069RK: Craftsman House Plan with Main Level Master Suite and Loft - Floor Plan - - Craftsman, Traditional

Plan Details

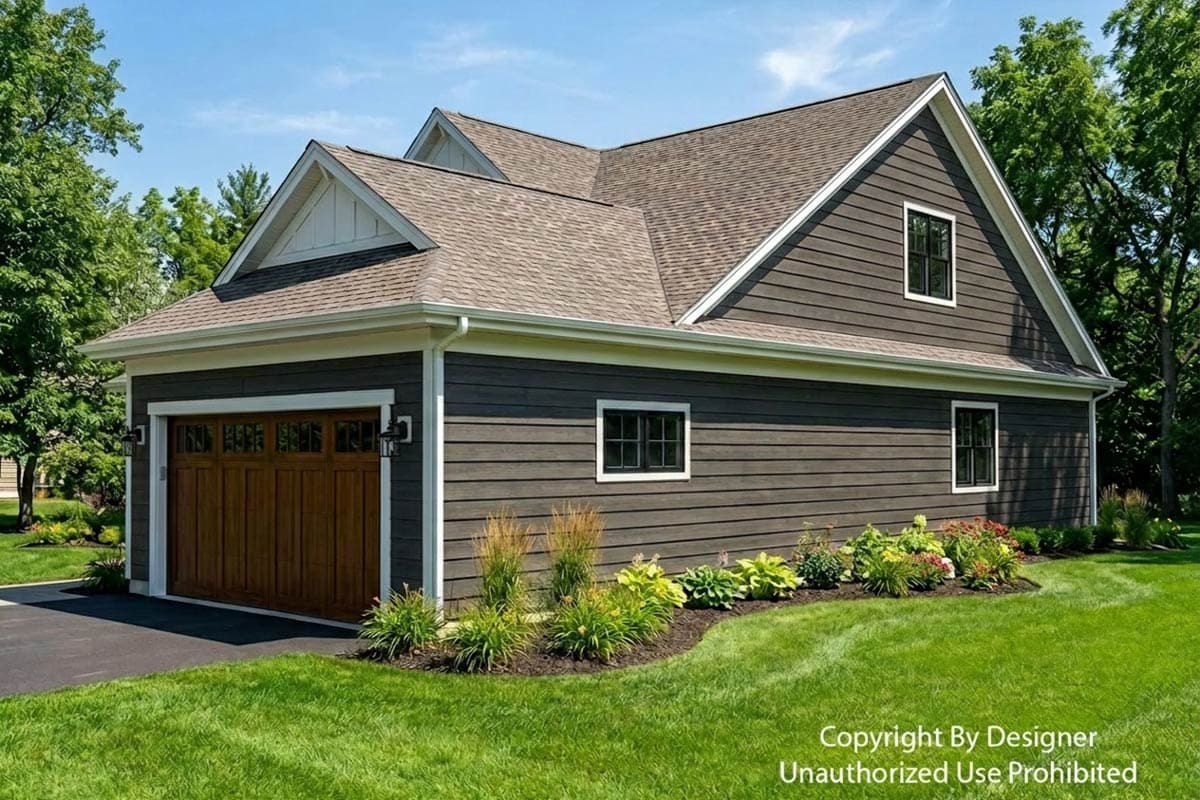

  • This charming 2,124 sq ft Craftsman house plan features 3 bedrooms, 3.5 baths, and a 418 sq ft, 2-car front-entry garage, all wrapped in a classic traditional aesthetic.

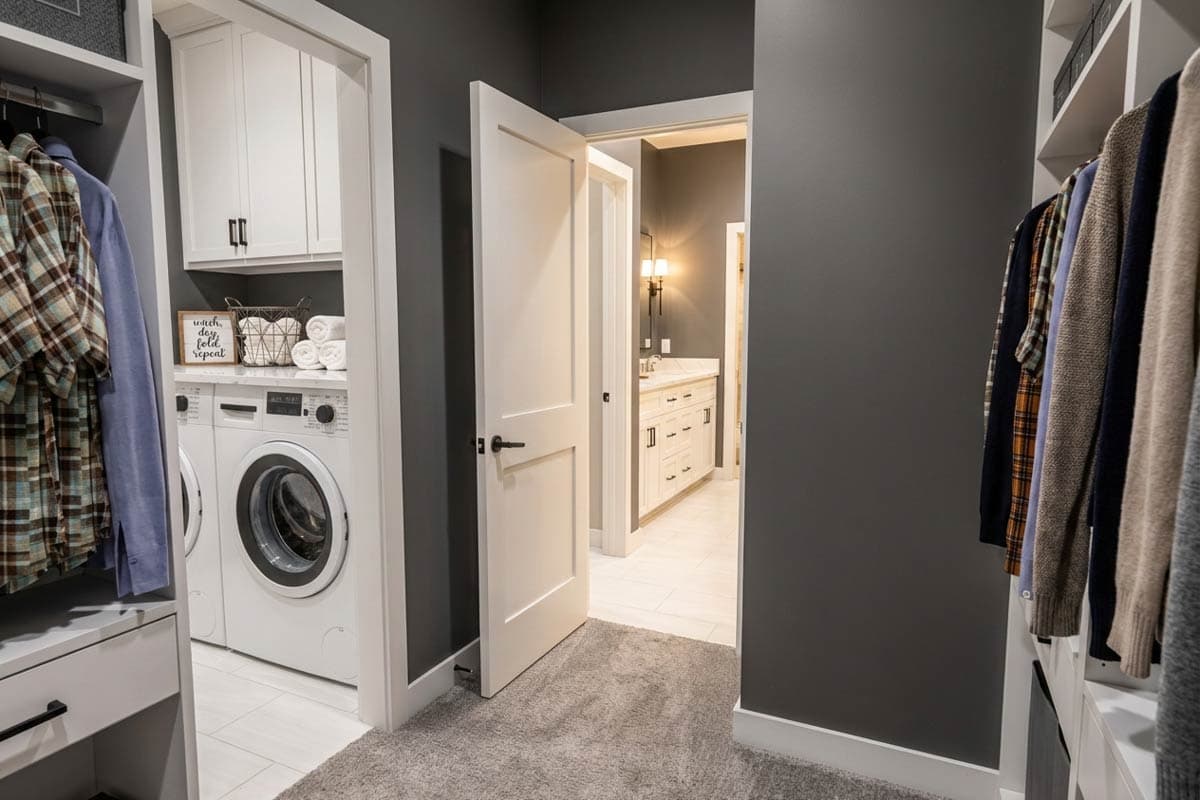

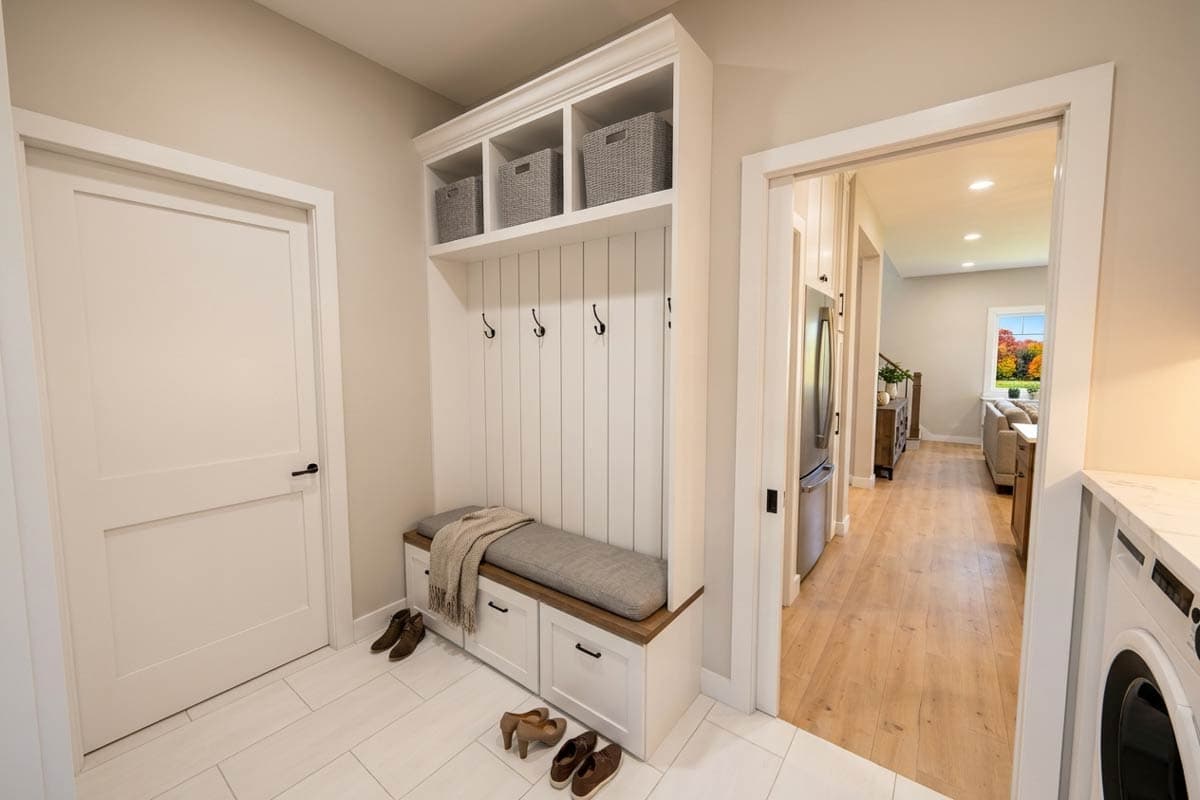

  • Step onto the inviting 80 sq ft front porch before entering a thoughtful layout that includes a convenient mudroom and a main-level laundry with access from the master suite.

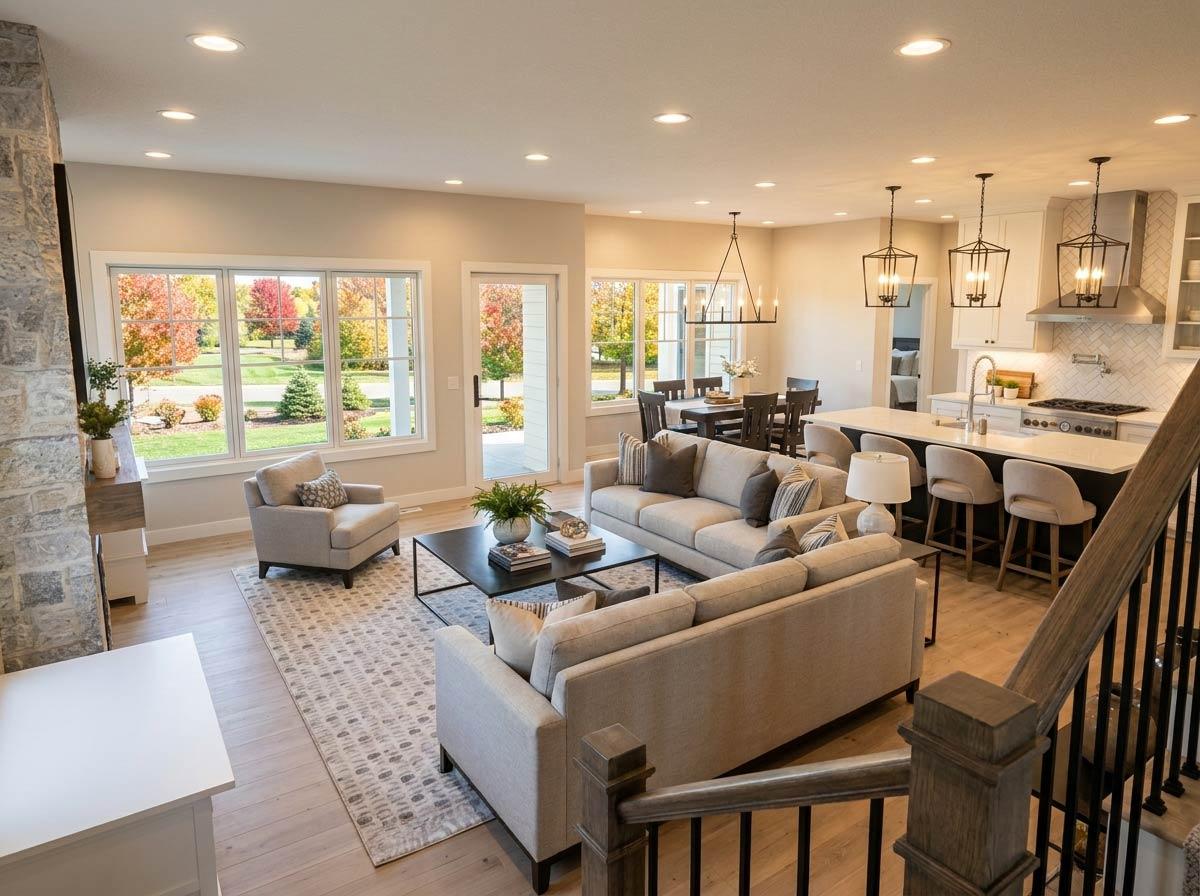

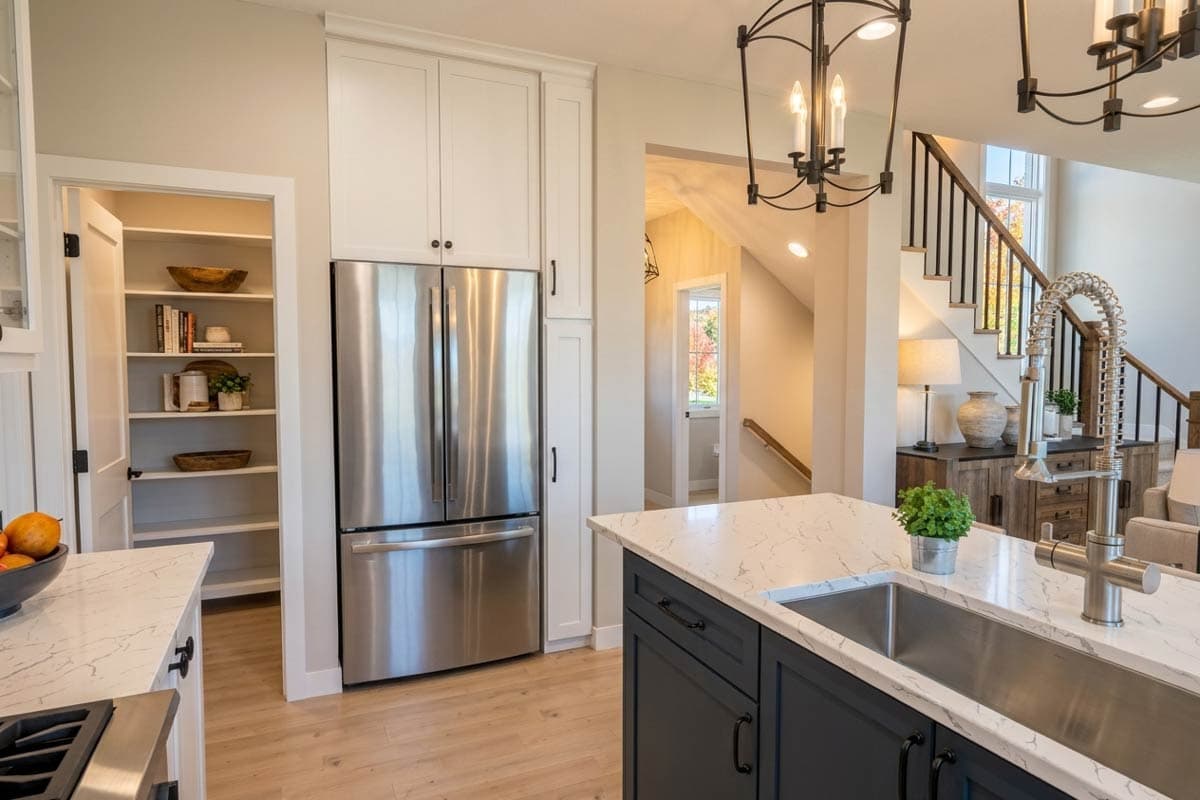

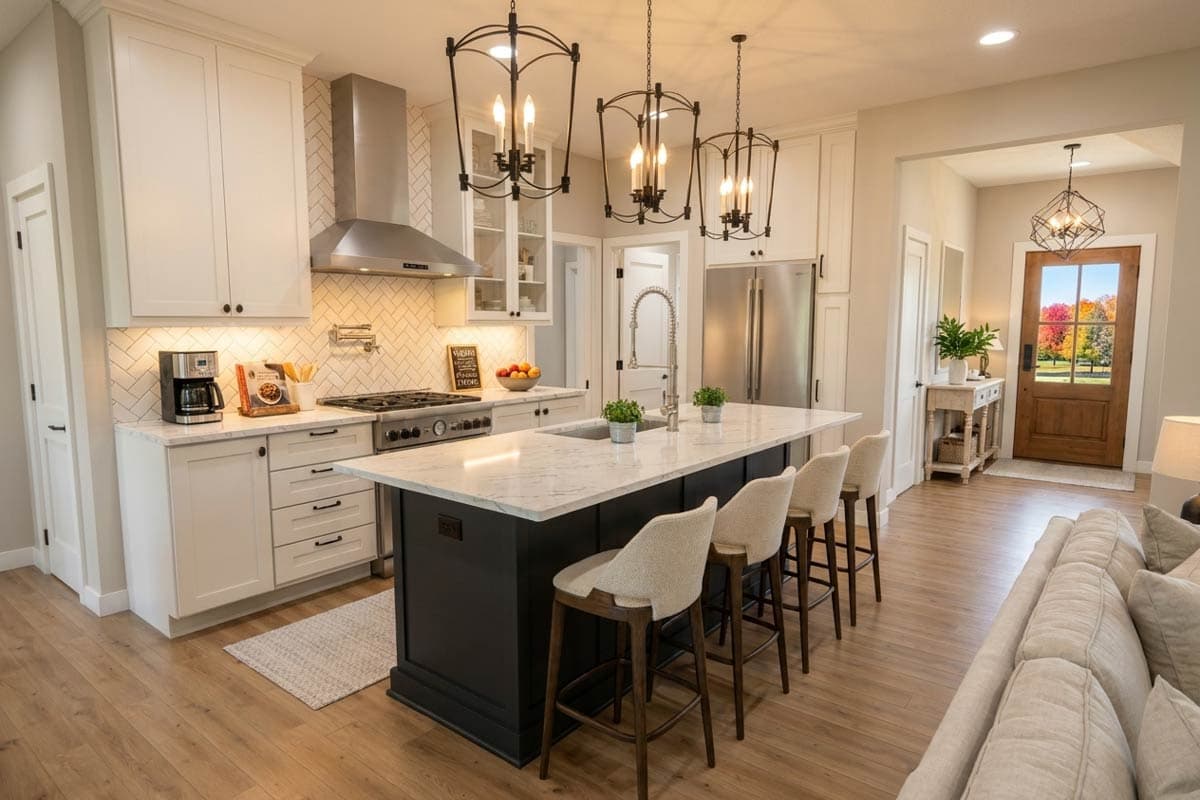

  • The main level is designed for comfortable living with a well-appointed kitchen featuring a walk-in pantry, flowing seamlessly into the primary gathering spaces.

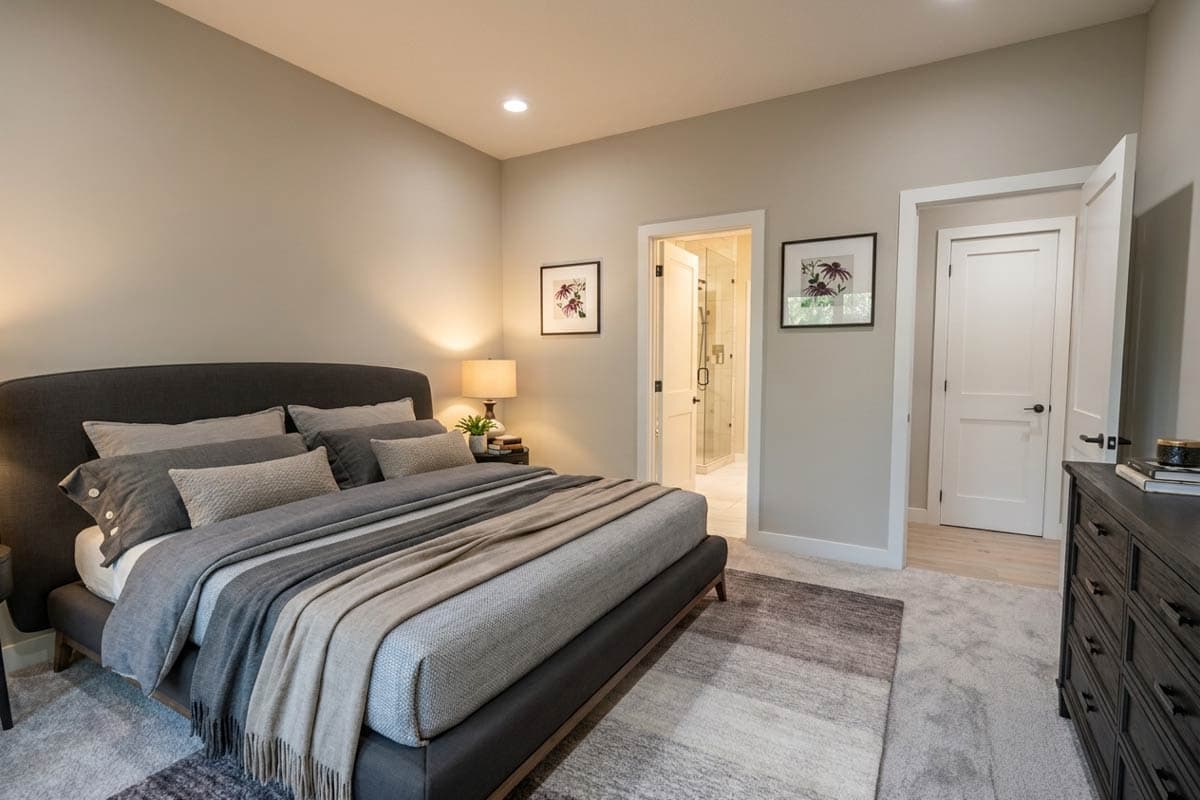

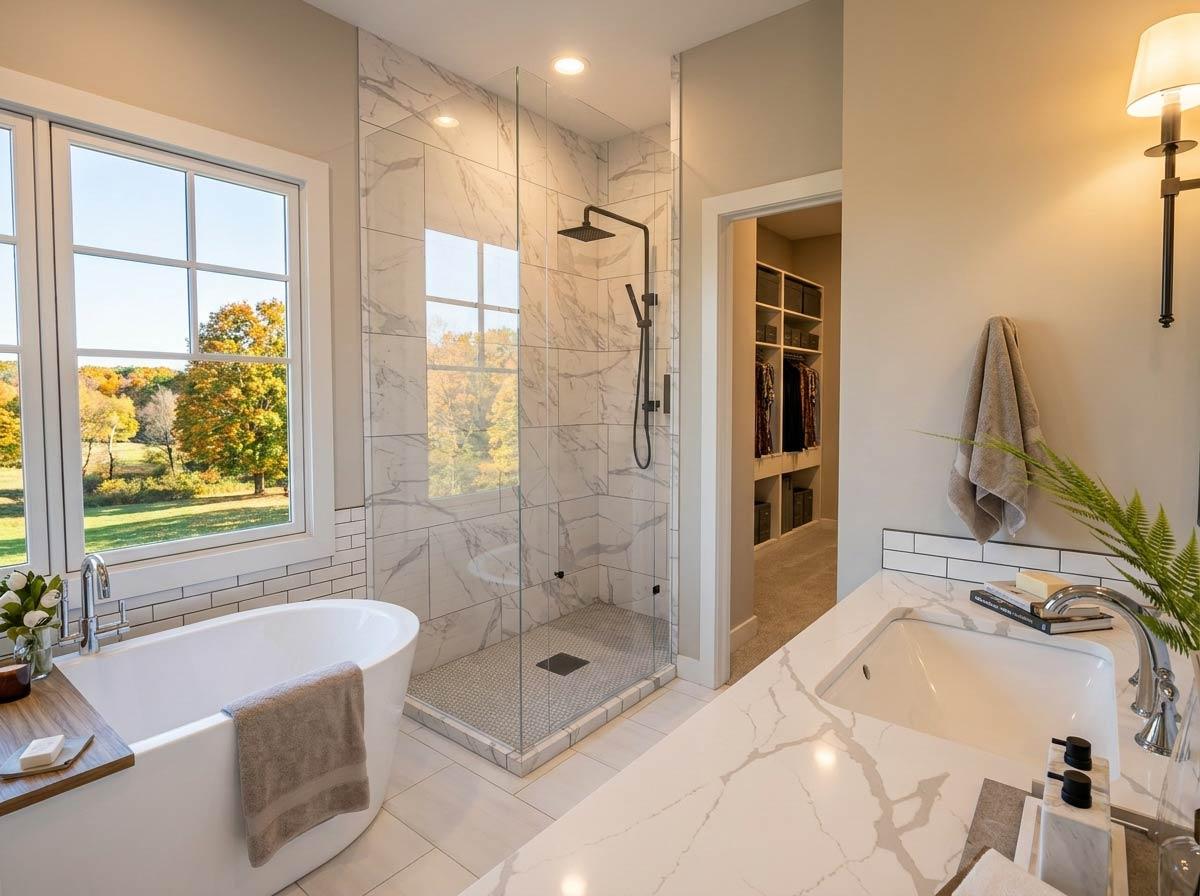

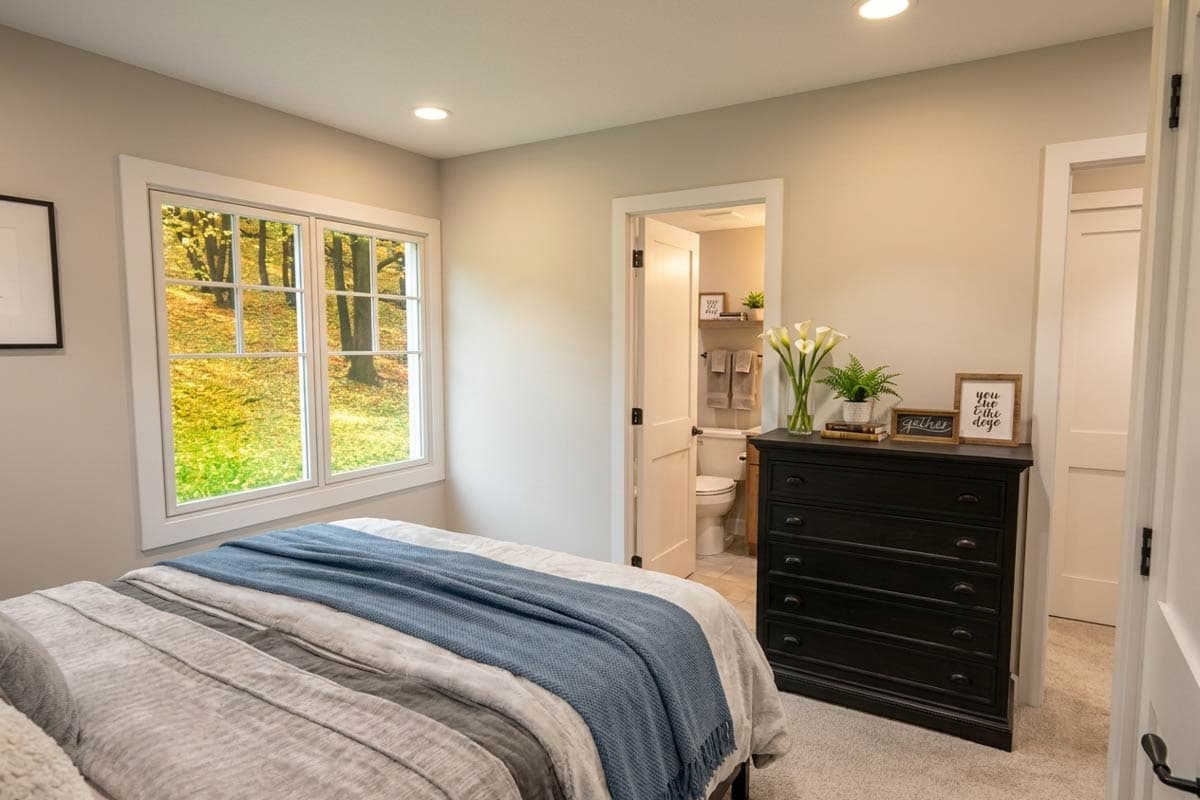

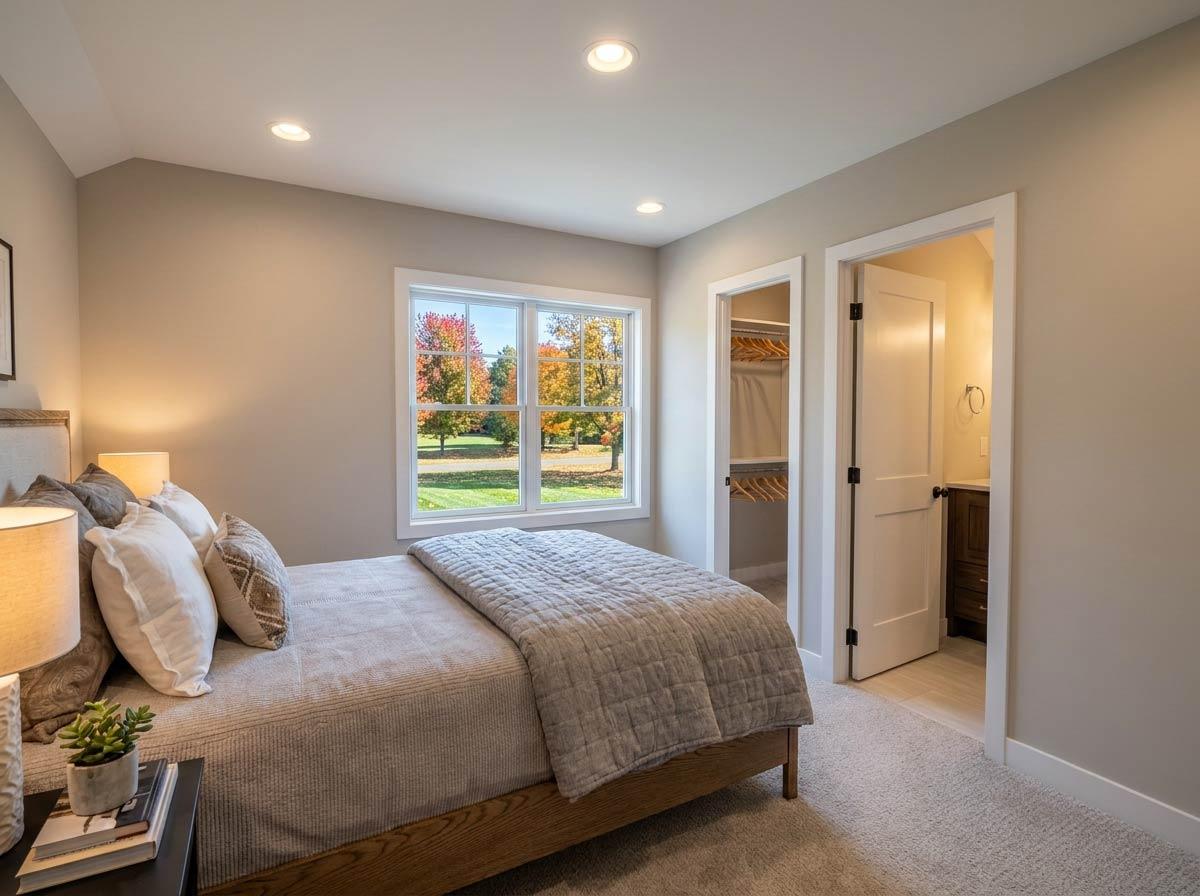

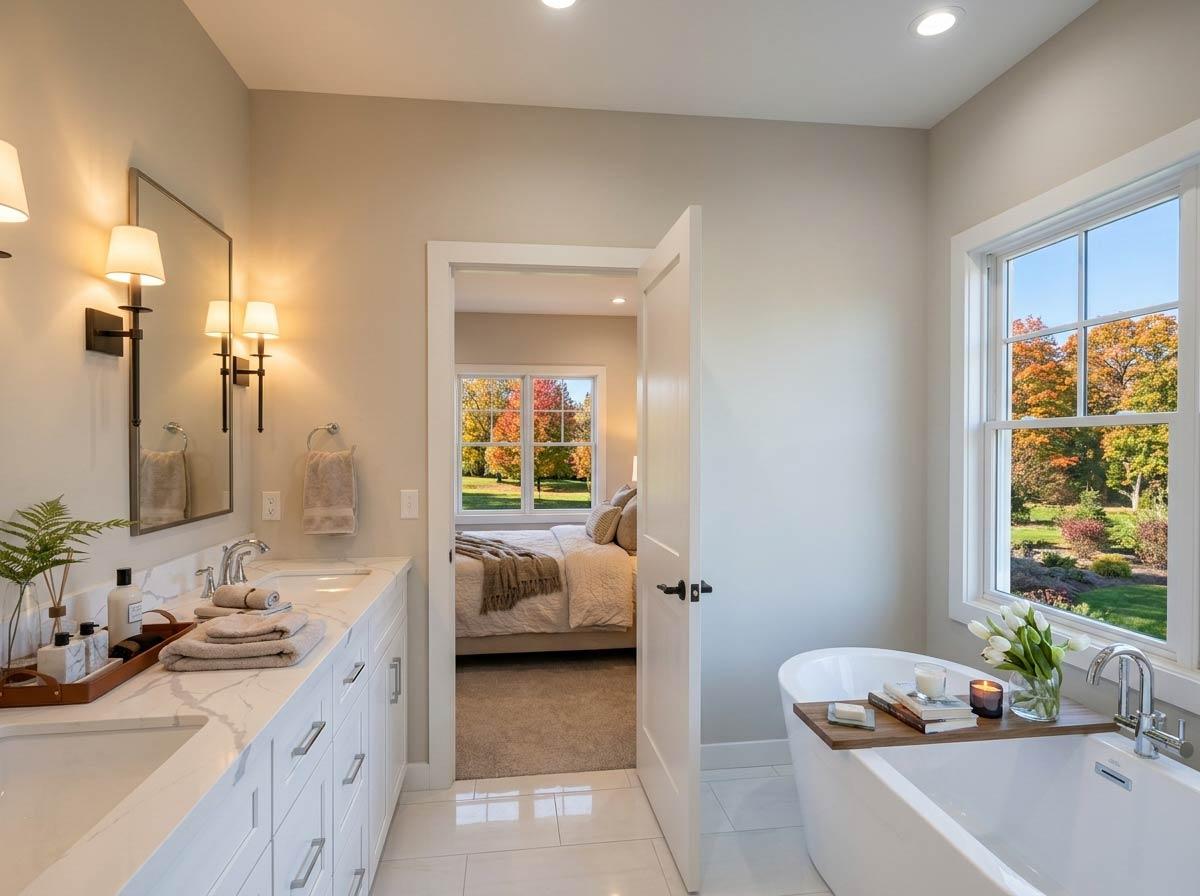

  • The private first-floor master suite offers separation and tranquility, while secondary bedrooms are thoughtfully located upstairs, along with a versatile loft space.

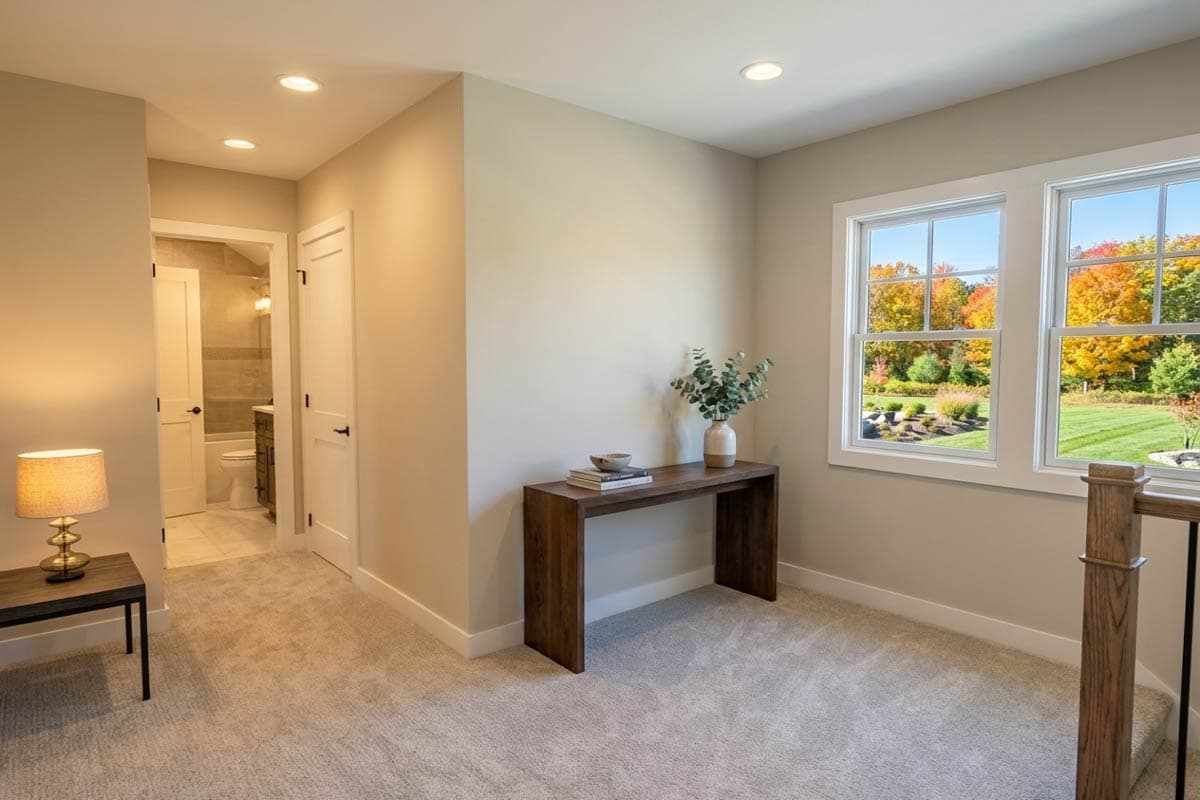

  • A versatile loft on the second floor provides flexible space for a home office, study area, or a cozy reading nook.

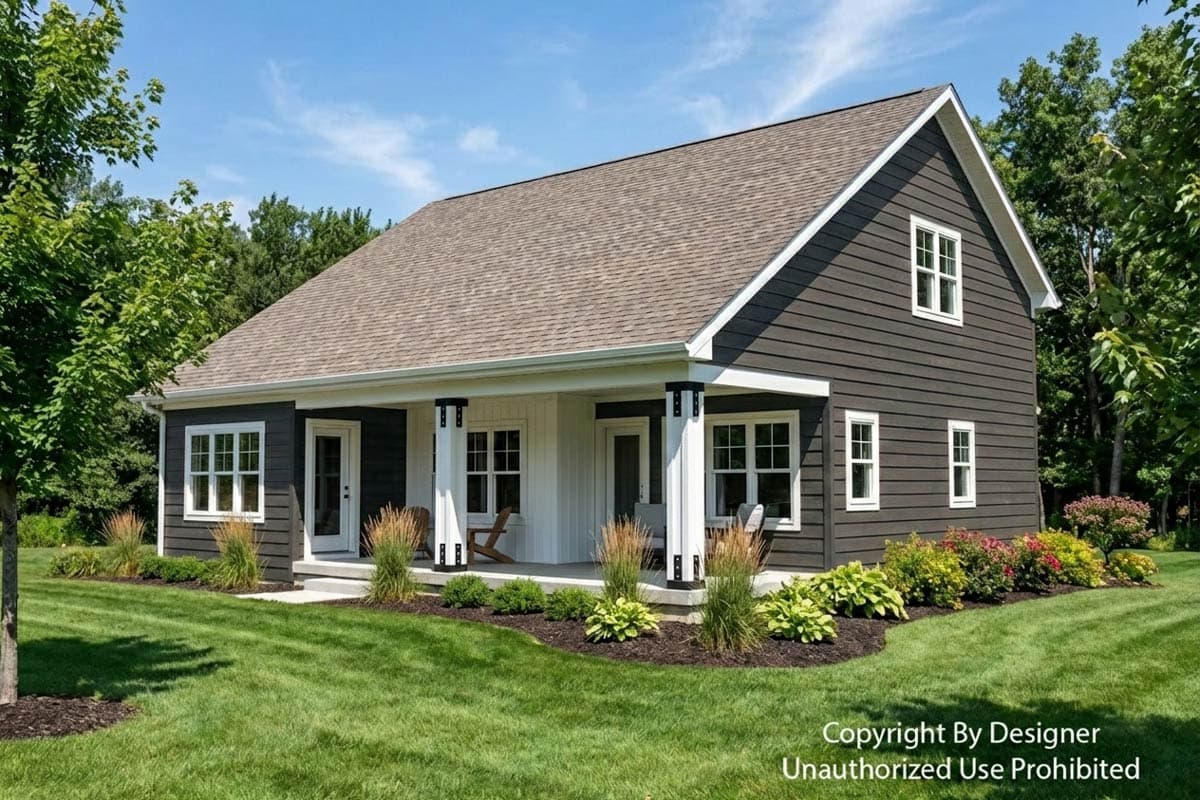

  • An 80 sq ft front porch creates a welcoming curb appeal and offers a pleasant spot for morning coffee or evening relaxation.
  • NOTE: Please allow 7 to 10 business days for delivery.

What's Included

  • Foundation Plan: Complete with dimensions, referenced details, general notes and schedules.
  • Elevations: Four completed elevations with dimensions and notes.
  • Floor Plan(s): Complete with dimensions and notes.
  • Roof Plan: Complete with roof pitches overhangs and notes.
  • Building Sections
  • General Details


What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy Calculations - handled locally when required
IMPORTANT NOTE:  Not all plans come with a lighting layout.  Please contact us to check for availability.

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,124 sq. ft.

1st Floor

1,244 sq. ft.

2nd Floor

880 sq. ft.

Porch, Front

80 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

57' 0"

Max Ridge Height

26' 11"

Garage

Type

Standard

Area

418 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Craftsman

Traditional

Special Features

Bedrooms - Split

Laundry Access from Master Suite

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

2,124 sq. ft.

1st Floor

1,244 sq. ft.

2nd Floor

880 sq. ft.

Porch, Front

80 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

57' 0"

Max Ridge Height

26' 11"

Garage

Type

Standard

Area

418 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Craftsman

Traditional

Special Features

Bedrooms - Split

Laundry Access from Master Suite

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Walk-in Pantry
