Plan 290030IY
Craftsman House Plan with Optional Lower Level
Heated S.F.
2,712
Beds
4-6
Baths
3.5 - 4.5
Stories
2
Cars
3
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

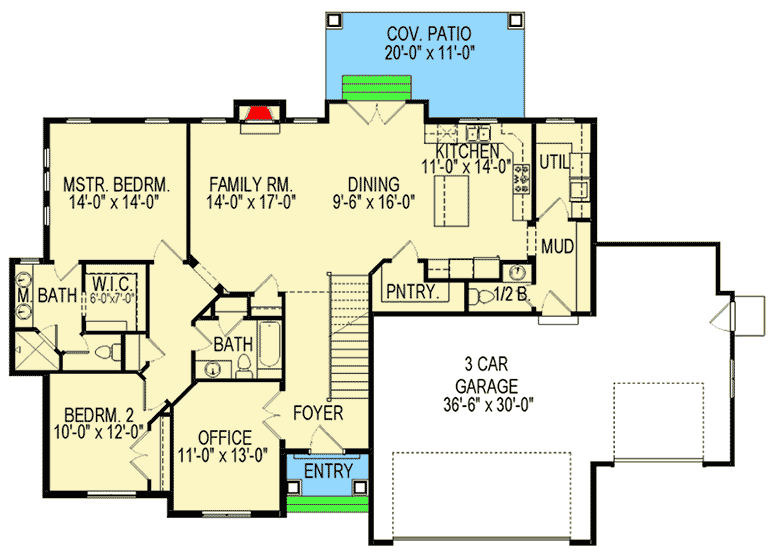

Craftsman House Plan with Optional Lower Level - 290030IY floor plan - Main Level
2nd Floor
Reverse Floor Plan

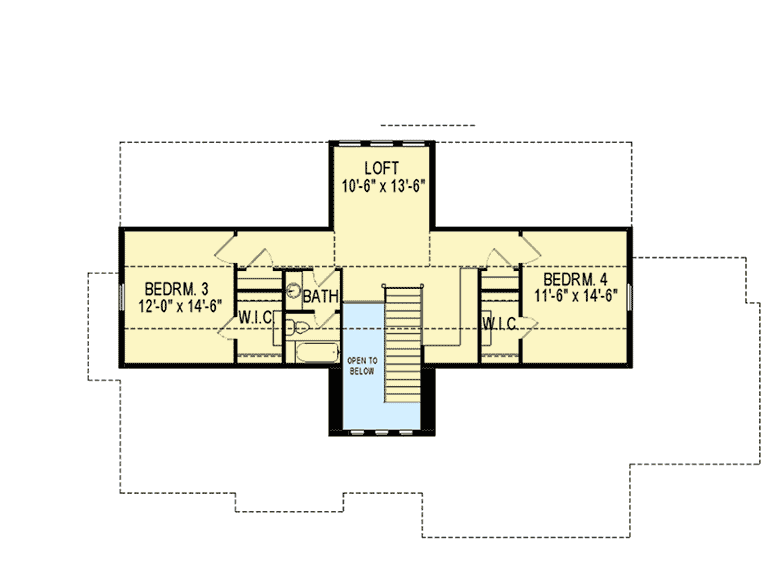

Craftsman House Plan with Optional Lower Level - 290030IY floor plan - 2nd Floor
Optional Finished Lower Level
Reverse Floor Plan

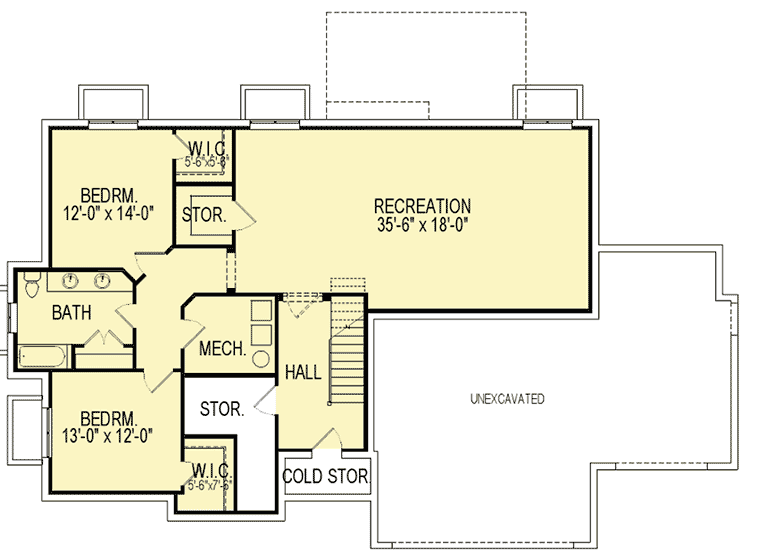

Craftsman House Plan with Optional Lower Level - 290030IY floor plan - Optional Finished Lower Level
Plan Details
  • A shed dormer adds great visual appeal to this Craftsman house plan.
  • The home offers both formal and informal living spaces plus a big den with a lovely coffered ceiling.
  • The open layout in back gives you wonderful sight lines and makes the home feel larger.
  • Excellent storage comes from the addition of a kitchen  island and a giant walk-in pantry.
  • Two bedrooms on the second floor share a loft play area or teen hangout.
  • Finish the optional lower level to gain two more bedrooms, another bathroom and an enormous rec room with wet bar.
  • Related Plans: This house plan comes in alternate sizes including 290029IY (2,658 sq. ft.) and 290045IY (2,922 sq. ft.).
What's Included
This plan set includes the following:
  • Cover sheet (with rendering)
  • Notes page
  • Complete schedule page
  • Foundation plan
  • Floor plans
  • Dimension plans
  • Elevations
  • Sections
  • Architectural details
  • 3D perspective views (not included with all plans)
  • Floor finish plans
  • Roof plan
  • Lighting plans, and power plans.

Note: Contact us if building in Utah as these plans may not be available for construction in certain areas in that state.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Craftsman House Plan with Optional Lower Level

  • 2,712

    Heated s.f.

  • 4-6

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Optional Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,712 sq. ft.
  • 1st Floor: 1,801 sq. ft.
  • 2nd Floor: 911 sq. ft.

Dimensions

  • Width: 73' 8"
  • Depth: 45' 2"
  • Max ridge height: 24' 6"

Beds/Baths

  • Bedrooms: 4, 5, or 6
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 837 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"
