Plan: 2317JD

Craftsman in Multiple Versions

2,980 4 3 2 4
print
Pageloader

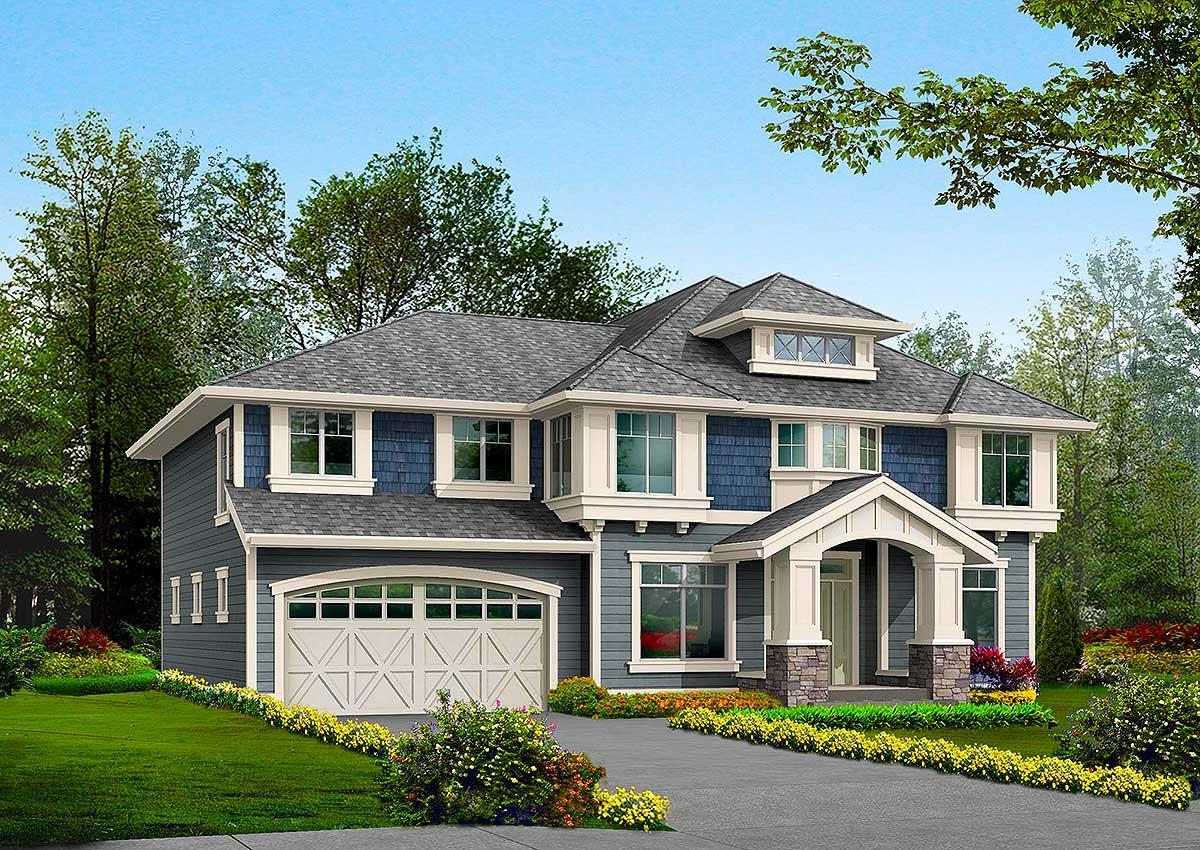

Craftsman in Multiple Versions

Plan 2317JD

  • 2,980

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 4

    Cars

  • This spacious house plan houses a larger family with ease and comes in multiple exteriors, foundations and garage orientations. All share the same basic floor plan that makes this such a livable design.
  • The covered entry takes you into the two-story foyer, flanked by formal dining and living rooms with tray ceilings. Ahead you find a spacious informal area with a family room, an eating nook with backyard access, and a kitchen with a cook top island.
  • Upstairs, the hall bath serves three family bedrooms and the vaulted bonus room.
  • The master suite, also vaulted, features both walk-in and linear closet, twin sinks, a garden tub and separate shower.
  • Related Plans: Need a basement? Gain a rec room which can serve many purposes in house plan 23100JD.
  • See these alternate exteriors: 2315JD, 2316JD and 23057JD.
  • Need a side-entry garage? See house plan 2358JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet
Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
Please note that an electrical schematic is not included.

Floor Plan

Main Level

Pinit white
Reverse Floor Plan
Craftsman in Multiple Versions - 2317JD floor plan - Main Level

2nd Floor

Pinit white
Reverse Floor Plan
Craftsman in Multiple Versions - 2317JD floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,980 sq. ft.
  • 1st Floor: 1,265 sq. ft.
  • 2nd Floor: 1,715 sq. ft.
  • Bonus: 370 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 52' 0"
  • Depth: 48' 0"
  • Max ridge height: 28' 6"

Garage

  • Type: Attached
  • Area: 720 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections



Craftsman in Multiple Versions

  • 2,980

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - single-use $1,400
  • 5 Sets PLUS $1,500
  • CAD - multi-use $2,400
  • View all purchase option online

About This Plan

  • This spacious house plan houses a larger family with ease and comes in multiple exteriors, foundations and garage orientations. All share the same basic floor plan that makes this such a livable design.
  • The covered entry takes you into the two-story foyer, flanked by formal dining and living rooms with tray ceilings. Ahead you find a spacious informal area with a family room, an eating nook with backyard access, and a kitchen with a cook top island.
  • Upstairs, the hall bath serves three family bedrooms and the vaulted bonus room.
  • The master suite, also vaulted, features both walk-in and linear closet, twin sinks, a garden tub and separate shower.
  • Related Plans: Need a basement? Gain a rec room which can serve many purposes in house plan 23100JD.
  • See these alternate exteriors: 2315JD, 2316JD and 23057JD.
  • Need a side-entry garage? See house plan 2358JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,980 sq. ft.
  • 1st Floor: 1,265 sq. ft.
  • 2nd Floor: 1,715 sq. ft.
  • Bonus: 370 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 52' 0"
  • Depth: 48' 0"
  • Max ridge height: 28' 6"

Garage

  • Type: Attached
  • Area: 720 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

  • Craftsman
  • New American
  • Northwest

Special features

  • 2nd Floor Master Suite
  • Bonus Room
  • Butler Walk-in Pantry
  • CAD Available
  • Den-Office-Library-Study
  • PDF

Plan Collections

  • Photo Gallery

Plan: 2317JD
View this and more for this plan by visiting www.architechtecturaldesigns.com/2317JD
|
