Craftsman Keeper with Beds (and Laundry) Upstairs

Plan 500001VV

  • 3,532

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • With it's eye-catching decorative wood trim, this Craftsman house plan attracts lots of attention - all good!
  • The open layout inside is ideal for families who want to spend time together.
  • And when you want some alone time, the study makes a wonderful retreat.
  • Pocket doors close off the dining room when you are entertaining.
  • The mud room and big walk-in pantry add efficiency.
  • All the bedrooms are upstairs along with a cozy playroom for the kids.
  • The home comes with a walk-in storage closet and second floor laundry room.
  • The master suite gets its own private balcony and a giant walk-in closet divided into his and her sections.
  • Related Plans: Downsize with house plans 500038VV (2,997 sq. ft.; 4 beds, 2.5 baths) and 500045VV (2,991 sq. ft.; 4 beds, 3.5 baths). Get an alternate exterior with house plan 500002VV.
  • NOTE: Plans restricted from construction in the Richmond, Virginia area.

This house plan includes the following:
  • Cover sheet with notes
  • Foundation
  • Floor plans
  • Elevations
  • Sections
  • Framing plans
  • Electrical plans
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

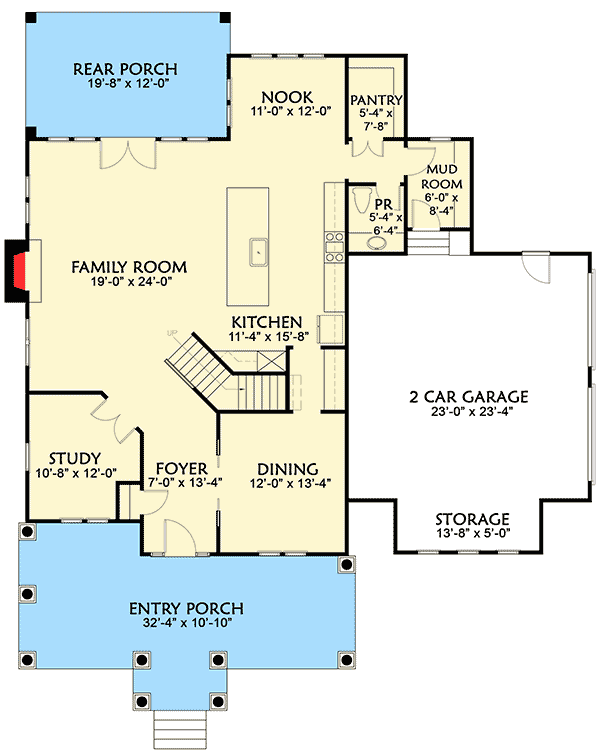

Craftsman Keeper with Beds (and Laundry) Upstairs - 500001VV floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

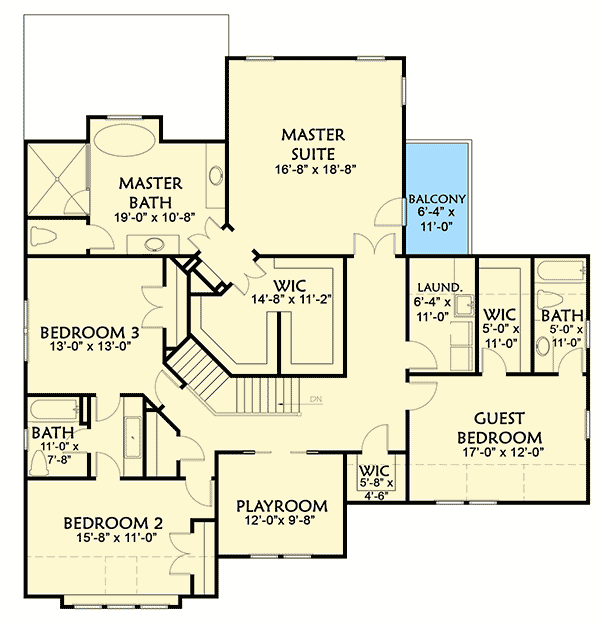

Craftsman Keeper with Beds (and Laundry) Upstairs - 500001VV floor plan - 2nd Floor
