Plan 15645GE

Craftsman Mountain House Plan with Split Bedrooms and Flex Room

Name: Plan 15645GE: Craftsman Mountain House Plan with Split Bedrooms and Flex Room
Brand: Architectural Designs
SKU: 15645GE
Price: 1029.56 USD
Availability: InStock

Heated S.F.

2,282

Beds

3 - 6

Baths

2 - 5

Stories

Cars

Floor Plan

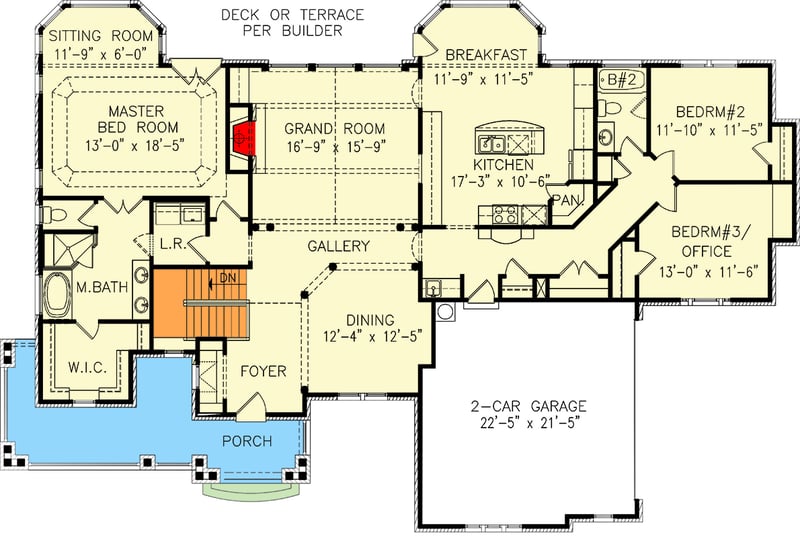

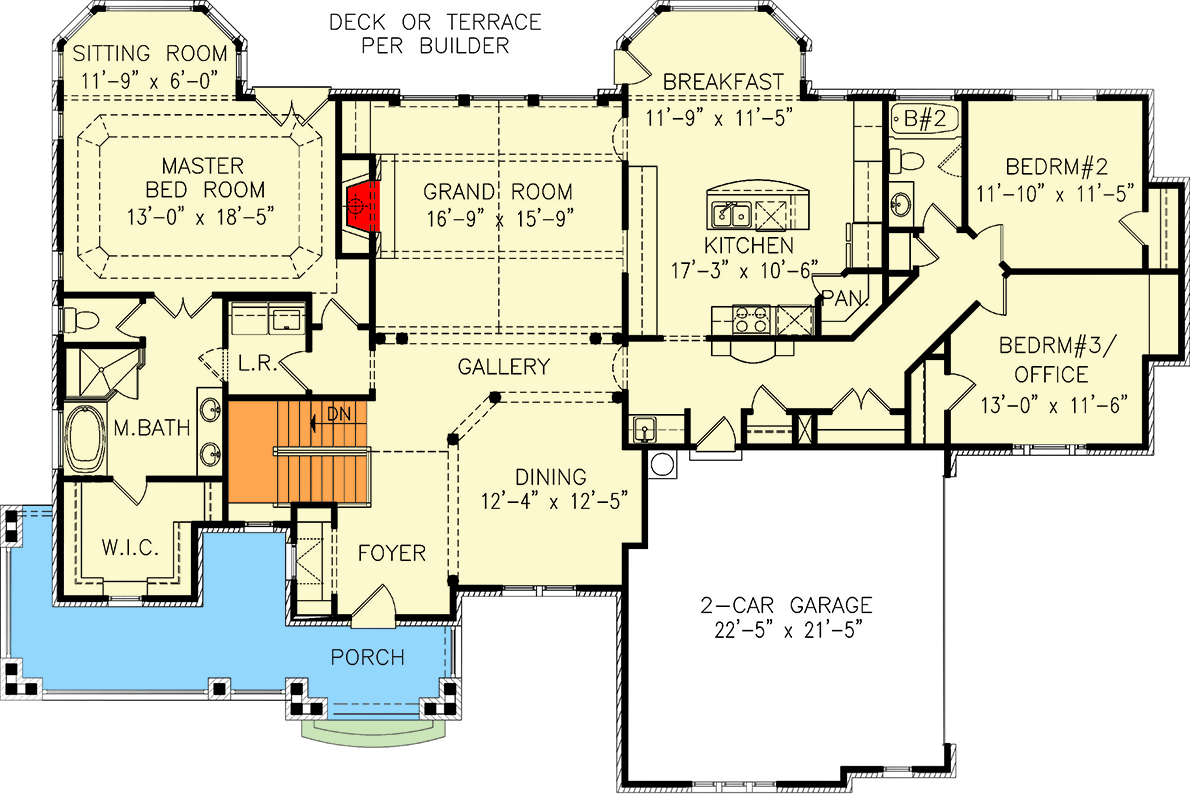

Main Level

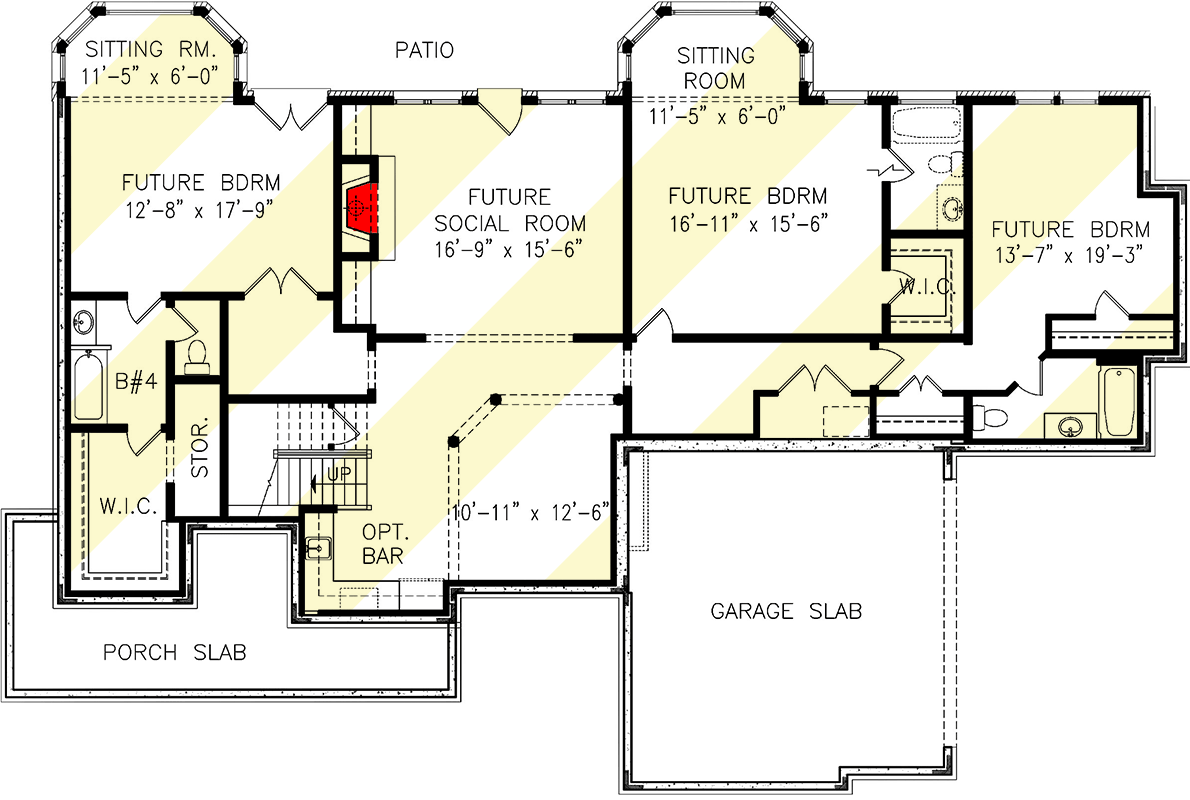

Optional Lower Level

Plan Details

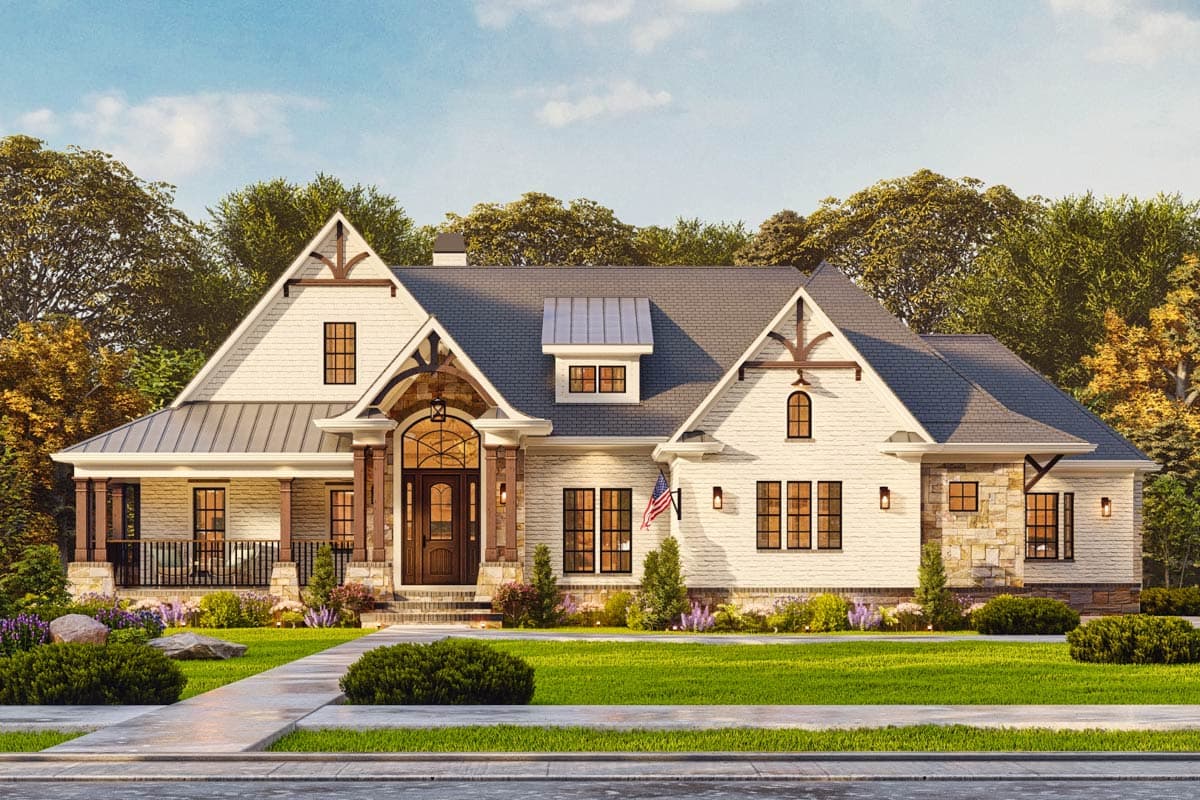

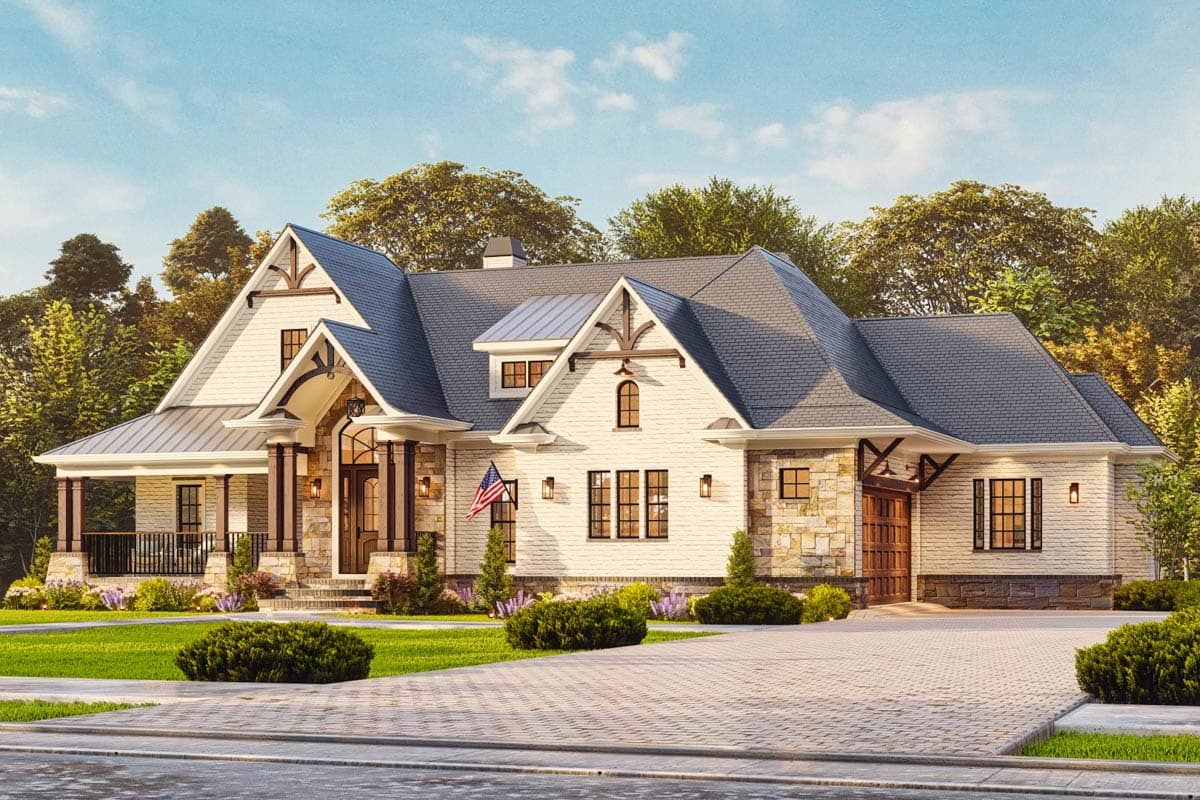

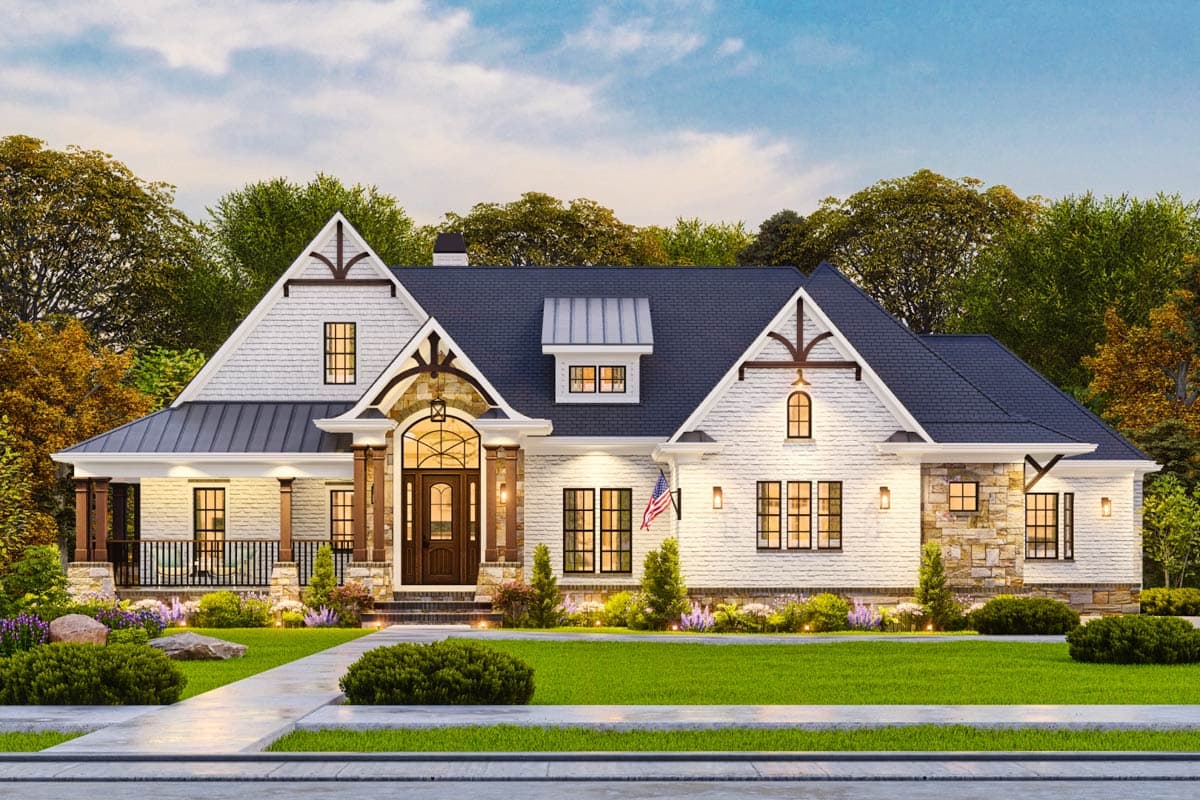

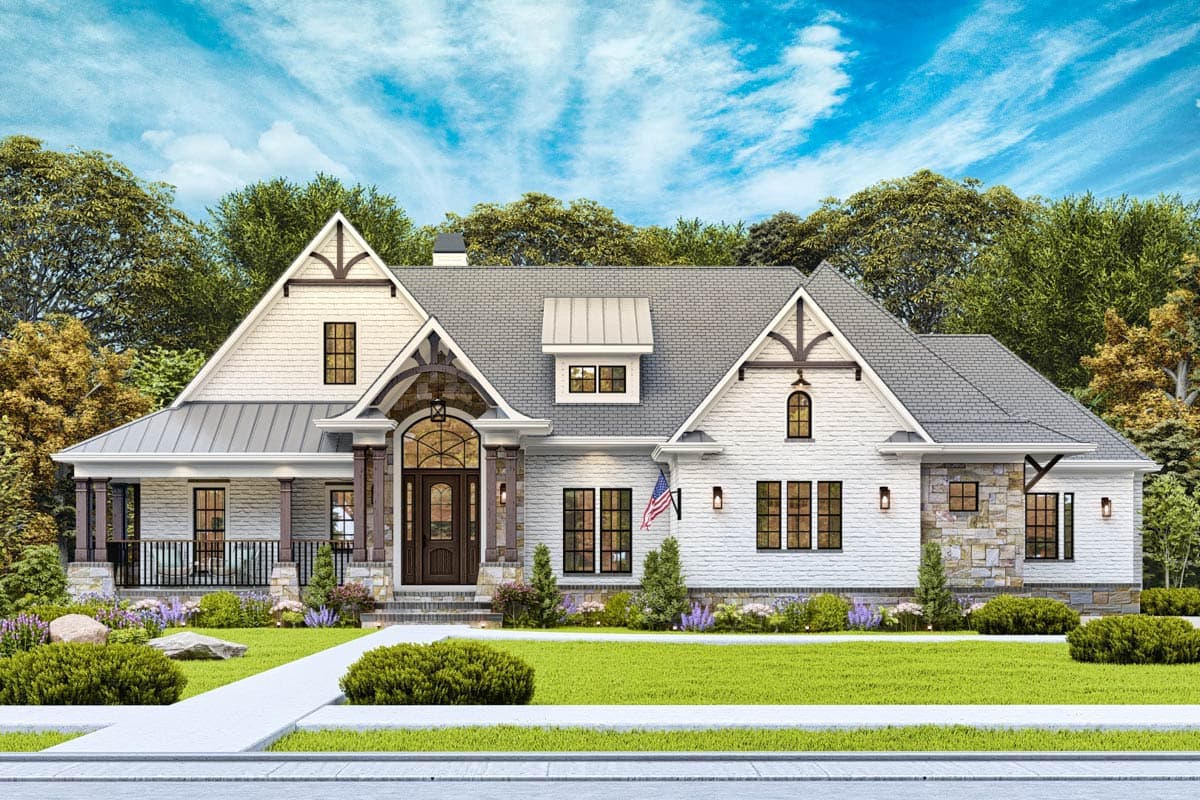

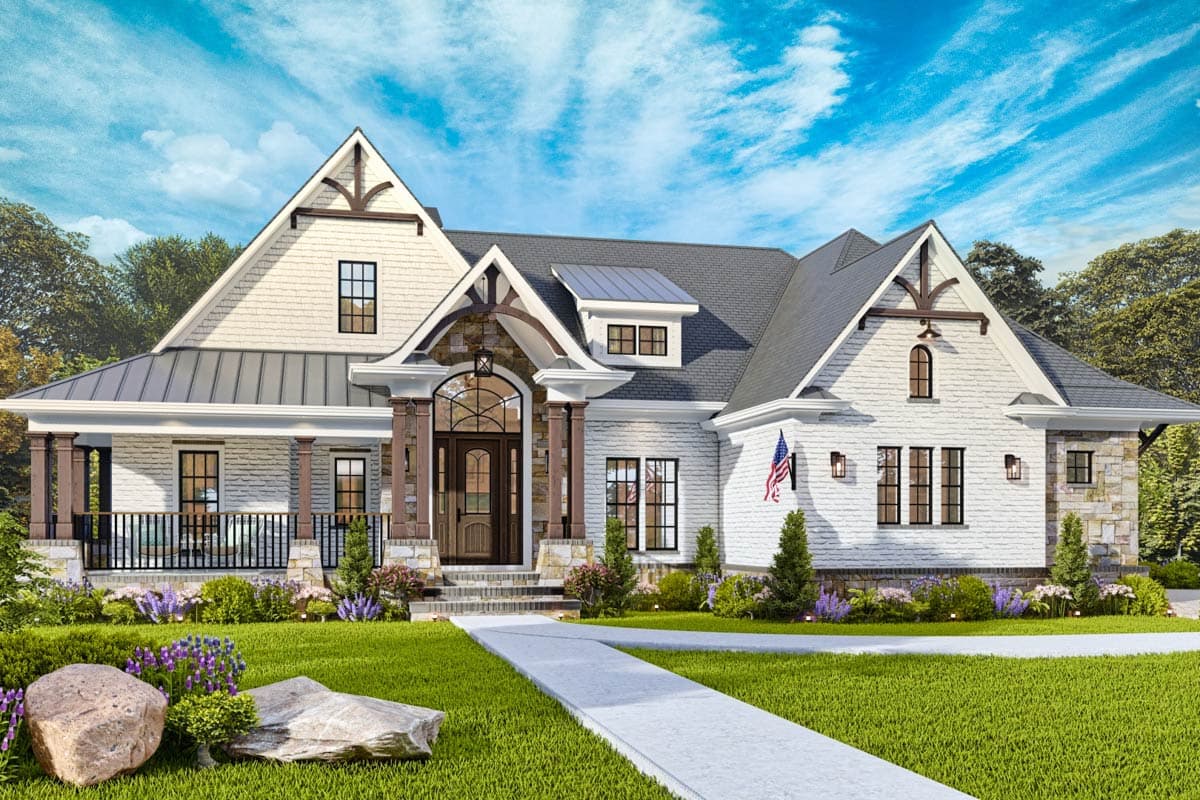

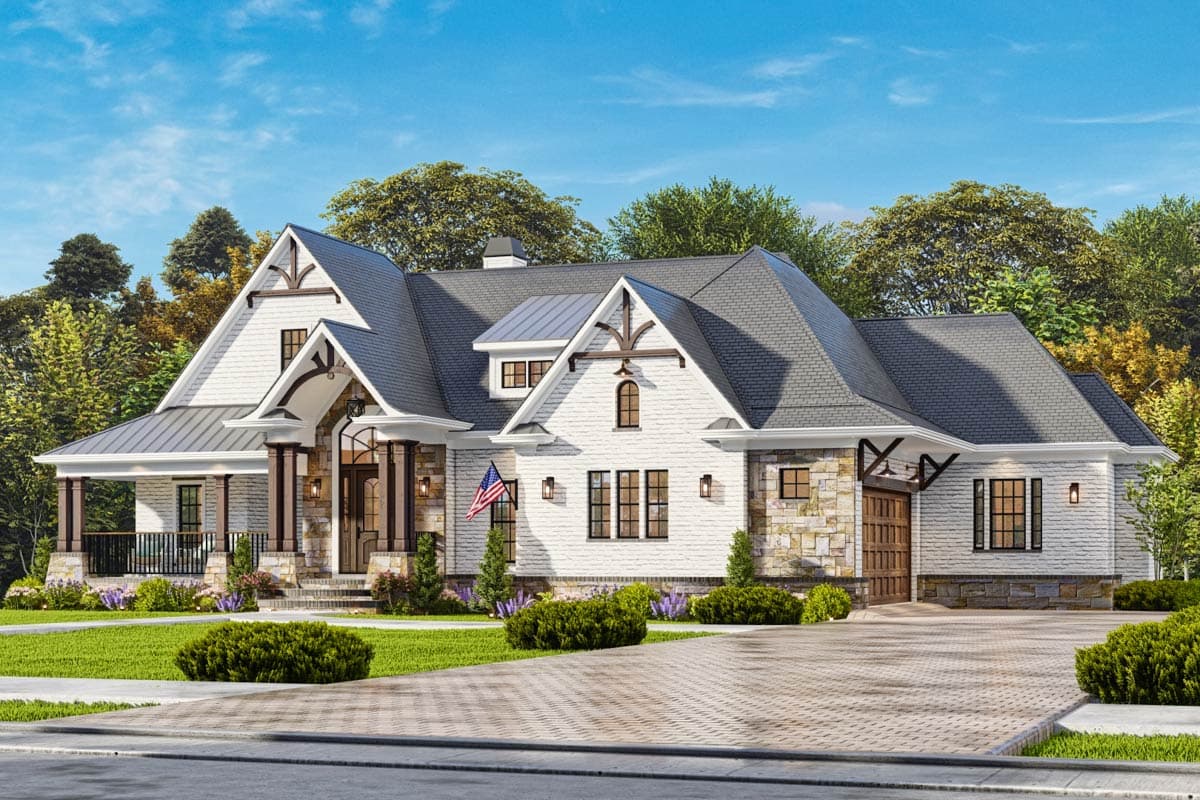

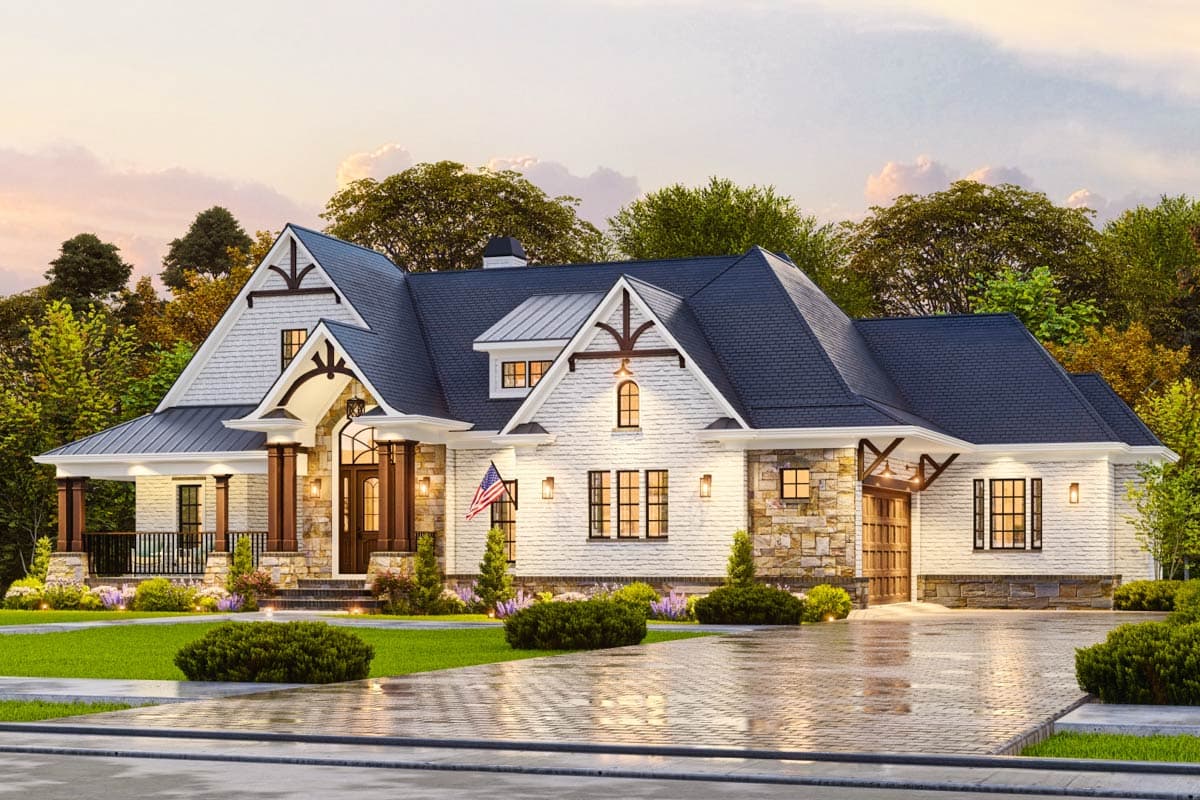

This expansive 2,282 sq. ft. Craftsman Mountain house plan offers versatile living with 3 to 6 bedrooms, 2 to 5 bathrooms, and an attached 490 sq. ft. two-car side-entry garage, all wrapped in a charming blend of shingle and stone.
Upon entering, you're greeted by an inviting open-concept layout that effortlessly guides you into the heart of the home, featuring a flexible room perfect for a home office or creative studio.
The main living areas flow seamlessly, with a spacious great room at the core, connecting to a gourmet kitchen complete with a breakfast nook, and a formal dining room ideal for elegant gatherings.
The private master suite, conveniently located on the first floor, offers a serene sitting area and direct access to the main level laundry for ultimate convenience, while the split bedroom design ensures privacy for additional family or guests.
For those who appreciate dedicated leisure spaces, this plan includes a sophisticated wet bar, perfect for crafting evening cocktails and entertaining.

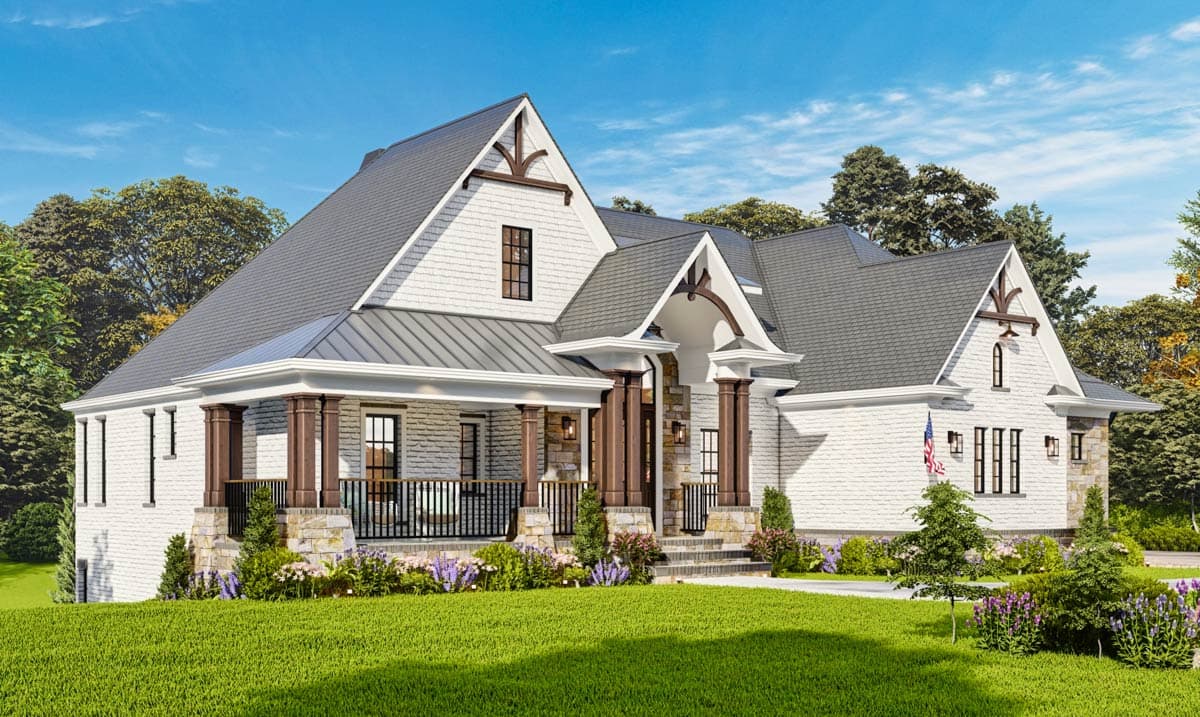

Enjoy tranquil mornings and evenings on the welcoming covered front porch, providing a charming spot for outdoor relaxation and connecting with the neighborhood.
An optional lower level, boasting an additional 2,282 sq. ft. of finished space, provides endless possibilities for expanded living areas, extra bedrooms, or a dedicated entertainment zone.

What's Included

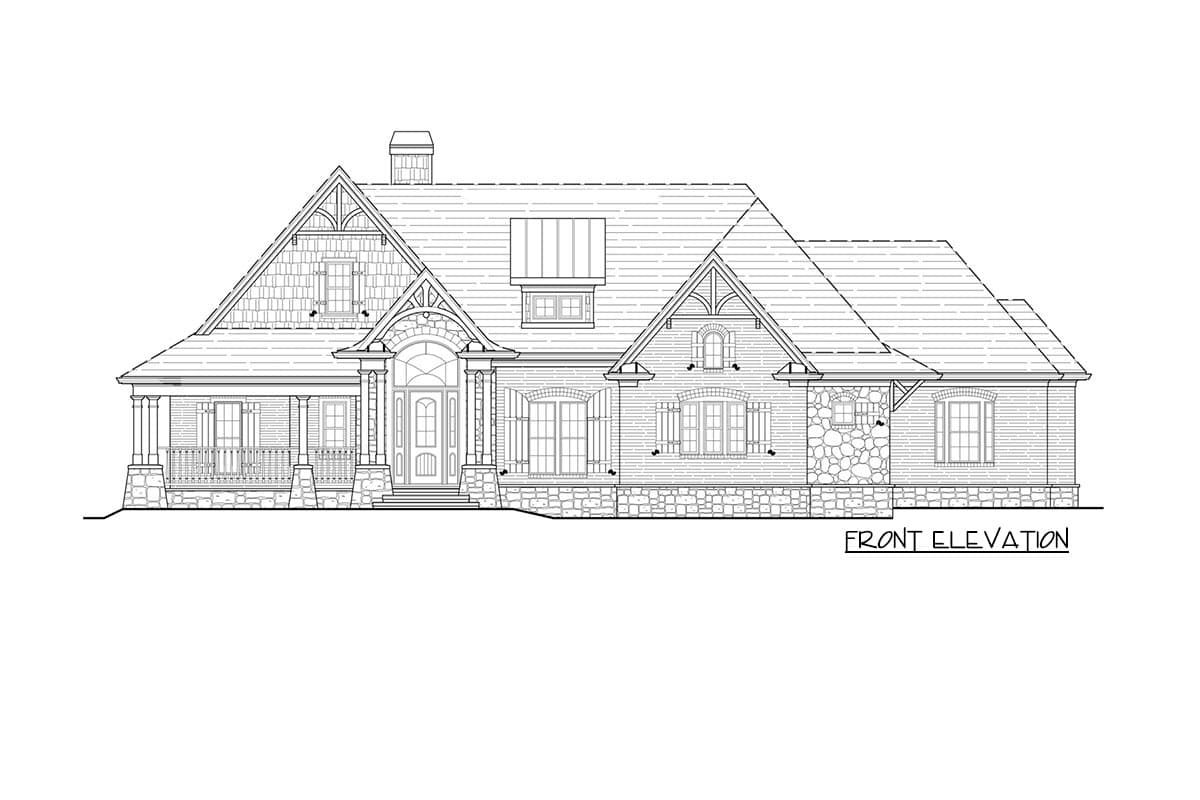

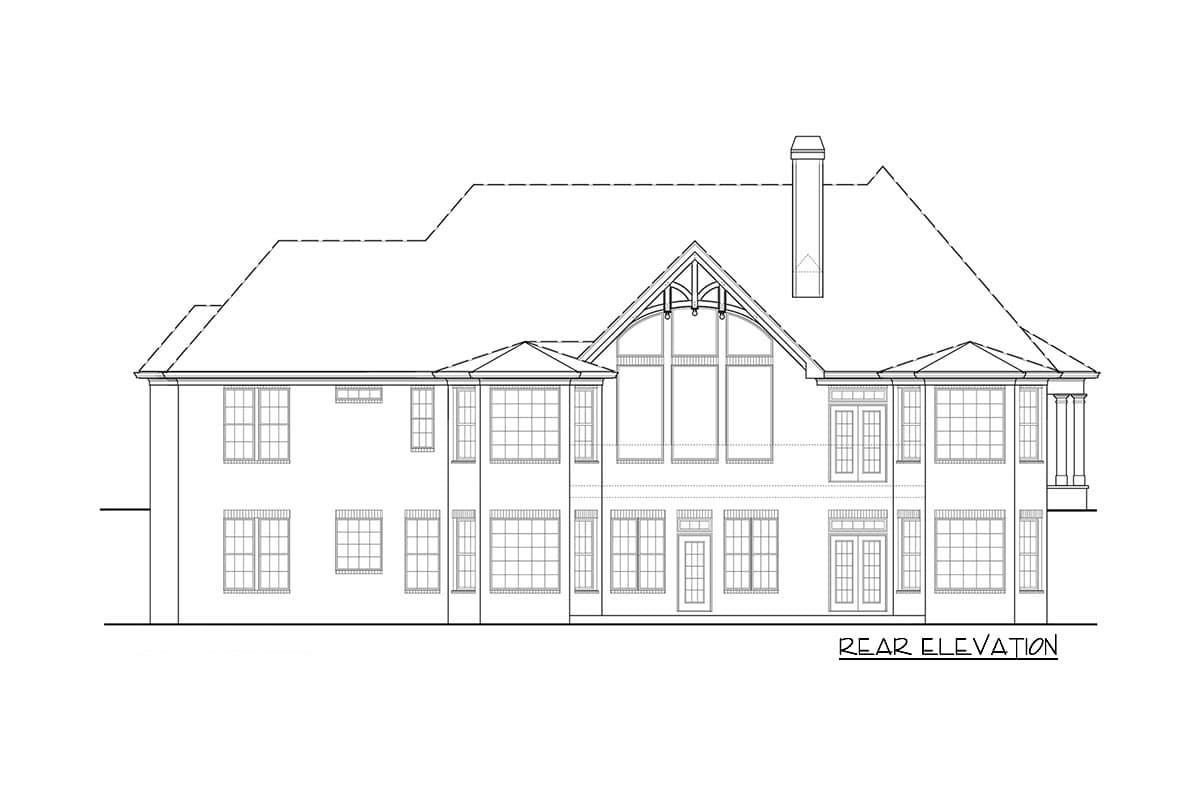

Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
Interior Details: These drawings show the specific details and design of special interior features.
Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
Electrical: Electrical floor plan schematics for 1st and 2nd floors.
Plans include wall and cornice sections, general foundation sections and details.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Framing plans
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
