Craftsman Multi-Family House Plan with 2 Units - 3 Beds and 1616 Sq Ft Each

Heated S.F.
3,232
Units
2
Width
Depth

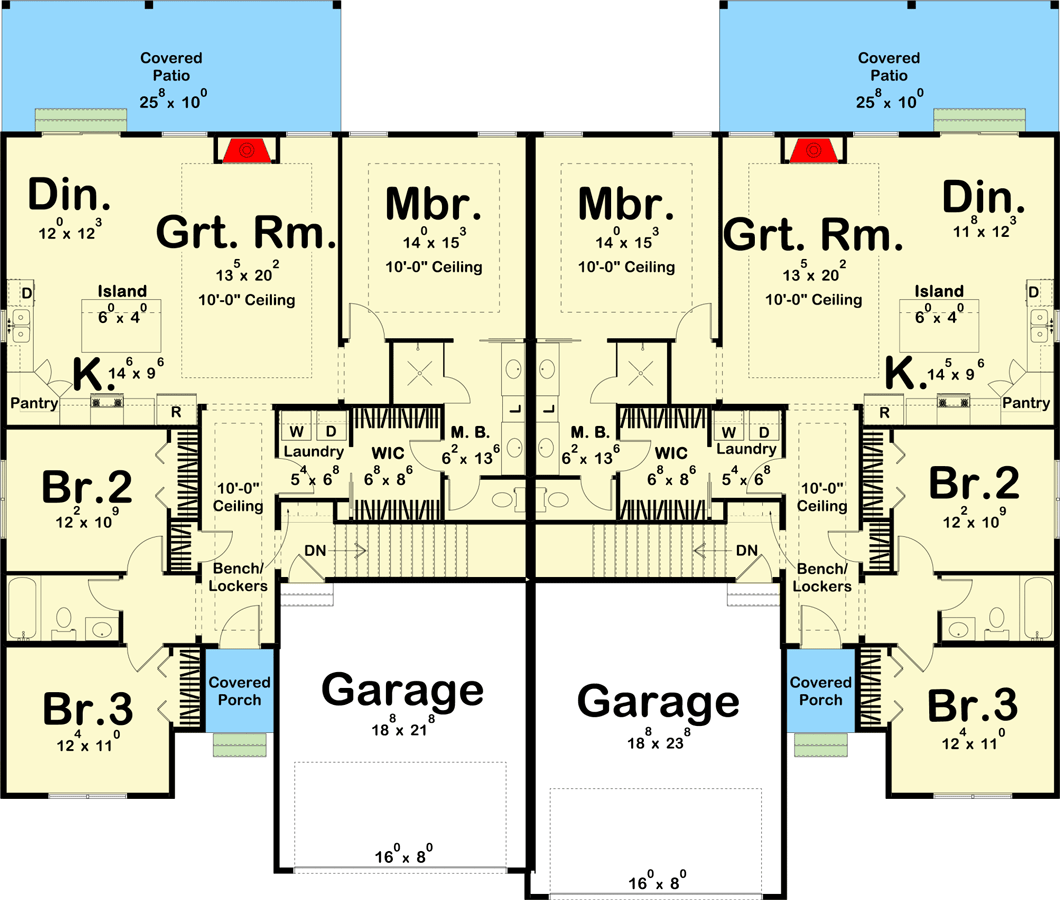

Floor Plan

Plan 62360DJ

Main Level
Main Level

Plan 62360DJ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 62360DJ: Craftsman Multi-Family House Plan with 2 Units - 3 Beds and 1616 Sq Ft Each - Floor Plan - Main Level - Craftsman, Ranch, Traditional

Plan Details

  • A seemingly endless array of enticing amenities are found in this 1 story, Craftsman-style duplex house plan. Each 3-bed, 2 bath unit gives you 1,616 square feet of heated living space and a 457 square foot 2-car garage.
  • The covered front stoop greets guests, who upon entering the home, are treated to views of the great room.
  • The great room captivates its occupants with a tray ceiling and is warmed by a fireplace.
  • The kitchen, with an island workspace and pantry, flows seamlessly into the dining room.
  • The master suite includes a master bath with his and her vanities and a walk-in closet with access to the laundry room. Bedrooms 2 and 3 share a centrally located hall bathroom.
Unit A
Heated Area
1,616Sq. Ft.
1616 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Cars
457 Sq. Ft.
Dimensions
40'width
68'depth
Unfinished Areas
457 Sq. Ft. Garage
Unit B
Heated Area
1,616Sq. Ft.
1616 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Cars
457 Sq. Ft.
Dimensions
40'width
68'depth
Unfinished Areas
457 Sq. Ft. Garage

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,232 sq. ft.

1st Floor

1,616 sq. ft.

Porch, Front

286 sq. ft.

Porch, Combined

572 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

80' 0"

Depth

68' 0"

Garage

Area

457 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Craftsman

Ranch

Traditional

Special Features

Bedrooms - Split

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
