Plan 39066ST

Craftsman Ranch Design

Heated S.F.
1,776
Beds
2 - 3
Baths
2
Stories
1
Cars
2
Client Photos

Floor Plan

Plan 39066ST

Main Level
Main Level
Lower Level
Lower Level

Plan 39066ST

M-F 9am-5pm EST |

1-203-761-8500

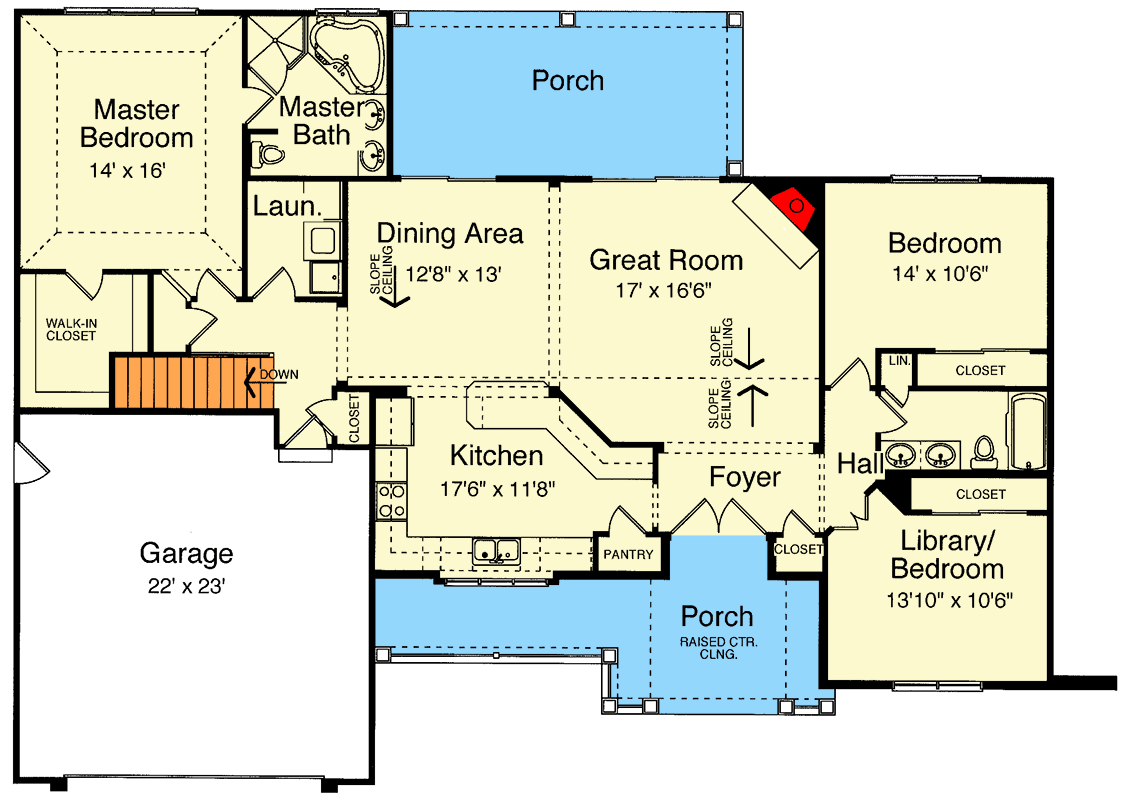

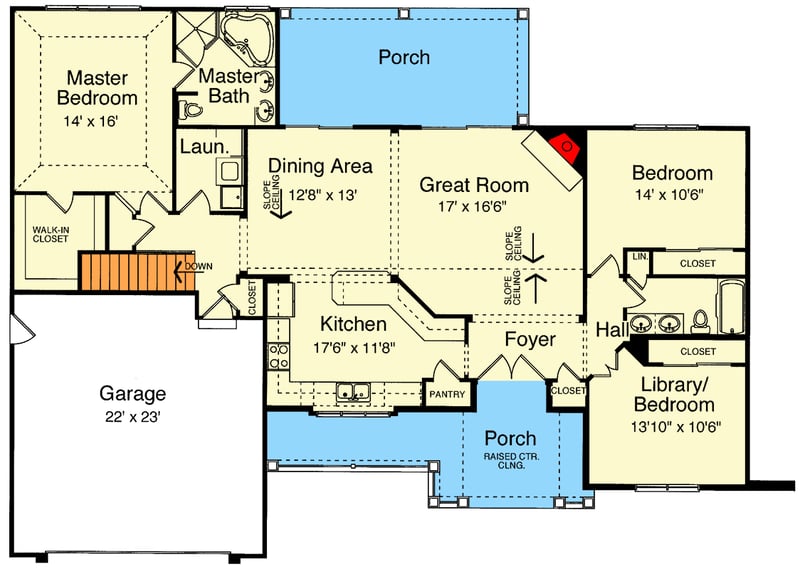

Main Level

Plan 39066ST: Craftsman Ranch Design - Floor Plan - Main Level - Craftsman, New American, Northwest, Ranch

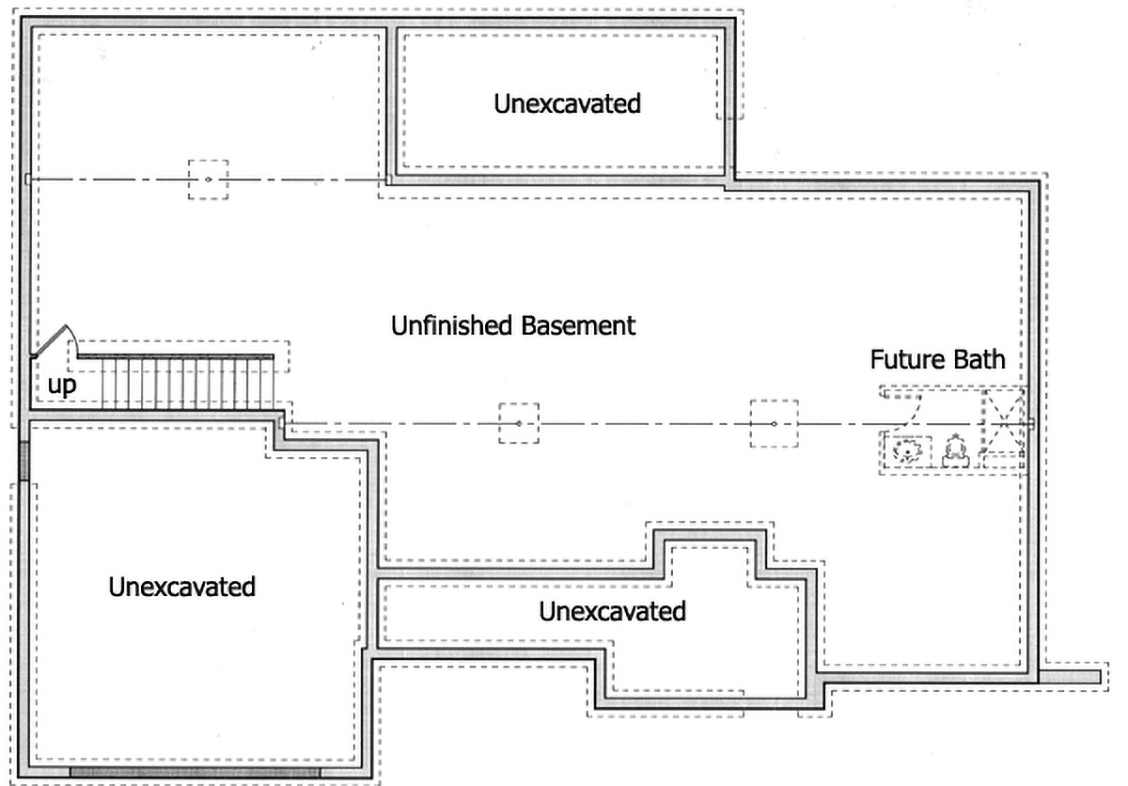

Lower Level

Plan 39066ST: Craftsman Ranch Design - Floor Plan - Lower Level - Craftsman, New American, Northwest, Ranch

Plan Details

  • This one level home offers split bedrooms, sloped ceilings, open spaces and a master bedroom suite with double bowl vanity, shower and whirlpool tub.
  • Two sliding doors across the rear wall, a gas fireplace and a grand opening between the great room and dining area make this a delightful gathering area.
  • Exterior finishes consisting of lightweight stone, siding and cedar shakes make a colorful facade.
  • The wall in the kitchen is not load-bearing and can be removed making it even a more open floor plan. The kitchen ceiling starts at 8' and slopes up to 14'.
  • A full basement foundation comes with this plan.
  • Related Plan: Have a narrower lot? See house plan 3922ST (60'9" wide).
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - House Plan 39066ST comes to life in Michigan

House Plan 39066ST comes to life in Michigan

5

Photos

build gallery item - House Plan 39066ST Comes to Life in New York

House Plan 39066ST Comes to Life in New York

9

Photos

What's Included

  • General notes and specifications

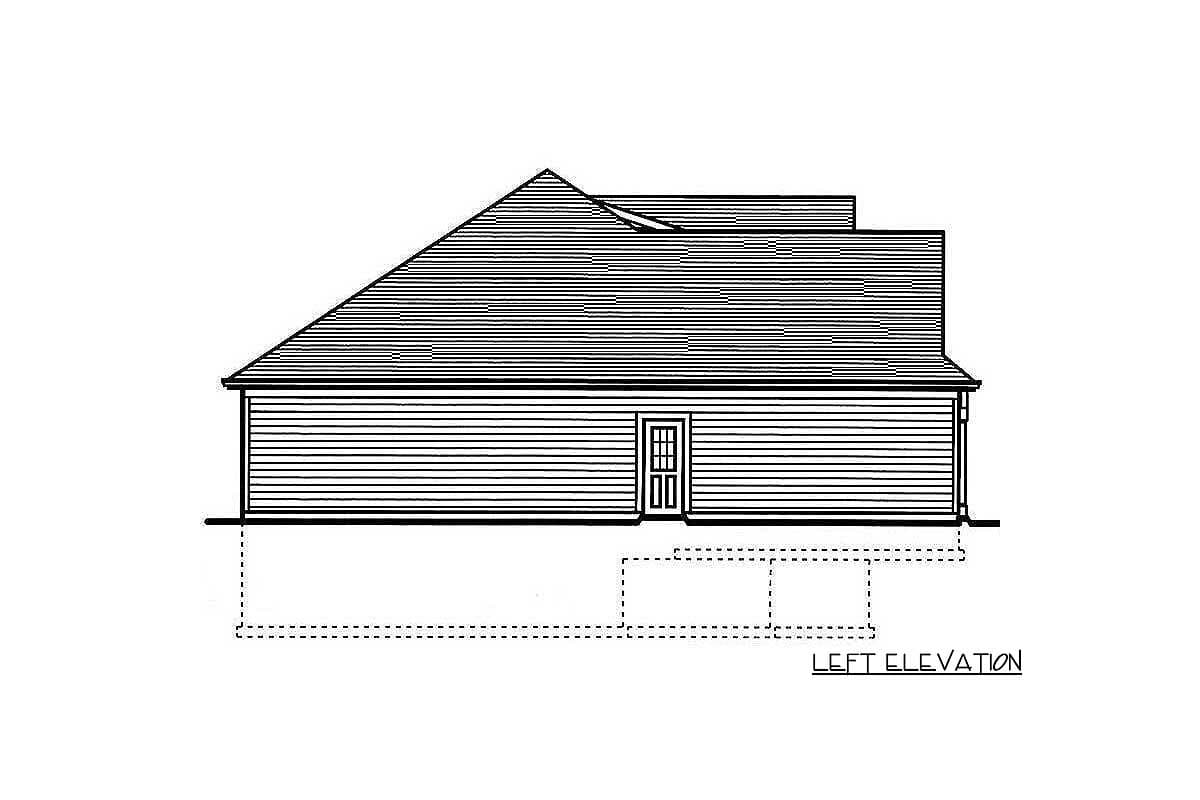

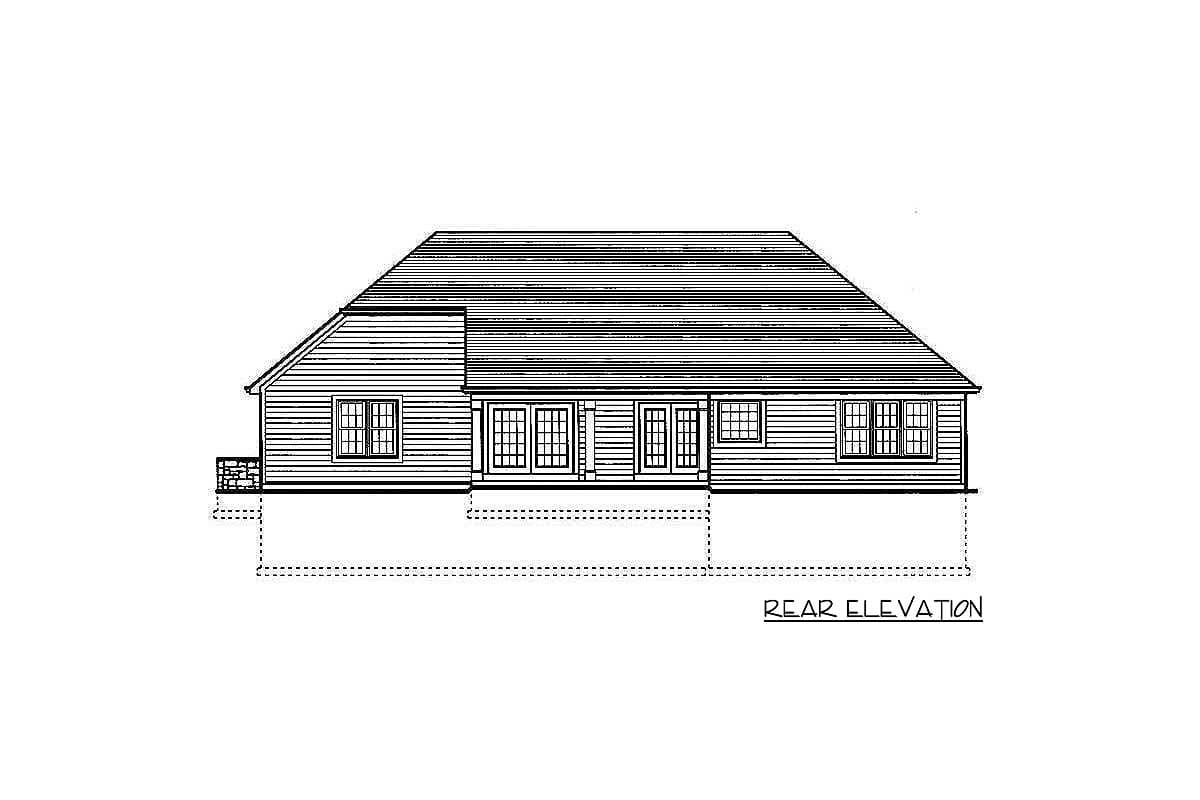

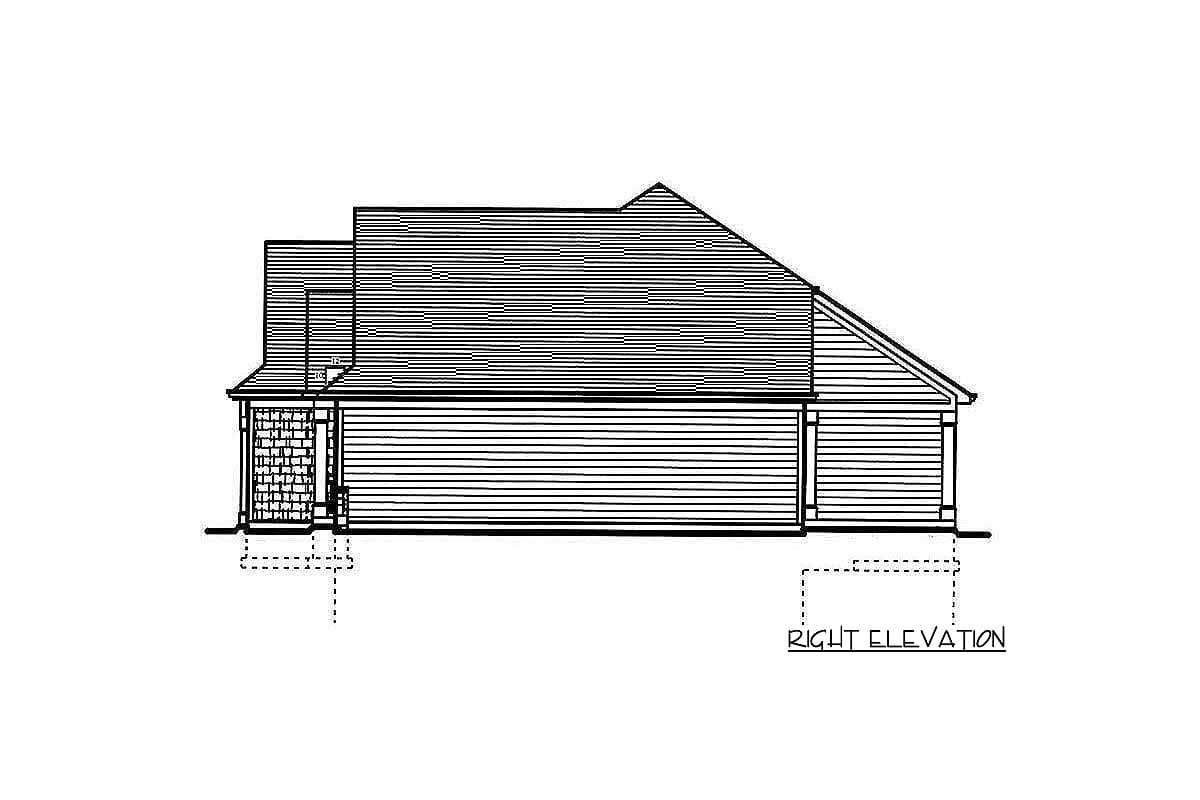

  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,776 sq. ft.

1st Floor

1,776 sq. ft.

Porch, Front

207 sq. ft.

Porch, Rear

233 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

65' 3"

Depth

49' 0"

Max Ridge Height

24' 0"

Garage

Type

Attached, Standard

Area

982 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Craftsman

New American

Northwest

Ranch

Special Features

Bedrooms - Split

Flex Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Plan Collections
