Plan 3922ST

Inviting Atmosphere

Heated S.F.
1,651
Beds
3
Baths
2 - 3
Stories
1
Cars
2

Floor Plan

Plan 3922ST

Main Level
Main Level
Basement
Basement

Plan 3922ST

M-F 9am-5pm EST |

1-203-761-8500

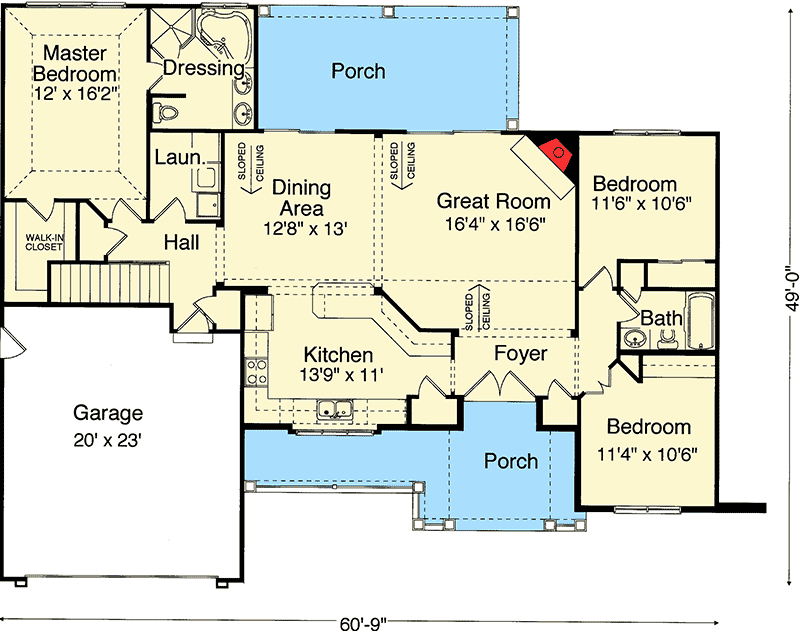

Main Level

Plan 3922ST: Inviting Atmosphere - Floor Plan - Main Level - Craftsman, Ranch

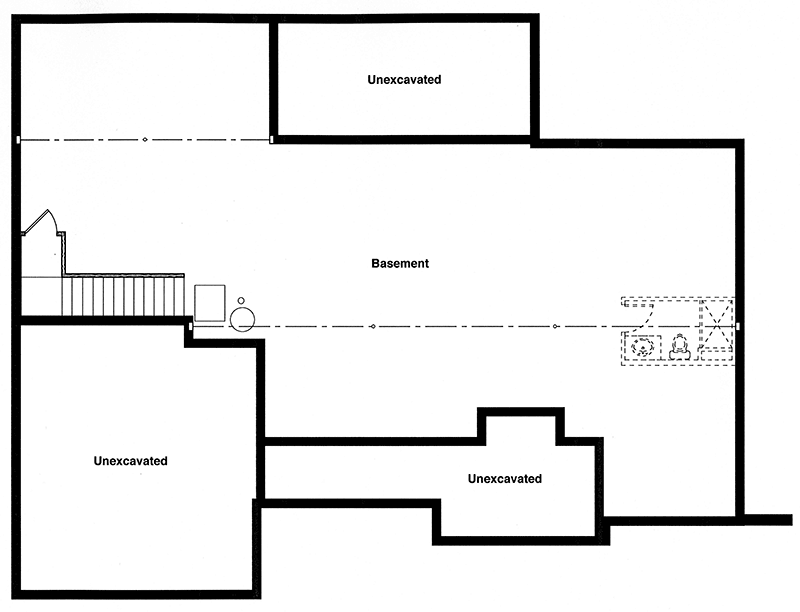

Basement

Plan 3922ST: Inviting Atmosphere - Floor Plan - Basement - Craftsman, Ranch

Plan Details

  • An inviting atmosphere is created with the combination of exterior textured materials and double entry doors.
  • A gas fireplace and dual sliding doors bring warmth and light to the great room and the formal dining area, while a sloped ceiling tops the combined rooms. An open bar separates the work area from the more richly decorated gathering rooms yet allows the kitchen to be convenient to the living space. The angled wall is not load-bearing. One thought is to close off the kitchen/foyer entrance and remove this wall for a more open feel.
  • Split bedrooms offer privacy to the master bedroom, which is adorned by a trayed ceiling and lavishly equipped bath.
  • Converting an unused bedroom into a library is a popular option and expands the versatility of the home for the empty-nester.

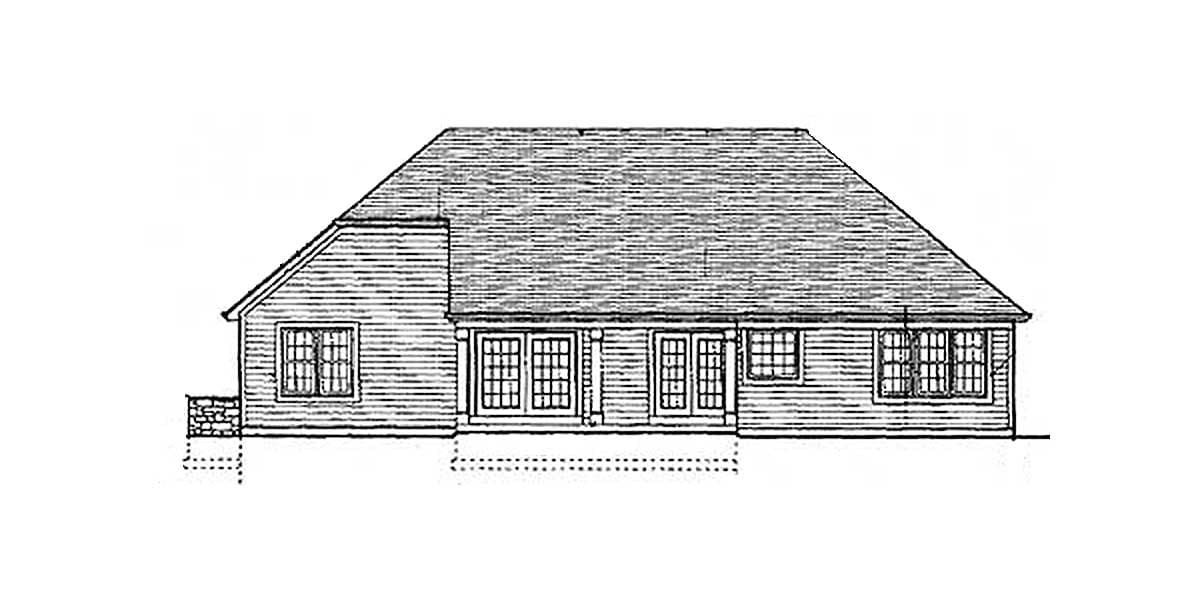

  • A covered rear porch and full basement offer added enjoyment to this one level home.
  • Related Plan: Need some more room? Gain almost 5' in width with house plan 39066ST (65'3" wide).

What's Included

  • General notes and specifications
  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,651 sq. ft.

1st Floor

1,651 sq. ft.

Basement Unfinished

1,651 sq. ft.

Porch, Combined

418 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2 or 3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

60' 9"

Depth

49' 0"

Max Ridge Height

23' 6"

Garage

Type

Attached

Area

430 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Craftsman

Ranch

Special Features

Bedrooms - Split

Formal Dining

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,651 sq. ft.

1st Floor

1,651 sq. ft.

Basement Unfinished

1,651 sq. ft.

Porch, Combined

418 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2 or 3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

60' 9"

Depth

49' 0"

Max Ridge Height

23' 6"

Garage

Type

Attached

Area

430 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Craftsman

Ranch

Special Features

Bedrooms - Split

Formal Dining

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom
