Plan 970050VC

Craftsman Ranch Home with Exercise Room

Heated S.F.
3,139
Beds
3
Baths
2.5+
Stories
1
Cars
3

Floor Plan

Plan 970050VC

Main Level
Main Level
Finished Lower Level
Finished Lower Level

Plan 970050VC

M-F 9am-5pm EST |

1-203-761-8500

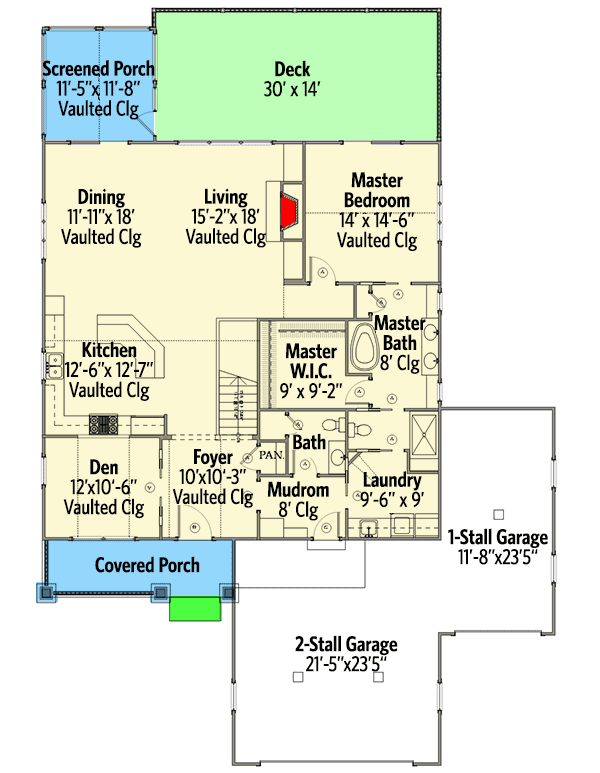

Main Level

Plan 970050VC: Craftsman Ranch Home with Exercise Room - Floor Plan - Main Level - Craftsman, Northwest, Ranch

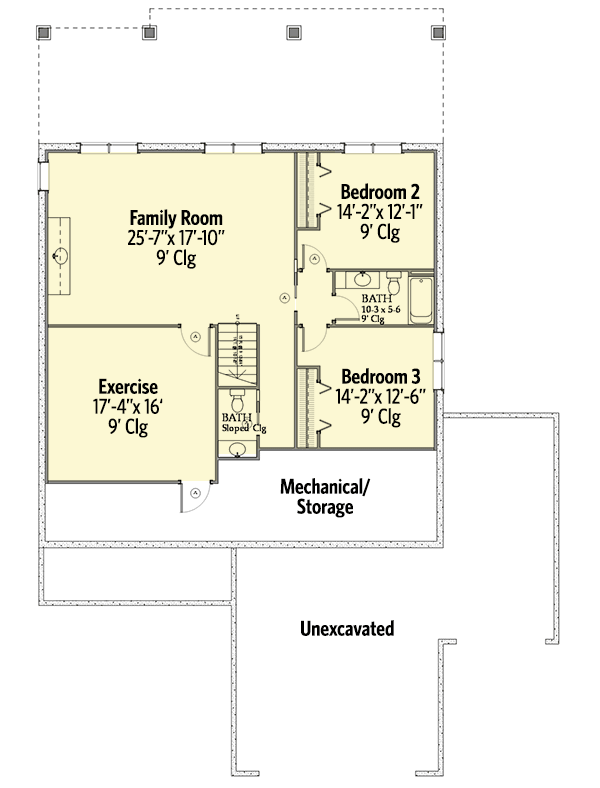

Finished Lower Level

Plan 970050VC: Craftsman Ranch Home with Exercise Room - Floor Plan - Finished Lower Level - Craftsman, Northwest, Ranch

Plan Details

  • While the front of this Craftsman home looks like a one floor Ranch, it comes with a fully finished lower level that includes a large exercise room.
  • Vaulted ceilings on the main floor maximize the feeling of spaciousness.
  • Even the delightful screened porch is vaulted and you get a huge open deck too.
  • Space-saving pocket doors are used throughout the home.
  • In the main floor master suite, the master bathroom opens right up to the laundry room - a wonderful convenience!
  • Two family bedrooms and a huge family room are part of the finished lower level.

What's Included

  • Title Sheet. This page includes a color rendering of your home and an index of the complete set.
  • Floor Plans, Roof Plans and Foundation Plans. These plans detail the location, dimension and structural requirements of your home. Roof plans also illustrate pitch, composition and overhang sizes. Framers use this information for project estimates and to plan work on-site.
  • Exterior Elevations: front,rear and side elevation views, illustrating exterior materials, details, wall heights, roof pitches, window location and sizes.
  • Building Construction Details. This section gives your builder ceiling heights, a sense of overall home construction and wall sections, including material call outs, eave detail, roof pitch and foundation construction.
  • Recommended Interior & Exterior Trim and Detailing. Every home was specifically designed to achieve a highly livable and comfortably beautiful, proportioned space. For that reason, each blueprint comes with recommended styles for your interior and exterior doors, window trim, baseboards, garage doors and, if applicable to your house style, columns and brackets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,139 sq. ft.

Lower Level

1,375 sq. ft.

1st Floor

1,764 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

54' 0"

Depth

78' 0"

Garage

Type

Attached

Area

775 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

9'

First Floor

8'

Architectural Style

Craftsman

Northwest

Ranch

Special Features

Bedrooms - Clustered

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor
