Craftsman Ranch House Plan

Plan 64407SC

  • 3,125

    Heated s.f.

  • 2-5

    Beds

  • 2.5 - 5.5

    Baths

  • 1

    Stories

  • 4

    Cars

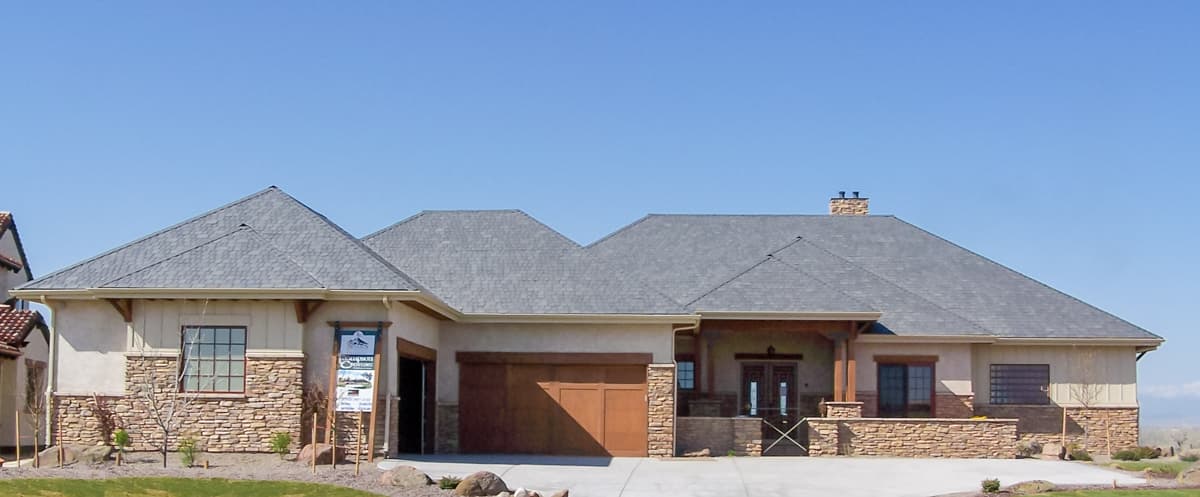

  • A privacy half-wall courtyard shelters your entry into this dynamic Craftsman Ranch house plan with an optional lower level.

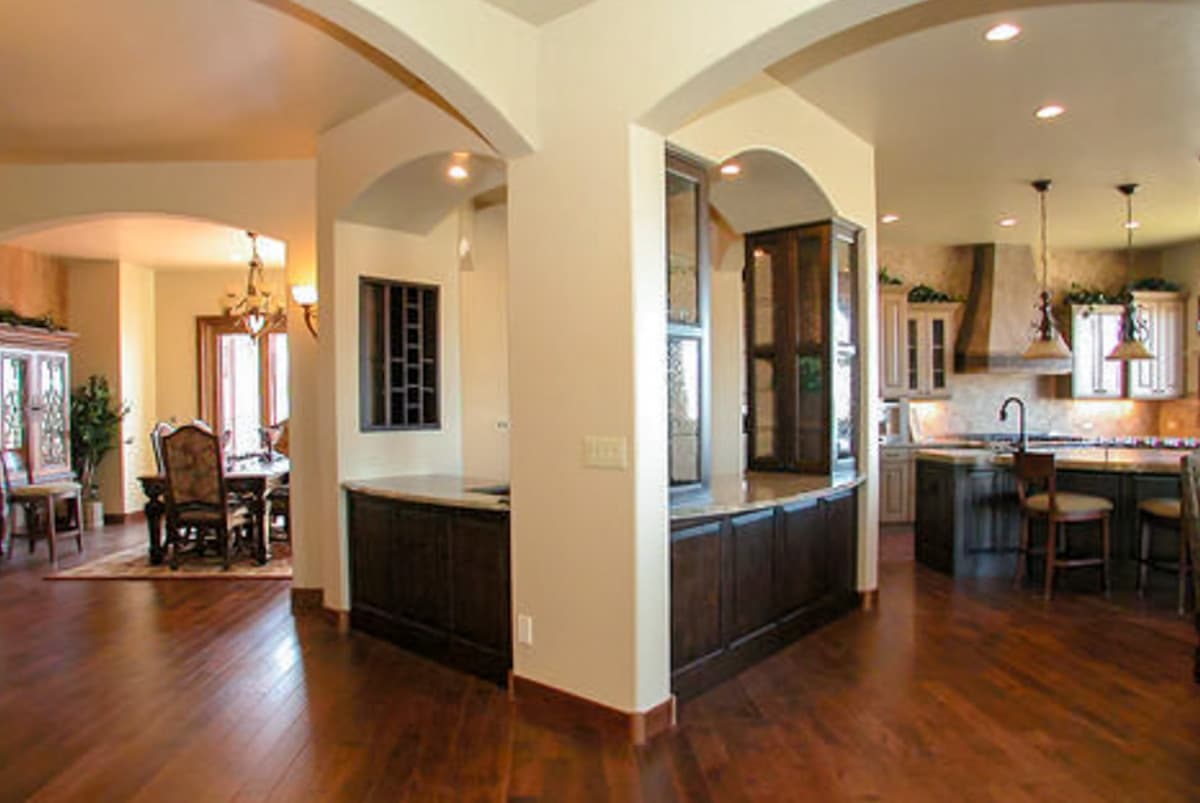

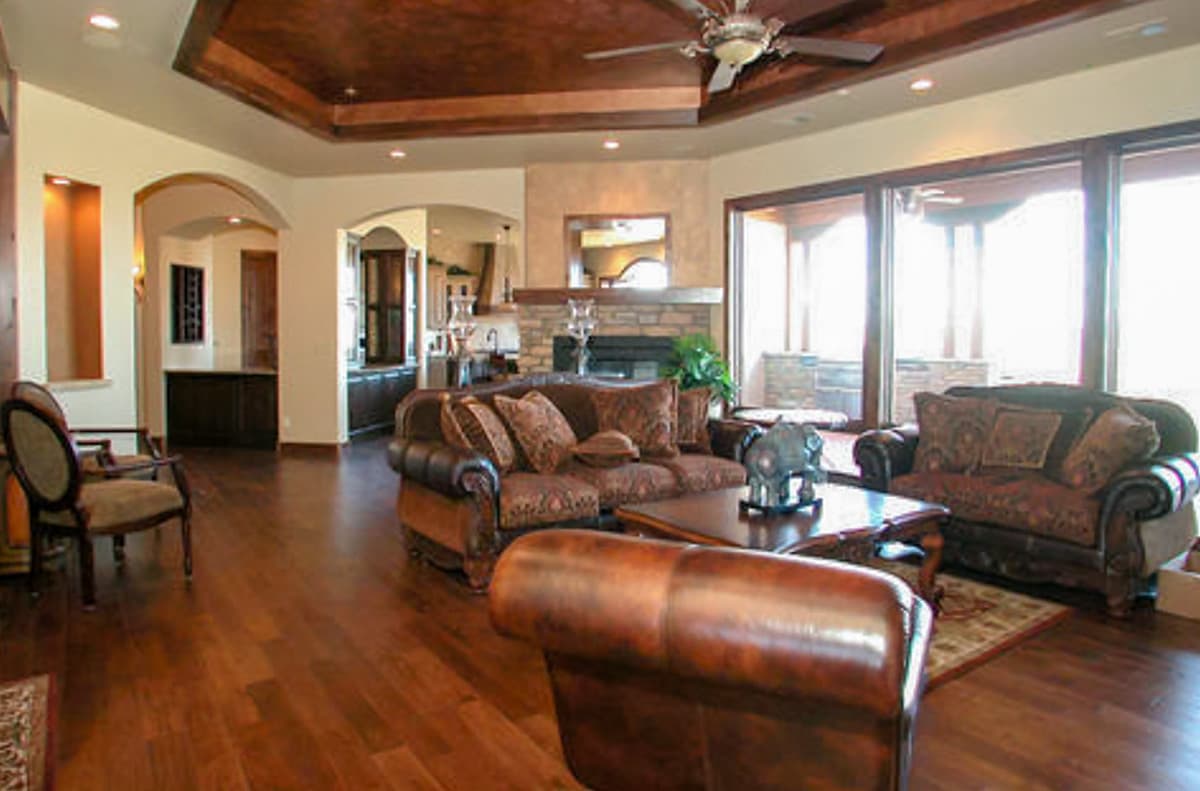

  • The main floor has a wide foyer with the huge great room in full view as you enter.
  • The coffered ceiling adds a beautiful designer touch.
  • A two-way fireplace warms both the breakfast nook and the great room but there's also another fireplace at the far end of the great room.

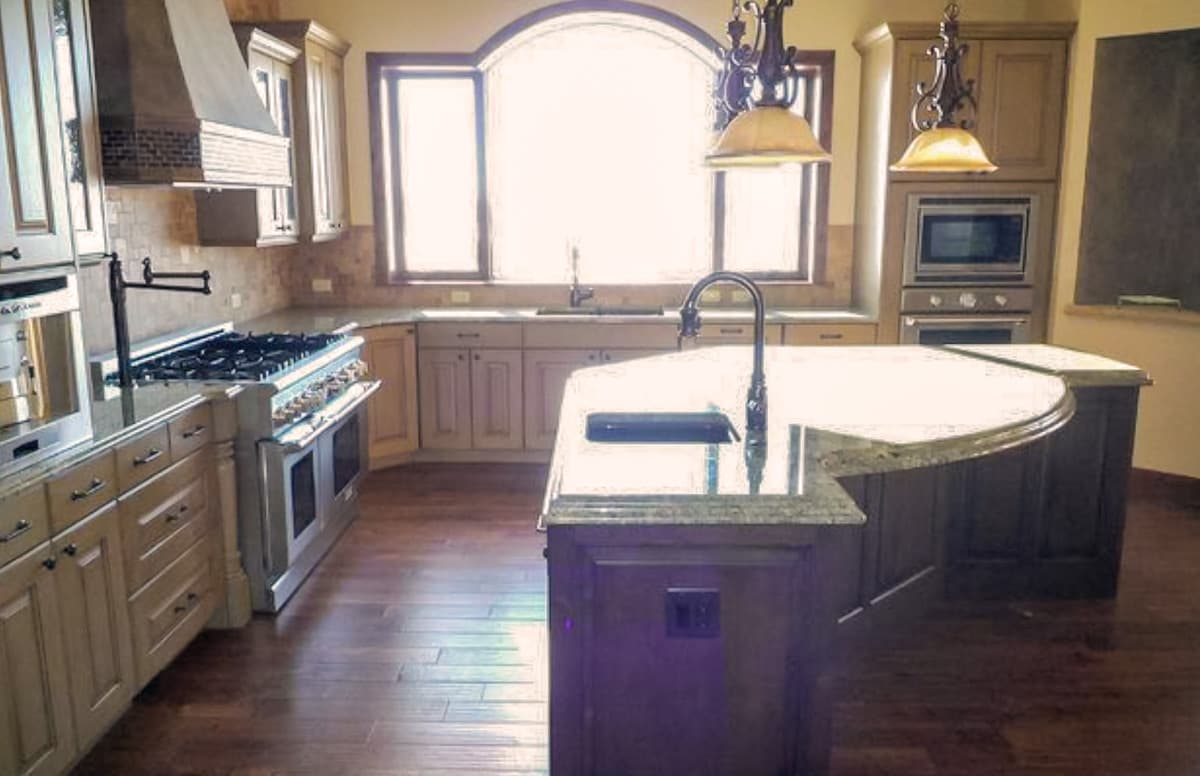

  • The unique shape of the huge kitchen island allows for seating for three.
  • Note the spacious walk-in closet and butler pantry area off the kitchen.

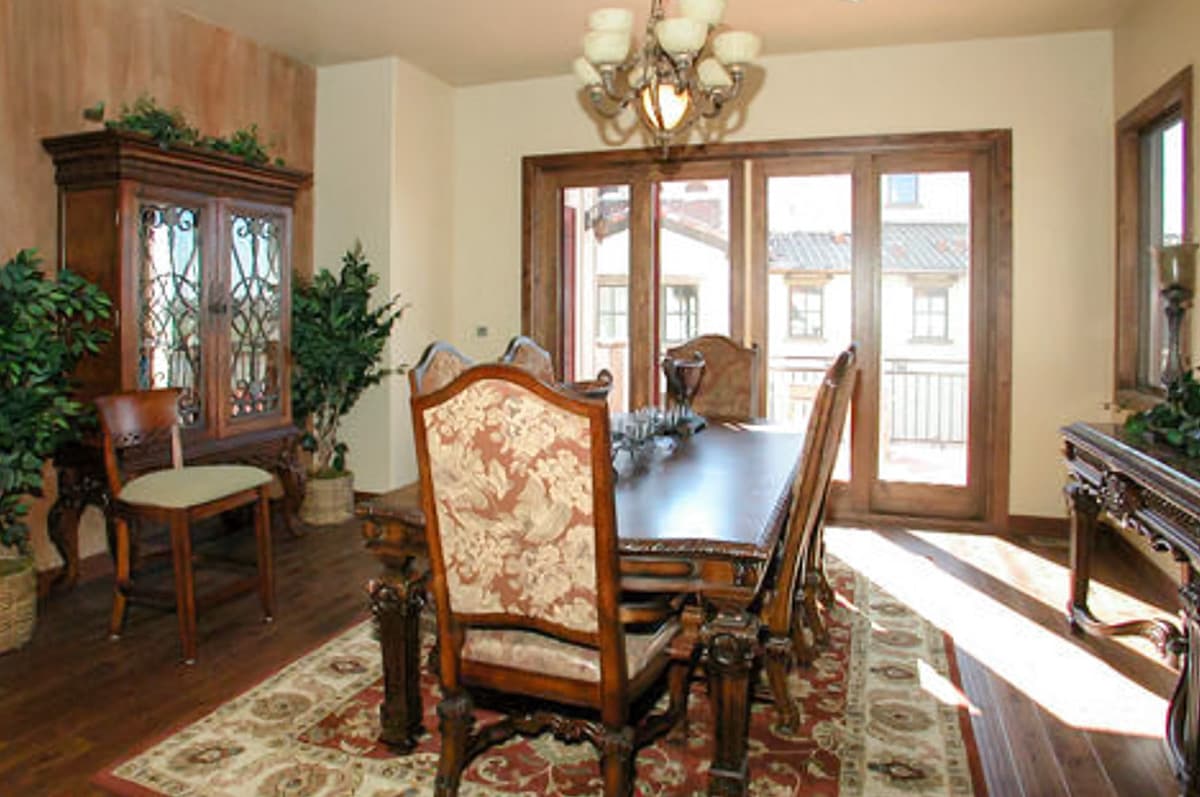

  • The formal dining room has sliders to the side deck in case you want to eat outside.

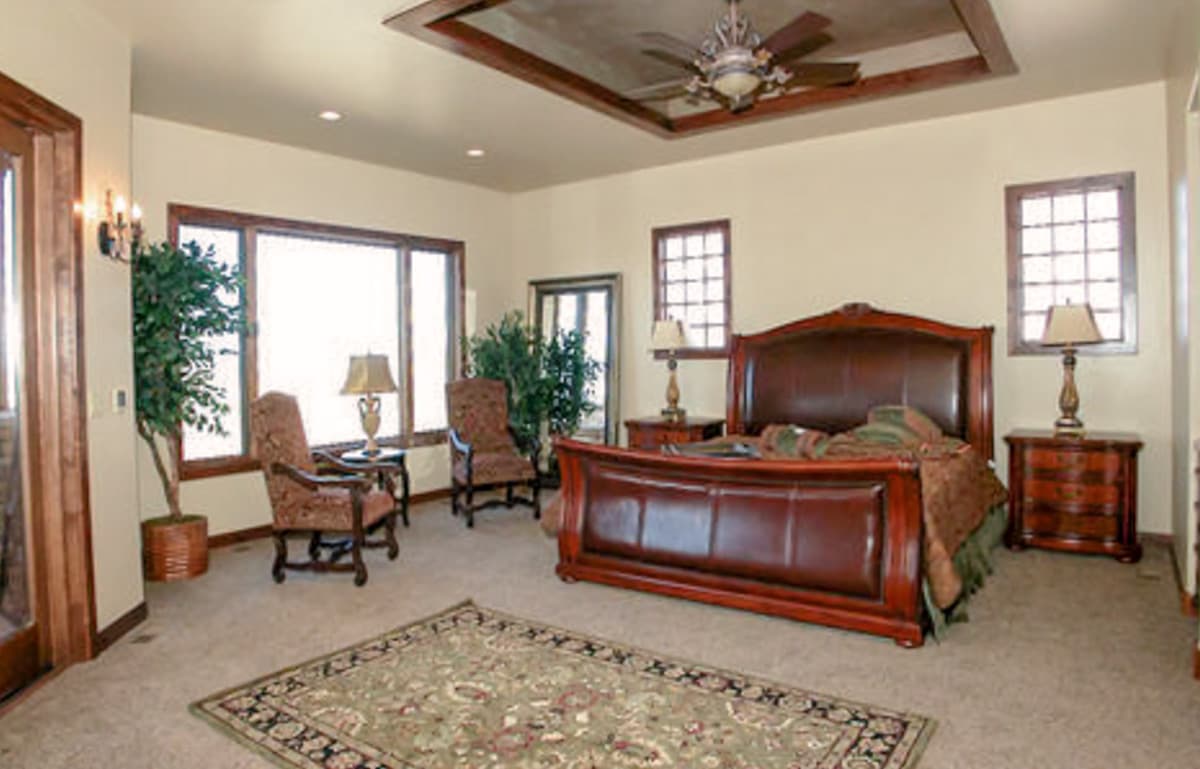

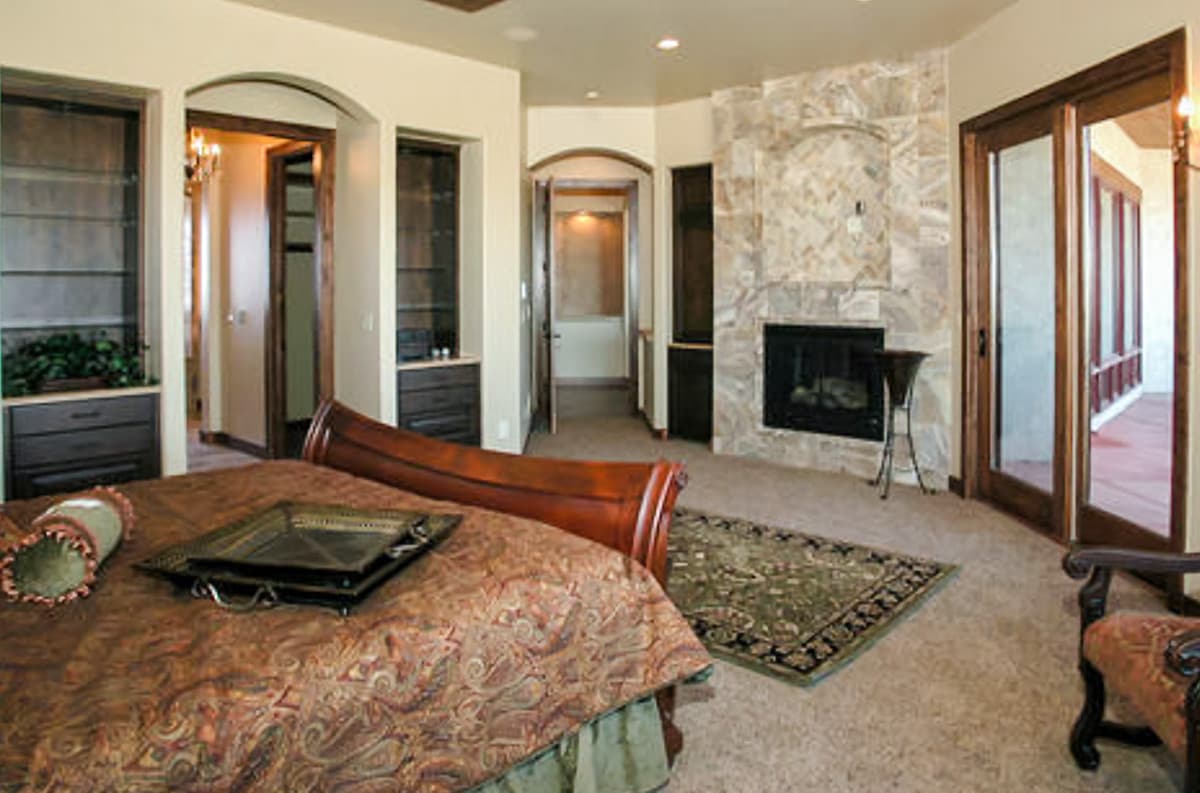

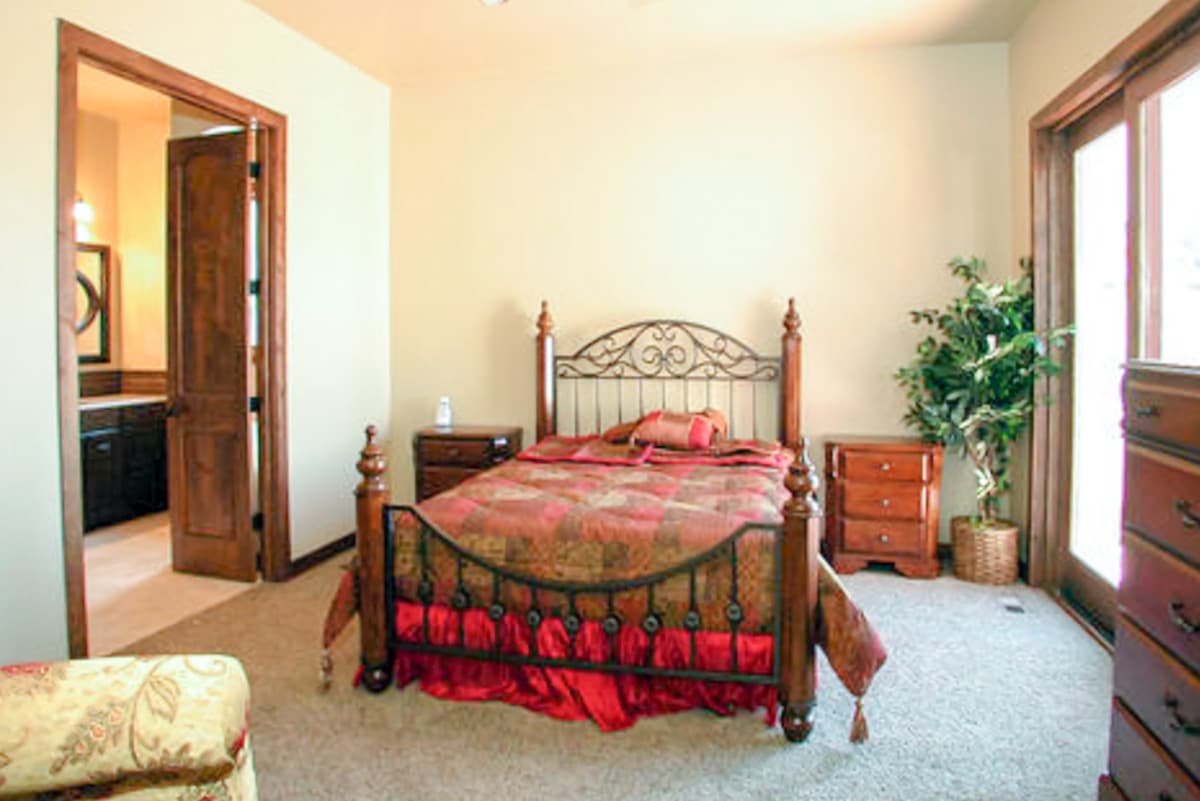

  • A quiet guest suite is located on the other side of the house from the gorgeous master suite.

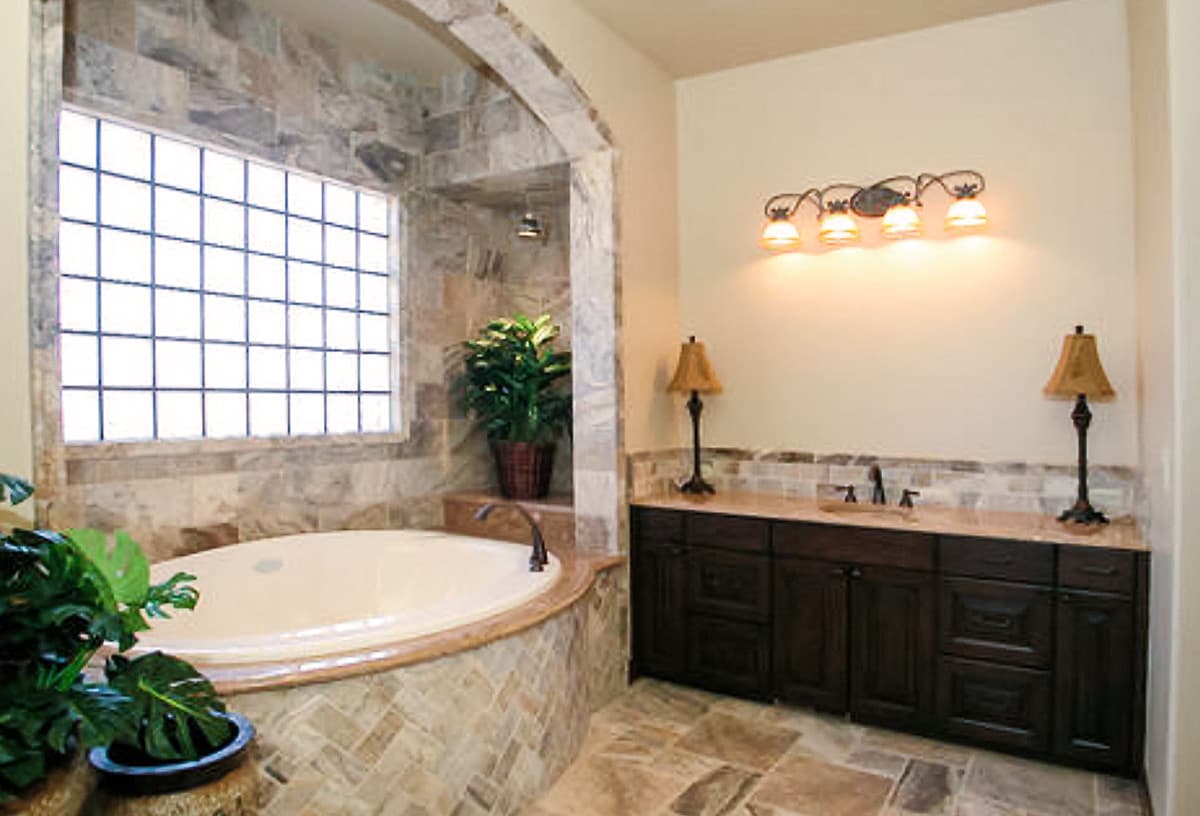

  • The master bathroom is huge with a giant soaking tub at one end.
  • Finish the lower level to gain a second master suite that would be ideal as in-law accommodations.

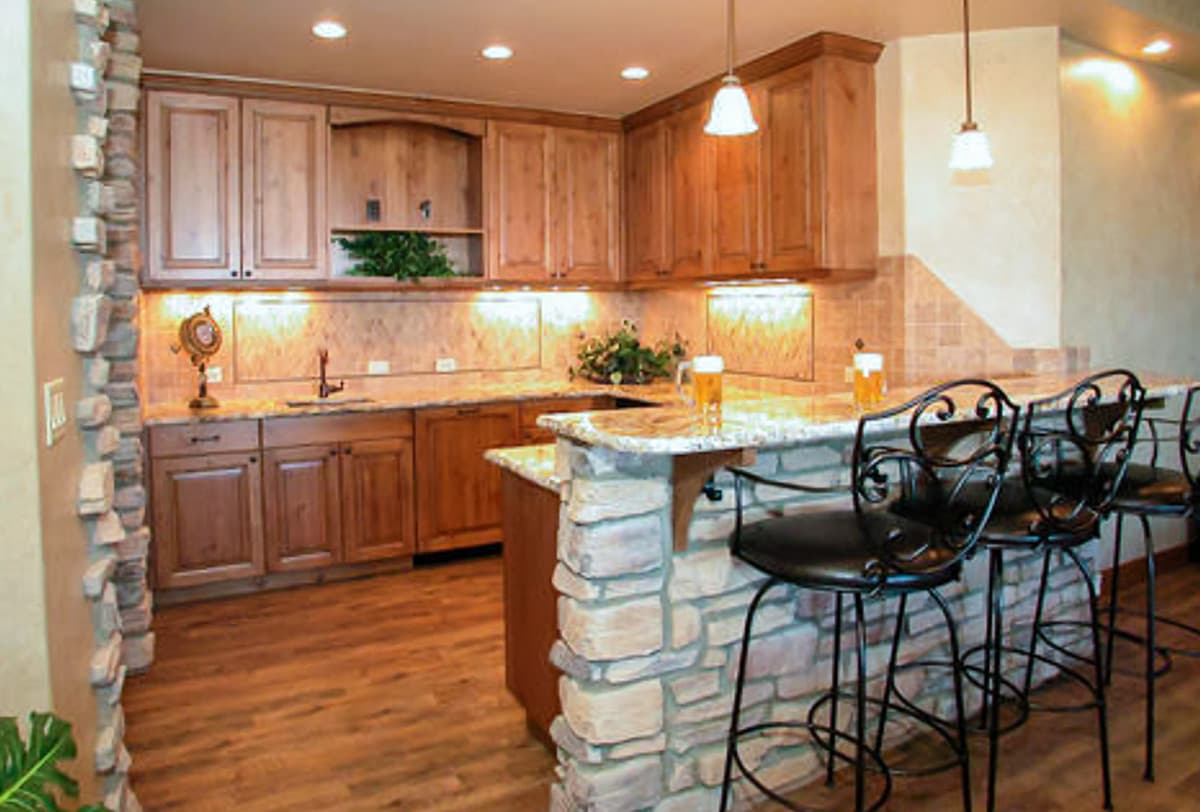

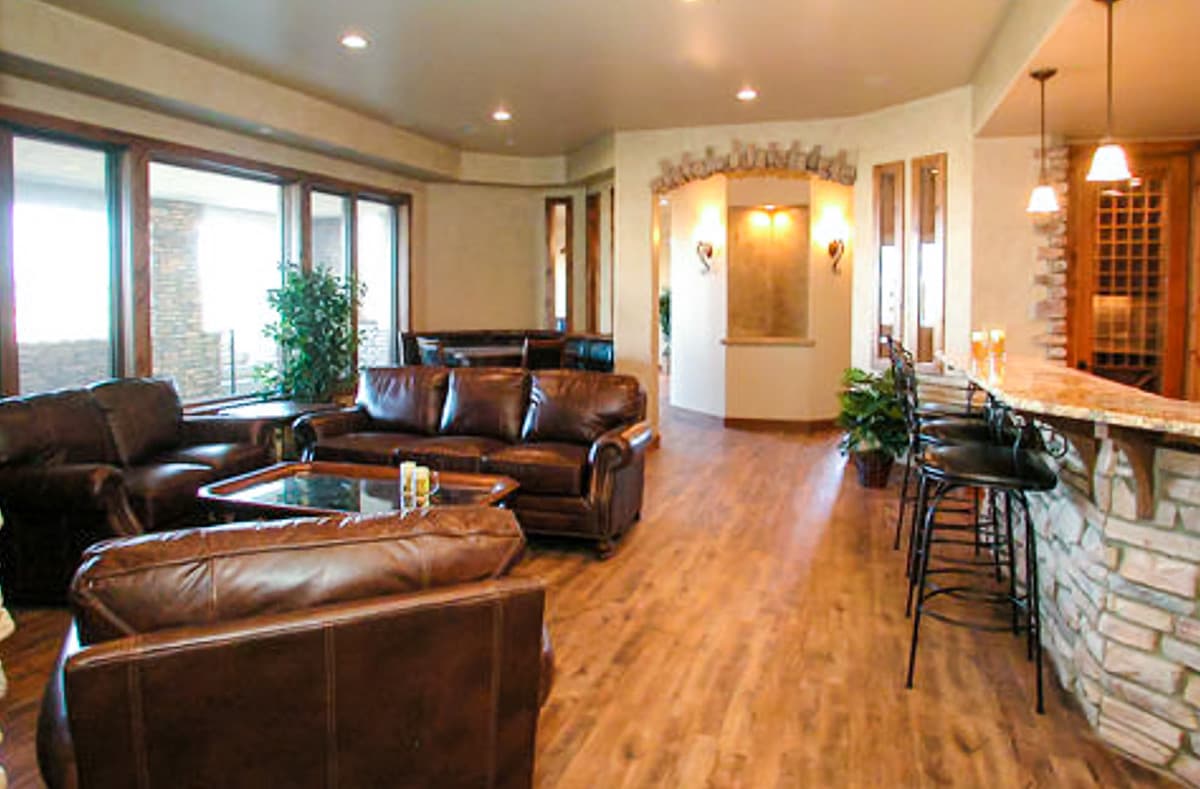

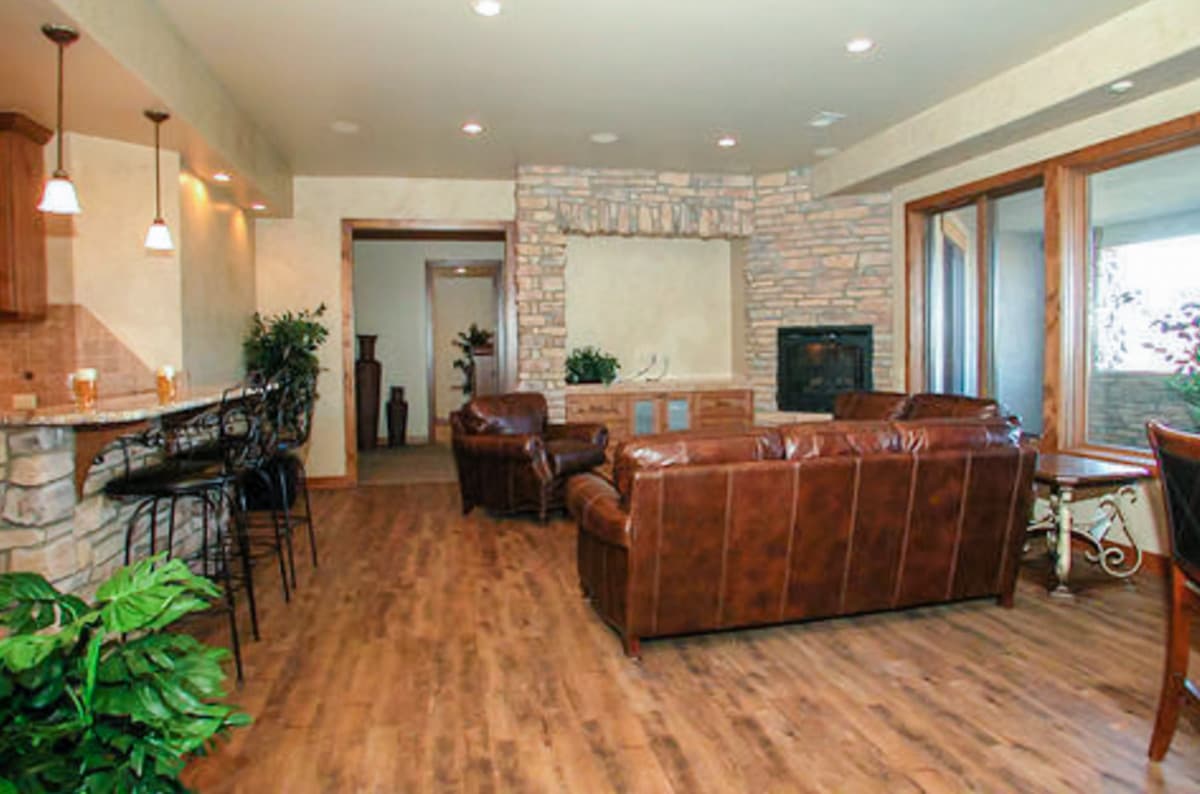

  • You also get an enormous family room with cards area, wet bar and a wine cellar.
  • Use one of the lower level bedrooms as a fitness room or home office and there's a billiards room too.
  • NOTE: Plans cannot be built within a 50 mile radius of Fort Collins, CO.

This plan includes the following details:

  • Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
  • Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
  • Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
  • Upper Level Plan (if needed) - same information as Main Level.
  • Roof Plan - layout with pitch markers, dimensions and notes.
  • Main Level Electrical Plan - electrical outlets, switches and light locations shown.
  • Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.

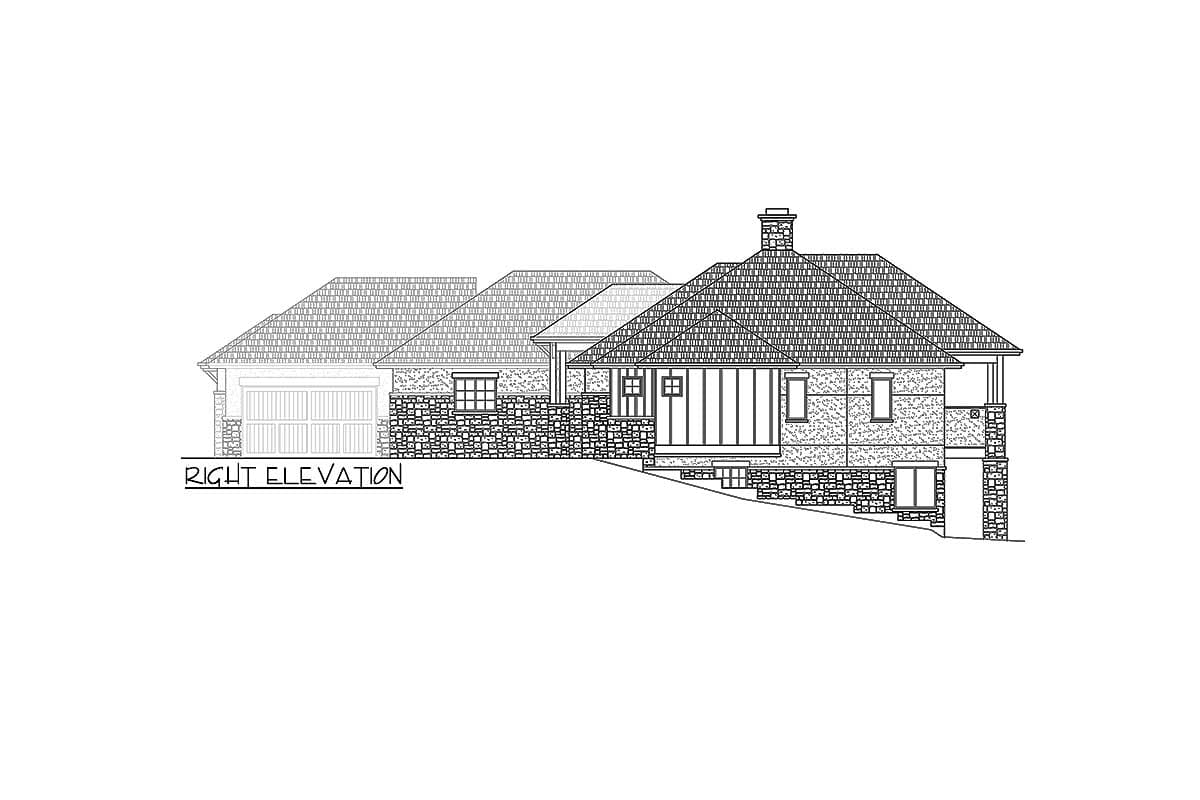

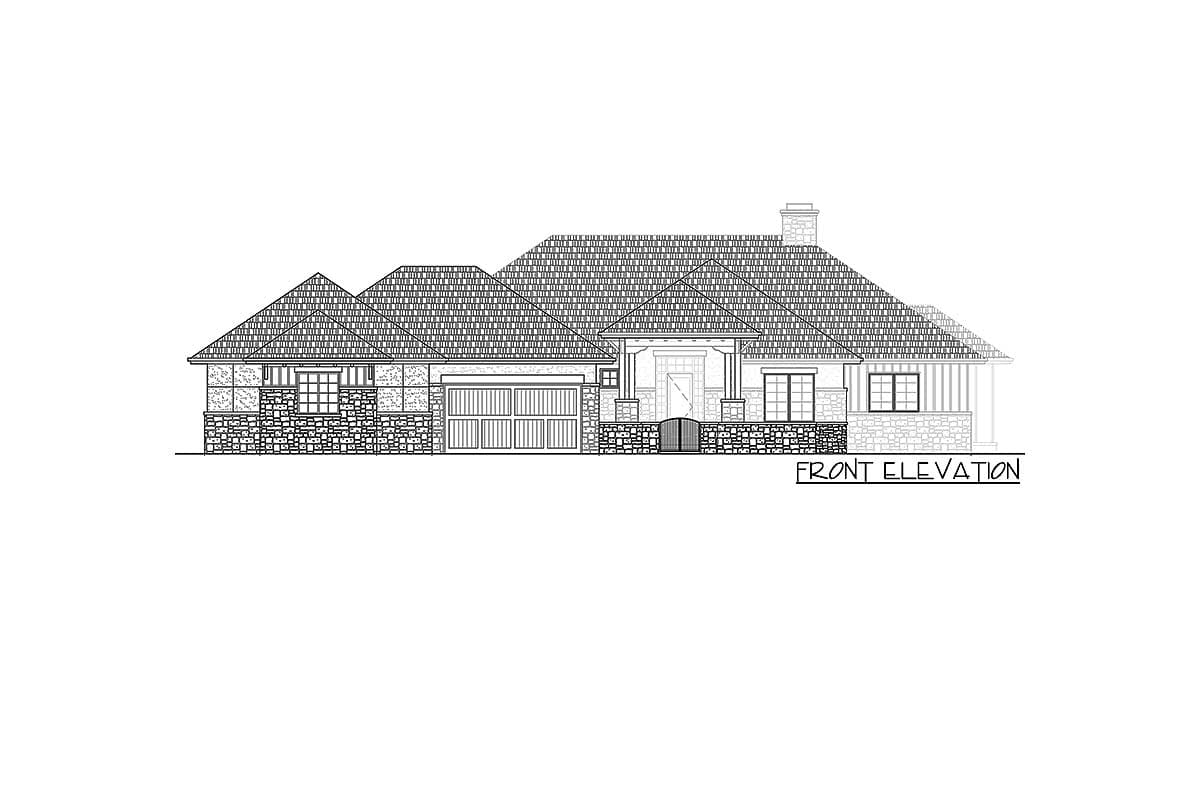

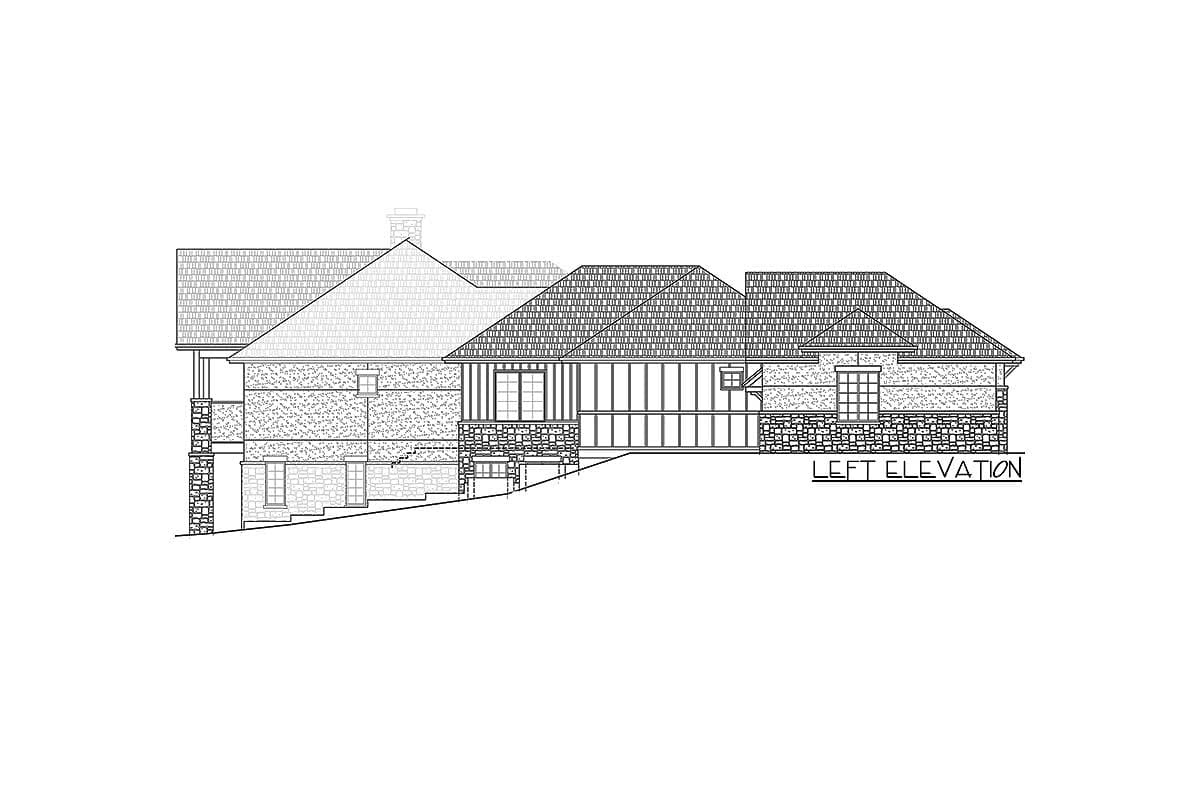

  • Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.
  • Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
  • Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
  • Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

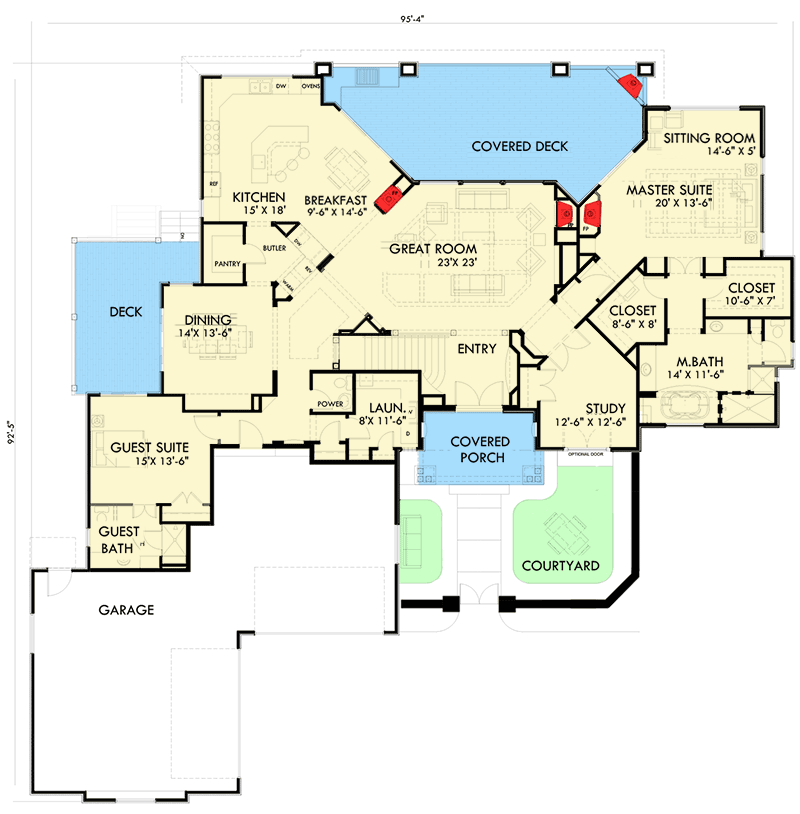

Craftsman Ranch House Plan - 64407SC floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

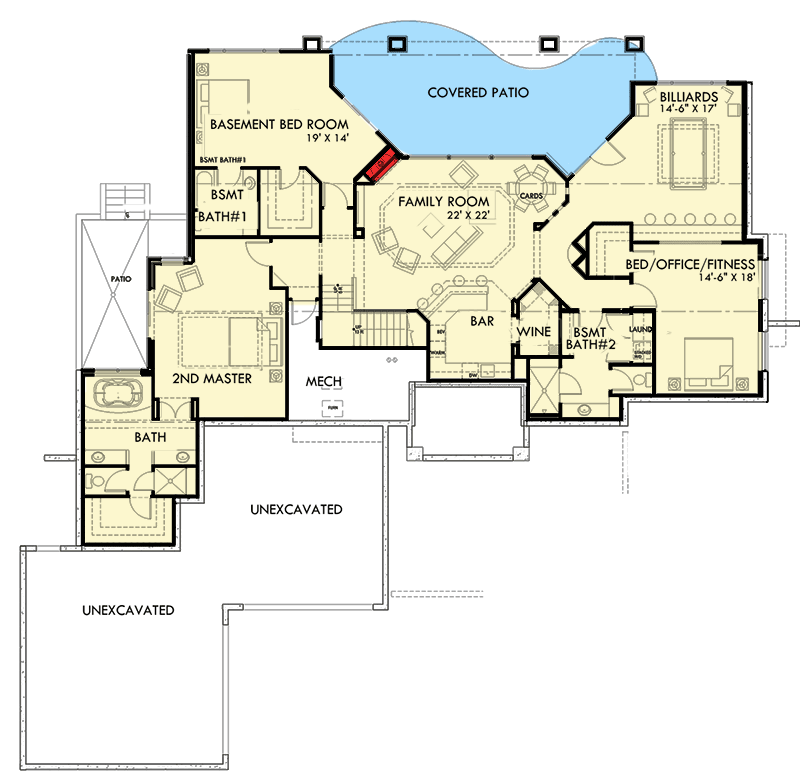

Craftsman Ranch House Plan - 64407SC floor plan - Lower Level

Craftsman Ranch House Plan

  • 3,125

    Heated s.f.

  • 2-5

    Beds

  • 2.5 - 5.5

    Baths

  • 1

    Floors

  • 4

    Car garage

Floor Plan

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 3,125 sq. ft.
  • 1st Floor: 3,125 sq. ft.

Dimensions

  • Width: 95' 0"
  • Depth: 92' 0"
  • Max ridge height: 23' 11"

Beds/Baths

  • Bedrooms: 2, 3, 4, or 5
  • Full bathrooms: 2, 3, 4, or 5
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1265 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front, Courtyard

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Slab, Daylight, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 9" First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
