Plan 54060LK

Craftsman Ranch House Plan with Office and Boat Garage

Name: Plan 54060LK: Craftsman Ranch House Plan with Office and Boat Garage
Brand: Architectural Designs
SKU: 54060LK
Price: 2475.0 USD
Availability: InStock

Heated S.F.

3,068

Beds

Baths

2.5

Stories

Cars

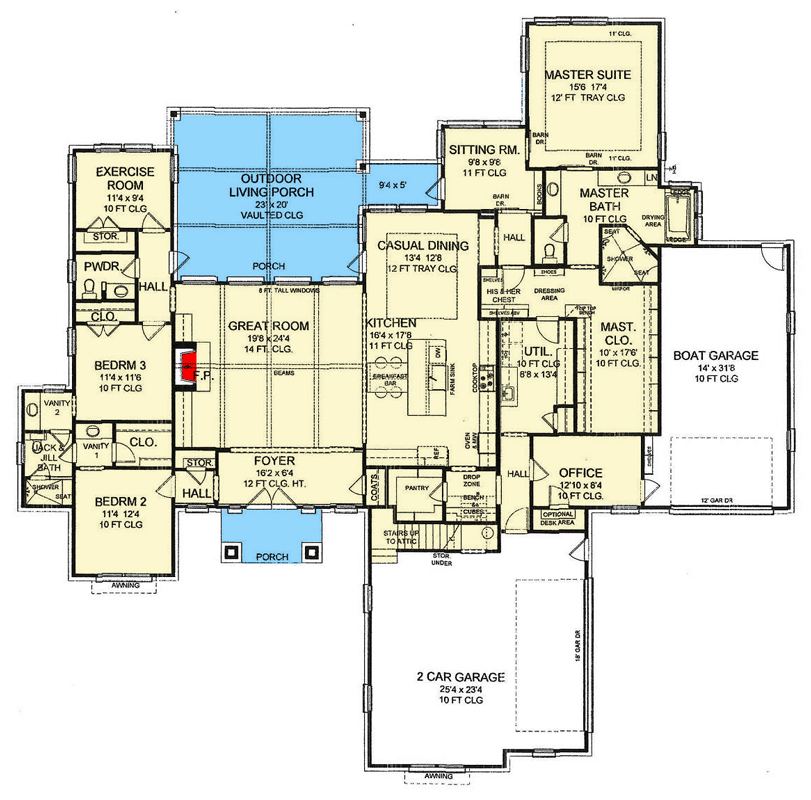

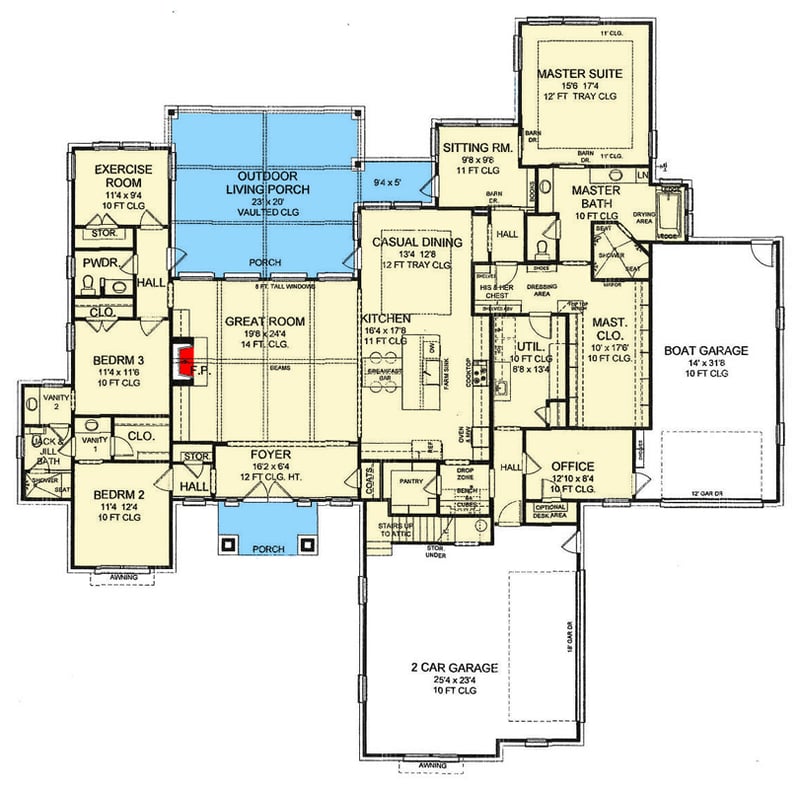

Floor Plan

Main Level

Plan Details

This 3,068 sq ft Craftsman Ranch House Plan features 3 bedrooms, 2.5 bathrooms, and a generous 1,290 sq ft attached 3-car garage.
Step through the inviting entry into a thoughtfully designed layout featuring a convenient home office near the foyer and a practical mudroom and main-level laundry off the garage.
Enjoy open-concept living with 10-foot ceilings throughout the main areas, seamlessly connecting the kitchen with its walk-in pantry to a casual dining area, perfect for daily meals.
The private primary suite offers a dedicated sitting area for relaxation, while secondary bedrooms share a convenient Jack & Jill bathroom.
An expansive 589 sq ft combined porch space provides ample opportunity for outdoor enjoyment and curb appeal.

What's Included

FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches and outlets.
ELEVATIONS: The front, rear and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
ROOF PLANS: Provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable
BUILDING CROSS SECTION: Shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.
INTERIOR ELEVATIONS: Show's how the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.
NOTES AND DETAILS: Provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
