Plan 849010PGE Craftsman Ranch Plan with Open-Concept Living Space and Flex Room

4,584 2-5 2.5 1 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Craftsman Ranch Plan with Open-Concept Living Space and Flex Room

Plan 849010PGE

  • 4,584

    Heated s.f.

  • 2-5

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

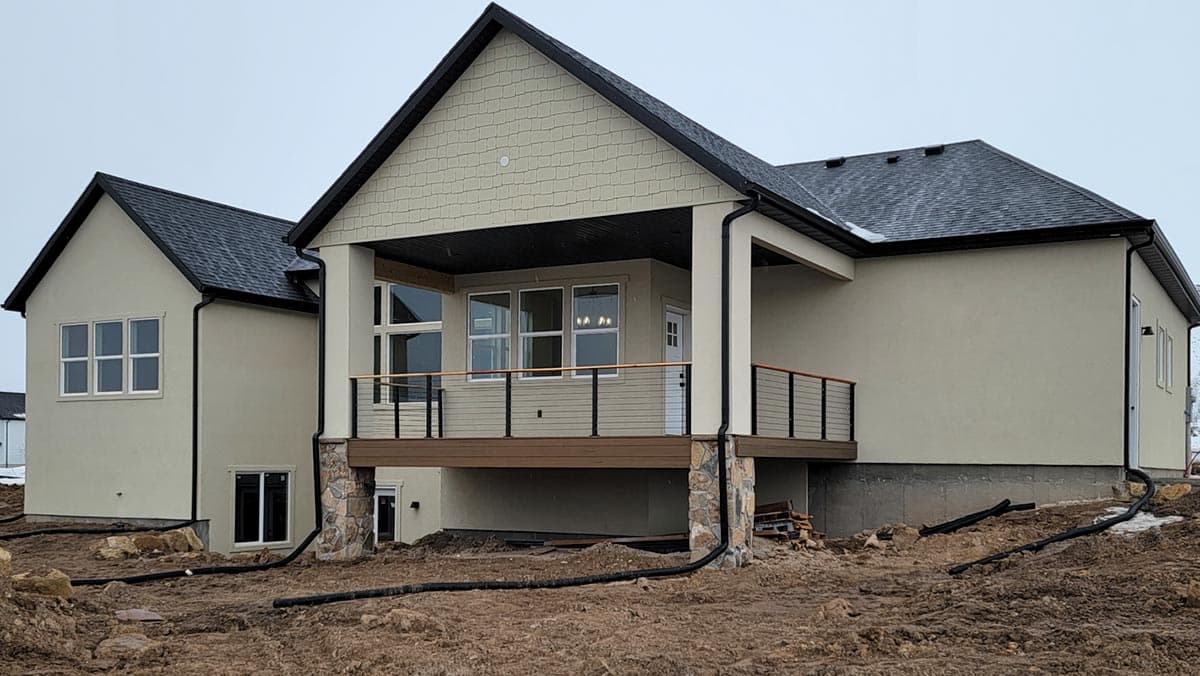

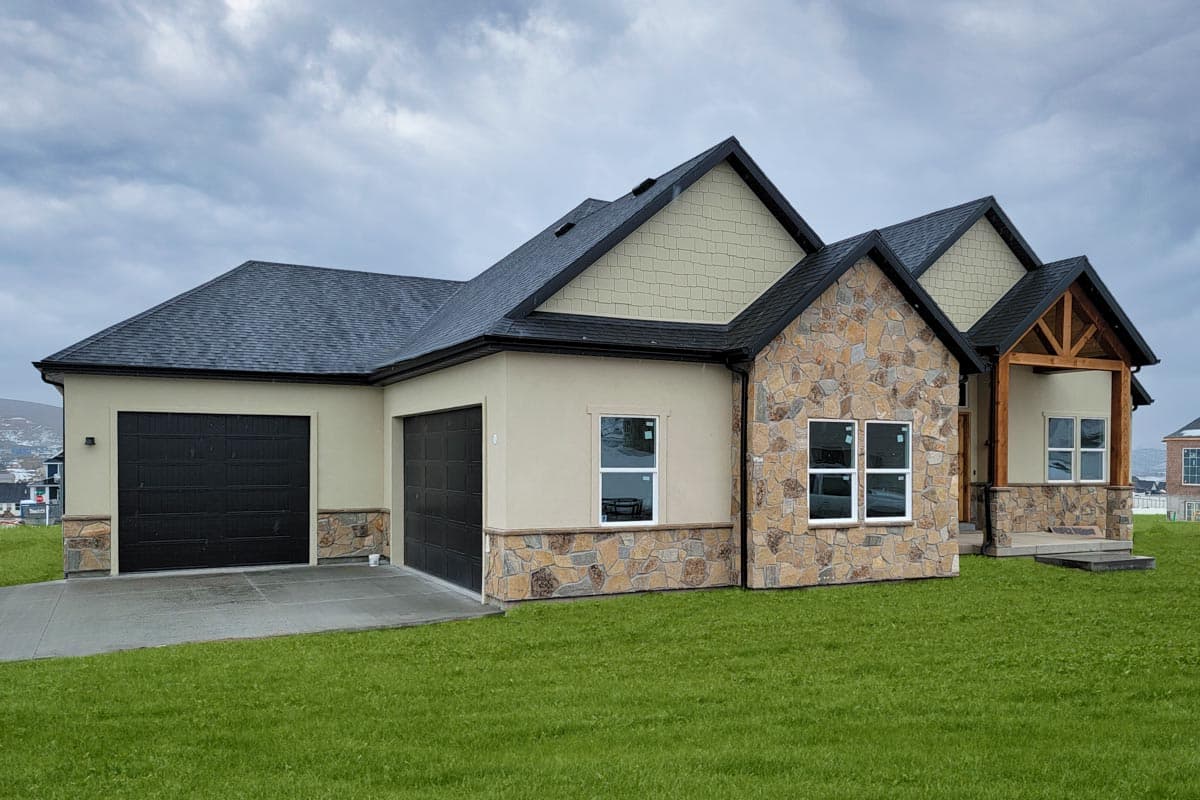

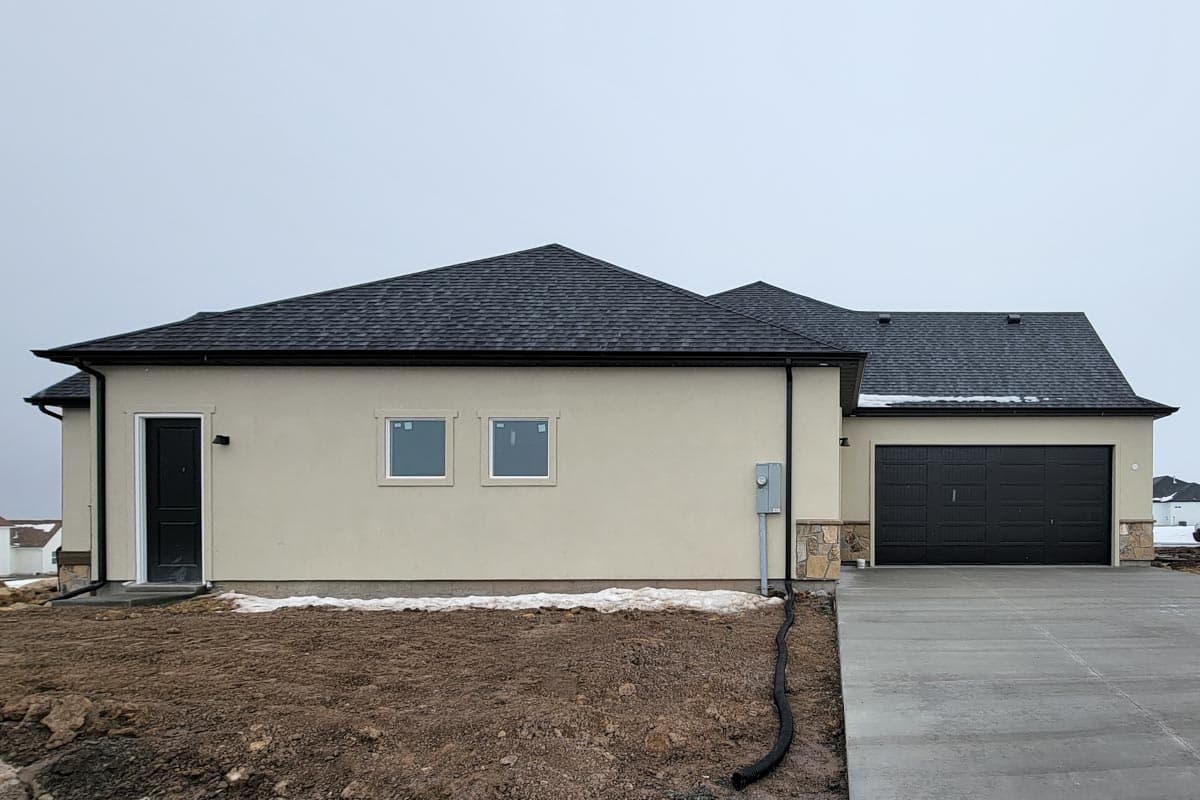

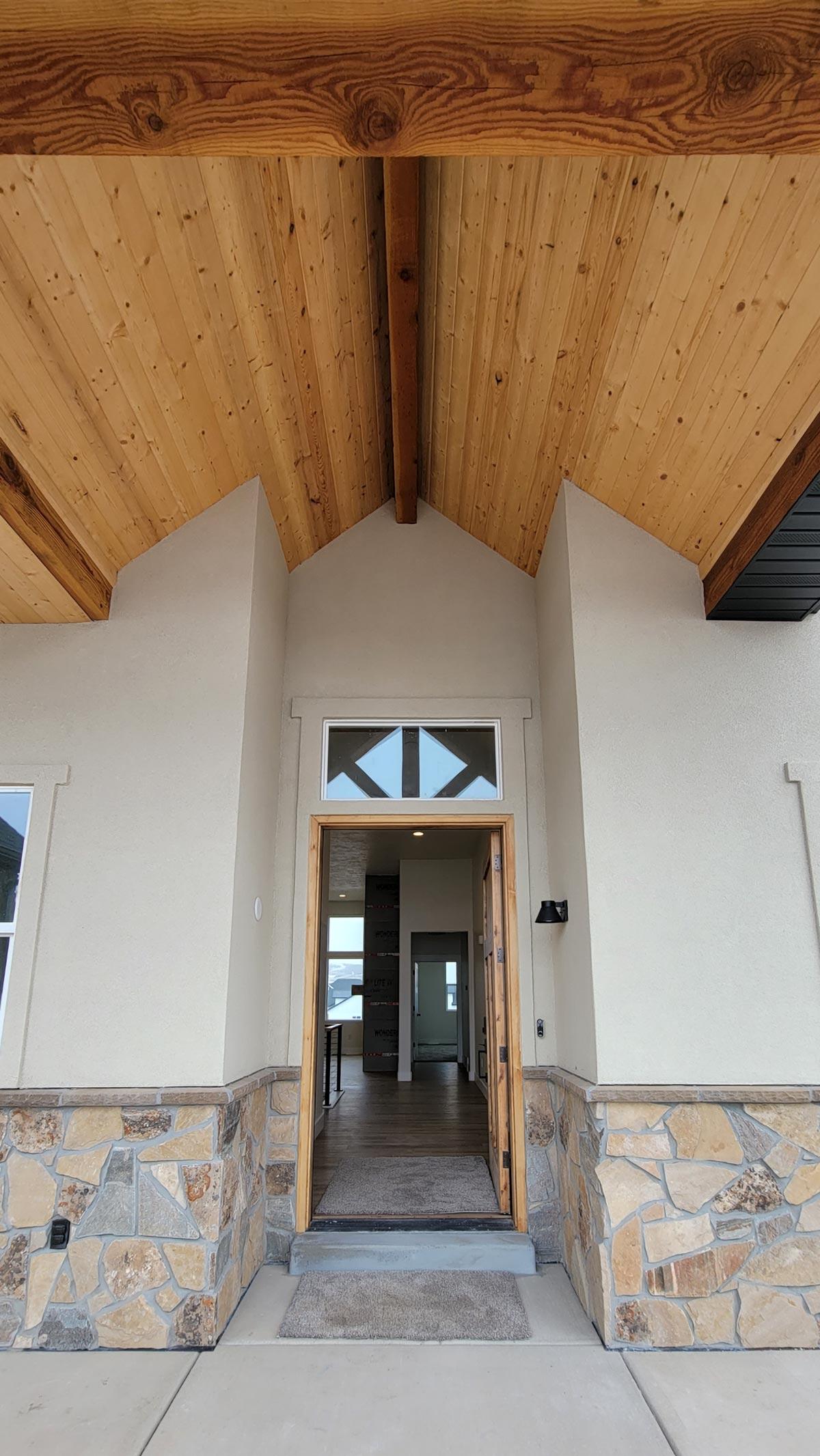

  • Stone and shakes accent the exterior of this Craftsman Ranch home plan that gives you over 4,500 square feet of living space, including an open-concept communal space for family and friends to gather.

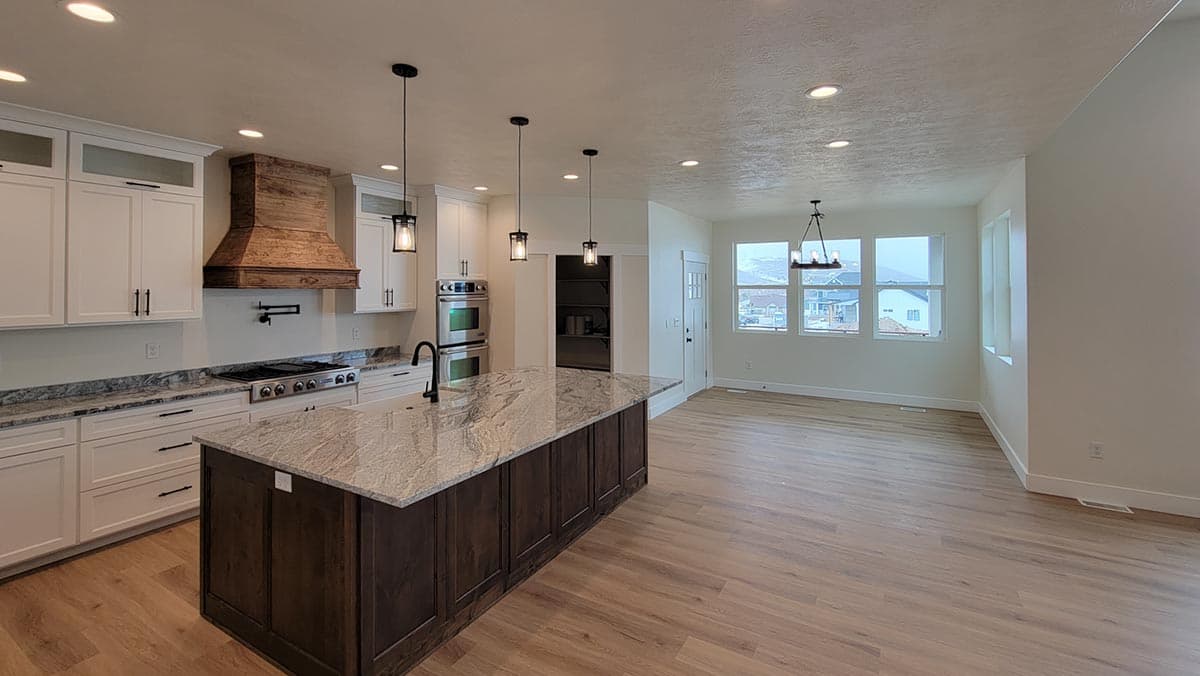

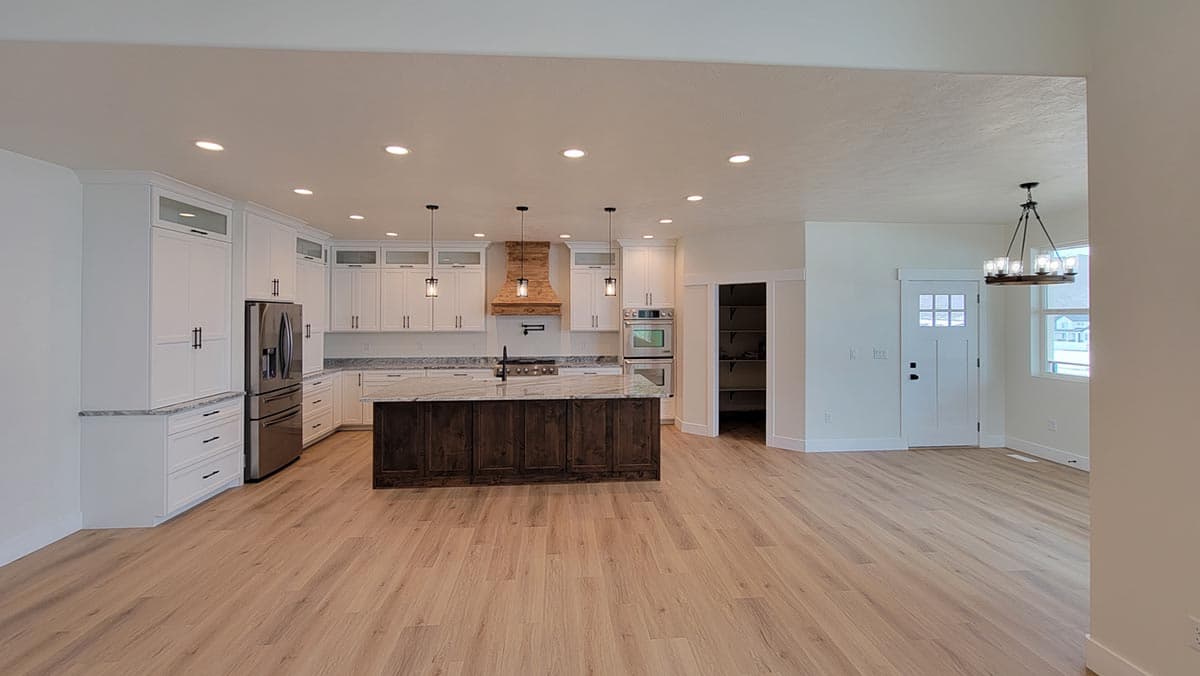

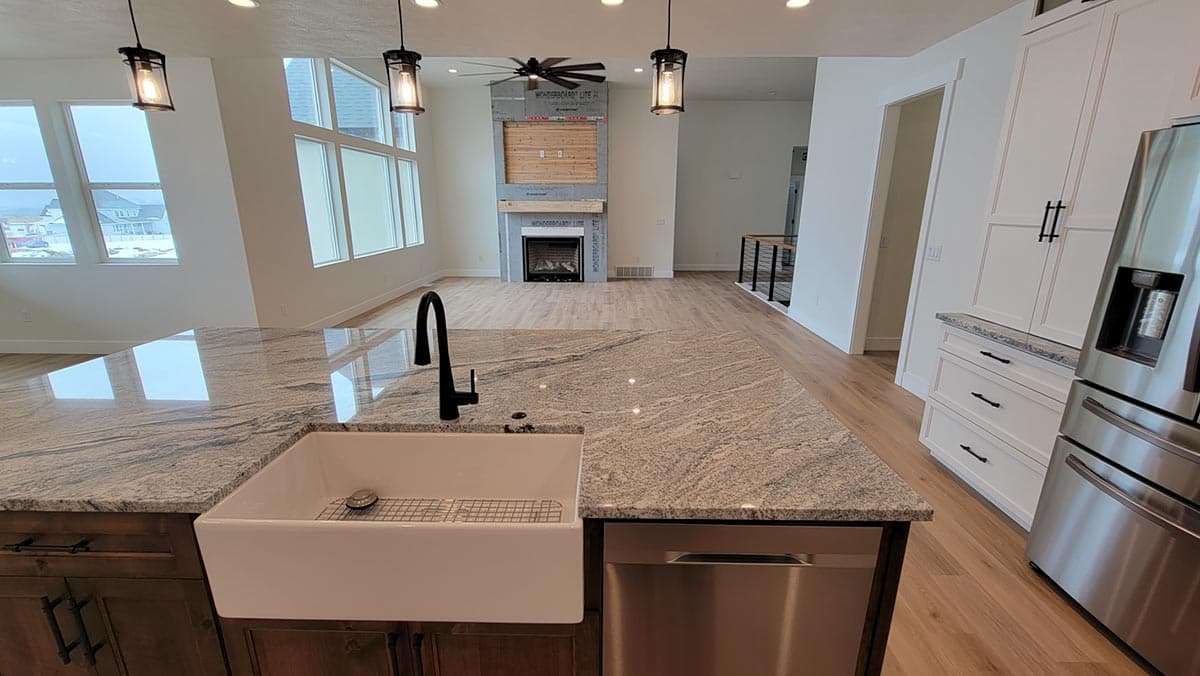

  • Cooking is a delight in this island kitchen with plenty of workspace for meal prep and a large corner pantry for storage. The dining room is filled with natural light and provides access to the rear deck.

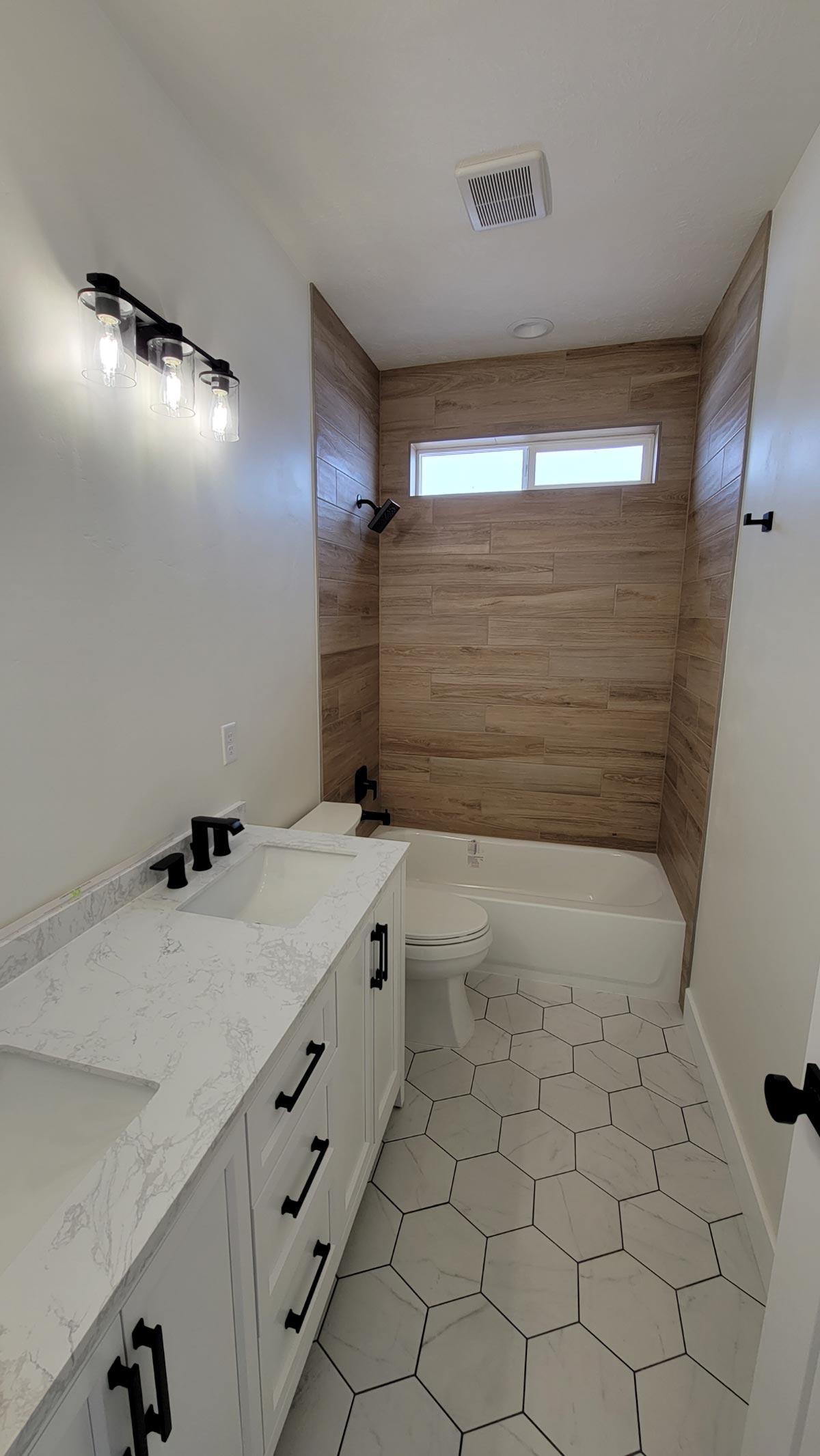

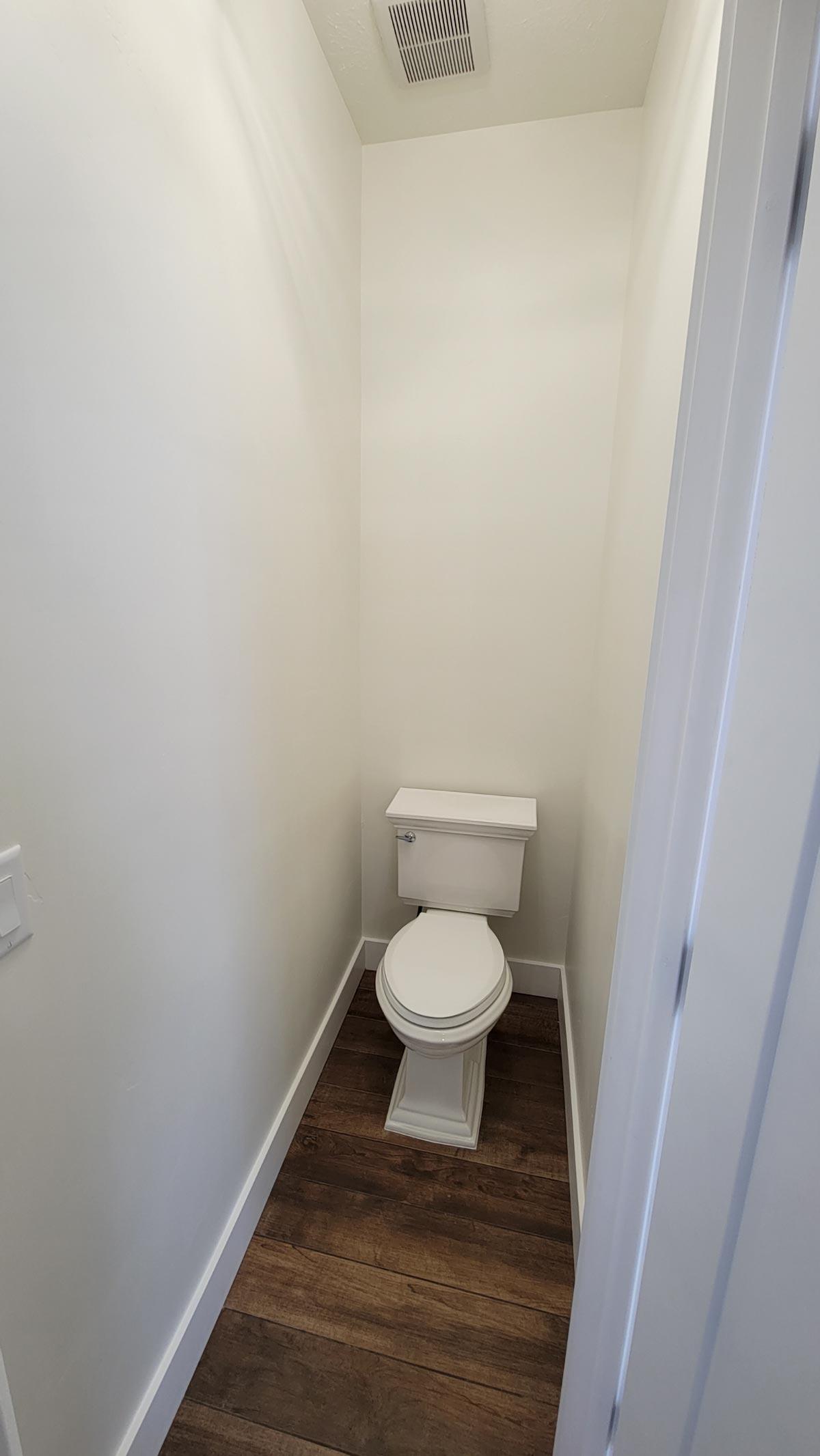

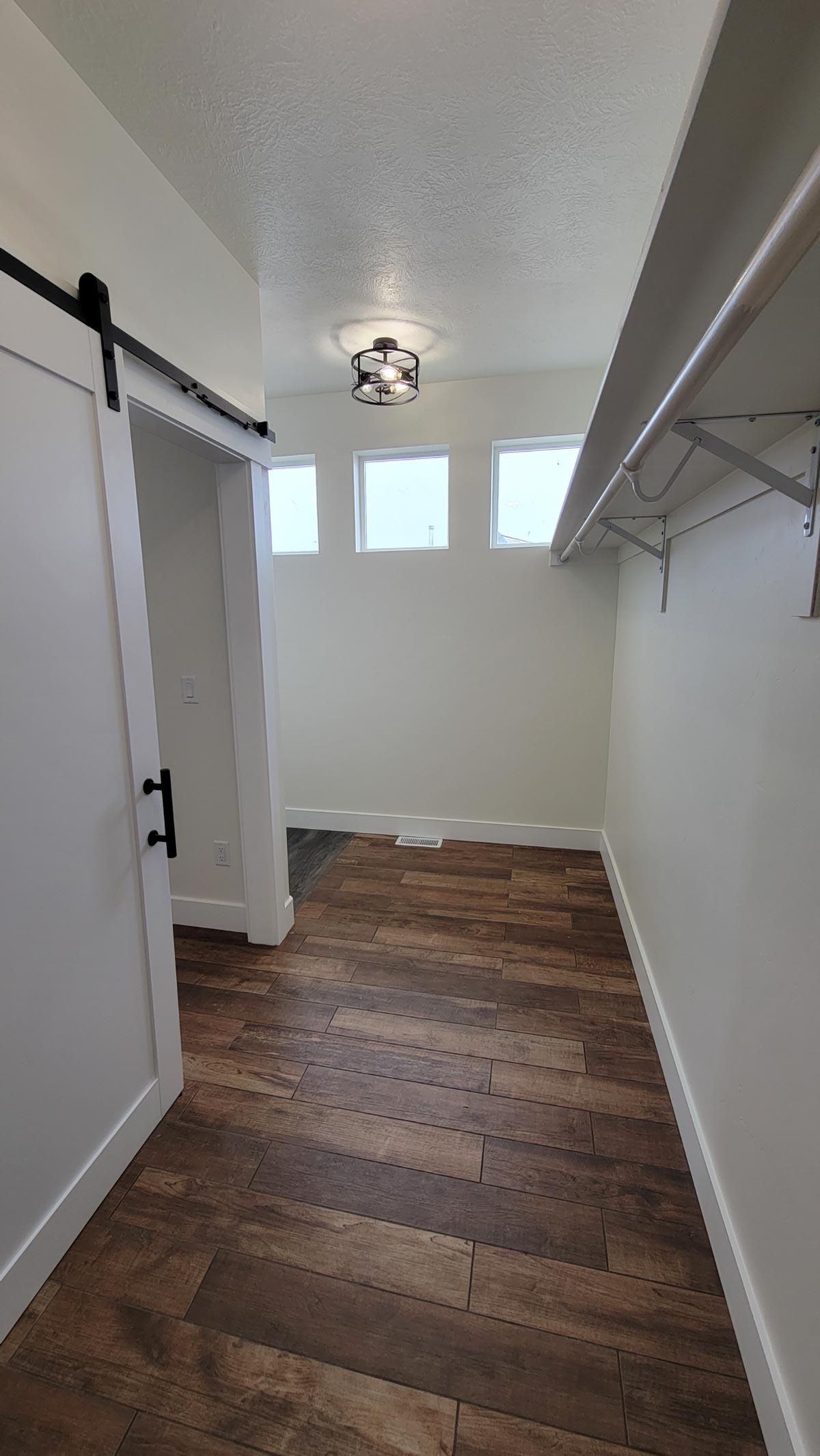

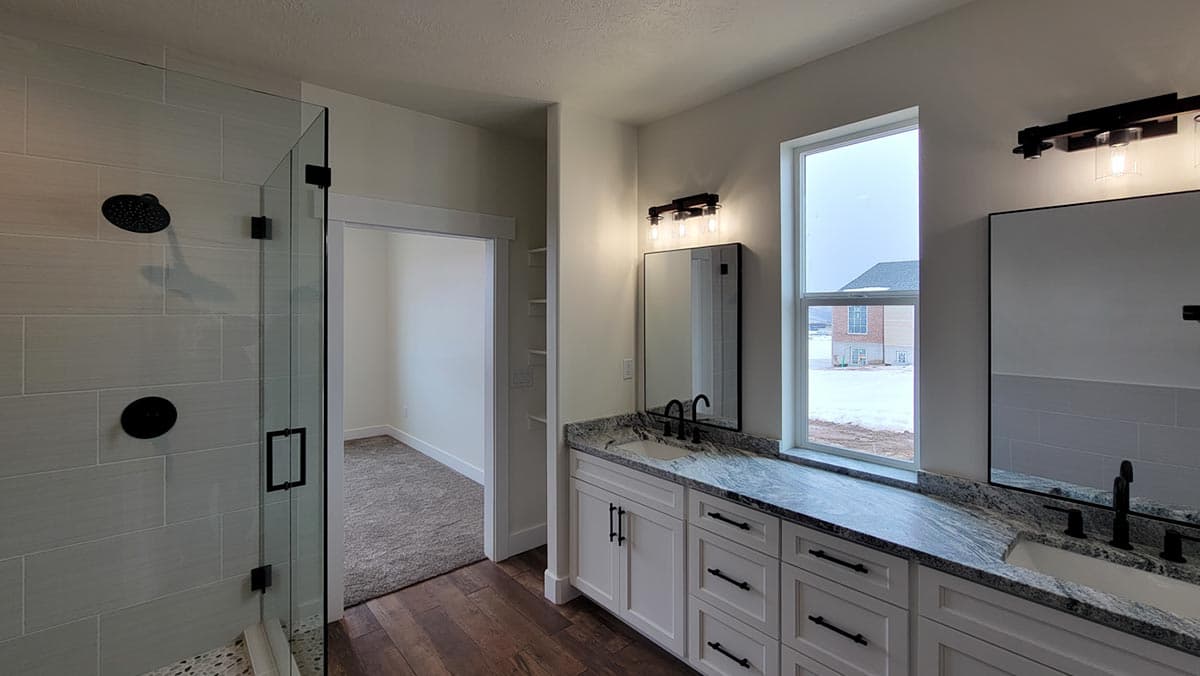

  • Two bedrooms and a flex room complete the main level, including the owner's suite that is tucked towards the rear. The owner's bath boasts a separate tub and shower, two sinks, a toilet room, and walk-in closet.

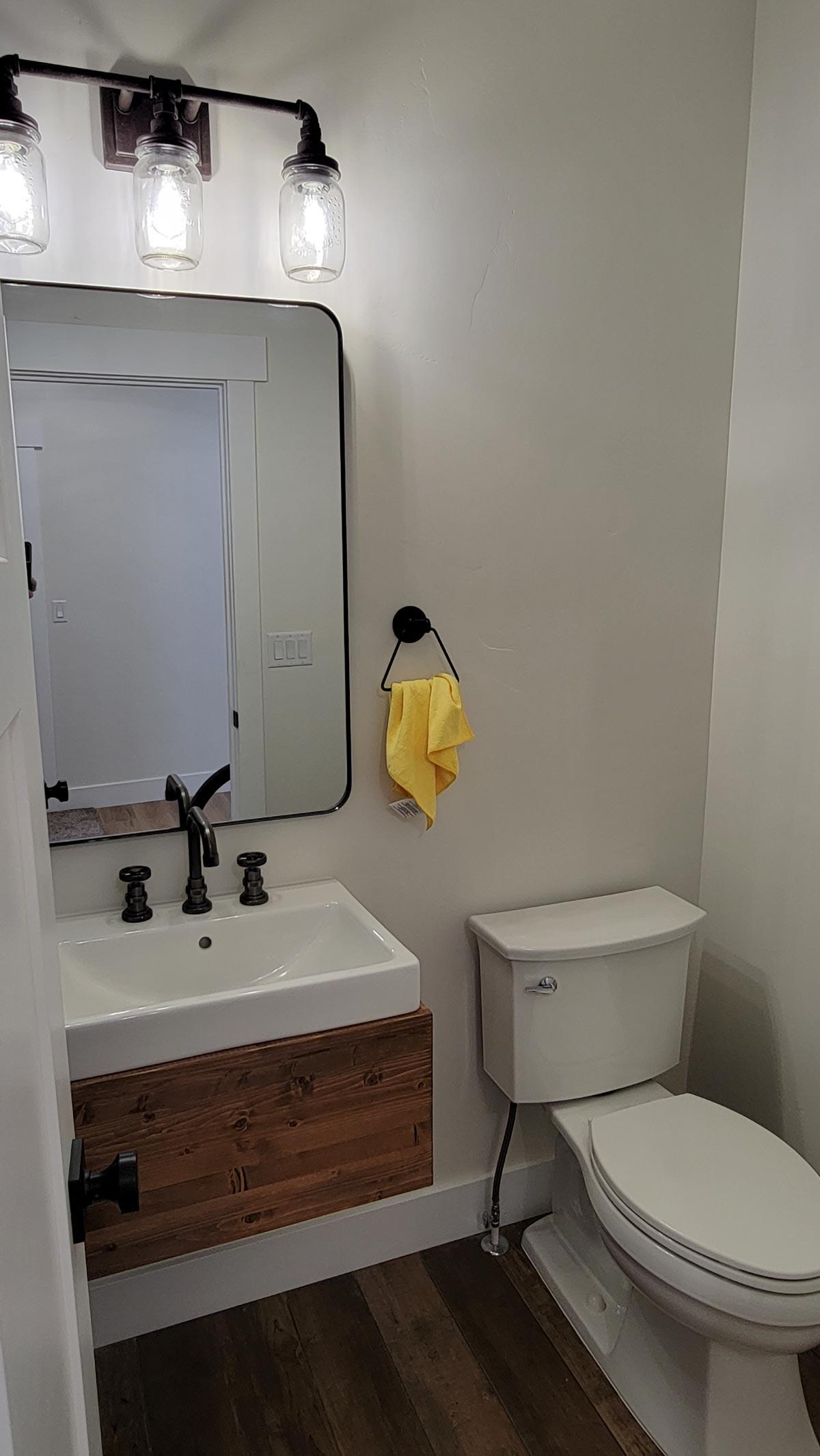

  • Three bays are provided in the L-shaped garage with additional room for storage and a mudroom rests just inside. Discover a dog was in the neighboring powder bath.
  • The lower level is designed for future expansion with 2,284 square feet of living space that includes a large family room with 9' ceilings, three bedrooms, and a laundry room.

What is Included in Our Plans?

We work with hundreds of designer and architects who work in a variety of styles.  It is important to note their plan packages may contain different details so we strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations
  •           Materials list - MAY be available as a purchasable option under the "Options" tab

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Floor Plan

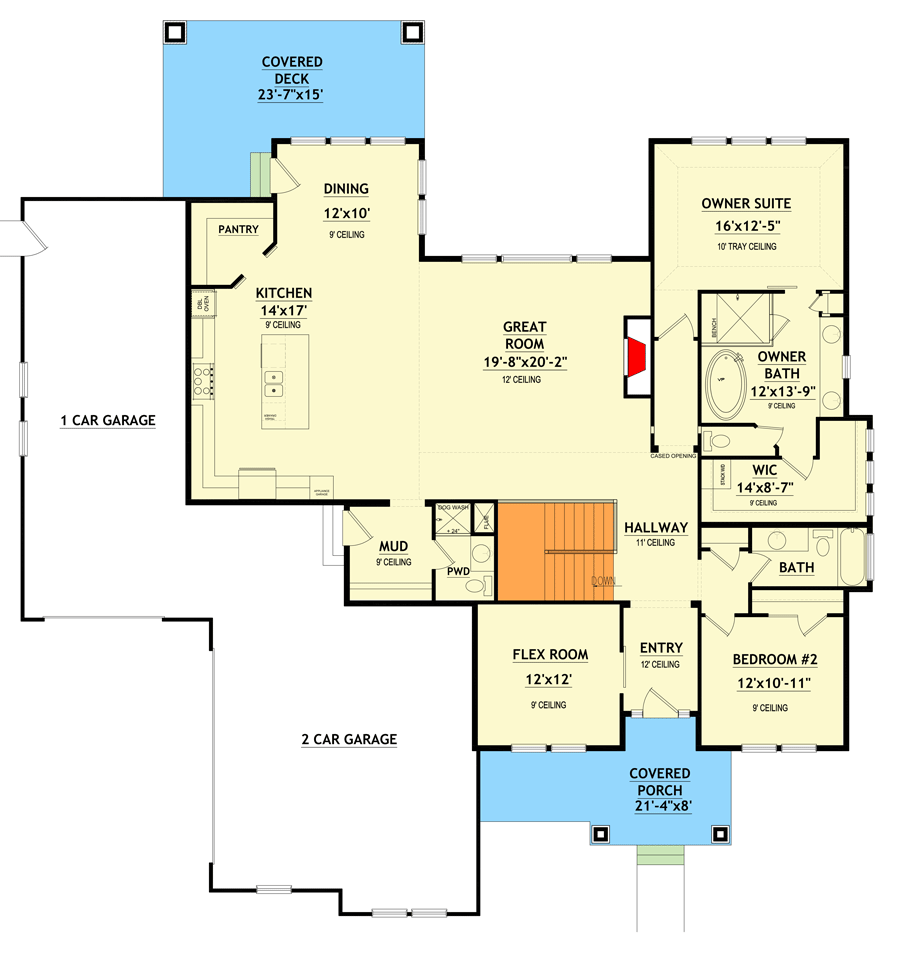

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Craftsman Ranch Plan with Open-Concept Living Space and Flex Room - 849010PGE floor plan - Main Level

Optional Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

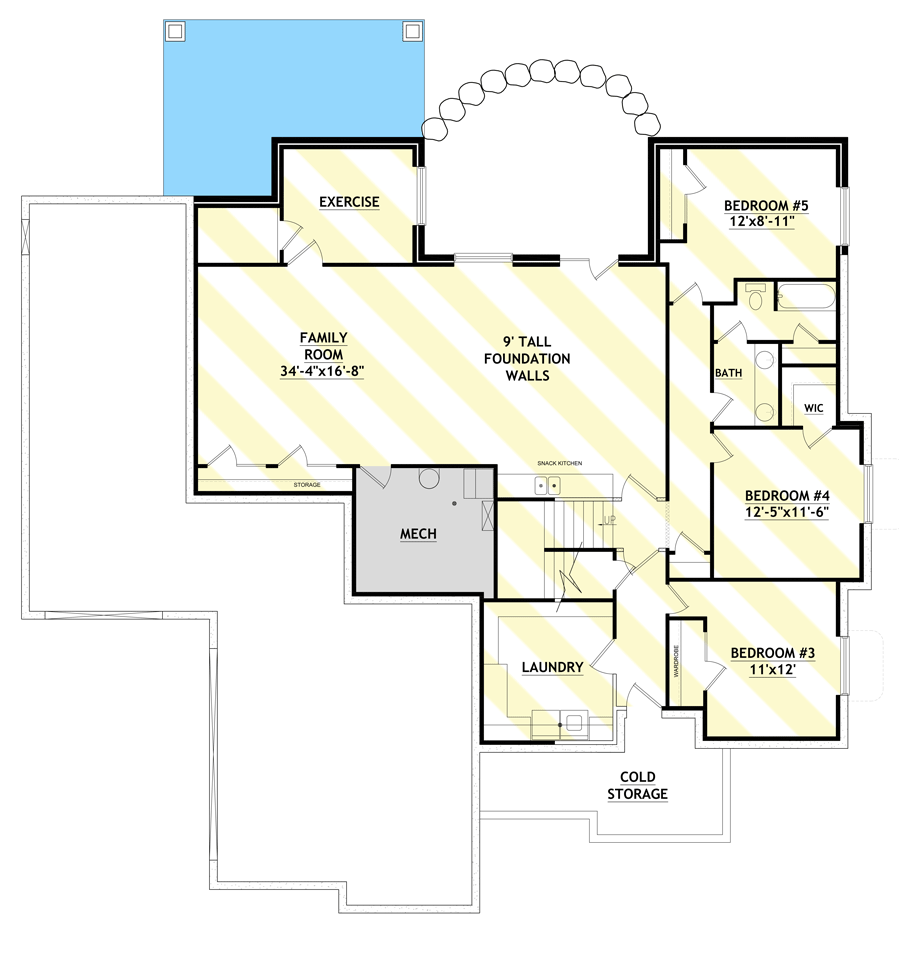

Craftsman Ranch Plan with Open-Concept Living Space and Flex Room - 849010PGE floor plan - Optional Basement

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,584 sq. ft.
  • 1st Floor: 2,300 sq. ft.
  • Basement Unfinished: 2,284 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, 4, or 5
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Slab, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 72' 4"
  • Depth: 76' 0"
  • Max ridge height: 25' 3"

Garage

  • Type: Attached
  • Area: 1160 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Master Bedroom Tray 16' 0" 12' 5"
Master Bath 12' 0" 13' 9"
Master WIC 14' 0" 8' 7"
Kitchen 14' 0" 17' 0"
Dining Room 12' 0" 10' 0"
Great Room 19' 8" 20' 2"
Bedroom 2 12' 0" 11' 10"
Bedroom 3 11' 0" 12' 0"
Bedroom 4 12' 5" 11' 6"
Bedroom 5 12' 0" 8' 11"
Den 12' 0" 12' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Craftsman Ranch Plan with Open-Concept Living Space and Flex Room

  • 4,584

    Heated s.f.

  • 2-5

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,450
  • CAD - Single-Build $3,150
  • View all purchase option online

About This Plan

  • Stone and shakes accent the exterior of this Craftsman Ranch home plan that gives you over 4,500 square feet of living space, including an open-concept communal space for family and friends to gather.
  • Cooking is a delight in this island kitchen with plenty of workspace for meal prep and a large corner pantry for storage. The dining room is filled with natural light and provides access to the rear deck.
  • Two bedrooms and a flex room complete the main level, including the owner's suite that is tucked towards the rear. The owner's bath boasts a separate tub and shower, two sinks, a toilet room, and walk-in closet.
  • Three bays are provided in the L-shaped garage with additional room for storage and a mudroom rests just inside. Discover a dog was in the neighboring powder bath.
  • The lower level is designed for future expansion with 2,284 square feet of living space that includes a large family room with 9' ceilings, three bedrooms, and a laundry room.

Floor Plans

  • Main Level

  • Optional Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,584 sq. ft.
  • 1st Floor: 2,300 sq. ft.
  • Basement Unfinished: 2,284 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, 4, or 5
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Slab, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 72' 4"
  • Depth: 76' 0"
  • Max ridge height: 25' 3"

Garage

  • Type: Attached
  • Area: 1160 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
Plan 849010PGE
View this and more for this plan by visiting www.architechtecturaldesigns.com/849010PGE
|
