Craftsman Ranch Plan with Split-bed Layout

Heated S.F.
1,658
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 790143GLV

Main Level
Main Level

Plan 790143GLV

M-F 9am-5pm EST |

1-203-761-8500

Main Level

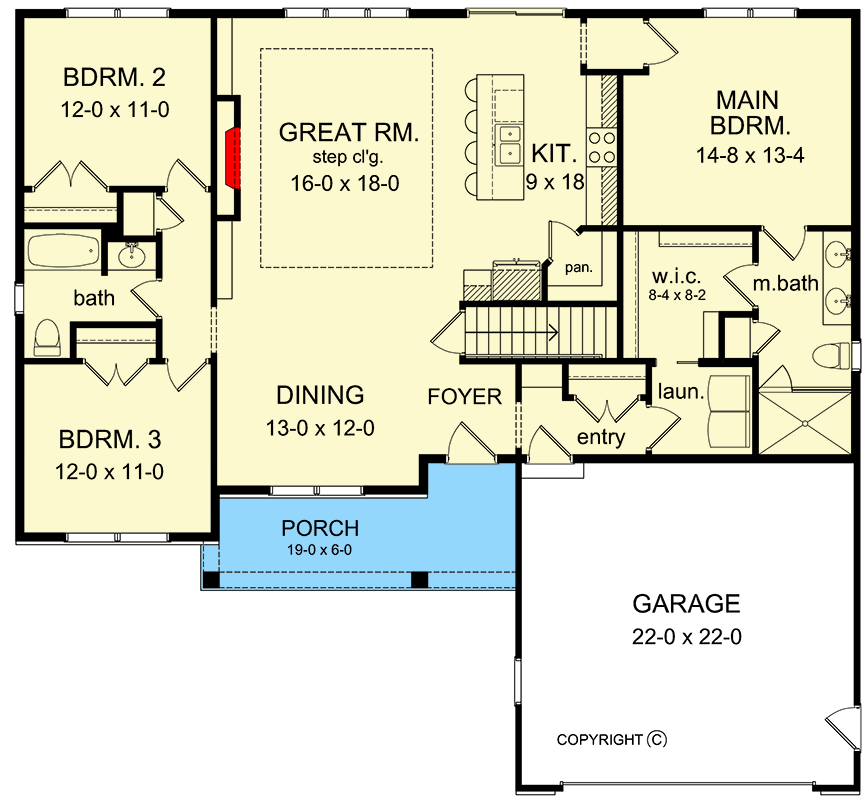

Plan 790143GLV: Craftsman Ranch Plan with Split-bed Layout - Floor Plan - Main Level - Country, Craftsman, Ranch, Traditional

Plan Details

  • Warm and soothing describe the exterior color palette, as well as the comfortable interior flow of this Craftsman Ranch home plan that totals 1,658 square feet of living space.
  • The central and open living space serves as additional separation between the main and secondary bedrooms for the utmost privacy.
  • A step ceiling helps to define the great room, while the kitchen's island includes a flush eating bar with four seats.
  • Tucked behind the double garage, discover the main bedroom with a 4-fixture bathroom and walk-in closet with access to the laundry room through a pocket door.
  • Bedrooms 2 and 3 are identical in size and share the hall bathroom.

What's Included

  • Cover sheet with notes
  • Elevations
  • Basement and foundation plan and typical wall section
  • Detailed floor plans
  • Sections
  • Roof plan
  • Details
  • Reinforcing notes

What's Not Included

  • Electrical Plans
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,658 sq. ft.

1st Floor

1,658 sq. ft.

Basement Unfinished

1,498 sq. ft.

Porch, Front

128 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

54' 0"

Depth

50' 0"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

484 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

12 on 12

Framing Type

Stick And Truss

Architectural Style

Country

Craftsman

Ranch

Traditional

Special Features

Bedrooms - Split

Formal Dining

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Plan Collections

Exclusive
