Plan 290039IY Craftsman Ranch with Optional Finished Lower Level

2,123 3-5 2.5 - 3.5 1 4
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Craftsman Ranch with Optional Finished Lower Level

Plan 290039IY

  • 2,123

    Heated s.f.

  • 3-5

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Stories

  • 4

    Cars

  • Rugged good looks and the option to enlarge this Craftsman Ranch home are sure to appeal to homeowners.
  • The spacious, open living area connects the eating, cooking and living areas at the back of the home.
  • A large mud room is always welcome and this home delivers.

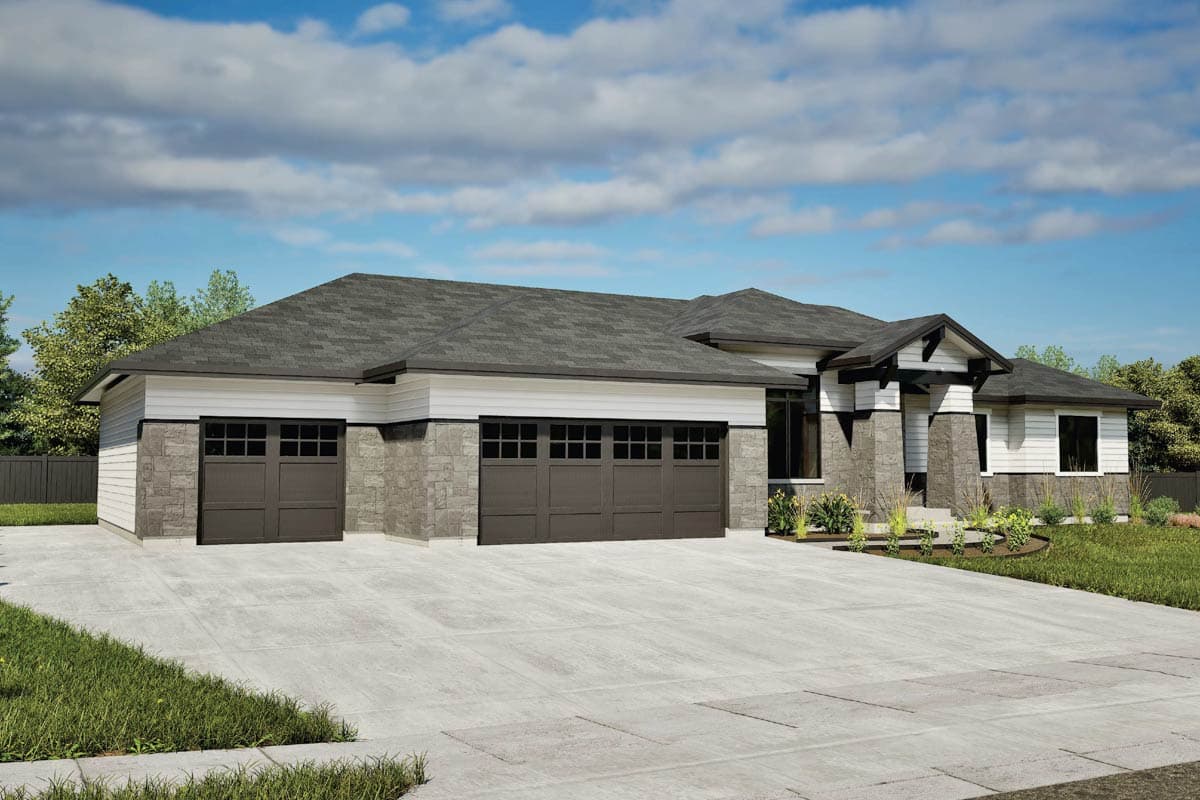

  • There's room for 4 cars with a long tandem bay and a two car bay staggered for visual appeal.
  • Bedrooms are grouped on the right side of the home with the master suite having a quiet location in back.
  • Gain an extra 1,700 square feet of living space by finishing the lower level.
  • The layout is drawn for a massive rec room and two extra bedrooms.

This plan set includes the following:
  • Cover sheet (with rendering)
  • Notes page
  • Complete schedule page
  • Foundation plan
  • Floor plans
  • Dimension plans

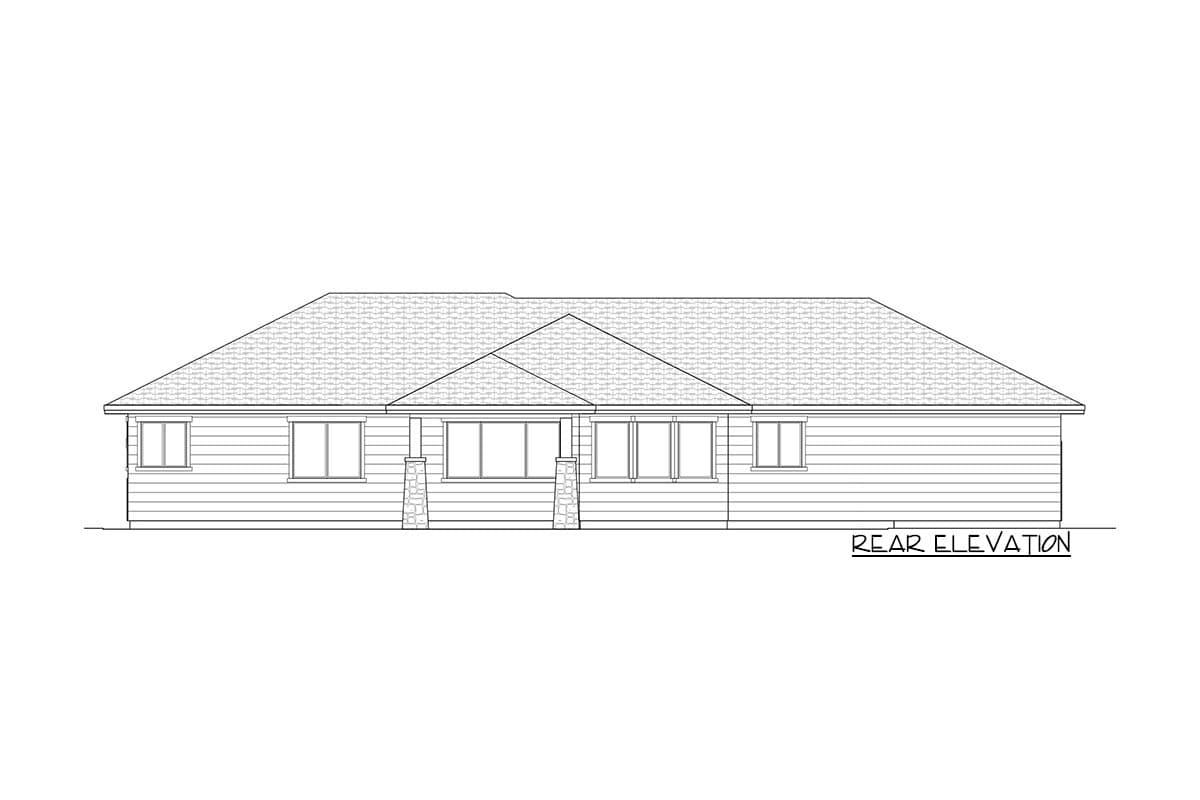

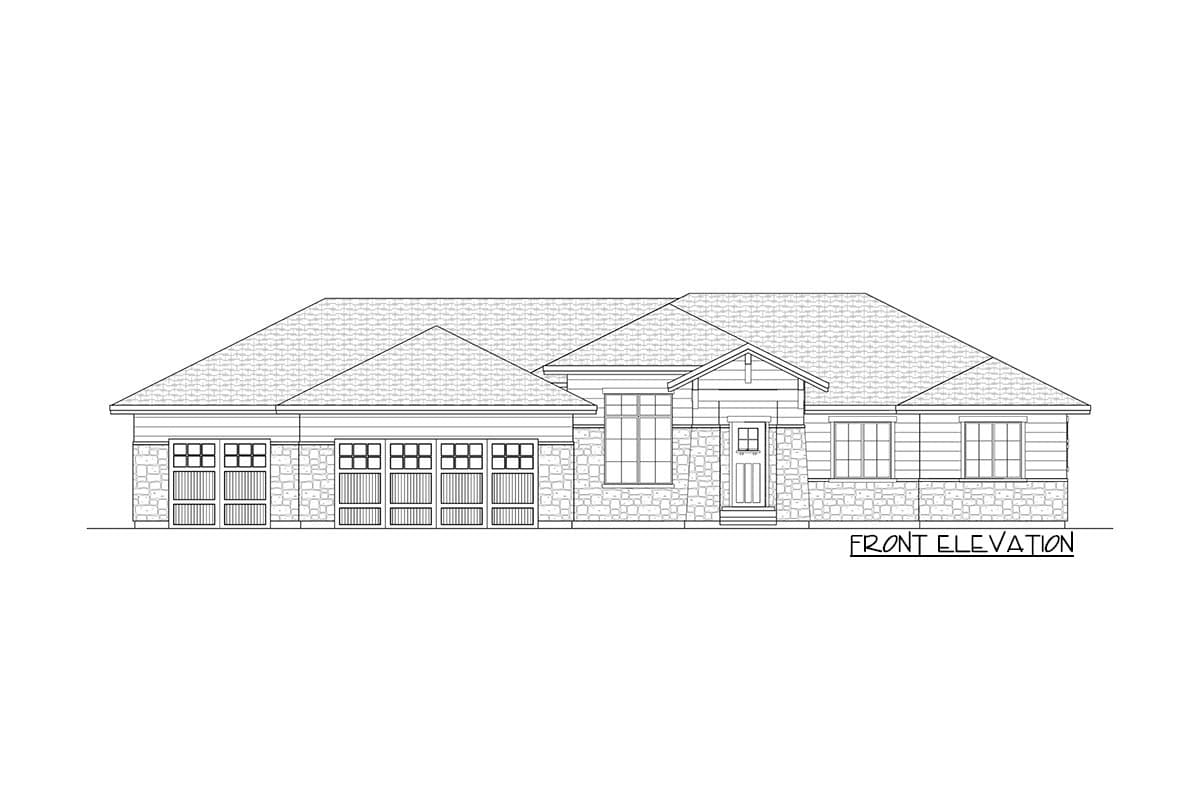

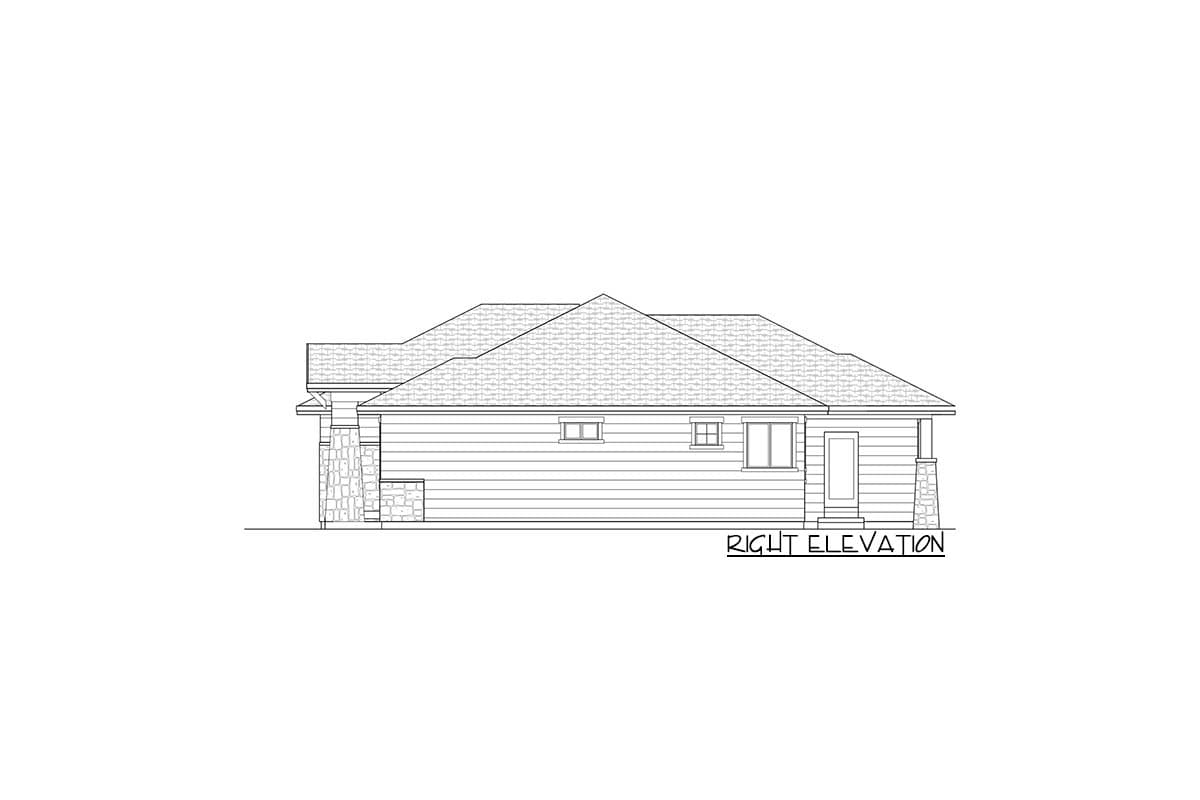

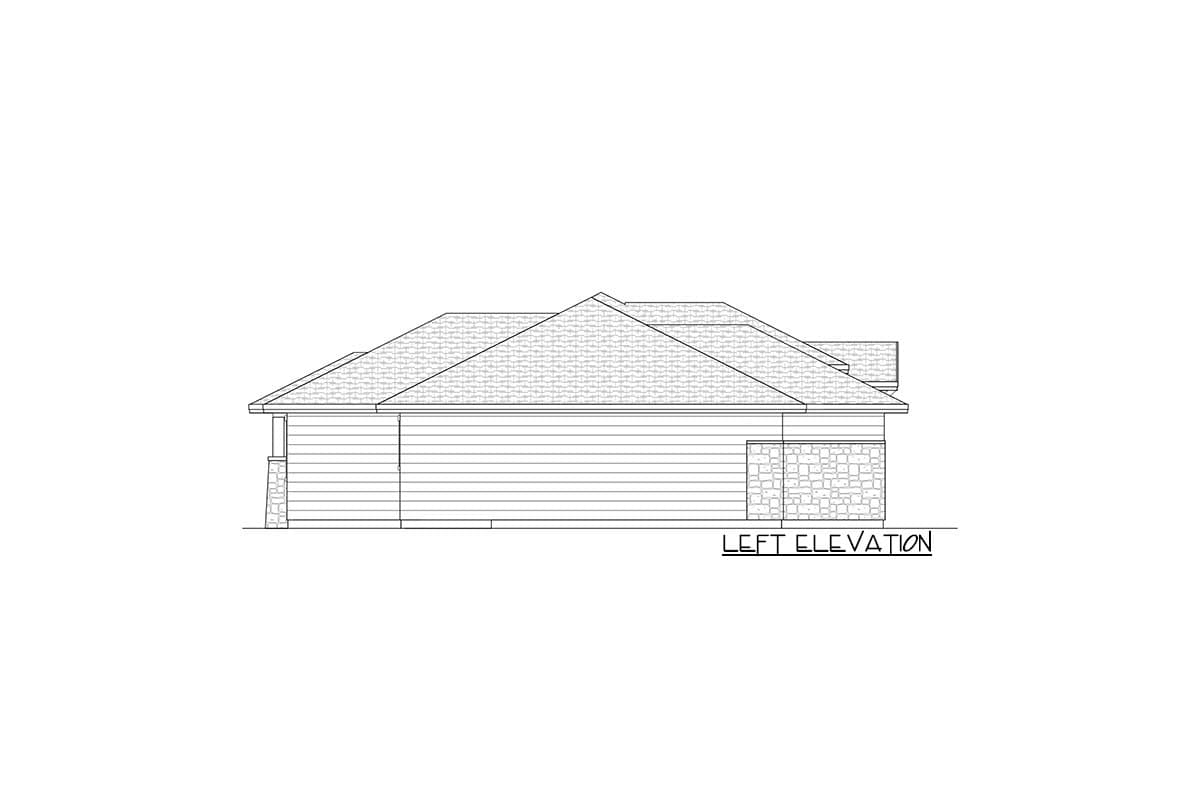

  • Elevations
  • Sections
  • Architectural details
  • 3D perspective views (not included with all plans)
  • Floor finish plans
  • Roof plan
  • Lighting plans, and power plans.

Note: Contact us if building in Utah as these plans may not be available for construction in certain areas in that state.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

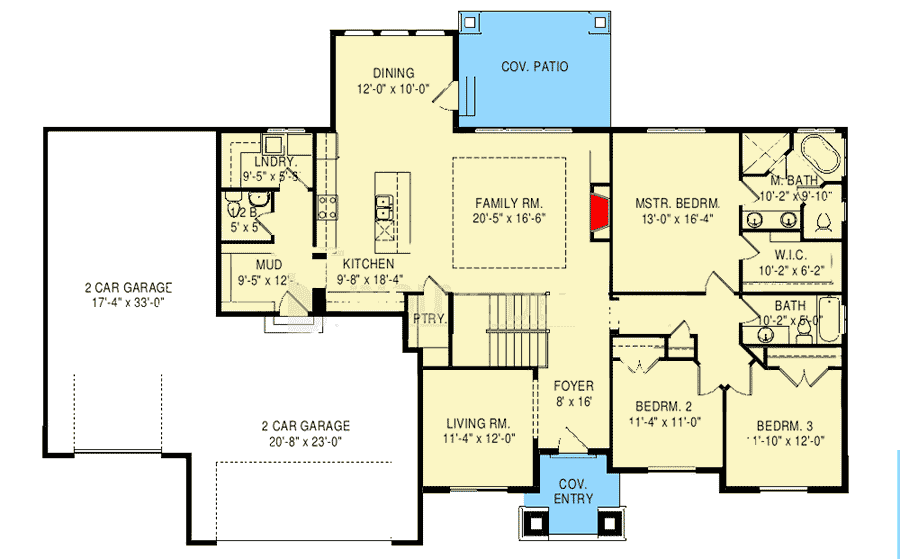

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Craftsman Ranch with Optional Finished Lower Level - 290039IY floor plan - Main Level

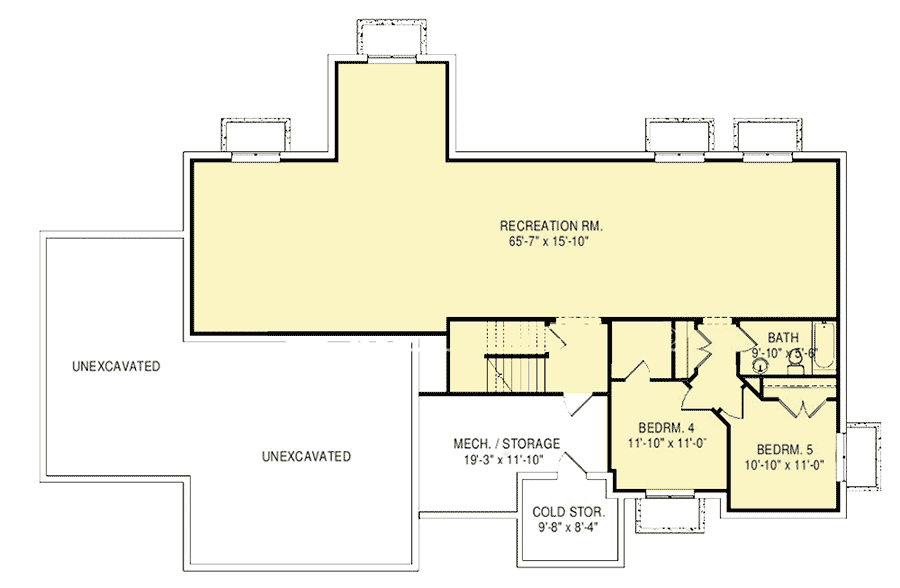

Optional Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Craftsman Ranch with Optional Finished Lower Level - 290039IY floor plan - Optional Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,123 sq. ft.
  • 1st Floor: 2,123 sq. ft.
  • Optional Lower Level: 1,686 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Crawl, Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 82' 5"
  • Depth: 52' 9"
  • Max ridge height: 20' 10"

Garage

  • Type: Attached
  • Area: 1100 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof Details

  • Primary Pitch: 6 on 12

Architectural Style

Special features

Craftsman Ranch with Optional Finished Lower Level

  • 2,123

    Heated s.f.

  • 3-5

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $2,123
  • CAD - Single-Build $3,285
  • View all purchase option online

About This Plan

  • Rugged good looks and the option to enlarge this Craftsman Ranch home are sure to appeal to homeowners.
  • The spacious, open living area connects the eating, cooking and living areas at the back of the home.
  • A large mud room is always welcome and this home delivers.
  • There's room for 4 cars with a long tandem bay and a two car bay staggered for visual appeal.
  • Bedrooms are grouped on the right side of the home with the master suite having a quiet location in back.
  • Gain an extra 1,700 square feet of living space by finishing the lower level.
  • The layout is drawn for a massive rec room and two extra bedrooms.

Floor Plans

  • Main Level

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,123 sq. ft.
  • 1st Floor: 2,123 sq. ft.
  • Optional Lower Level: 1,686 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 82' 5"
  • Depth: 52' 9"
  • Max ridge height: 20' 10"

Garage

  • Type: Attached
  • Area: 1100 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
Plan 290039IY
