Craftsman Retreat With Detached Garage

Heated S.F.
2,919
Beds
3
Baths
3.5
Stories
2
Cars
2

Floor Plan

Plan 29866RL

Main Level
Main Level
2nd Floor
2nd Floor
Basement Unfinished
Basement Unfinished

Plan 29866RL

M-F 9am-5pm EST |

1-203-761-8500

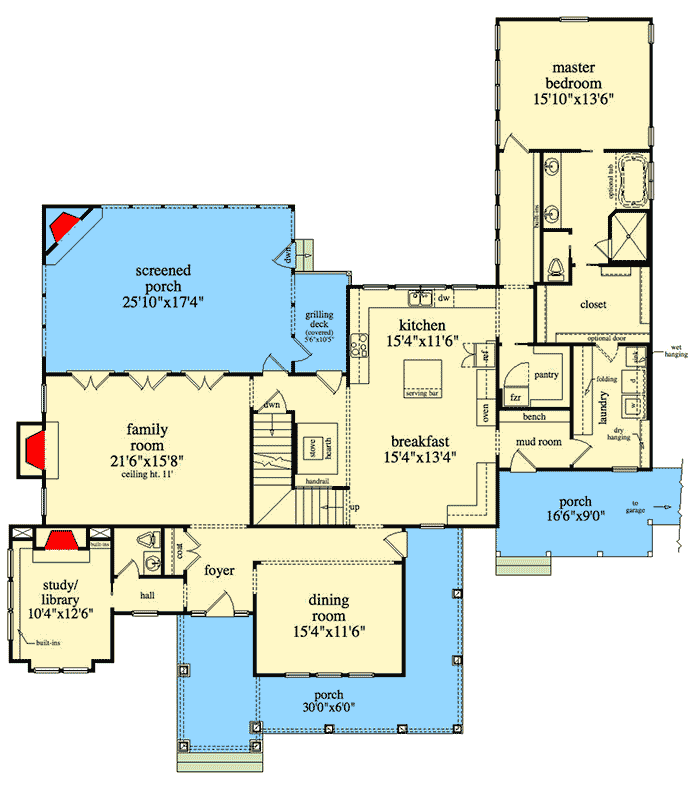

Main Level

Plan 29866RL: Craftsman Retreat With Detached Garage - Floor Plan - Main Level - Country, Craftsman, Mountain

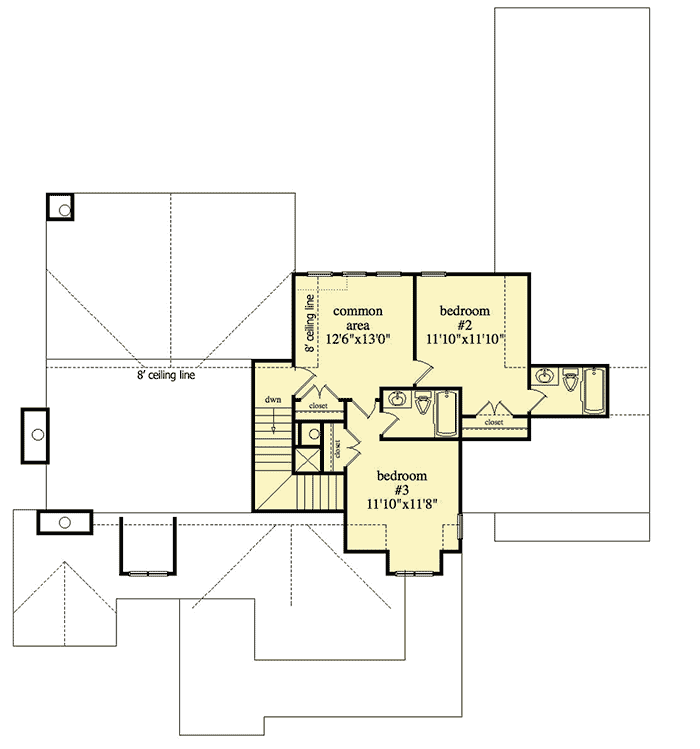

2nd Floor

Plan 29866RL: Craftsman Retreat With Detached Garage - Floor Plan - 2nd Floor - Country, Craftsman, Mountain

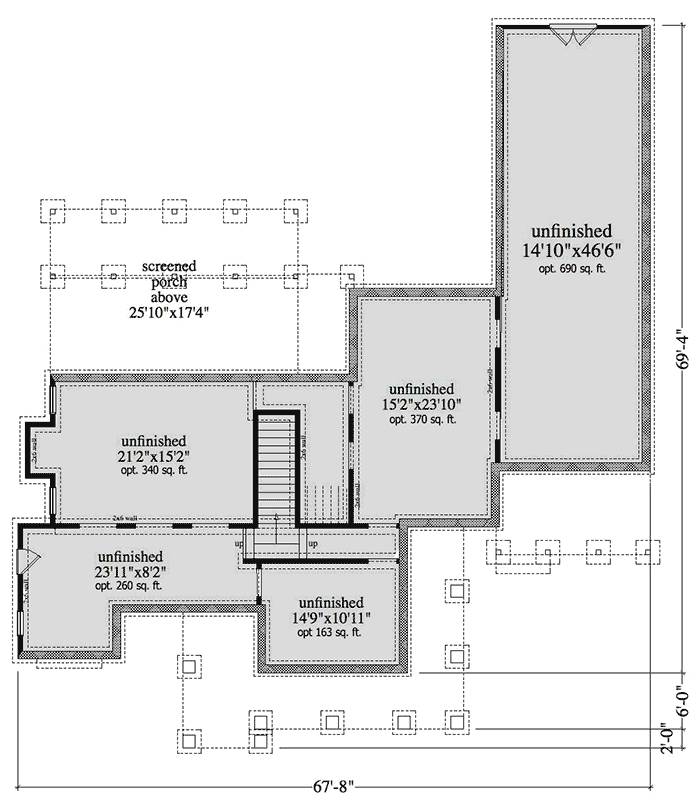

Basement Unfinished

Plan 29866RL: Craftsman Retreat With Detached Garage - Floor Plan - Basement Unfinished - Country, Craftsman, Mountain

Plan Details

  • This is a craftsman style Mountain house plan with a large, cozy front porch and detached 2-car garage.
  • The first floor layout features a private study with built-ins and a family room which opens to a generous screened porch on the back of the house.
  • The kitchen is open to the large breakfast room and the master suite is located on the back of the house for privacy.
  • Upstairs, there is a common area, two additional bedrooms, each with their own private baths.
  • The roof is stick framed with a 10:12 primary pitch and a 5:12 secondary pitch.
  • NOTE: The detached garage comes with the purchase of the plan. You can buy the garage as a separate purchase with plan 29867RL.

What's Included

  • All Four Elevations (front, rear, left, right)
  • 2D Roof overview
  • 3D Roof overview
  • Main Level Layout
  • Basement Level Layout
  • Cross-Section (Typical Wall, Stairs (if applicable))
  • Typical Details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,919 sq. ft.

1st Floor

2,241 sq. ft.

2nd Floor

678 sq. ft.

Basement Unfinished

1,823 sq. ft.

Screened Porch

448 sq. ft.

Storage

330 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

67' 8"

Depth

77' 4"

Max Ridge Height

25' 0"

Garage

Type

Detached

Area

915 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

Mountain

Special Features

Formal Dining

Home Office

In-Law Suite

Laundry Access from Master Suite

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Mudroom

Outdoor Fireplace

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

2,919 sq. ft.

1st Floor

2,241 sq. ft.

2nd Floor

678 sq. ft.

Basement Unfinished

1,823 sq. ft.

Screened Porch

448 sq. ft.

Storage

330 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

67' 8"

Depth

77' 4"

Max Ridge Height

25' 0"

Garage

Type

Detached

Area

915 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

Mountain

Special Features

Formal Dining

Home Office

In-Law Suite

Laundry Access from Master Suite

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Mudroom

Outdoor Fireplace

Walk-in Pantry
