Plan 17730LV
Craftsman Retreat With Room Above
Heated S.F.
3,314
Beds
3
Baths
3.5 - 4.5
Stories
2
Cars
3
What's Included
Plan Details
  • Designed for a lot with great views, this house plan helps you enjoy them with the angled sun room and covered deck in back.
  • The kitchen features a large island with seating and it opens to the breakfast, sunroom, and family room with fireplace.
  • Ideal for outdoor entertaining, the family room and sunroom open onto a covered deck.
  • The master is on the main level for your convenience and privacy and occupies the entire left portion of the home.
  • The upstairs gives you two additional bedrooms plus a loft. And there is a separate stair getting you to the bonus room over the garage for more expansion.
  • Related Plan: Get a walkout basement and eliminate the two upstair suites (and keep the bonus room) with house plan 17500LV.
What's Included
  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Craftsman Retreat With Room Above

  • 3,314

    Heated s.f.

  • 3

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

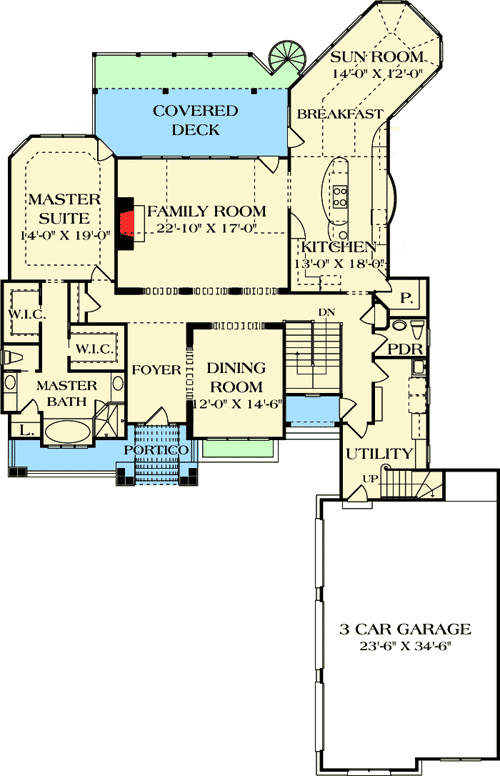

Floor Plan
