Craftsman-style 2-Car Garage Plan with Loft Living Above

Plan 720035DA

  • 801

    Heated s.f.

  • 1

    Baths

  • 2

    Stories

  • 2

    Cars

  • This Craftsman-style garage plan can hold up to 2 cars. Both garage doors are 9' wide and 8' tall.
  • Along the back of the garage is a storage room with mechanical closet.
  • The stairs lead up to the loft living area with kitchen and full bathroom.
  • Related Plans: Get an alternate version with plans 720034DA and 720036DA.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations

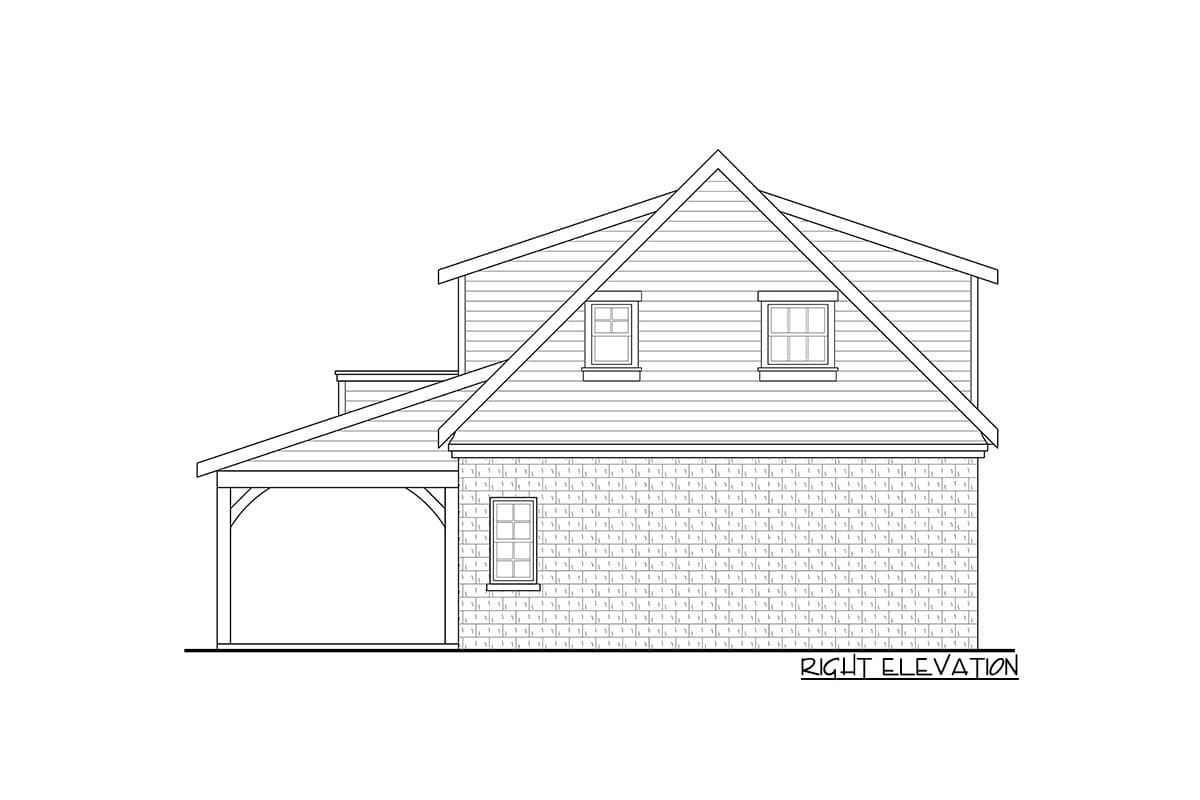

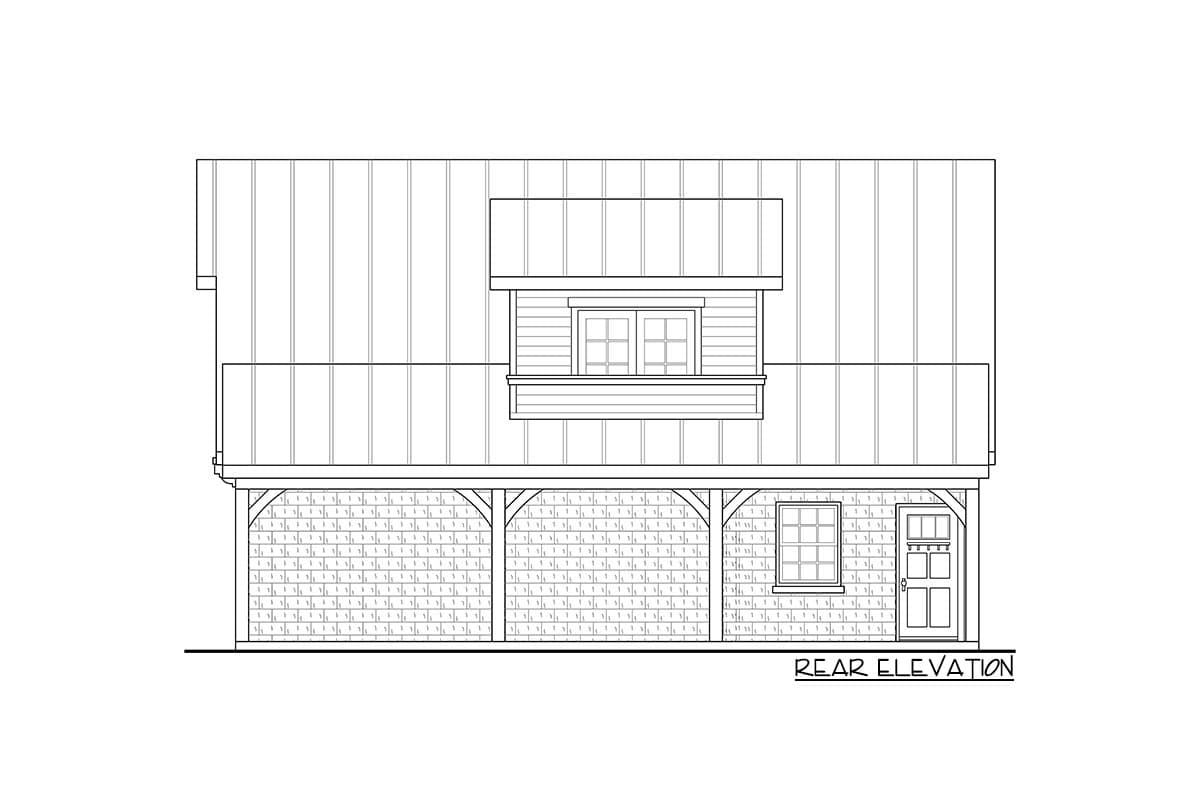

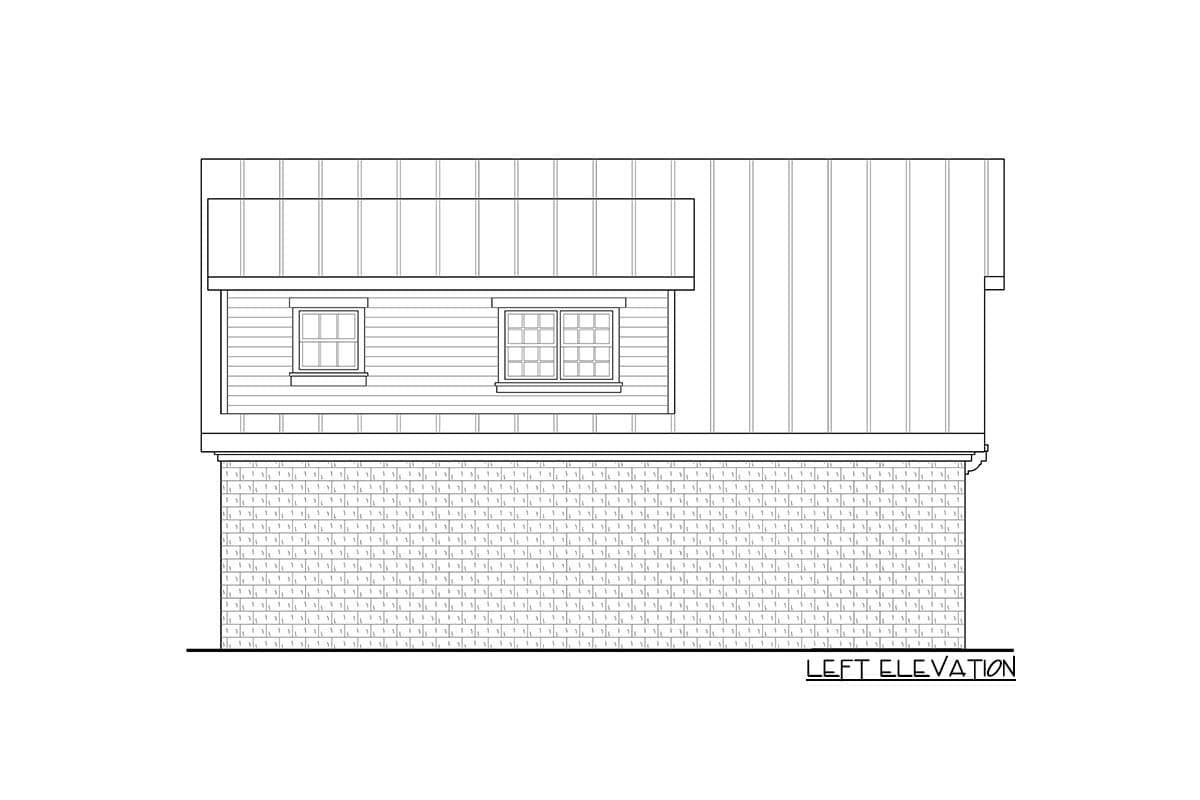

Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

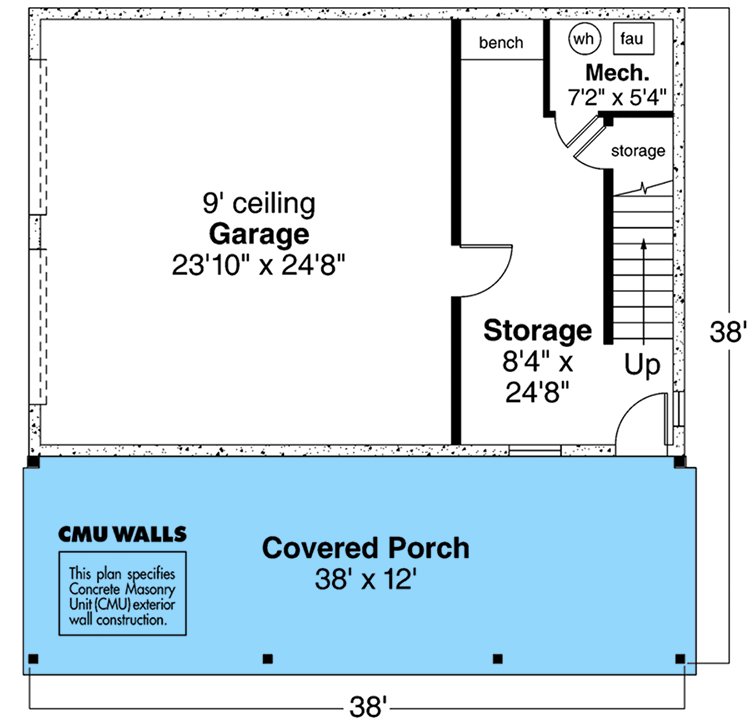

Craftsman-style 2-Car Garage Plan with Loft Living Above - 720035DA floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

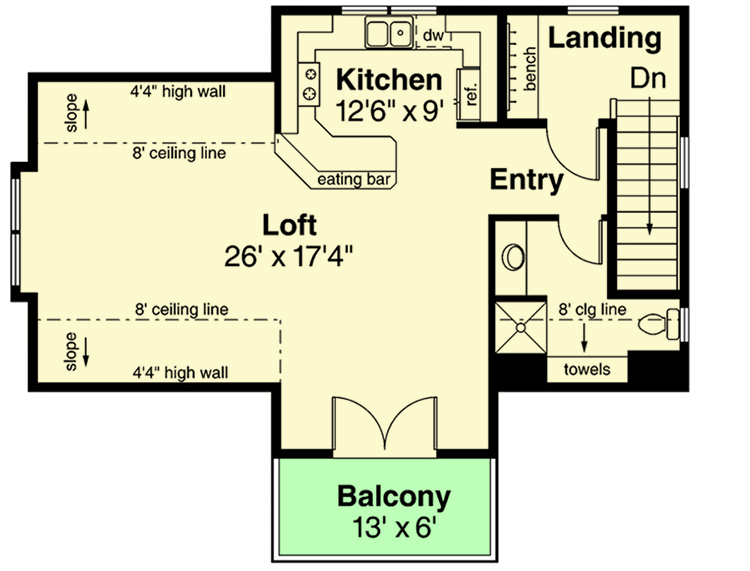

Craftsman-style 2-Car Garage Plan with Loft Living Above - 720035DA floor plan - 2nd Floor

Architectural Style

Special features

Plan Collections

Craftsman-style 2-Car Garage Plan with Loft Living Above

  • 801

    Heated s.f.

  • Beds

  • 1

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 801 sq. ft.
  • 2nd Floor: 801 sq. ft.

Dimensions

  • Width: 38' 0"
  • Depth: 38' 0"
  • Max ridge height: 25' 1"

Beds/Baths

  • Bedrooms:
  • Full bathrooms: 1

Garage

  • Type: Carport, Detached
  • Area: 988 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick And Truss
