Plan 720036DA Detached Garage with 4-car Capacity with Loft Above

1,018 0.5 2 4
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Detached Garage with 4-car Capacity with Loft Above

Plan 720036DA

  • 1,018

    Heated s.f.

  • 0.5

    Baths

  • 2

    Stories

  • 4

    Cars

  • This detached garage plan can house up to 4 cars if you are willing to park 2 cars deep. The single garage door is 18' wide and 8' tall. If you don't want to park two cars bumper to bumper this design is extra deep and would offer storage or shop space towards the back.
  • In the far-left corner is a half bath with room for a storage closet.
  • The stairs lead up to a large loft space which could be finished to fit your needs as an art studio, recreation room, guest suite or whatever else suites.
  • Related Plans: Get alternate versions with house plans 720034DA and 720035DA.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

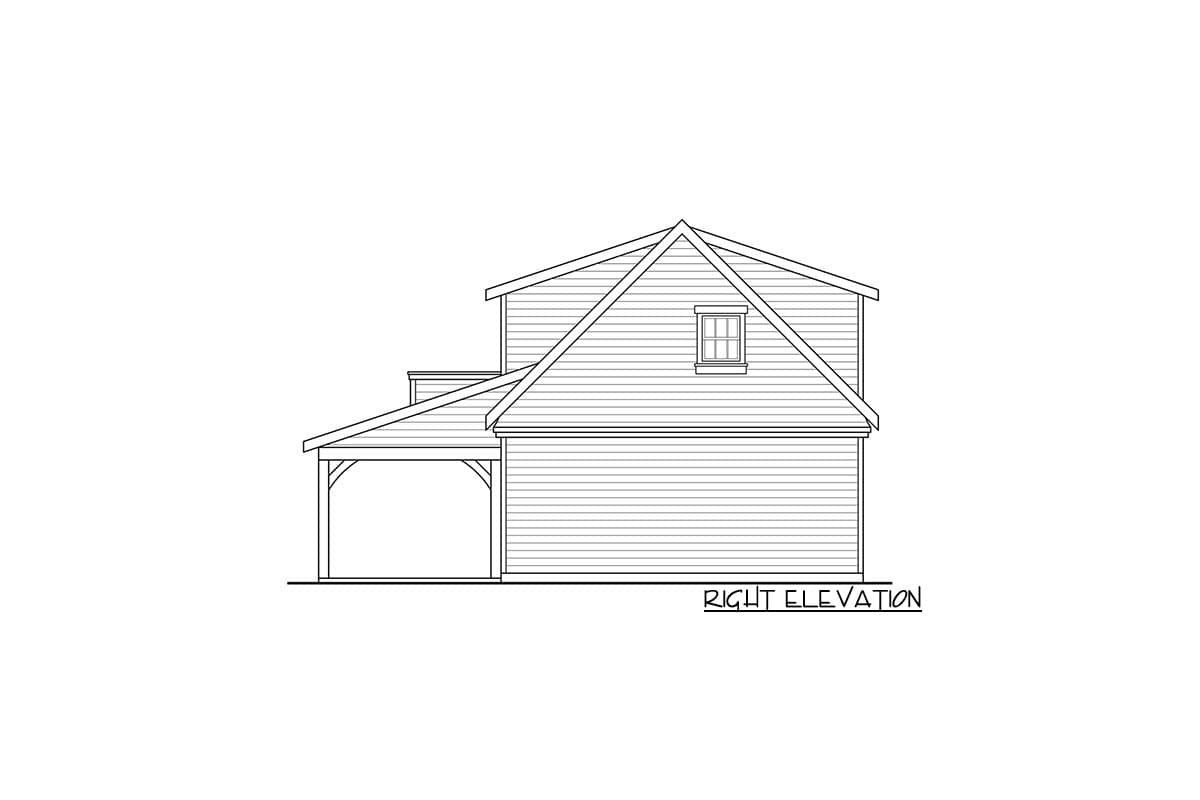

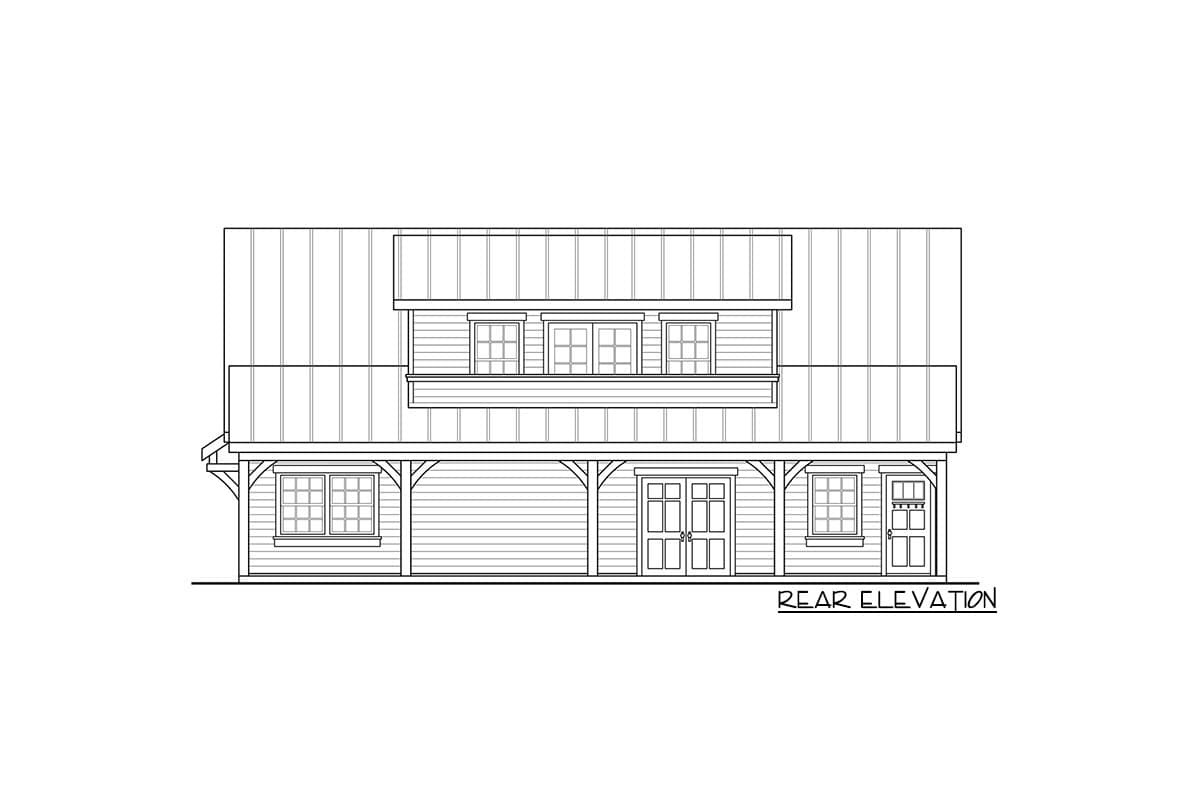

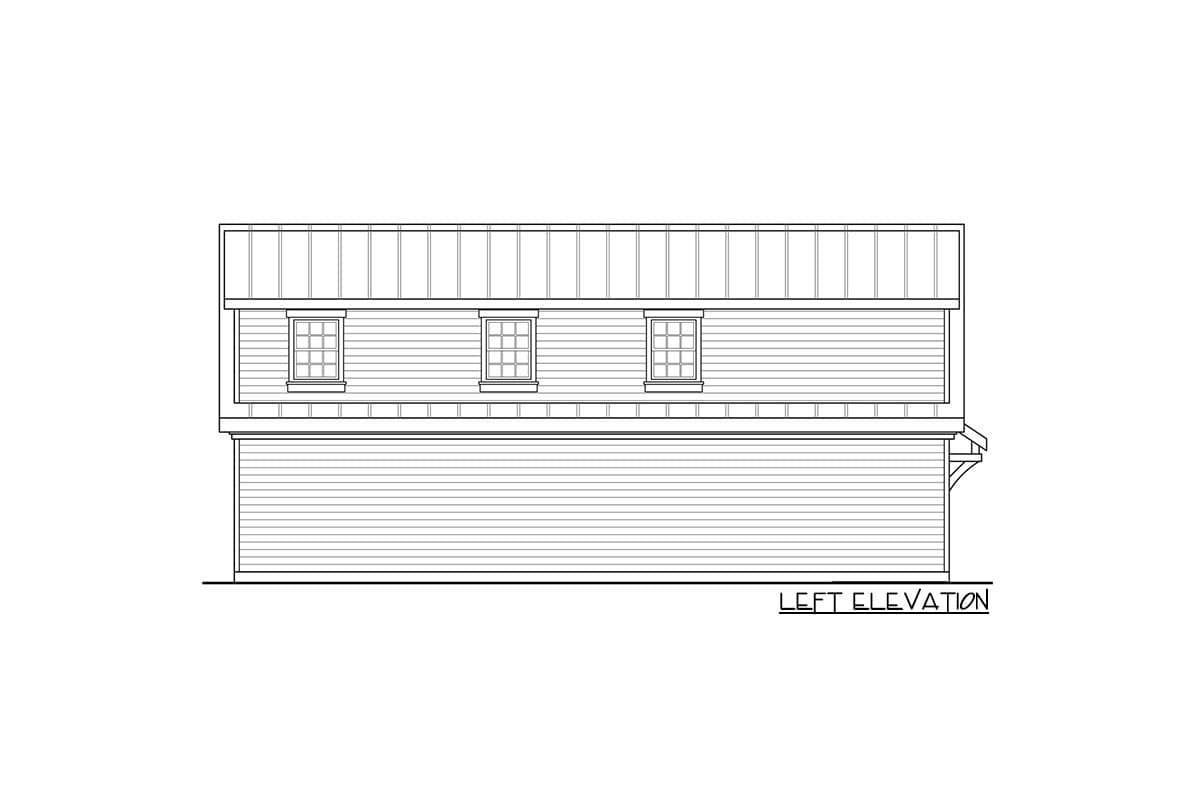

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

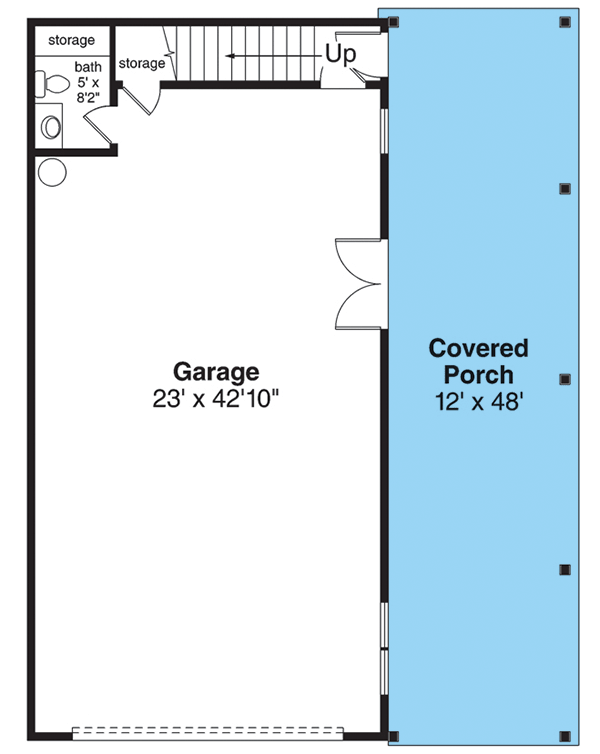

Detached Garage with 4-car Capacity with Loft Above - 720036DA floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

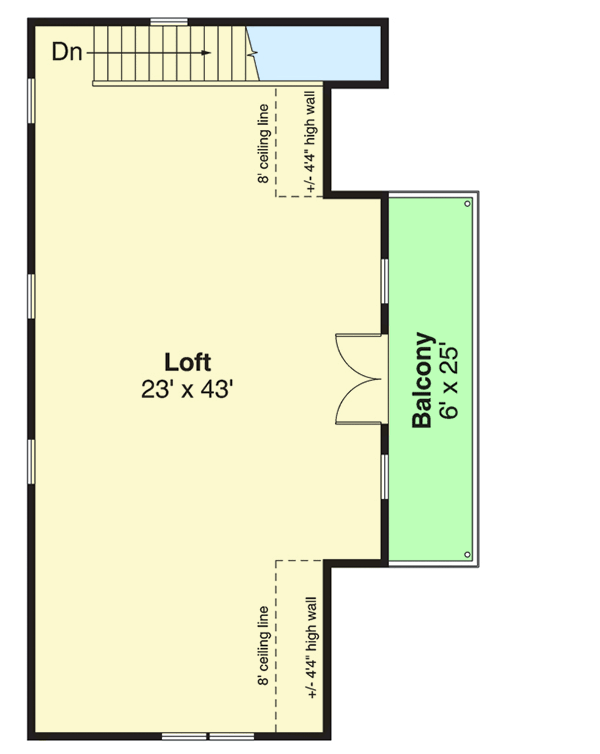

Detached Garage with 4-car Capacity with Loft Above - 720036DA floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,018 sq. ft.
  • 2nd Floor: 1,018 sq. ft.

Beds/Baths

  • Bedrooms:
  • Full bathrooms:
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 48' 0"
  • Max ridge height: 24' 1"

Garage

  • Type: Carport, Detached
  • Area: 1152 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 4 on 12
  • Framing Type: Stick And Truss

Architectural Style

Detached Garage with 4-car Capacity with Loft Above

  • 1,018

    Heated s.f.

  • Beds

  • 0.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF Light $435
  • 5 Sets + PDF $525
  • PDF - Single-Build $820
  • CAD - Single-Build $900
  • CAD - Unlimited Build $990
  • View all purchase option online

About This Plan

  • This detached garage plan can house up to 4 cars if you are willing to park 2 cars deep. The single garage door is 18' wide and 8' tall. If you don't want to park two cars bumper to bumper this design is extra deep and would offer storage or shop space towards the back.
  • In the far-left corner is a half bath with room for a storage closet.
  • The stairs lead up to a large loft space which could be finished to fit your needs as an art studio, recreation room, guest suite or whatever else suites.
  • Related Plans: Get alternate versions with house plans 720034DA and 720035DA.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,018 sq. ft.
  • 2nd Floor: 1,018 sq. ft.

Beds/Baths

  • Bedrooms:
  • Full bathrooms:
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 48' 0"
  • Max ridge height: 24' 1"

Garage

  • Type: Carport, Detached
  • Area: 1152 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Stick And Truss
