Plan 21617DR Craftsman Style Bungalow House Plans

Craftsman Style Bungalow House Plans

Plan 21617DR

  • 2,309

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Three cascading gables and a generous front porch put a welcoming face on this Craftsman style home.
  • Live easily on the main level with all amenities within easy reach.
  • A great room allows ample room to visit or wander to the dining area with built-in seating.
  • A generous kitchen with island enjoys garden-door access to the backyard for summer barbeques.
  • The beautifully appointed master suite includes his and hers closets and bathroom with soaker tub and oversize shower.
  • Guests will appreciate the powder room on the main level as well.
  • The garage transitions to the house by a utility room with laundry and closet.
  • Upstairs, two secondary bedrooms benefit from their own bathroom. A den could be kept as is or used as an additional bedroom.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

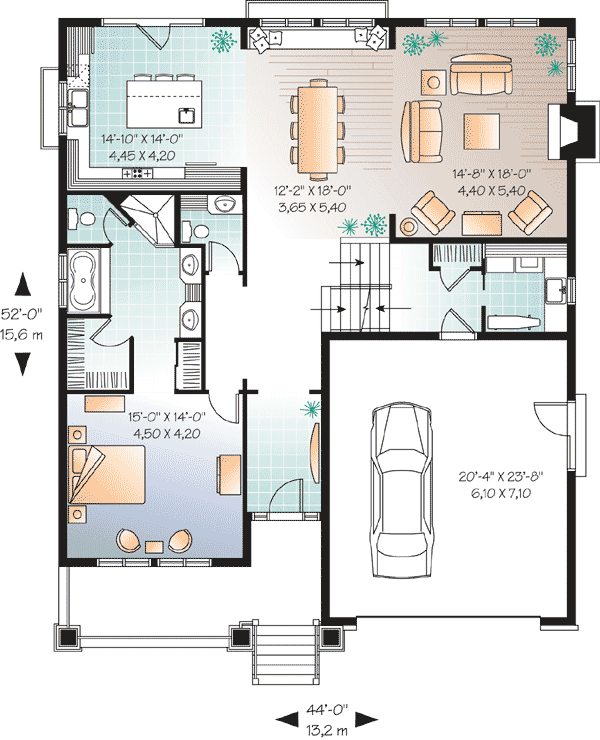

Craftsman Style Bungalow House Plans - 21617DR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

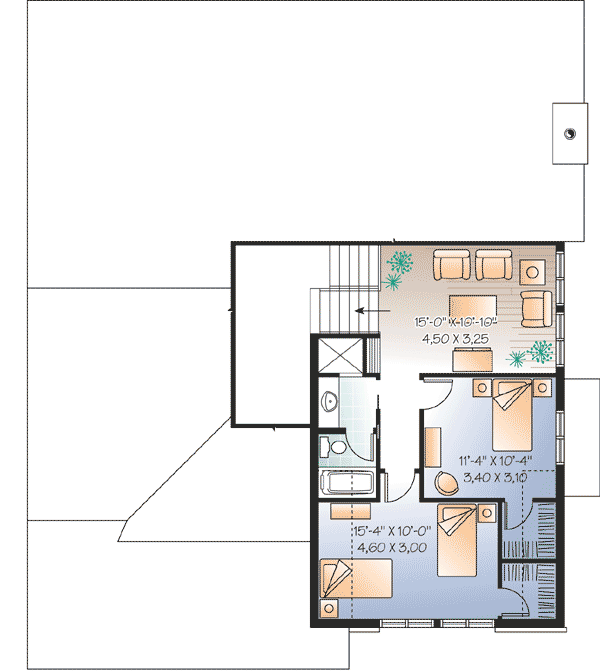

Craftsman Style Bungalow House Plans - 21617DR floor plan - 2nd Floor

Plan details

Architectural Style

Special features

Plan Collections

Craftsman Style Bungalow House Plans

  • 2,309

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Reproducible Set $1,260
  • PDF - Single-Build $1,260
  • 5 Sets + PDF $1,385
  • CAD + PDF - Single-Build $1,860
  • View all purchase option online

About This Plan

  • Three cascading gables and a generous front porch put a welcoming face on this Craftsman style home.
  • Live easily on the main level with all amenities within easy reach.
  • A great room allows ample room to visit or wander to the dining area with built-in seating.
  • A generous kitchen with island enjoys garden-door access to the backyard for summer barbeques.
  • The beautifully appointed master suite includes his and hers closets and bathroom with soaker tub and oversize shower.
  • Guests will appreciate the powder room on the main level as well.
  • The garage transitions to the house by a utility room with laundry and closet.
  • Upstairs, two secondary bedrooms benefit from their own bathroom. A den could be kept as is or used as an additional bedroom.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,309 sq. ft.
  • 1st Floor: 1,621 sq. ft.
  • 2nd Floor: 688 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 44' 0"
  • Depth: 52' 0"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 525 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Truss
