Craftsman with Optional Loft and Flex Room

Plan 42520DB

  • 2,113

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • Designed with flexibility in mind, this narrow lot Craftsman house plan comes with a flex room and an optional loft.
  • The flex room has an elegant tray ceiling and would make a terrific formal dining room.
  • In the kitchen, an angled island and walk-in pantry add extra storage.
  • Two bedrooms on the main floor include the master suite set way in back away from street noise.
  • Bedroom 3 is all by itself on the second floor and you can easily add the optional loft.
  • Related Plan: Get a version without the loft with house plan 42673DB.

This house plan set has the following details:

  • General Notes

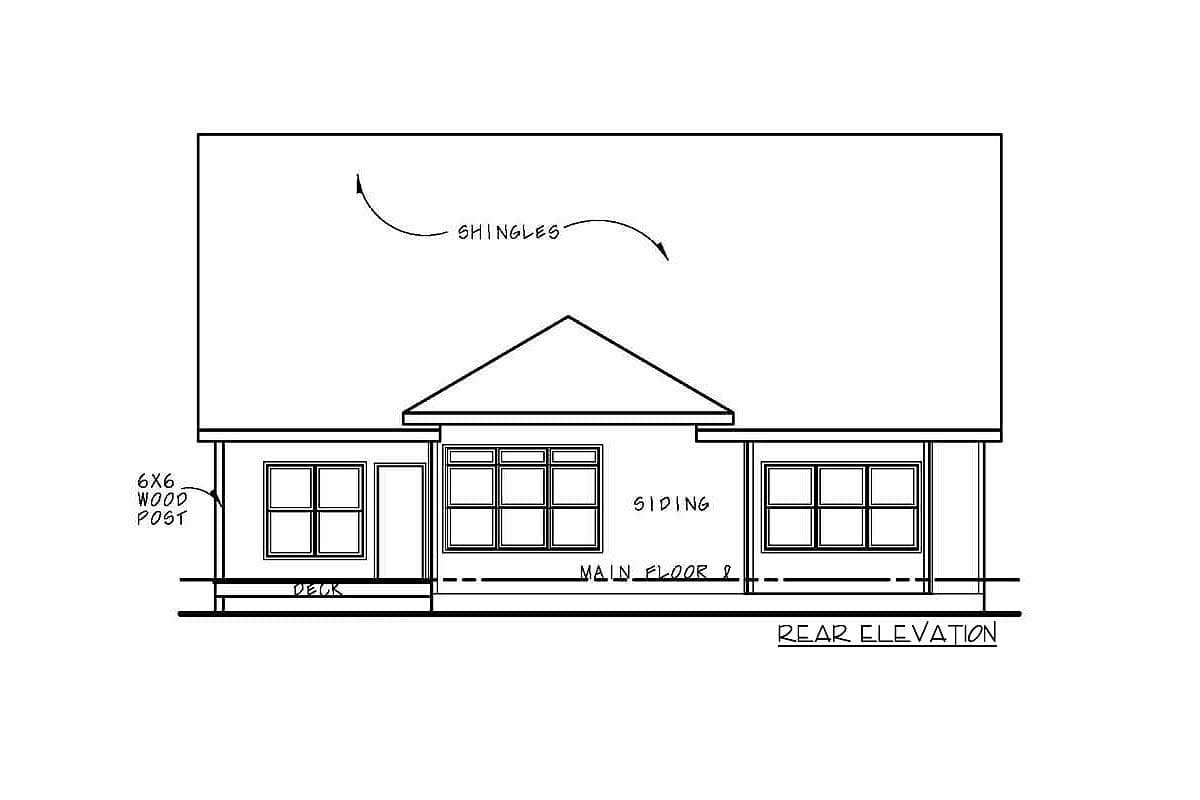

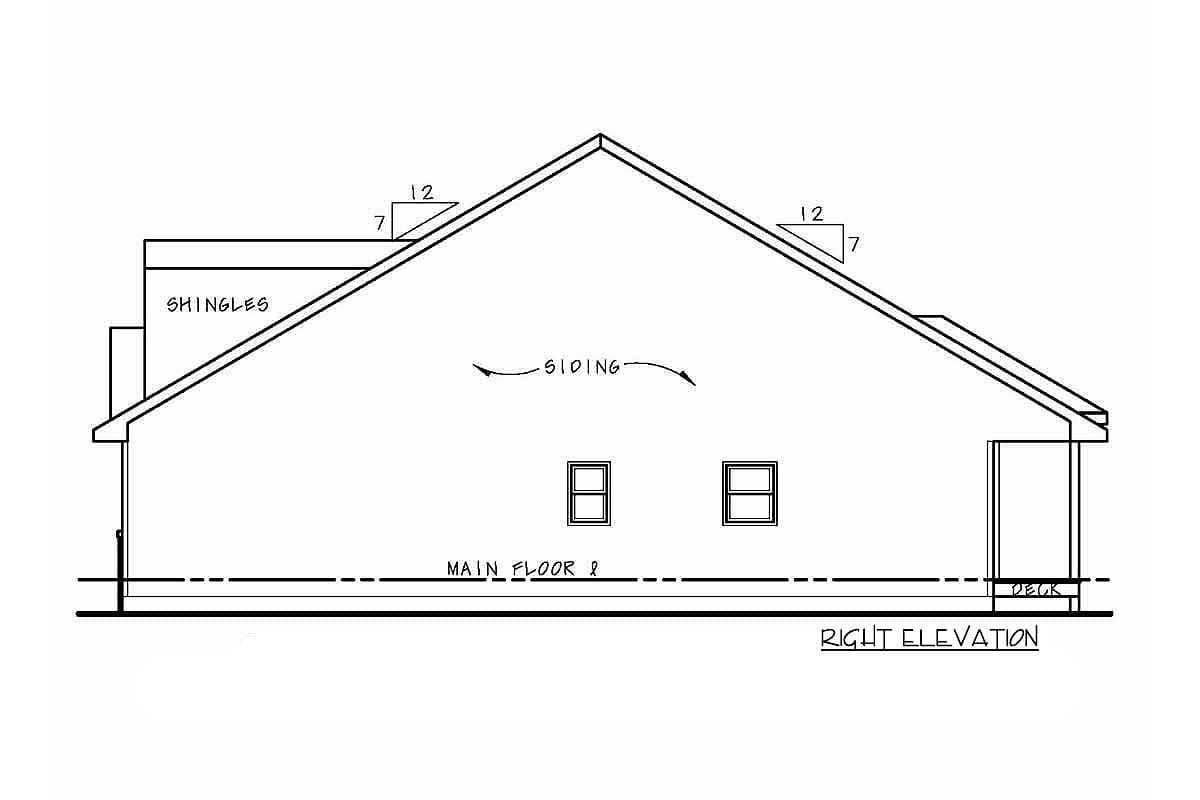

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
*Some plans include cabinet elevations. Please contact us for more information.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

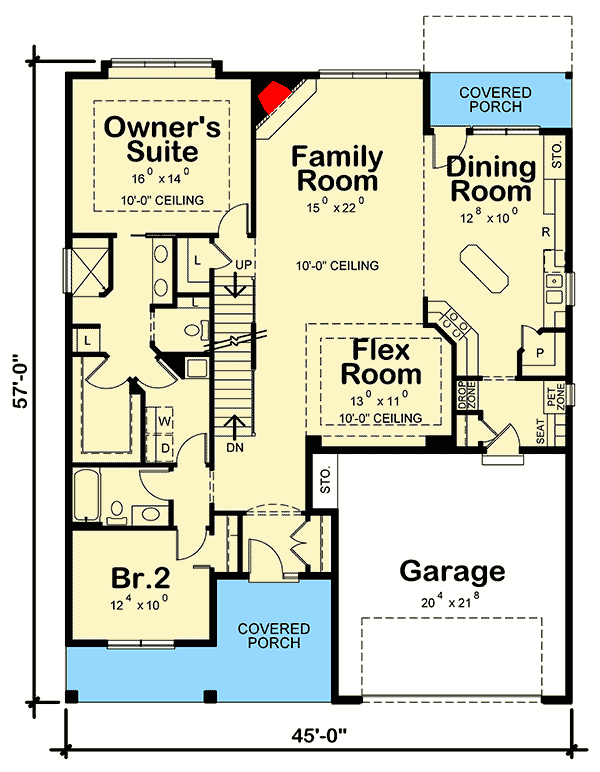

Craftsman with Optional Loft and Flex Room - 42520DB floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Craftsman with Optional Loft and Flex Room - 42520DB floor plan - 2nd Floor

Optional Layout

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Craftsman with Optional Loft and Flex Room - 42520DB floor plan - Optional Layout

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,113 sq. ft.
  • 1st Floor: 1,808 sq. ft.
  • 2nd Floor: 305 sq. ft.
  • Storage: 210 sq. ft.
  • Porch, Rear: 63 sq. ft.
  • Porch, Front: 180 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 45' 0"
  • Depth: 57' 0"
  • Max ridge height: 21' 0"

Garage

  • Type: Attached
  • Area: 479 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 10 on 12

Architectural Style

Special features

Craftsman with Optional Loft and Flex Room

  • 2,113

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set - Digital $685
  • PDF - Single-Build $1,105
  • PDF - Unlimited Build $1,605
  • CAD + PDF - Single-Build $1,830
  • CAD - Unlimited Build $2,330
  • View all purchase option online
