Craftsman with Porches, Pergola and Bonus Room

Plan 55174BR

  • 1,976

    Heated s.f.

  • 3

    Beds

  • 2 - 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • Beautifully arranged, this 3-bed Craftsman-style home plan is super energy efficient featuring 2x6 exterior walls and a host of other energy saving features.
  • The living room is open and bright and features a built-in library, wood burning fireplace and a sweeping stairwell entrance to the upstairs bonus room.
  • The kitchen is large and has an adjoining butler's pantry. The utility room is steps away and can be accessed from the master bath for added convenience.
  • The master bath is superb with its generous size, tray ceiling and built-in library. Best of all, there is a private patio for the owners including a low maintenance pergola for added beauty and comfort.
  • The large rear porch provides lots of room for outdoor entertaining and a breezeway to the two car garage.
  • This plan is suitable for handicap accessibility with many features built in to the design such as extra wide hallways and 3' passage doors. If building to handicap accessible standards, the optional slab foundation is recommended.
  • The bonus room has been pre-planned with an adjoining bath making it the perfect space for a game room or home theatre.
  • Related Plans: Change the pergola to a carport with house plan 55209VR. Get 2 bedroom upstairs and a multi-purpose room with house plan 55194BR. And get a subtly different version with house plan 55222BR.

Plans include the following:

  • Cover sheet with general information
  • Foundation plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation footing details
  • Fully dimensioned floor plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.

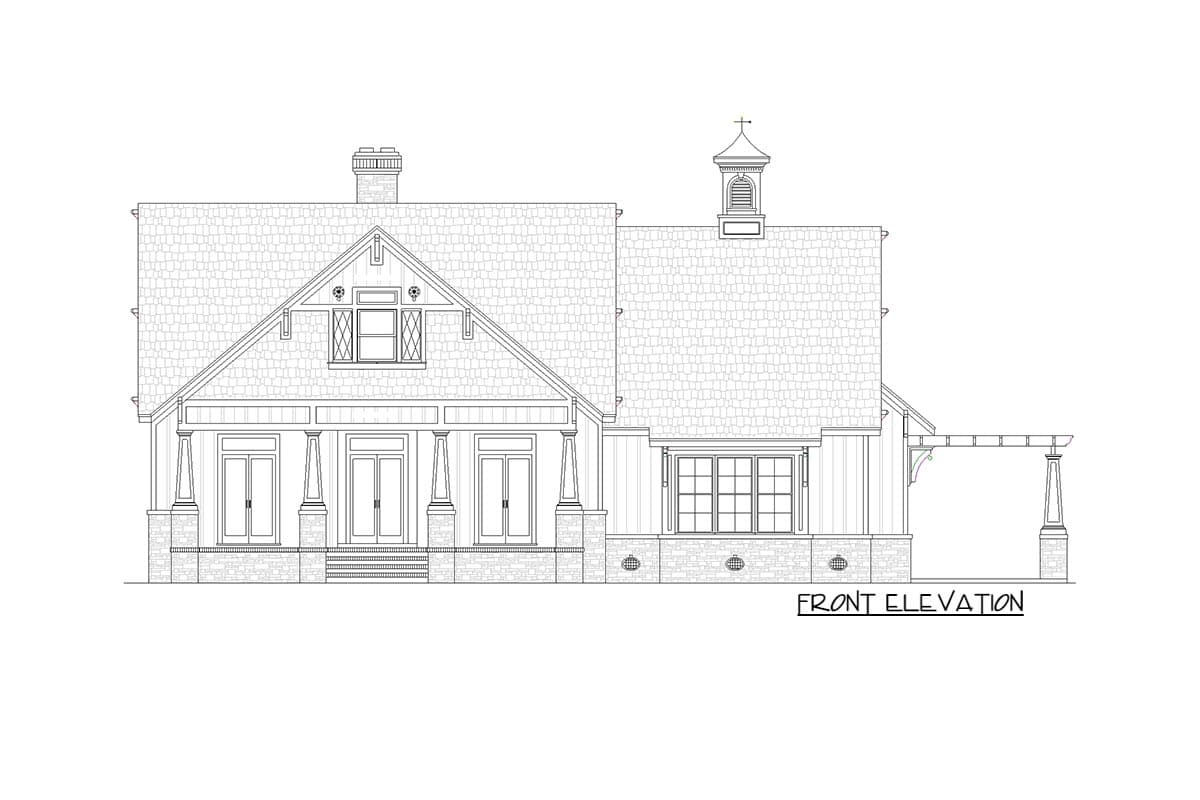

  • Front, rear and side elevations which call out exterior finish materials
  • Building sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction details - schedules for the interior finish, exterior finish, electrical schedule

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Energy calculations



Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

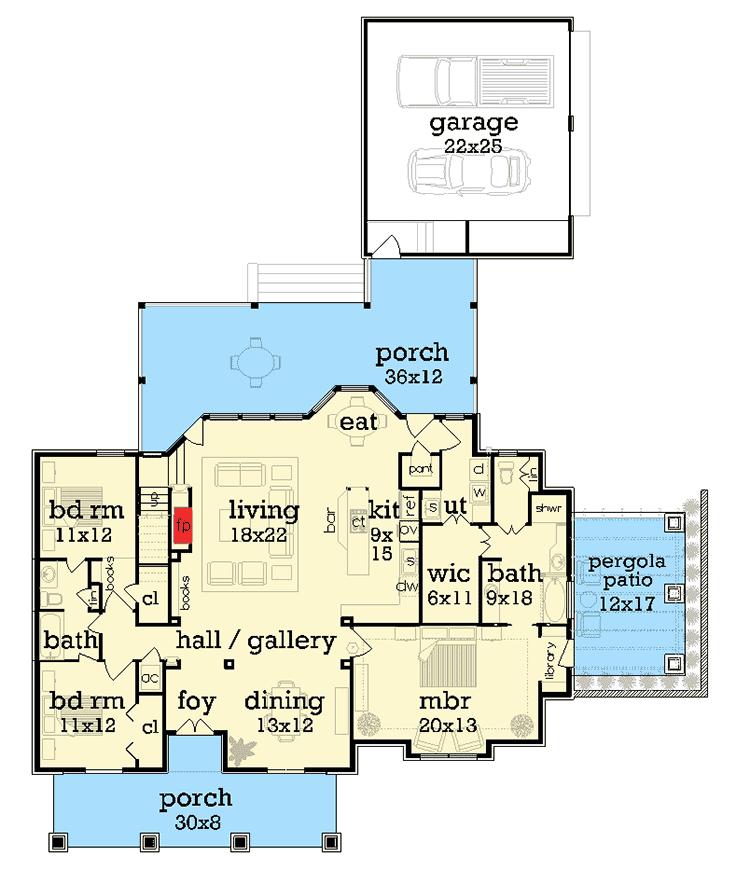

Craftsman with Porches, Pergola and Bonus Room - 55174BR floor plan - Main Level

Bonus

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

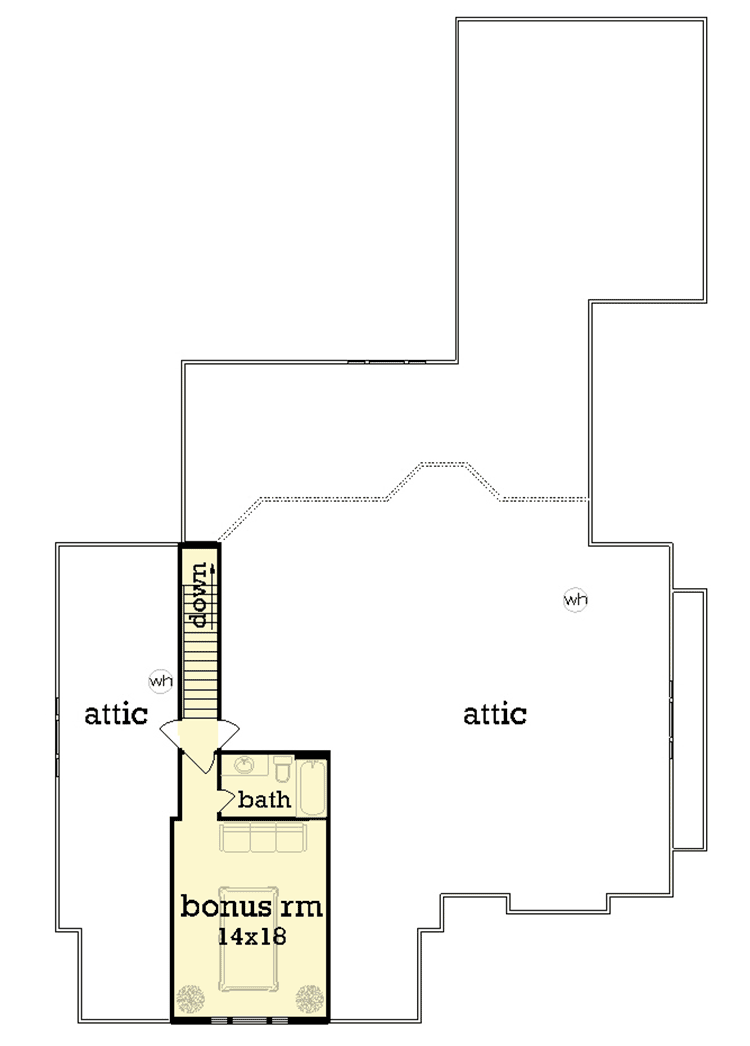

Craftsman with Porches, Pergola and Bonus Room - 55174BR floor plan - Bonus

Unfinished Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

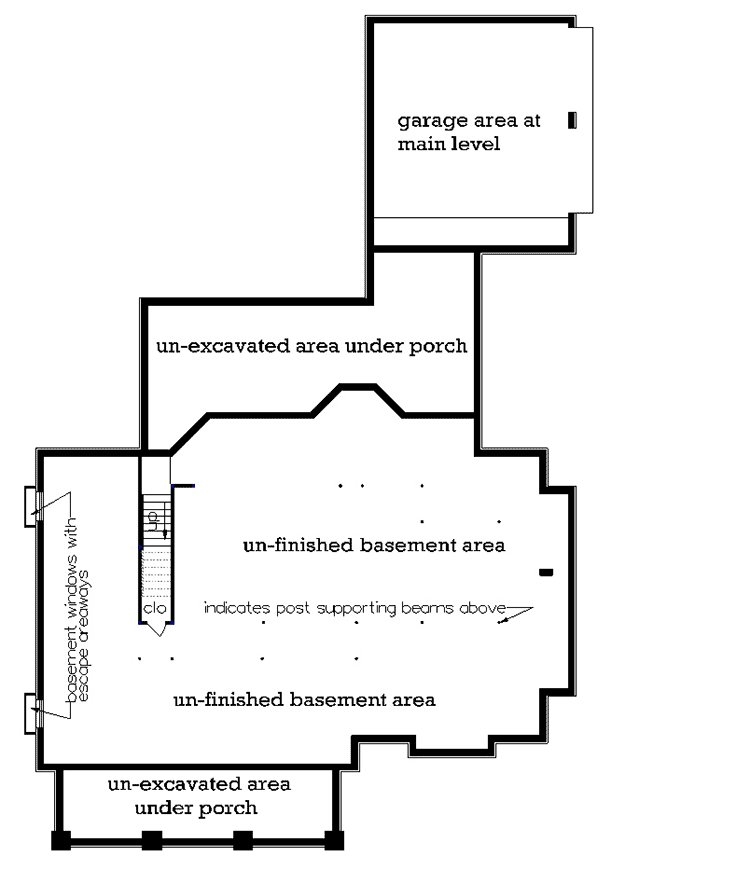

Craftsman with Porches, Pergola and Bonus Room - 55174BR floor plan - Unfinished Basement

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,976 sq. ft.
  • 1st Floor: 1,976 sq. ft.
  • Porch, Rear: 491 sq. ft.
  • Porch, Front: 264 sq. ft.
  • Bonus: 333 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2 or 3

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 57' 0"
  • Depth: 88' 6"
  • Max ridge height: 26' 0"

Garage

  • Type: Attached
  • Area: 550 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Craftsman with Porches, Pergola and Bonus Room

  • 1,976

    Heated s.f.

  • 3

    Beds

  • 2 - 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,000
  • 4 Sets $1,085
  • 5 Sets $1,130
  • 8 Sets $1,240
  • 5 Sets + PDF $1,255
  • View all purchase option online

About This Plan

  • Beautifully arranged, this 3-bed Craftsman-style home plan is super energy efficient featuring 2x6 exterior walls and a host of other energy saving features.
  • The living room is open and bright and features a built-in library, wood burning fireplace and a sweeping stairwell entrance to the upstairs bonus room.
  • The kitchen is large and has an adjoining butler's pantry. The utility room is steps away and can be accessed from the master bath for added convenience.
  • The master bath is superb with its generous size, tray ceiling and built-in library. Best of all, there is a private patio for the owners including a low maintenance pergola for added beauty and comfort.
  • The large rear porch provides lots of room for outdoor entertaining and a breezeway to the two car garage.
  • This plan is suitable for handicap accessibility with many features built in to the design such as extra wide hallways and 3' passage doors. If building to handicap accessible standards, the optional slab foundation is recommended.
  • The bonus room has been pre-planned with an adjoining bath making it the perfect space for a game room or home theatre.
  • Related Plans: Change the pergola to a carport with house plan 55209VR. Get 2 bedroom upstairs and a multi-purpose room with house plan 55194BR. And get a subtly different version with house plan 55222BR.
